GE DS200TCQCG1AHD Retrofit-Compatible I/O Board for Legacy Turbine Control Systems

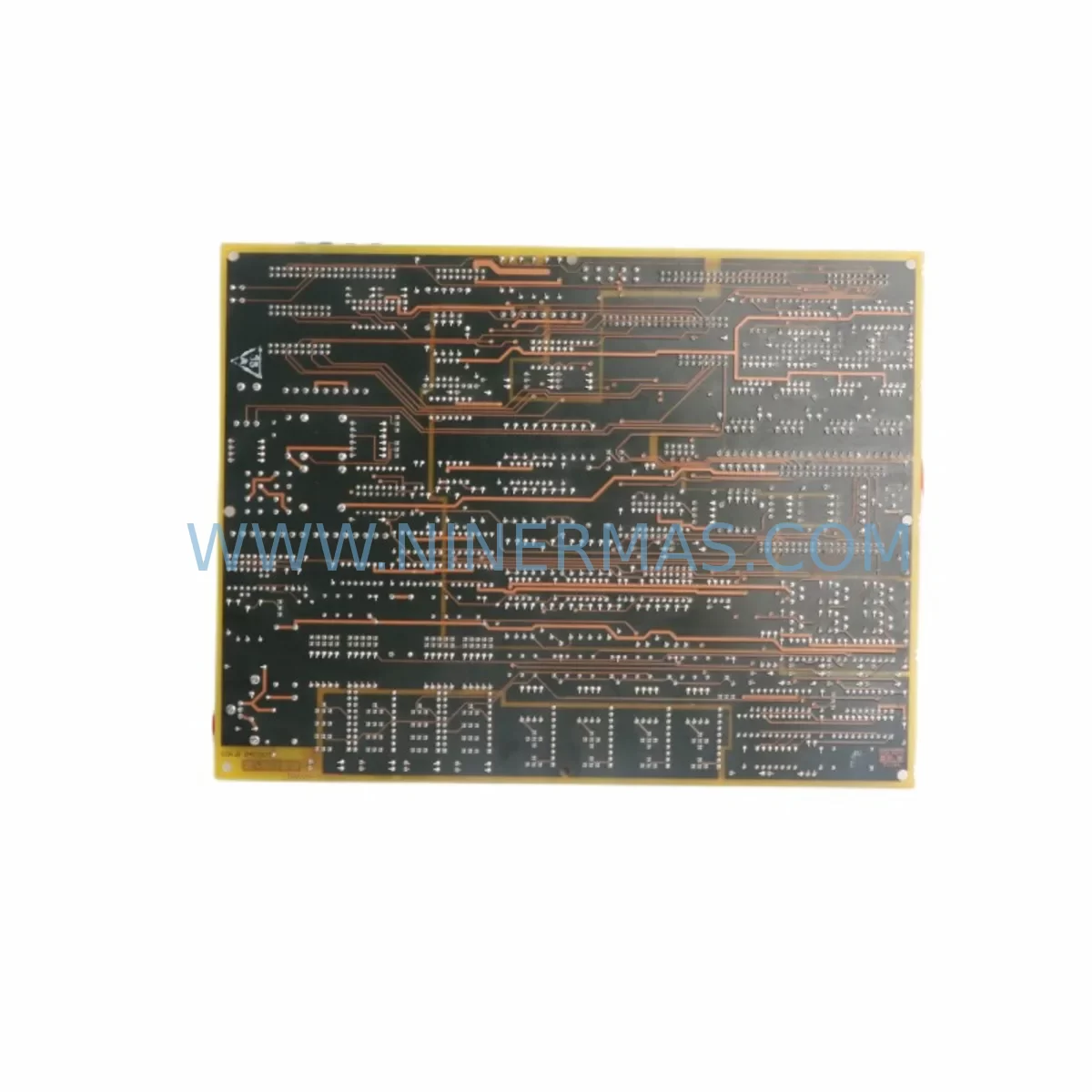

The GE DS200TCQCG1AHD is a retrofit-compatible I/O terminal board engineered for the GE Mark V turbine control platform, one of the most widely deployed distributed control architectures in gas and steam turbine applications across power generation, oil & gas, and heavy process industries. As original GE Mark V hardware reaches end-of-life and OEM support windows close, the DS200TCQCG1AHD has become a critical spare part for facilities committed to extending the operational life of their existing control infrastructure without undertaking a full DCS migration.

This board serves as a direct form-fit-function replacement for aging or failed TCQC-series I/O cards within the Mark V panel. It interfaces with the Mark V’s internal backplane architecture, maintaining signal integrity across analog and digital I/O channels used for turbine sequencing, protective relay logic, and process variable monitoring. Facilities running legacy Mark V panels — including R, S, T, C, and D processor configurations — can integrate the DS200TCQCG1AHD without modifying existing terminal wiring, backplane slot assignments, or application software logic.

Every unit supplied by NINERMAS undergoes pre-shipment functional testing against OEM reference parameters, covering channel-level I/O verification, power rail integrity, and communication handshake with the Mark V backplane. A 12-month warranty is included as standard, with documented test records available upon request for regulated site audits.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TCQCG1AHD within an operational Mark V turbine control panel requires a structured approach that accounts for the interdependencies between I/O boards, processor cards, power distribution, and field instrumentation. A successful retrofit begins with a full panel audit: identifying the current slot map, confirming the processor type (R, S, T, C, or D), and cross-referencing the existing DS200TCQAG1A terminal board assignments against the new card’s I/O channel layout.

Power supply capacity is a frequent oversight in Mark V card replacements. The DS200SDCIG1AFB DC power supply board must be verified to deliver adequate current headroom for the replacement card alongside all co-resident boards in the same rack. Insufficient power margin can cause intermittent faults that are difficult to diagnose without a full load test. Where the existing PSU is marginal, a parallel supply arrangement or PSU upgrade should be planned before the card swap.

Terminal wiring continuity is equally critical. The DS200TCQCG1AHD connects to field instruments — thermocouples, RTDs, 4–20 mA transmitters, and discrete I/O — through the panel’s terminal block infrastructure. Before removal of the failed card, all field wiring should be photographed and labeled against the as-built drawings. Re-termination should follow OEM torque specifications to prevent high-resistance joints that degrade signal accuracy over time.

For facilities also upgrading their HMI layer, the card swap is an appropriate time to audit the DS200DSPCH1A digital signal processor board and the DS200IOCAG1A I/O controller card, both of which interact with the TCQC board’s data streams. If the site is running a CIMPLICITY or iFIX HMI connected to the Mark V, screen tag mappings should be validated post-swap to confirm that analog input scaling and alarm setpoints remain consistent with the replacement card’s channel configuration.

Communication link integrity between the Mark V panel and upstream SCADA or DCS systems should be verified using the DS200SIOCG1A serial I/O communications board. In older installations where the Mark V communicates via RS-232 or RS-485 to a plant historian or DCS gateway, the communication handshake parameters — baud rate, parity, stop bits — must be confirmed unchanged after the card replacement. Where a protocol migration from legacy serial to Modbus TCP or PROFIBUS is planned as part of a broader control system modernization, the DS200TCQCG1AHD swap provides a natural intervention point to stage that upgrade without disrupting the core turbine protection logic.

Backplane slot integrity should be inspected during the card exchange. The Mark V backplane connector pins are susceptible to oxidation and mechanical wear in high-vibration turbine environments. Cleaning the backplane connector with appropriate contact cleaner and inspecting for bent pins before seating the replacement DS200TCQCG1AHD significantly reduces the risk of intermittent contact faults post-commissioning. The DS200TBCIH1A terminal board and DS200TCEAG1A excitation control board, if present in the same panel, should also be inspected for connector condition during the same maintenance window.

For sites expanding I/O capacity as part of a broader control upgrade, the DS200EXPSG1A expansion board provides additional I/O slots within the existing Mark V rack architecture, deferring the need for a full rack replacement. This approach is particularly effective in facilities where the turbine control panel is physically constrained within an existing control room or skid-mounted enclosure where installation space for a new rack is unavailable.

Downtime Control During System Migration

Minimizing turbine downtime during a Mark V card replacement requires pre-staging all replacement hardware, tools, and documentation before the maintenance window opens. The DS200TCQCG1AHD should be bench-tested and confirmed functional before the turbine is taken offline. NINERMAS supplies each unit with a pre-shipment test report, allowing site engineers to validate the card against OEM specifications before the planned outage date.

Application program backup is a non-negotiable pre-condition. The existing Mark V application code — including sequence logic, protective relay setpoints, and I/O scaling parameters — must be archived using the GE Mark V programming interface before any hardware is disturbed. In most like-for-like DS200TCQCG1AHD replacements, no program re-download is required, but having a verified backup eliminates recovery risk if an unexpected configuration discrepancy is encountered during commissioning.

Field control continuity during the swap window can be maintained by coordinating with the plant’s distributed control system to hold last-known-good output states on affected loops. Where the turbine protection system permits, placing the affected I/O channels in manual hold before card removal prevents spurious trips or process upsets during the physical exchange. Post-installation, channels should be brought back to automatic control sequentially, with each channel verified against its expected process value before the next is released.

Commissioning verification should include a full I/O loop check on all channels served by the replacement DS200TCQCG1AHD, confirming signal range, alarm response, and communication to the HMI and historian. Where the DS200TCDAG1A analog I/O board is co-located in the same rack, its channel assignments should be cross-checked simultaneously to confirm no address conflicts were introduced during the card swap. Final sign-off should include a witnessed functional test of the turbine’s protective trip logic before returning the unit to service.

Retrofit Support FAQ

Q1: Is the DS200TCQCG1AHD a direct drop-in replacement for other TCQC-series variants?
The DS200TCQCG1AHD is designed as a form-fit-function replacement within the GE Mark V DS200 series. Compatibility with specific TCQC suffix variants (e.g., G1A, G1B, G1C) depends on the hardware revision level of the target panel. NINERMAS recommends providing your panel’s full board list and slot map for confirmation before ordering. In most cases, the AHD hardware revision is backward-compatible with earlier suffix variants within the same Mark V generation.

Q2: What pre-shipment testing is performed, and can I receive documentation?
Every DS200TCQCG1AHD unit supplied by NINERMAS undergoes full functional testing covering I/O channel verification, power rail integrity, and backplane communication handshake. A written test report is available upon request and can be provided prior to shipment for site acceptance review. Units are shipped in anti-static packaging with handling documentation to preserve board integrity during transit.

Q3: What is the warranty coverage and what does it include?
All DS200TCQCG1AHD units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions consistent with GE Mark V panel environments. Warranty claims are supported by NINERMAS’s technical team, with replacement or repair options available depending on fault diagnosis. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q4: How quickly can the DS200TCQCG1AHD be delivered for an emergency outage?
NINERMAS maintains inventory of DS200 series Mark V spare parts to support urgent maintenance requirements. Priority dispatch is available for confirmed emergency orders, with global express shipping to most industrial regions. Lead time is confirmed at the point of order based on current stock status. For planned maintenance windows, NINERMAS recommends confirming availability and reserving stock at least 2–4 weeks in advance to ensure pre-shipment testing and documentation can be completed before your scheduled outage date.
