GE DS200TCQAG1BHF Safety-Reliable Analog I/O for Critical Control

GE DS200TCQAG1BHF Safety-Reliable Analog I/O for Critical Control Sites

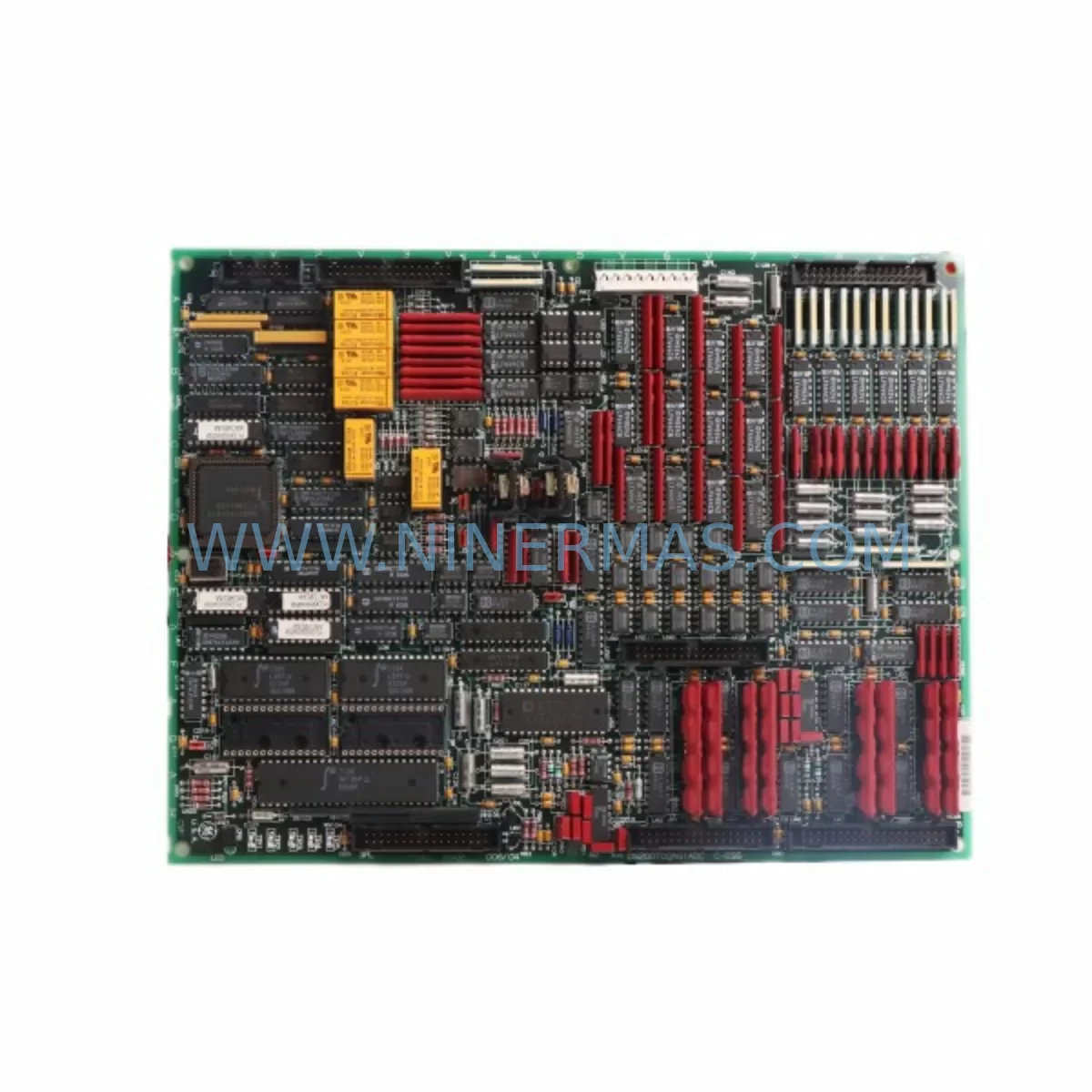

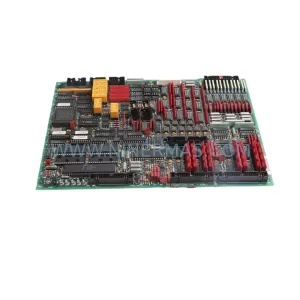

The GE DS200TCQAG1BHF is a ruggedized analog input/output module engineered for the GE Mark V and Mark VI turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas processing, and heavy industrial facilities worldwide. Designed to operate reliably in environments characterized by high electromagnetic interference, thermal cycling, mechanical vibration, and airborne contaminants, the DS200TCQAG1BHF delivers the signal integrity and operational continuity that safety-critical control loops demand.

At NINERMAS, we supply the DS200TCQAG1BHF as a tested, warranted spare part backed by 12 months of quality coverage — supporting maintenance engineers and reliability teams who cannot afford unplanned downtime in continuous production environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a GE Mark V or Mark VI control cabinet, the DS200TCQAG1BHF does not operate in isolation — it is one node in a tightly integrated safety and control architecture where every component’s reliability directly affects the integrity of the entire system. Signal drift or module failure at the analog I/O layer can cascade into turbine trip events, false interlock activations, or — more critically — missed safety shutdowns. Understanding the surrounding component ecosystem is essential for any maintenance or reliability strategy.

The DS200TCQAG1BHF interfaces directly with the GE DS200TCQBG1AAA terminal board, which provides the field wiring termination points for analog sensors including thermocouples, RTDs, and 4–20 mA transmitters. Maintaining a healthy DS200TCQBG1AAA alongside the TCQAG1BHF ensures that field signal conditioning remains stable and that connector oxidation or terminal degradation does not introduce measurement error into the control loop.

Power supply integrity is equally critical. The GE DS200TCPSG1A power supply module feeds the TCQA rack, and any ripple, sag, or transient on the DC bus can directly affect analog conversion accuracy. In facilities with heavy motor starting loads or frequent switching events on the same power distribution segment, pairing the DS200TCQAG1BHF with a well-maintained DS200TCPSG1A — and considering surge suppression at the cabinet entry point — significantly reduces the risk of spurious analog readings that could trigger nuisance trips.

Communication integrity between the analog I/O layer and the main processor is maintained through the GE DS200SLCCG1AFG serial link communication card, which handles the high-speed data exchange between I/O modules and the Mark V core processor. A degraded SLCCG1AFG can introduce latency or data corruption that manifests as erratic process variable readings — a condition that is often misdiagnosed as a field instrument fault before the control card is identified as the root cause.

For facilities operating Mark VI architecture, the GE IS200VCMIH2C VME communication module and the GE IS200VCRCH1BBB relay output module are common cabinet companions. The VCMIH2C manages the Ethernet-based I/O communication backbone, while the VCRCH1BBB handles discrete relay outputs for trip and alarm circuits. Ensuring these modules are in verified condition alongside the DS200TCQAG1BHF creates a coherent, low-risk analog-to-digital-to-relay signal chain from field sensor to final control element.

In high-vibration turbine enclosures, the GE DS200TCEAG1BHF — a companion I/O module in the TCQA family — is often installed in adjacent rack slots. Cross-referencing the health of both modules during scheduled maintenance intervals prevents the common scenario where one module’s degradation masks or amplifies faults attributed to the other. Similarly, the GE DS200TCDAG1AHF digital I/O module, which handles discrete input signals from limit switches and proximity sensors, should be inspected as part of any analog I/O maintenance event, since digital and analog signal paths share the same cabinet backplane and power distribution.

Finally, for facilities where the Mark V system interfaces with a SCADA or DCS historian layer, the GE IS200EPSMG1A Ethernet power supply module and associated network interface cards should be included in the spare parts program. Communication anomalies at the network layer are a frequent source of false process alarms that can be incorrectly attributed to analog I/O module faults — making a holistic cabinet spare parts strategy the most effective risk reduction approach.

Critical Industrial Safety Applications

The DS200TCQAG1BHF is deployed across a broad range of safety-critical industrial environments where control system reliability is directly linked to personnel safety, environmental protection, and asset integrity.

Power Generation: In gas turbine and steam turbine power plants, the DS200TCQAG1BHF processes analog signals from exhaust gas temperature thermocouples, vibration probes, and fuel flow transmitters. Accurate, drift-free analog measurement is essential for turbine protection systems that must respond within milliseconds to over-temperature or over-speed conditions. A failed or degraded analog I/O module in this context can delay a protective trip, with consequences ranging from turbine damage to catastrophic failure.

Oil & Gas Processing: In upstream and midstream facilities — compressor stations, gas processing plants, and pipeline pump stations — the DS200TCQAG1BHF supports the analog signal infrastructure for pressure, temperature, and flow measurement loops that feed into emergency shutdown (ESD) systems. The module’s ruggedized design and conformal coating make it suitable for installations in classified hazardous areas where humidity, hydrocarbon vapors, and temperature extremes are routine operating conditions.

Petrochemical and Refinery Operations: Continuous process plants operating fluid catalytic crackers, distillation columns, and reactor systems rely on uninterrupted analog signal integrity to maintain safe operating envelopes. The DS200TCQAG1BHF’s low signal drift characteristics are particularly valued in these applications, where a 1% measurement error in a critical temperature or pressure loop can trigger a process safety event or force an unplanned unit shutdown.

Mining and Mineral Processing: In mining operations — particularly in underground environments and surface processing facilities — control systems face extreme dust loading, vibration from blasting and heavy machinery, and wide ambient temperature swings. The DS200TCQAG1BHF’s ruggedized construction provides the mechanical and environmental resilience needed to maintain reliable analog I/O performance in these demanding conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use analog I/O modules to monitor and control chemical dosing pumps, aeration blowers, and filtration systems. In these applications, the DS200TCQAG1BHF supports the continuous measurement loops that ensure treated water quality meets regulatory standards — making module reliability a public safety consideration as well as an operational one.

Metallurgy and Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference from high-current switching equipment. The DS200TCQAG1BHF’s EMI-resistant design allows it to maintain signal integrity in these environments, supporting the analog measurement loops that control furnace temperature, casting speed, and cooling water flow.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DS200TCQAG1BHF?
The 12-month warranty covers manufacturing defects, component failures, and functional performance issues identified under normal operating conditions. If the module fails to perform to its specified analog I/O functions within the warranty period, NINERMAS will provide a replacement unit. The warranty period begins from the date of shipment and applies to all DS200TCQAG1BHF units supplied by NINERMAS.

Q2: What pre-shipment testing is performed on the DS200TCQAG1BHF?
Every DS200TCQAG1BHF unit undergoes functional testing prior to dispatch. Testing includes verification of analog input signal conditioning, output signal generation, communication interface integrity, and visual inspection for physical damage, connector condition, and conformal coating integrity. Units that do not pass functional testing are not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the DS200TCQAG1BHF compatible with both Mark V and Mark VI control systems?
The DS200TCQAG1BHF is designed for the GE Mark V TCQA I/O rack architecture. Compatibility with Mark VI systems depends on the specific rack and backplane configuration in use. NINERMAS recommends confirming the target rack model and slot assignment before ordering. Our technical team can assist with compatibility verification based on your cabinet configuration and existing module inventory.

Q4: Can NINERMAS support long-term spare parts supply for the DS200TCQAG1BHF?
Yes. NINERMAS maintains ongoing inventory of the DS200TCQAG1BHF and related GE Mark V/VI spare parts to support long-term maintenance programs. For facilities operating aging GE turbine control systems, we recommend establishing a spare parts agreement that covers critical analog I/O modules, power supply cards, and communication modules to ensure rapid replacement availability when unplanned failures occur. Contact our team to discuss stocking arrangements tailored to your maintenance schedule and installed base.
