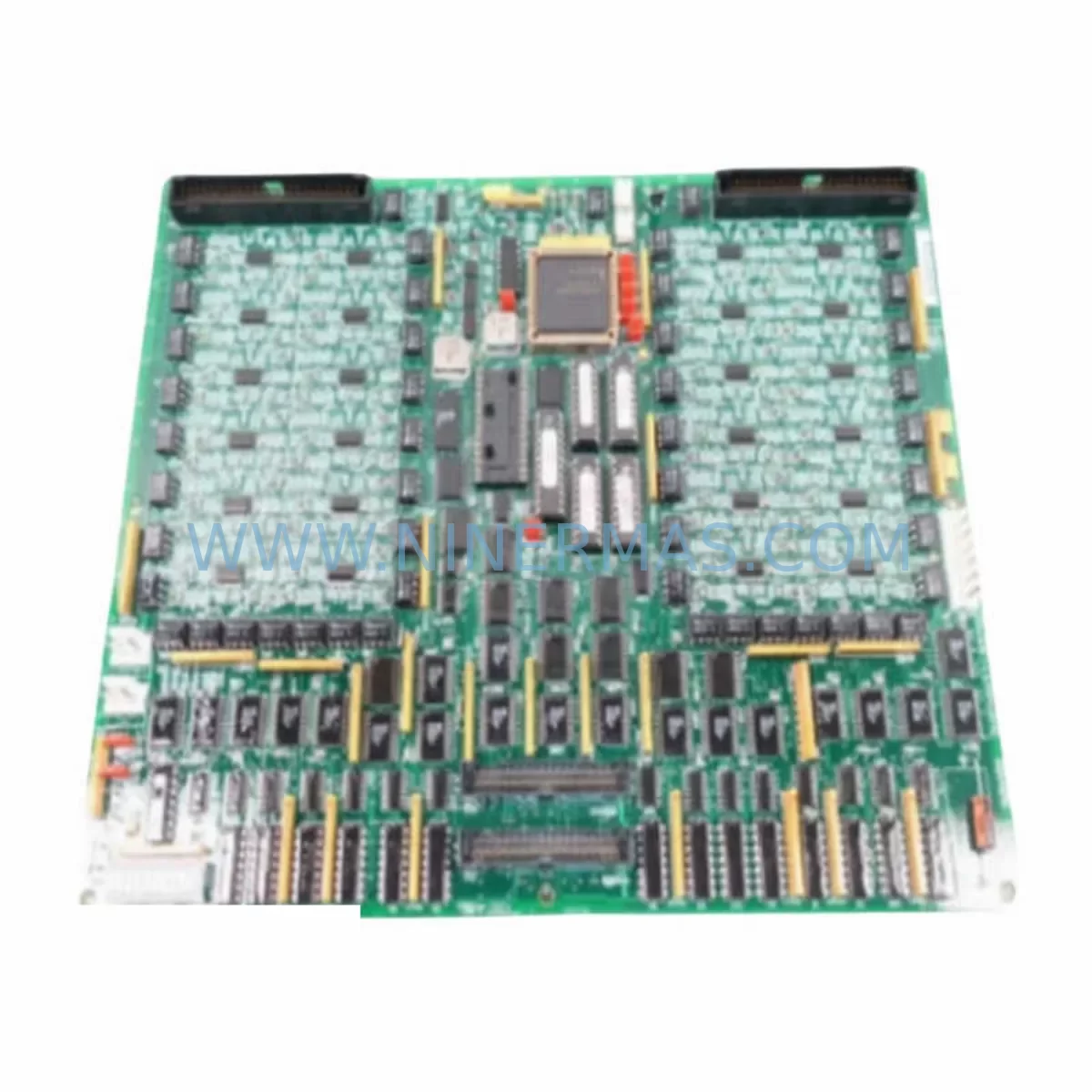

GE DS200TCDA-HBHD Retrofit-Compatible Turbine Control

GE DS200TCDA-HBHD Retrofit-Compatible Turbine Control for Legacy Mark V Systems

The GE DS200TCDA-HBHD is a critical turbine control module originally designed for the GE Mark V Turbine Control System — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and petrochemical processing. As the Mark V platform approaches end-of-life and OEM support becomes increasingly limited, plant engineers and reliability teams are actively seeking retrofit-compatible replacements that preserve existing wiring infrastructure, maintain program logic continuity, and eliminate the need for full panel redesign.

NINERMAS supplies the DS200TCDA-HBHD as a verified retrofit-compatible spare, pre-tested prior to shipment and backed by a 12-month warranty. Each unit undergoes functional verification against original GE Mark V specifications, ensuring that customers receive a module ready for installation with minimal commissioning time and maximum confidence in field performance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TCDA-HBHD within an operational Mark V turbine control panel requires careful pre-planning across multiple system layers. Before the replacement module arrives on site, engineers should audit the existing card cage configuration, confirm available backplane slot assignments, and document the current DIP switch and jumper settings on the failed board. The DS200TCDA-HBHD interfaces directly with the Mark V , , and controller boards — typically the DS200DSPX or DS200SDCC — and any mismatch in slot addressing can prevent the system from recognising the replacement module during startup.

Power integrity is a prerequisite for a successful swap. The Mark V power supply module — commonly the DS200VPRO or DS200VPRO-series — must be verified to deliver stable +5 VDC and ±15 VDC rails before the new DS200TCDA-HBHD is seated. A degraded power supply is frequently the root cause of repeated TCDA failures, and replacing the control module without addressing upstream power issues will result in premature failure of the new unit.

Terminal wiring connected to the TCDA board should be photographed and labelled before removal. The DS200TCDA-HBHD connects to the turbine’s thermocouple inputs, speed pickup signals, and diagnostic feedback loops. Incorrect reconnection of these signal wires — particularly the differential thermocouple pairs — can introduce measurement errors that affect turbine protection logic. Where the original wiring harness shows signs of insulation degradation, replacement with screened, twisted-pair cable is strongly recommended before the new module is commissioned.

For plants running the Mark V alongside legacy I/O expansion modules such as the DS200IOCB or DS200DIOB, it is important to confirm that the ARCNET communication bus remains intact and that all node addresses are correctly assigned after the module swap. The Mark V ARCNET topology is sensitive to termination resistance and cable length; any disruption introduced during the card replacement — such as a loose BNC connector or a damaged coaxial segment — can cause intermittent communication faults that are difficult to diagnose under time pressure.

Plants that have integrated the Mark V with a Modbus RTU or Modbus TCP gateway for SCADA connectivity should verify that the communication link between the Mark V core controller and the gateway device remains active after the TCDA replacement. In some configurations, the DS200TCDA-HBHD participates in the internal diagnostic data exchange that feeds the communication gateway, and a module swap may require a controlled restart of the Mark V communication stack to re-establish the SCADA data path.

Where the turbine control panel also houses a DS200EXPG expansion board, a DS200TCCB communications controller, or a DS200ADCA analog-to-digital converter module, these adjacent boards should be inspected for signs of heat stress or connector oxidation during the same maintenance window. Addressing multiple marginal components in a single planned outage is significantly more cost-effective than scheduling repeated unplanned shutdowns.

Downtime Control During System Migration

Minimising turbine downtime during a DS200TCDA-HBHD replacement begins with advance preparation. NINERMAS recommends that customers confirm stock availability and initiate the order as soon as a TCDA fault is identified — whether through a Mark V diagnostic alarm, a core fault indication, or a physical inspection revealing board damage. Having the replacement module on-site before the planned maintenance window eliminates the most common source of extended outage: waiting for parts.

The Mark V system stores its application program in non-volatile memory within the , , and controller boards, not in the TCDA module itself. This means that replacing the DS200TCDA-HBHD does not require re-loading the turbine control application, and the existing protection logic, setpoints, and sequence programs remain intact. Engineers should nonetheless perform a full backup of the Mark V configuration — including the toolbox project file and any site-specific calibration data — before beginning the swap, as a precaution against unexpected system behaviour during the first restart.

During the physical replacement, the Mark V panel should be de-energised in accordance with the site’s lockout/tagout procedure. The DS200TCDA-HBHD can typically be removed and replaced within 15 to 30 minutes by a technician familiar with the Mark V card cage layout. After re-energisation, the Mark V diagnostic display should be monitored for any residual fault codes, and the turbine protection functions — overspeed, exhaust temperature spread, vibration — should be verified against the original setpoints before returning the unit to service.

For sites where continuous operation is critical and a hot-standby Mark V panel is available, the DS200TCDA-HBHD replacement can be staged on the standby panel first, allowing full functional verification before the switchover. This approach reduces the risk window to the duration of the panel transfer rather than the full replacement and commissioning cycle.

Retrofit Support FAQ

Q1: Is the DS200TCDA-HBHD supplied by NINERMAS a direct replacement for the original GE part?
Yes. The DS200TCDA-HBHD supplied by NINERMAS is a retrofit-compatible replacement verified against original GE Mark V specifications. It is designed to install in the same backplane slot, use the same wiring connections, and operate within the same Mark V control architecture as the original module. Each unit is functionally tested before shipment.

Q2: Will I need to reload the turbine control program after replacing the DS200TCDA-HBHD?
No. The Mark V application program resides in the , , and controller boards, not in the TCDA module. Replacing the DS200TCDA-HBHD does not erase or affect the existing turbine control logic. However, NINERMAS recommends performing a full configuration backup before any module replacement as standard practice.

Q3: What checks should be performed after installing the replacement DS200TCDA-HBHD?
After installation, verify that the Mark V diagnostic display shows no active fault codes related to the TCDA slot. Confirm that thermocouple inputs, speed pickup signals, and ARCNET communication are all reading correctly. Validate turbine protection setpoints — overspeed trip, exhaust temperature spread, and vibration limits — before returning the turbine to service. NINERMAS technical support is available to assist with post-installation commissioning queries.

Q4: What is the warranty coverage and what does NINERMAS stock availability look like?
All DS200TCDA-HBHD units supplied by NINERMAS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains inventory of Mark V spare parts to support rapid dispatch. Customers are encouraged to contact us directly to confirm current stock status and lead time for their specific requirement.
