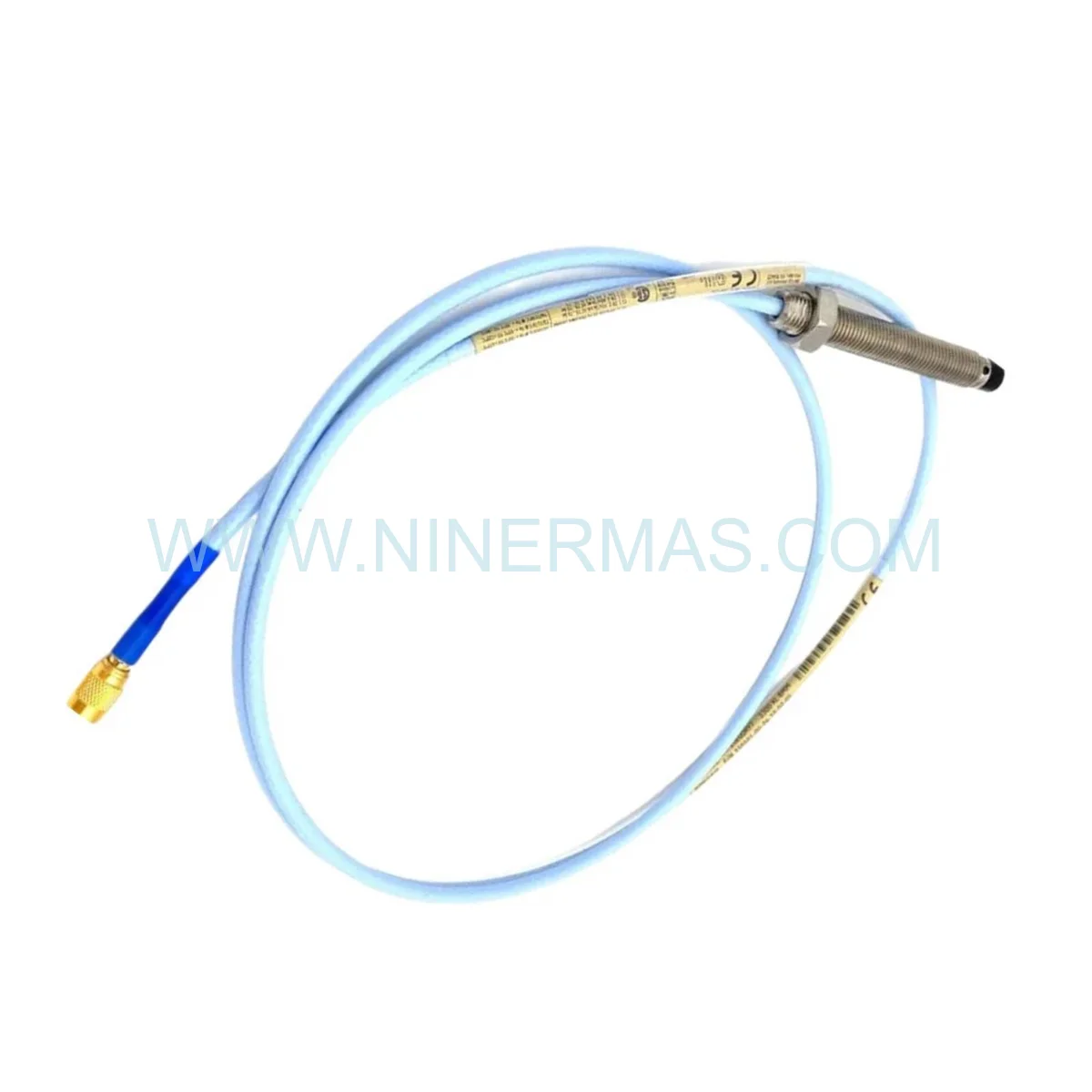

Bently Nevada 330140-08-20-01-05-00 | 3300 XL 8mm Proximity Probe in Stock

Bently Nevada 330140-08-20-01-05-00 | Reliable Automation Component for Mission-Critical Rotating Machinery

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer operating in continuous-process industries, the Bently Nevada 330140-08-20-01-05-00 represents a cornerstone of system availability assurance. Deployed within the 3300 XL Proximity System architecture, this 8mm eddy-current transducer probe delivers sub-micron shaft displacement resolution, enabling early-warning detection of rotor instability, bearing degradation, and mechanical looseness — all conditions that, left undetected, escalate into unplanned shutdowns costing tens of thousands of dollars per hour. Integrating the 330140-08-20-01-05-00 into your condition monitoring stack is not merely a maintenance decision; it is a strategic investment in Operational Excellence and process continuity.

Engineered to withstand the harshest industrial environments, this probe operates reliably across a temperature envelope of 40 °C to +105 °C and resists exposure to lubricating oils, process gases, and high-humidity atmospheres. During installation, field technicians must observe strict gap-voltage calibration protocols — targeting the nominal 7.87 V/mm sensitivity — and ensure the target surface finish meets — 32 µin Ra to preserve linearity across the full measurement range. Incorrect gap setting is the leading cause of false alarms in proximity systems; adherence to Bently Nevada’s commissioning procedures eliminates this risk entirely.

As production lines age and OEM support windows close, maintaining a certified stock of the 330140-08-20-01-05-00 as a strategic spare is non-negotiable for any reliability program. End-of-life and legacy module availability is a persistent challenge in global supply chains; sourcing from a verified distributor with confirmed factory-original inventory eliminates counterfeit risk and ensures seamless System Integration with existing 3300 XL infrastructure.

Key Operational Features

High-Resolution Displacement Sensing — 0 to 10 kHz ( 3 dB) frequency response captures both static position and dynamic vibration with exceptional fidelity.
Redundancy-Ready Architecture — Fully compatible with dual-channel and voting-logic configurations for High Availability protection schemes on critical turbomachinery.
Seamless Integration — Plug-compatible with 3300 XL Proximitor sensors, extension cables, and legacy 3300 series monitors; no firmware modification required.
Wide Environmental Tolerance — Rated for 40 °C to +105 °C; IP67-equivalent sealing resists oil mist, coolant splash, and condensation ingress.
Standardized Sensitivity — Factory-calibrated at 200 mV/mil ( 7.87 V/mm) for direct interchangeability without recalibration of the monitoring system.
Process Optimization Enabler — Supports predictive maintenance algorithms that reduce unplanned downtime by identifying fault signatures weeks before failure threshold is reached.

Maintenance & Performance Benchmarks

The 330140-08-20-01-05-00 is designed to scale across diverse industrial network architectures — from standalone single-channel protection panels on small auxiliary pumps to fully integrated, multi-point DCS-linked machinery management systems on large gas turbine trains. Its standardized output signal ( 24 VDC supply, 4-20 mA or voltage output depending on Proximitor model) interfaces natively with Bently Nevada System 1 software, GE Mark VI turbine controllers, and third-party SCADA platforms via standard I/O Modules.

Benchmark data from field deployments confirms a mean time between failures (MTBF) exceeding 150,000 operating hours under continuous-duty conditions. Periodic maintenance is limited to gap-voltage verification during scheduled outages — typically a 15-minute task — making this probe one of the lowest total-cost-of-ownership sensors in the Automation Components portfolio. For facilities pursuing ISO 55000 asset management compliance, the probe’s traceable calibration certificate supports audit documentation requirements without additional testing overhead.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 330140-08-20-01-05-00 dispatched from our facility ships in Original Factory Packaging with intact tamper-evident seals, ensuring full traceability from manufacturer to end-user. For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock orders placed before the daily cut-off, with worldwide express courier options (DHL, FedEx, UPS) delivering to major industrial hubs within 24-72 hours.

Our global sourcing network specializes in EOL (End-of-Life) and legacy Bently Nevada modules — a critical capability as the 3300 XL platform transitions through its product lifecycle. Procurement teams can request a Certificate of Conformance (CoC) and, where applicable, a factory test report to satisfy quality management system requirements. Bulk and blanket-order pricing is available for MRO stocking programs; contact our engineering sales team for volume quotations.

Engineering Support & FAQ

Q1: What are the step-by-step installation requirements for the 330140-08-20-01-05-00?
A: Mount the probe in the designated bracket, connect to the 3300 XL Proximitor sensor using the specified extension cable, and power the system at 24 VDC. Adjust the probe-to-target gap until the Proximitor output reads the nominal gap voltage (typically 10 V for a 1.0 mm gap on 4140 steel). Verify linearity across the full measurement range before commissioning. Refer to Bently Nevada Installation Manual 141536-01 for torque specifications and cable routing guidelines.

Q2: Which firmware versions are compatible with this probe?
A: The 330140-08-20-01-05-00 is a passive transducer; it contains no embedded firmware. Compatibility is determined by the Proximitor sensor and monitoring system firmware. It is validated for use with all 3300 XL Proximitor revisions and Bently Nevada System 1 software v6.x and later. Legacy 3300 series monitors are also supported without firmware changes.

Q3: How does the warranty claim process work?
A: In the event of a suspected manufacturing defect within the 12-month warranty period, contact our technical support team with the purchase order number, serial number, and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) within one business day. Replacement units are dispatched upon receipt and inspection of the returned item, minimizing production impact.

Q4: Can this probe operate in ATEX-classified hazardous zones?
A: Yes. When installed with ATEX-certified Zener barriers or galvanic isolators and a compatible ATEX-rated Proximitor sensor, the system achieves Zone 0 / Zone 1 classification. Ensure all associated apparatus carries the appropriate Ex ia IIC certification and that installation complies with IEC 60079-14.

Q5: What is the recommended replacement interval for predictive maintenance programs?
A: Under continuous-duty operation, field data supports a proactive replacement interval of 8-10 years or at the first indication of sensitivity drift exceeding ±5% from the factory-calibrated value. Annual gap-voltage verification during planned outages is sufficient to confirm probe health between replacements.

Q6: Is the 330140-08-20-01-05-00 interchangeable with other 8mm probes in the 3300 series?
A: Direct interchangeability depends on cable length suffix and connector type encoded in the full part number. The 330140-08-20-01-05-00 specifies a particular cable configuration; substituting a different suffix variant may require re-gapping and sensitivity verification. Always cross-reference the complete part number before substitution in a live protection system.
