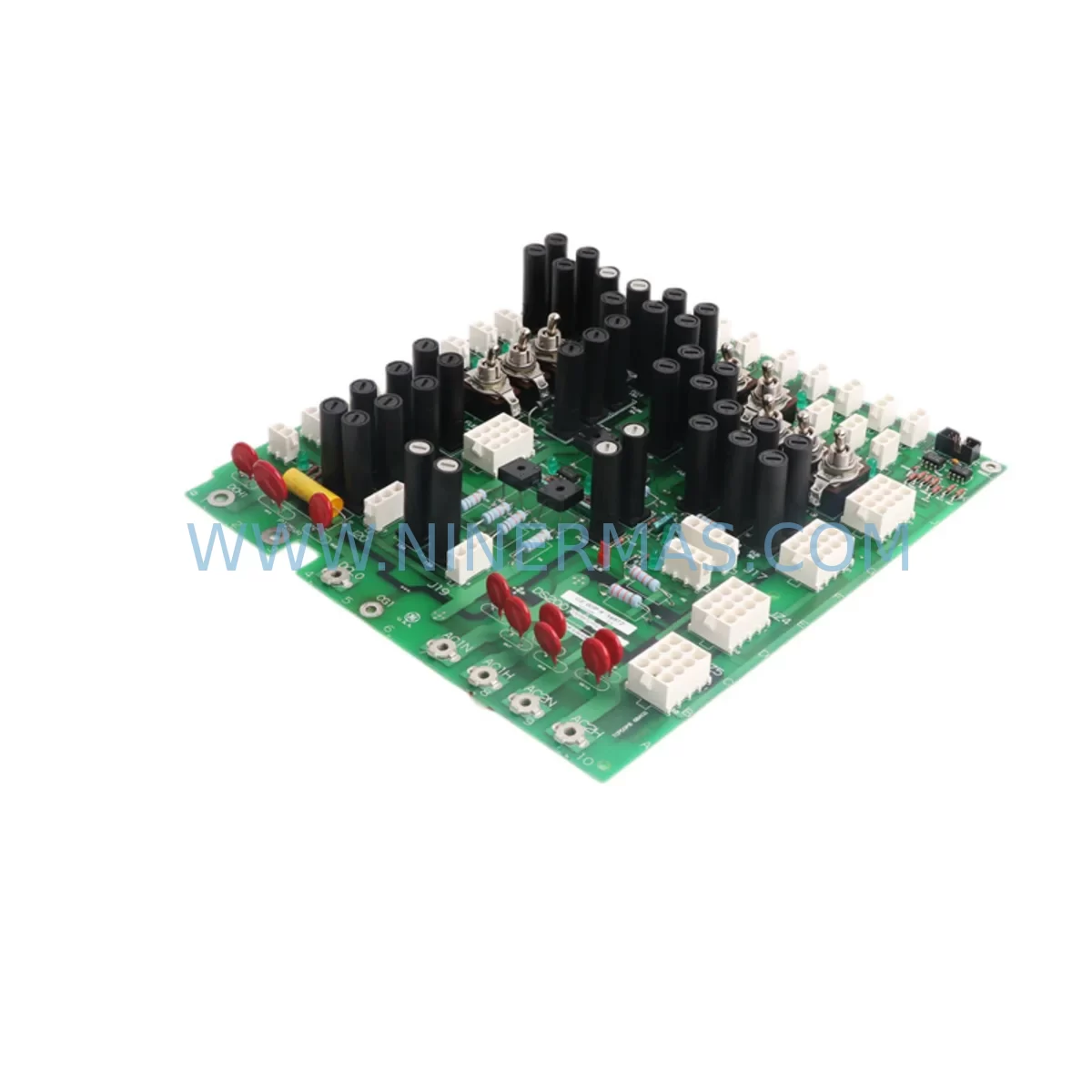

GE DS200TCDAG1ADA Retrofit-Compatible Digital I/O Board

GE DS200TCDAG1ADA Retrofit-Compatible Digital I/O Board for Legacy Mark V Speedtronic Systems

The GE DS200TCDAG1ADA is a digital I/O board originally designed for the GE Mark V Speedtronic turbine control platform — one of the most widely deployed gas turbine control systems in power generation, oil & gas, and petrochemical processing. As the Mark V platform approaches end-of-life and OEM support becomes increasingly limited, plant engineers and reliability teams are turning to retrofit-compatible replacement boards to extend system life, avoid costly full-panel upgrades, and maintain operational continuity.

NINERMAS supplies the DS200TCDAG1ADA as a verified retrofit-compatible spare, pre-shipment tested, and backed by a 12-month warranty. Each unit undergoes functional verification prior to dispatch to confirm digital input signal acquisition, output relay switching, and backplane communication integrity — reducing the risk of commissioning delays on-site.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200TCDAG1ADA within an operating Mark V panel requires careful pre-work to avoid unplanned shutdowns or control logic disruption. Before pulling the board, engineers should capture the current DIP switch configuration for module addressing, photograph or document all field wiring connections at the associated I/O terminal board, and confirm that the replacement unit carries the same or compatible firmware revision.

The DS200TCDAG1ADA interfaces directly with the Mark V’s internal I/O bus, which also connects to other critical boards in the same rack — including the DS200TCQAG1A analog I/O board, the DS200TCEAG1A I/O terminal board, and the DS200TCPSG1A power supply module. Any of these boards may also require inspection or replacement during a broader panel refurbishment. If the Mark V panel is being migrated toward a Mark VIe platform, the DS200TCDAG1ADA’s discrete I/O functions are typically mapped to the IS420UCSBH2A or IS420UCSBH3A I/O packs in the new architecture — a process that requires careful I/O signal remapping and HMI screen updates in the ToolboxST configuration environment.

For plants retaining the Mark V architecture, the DS200TCDAG1ADA works in conjunction with the DS200TCQCG1A communication board and the DS200TCRAG1A relay output board to form the complete discrete control loop. When upgrading the communication layer — for example, migrating from legacy serial links to Ethernet-based SCADA connectivity — the DS200TCCBG1A communication bridge board may be introduced alongside the DS200TCDAG1ADA to support protocol translation without replacing the entire panel.

I/O expansion projects often require adding DS200TCDAG1ADA boards to existing racks to accommodate new field instruments — pressure switches, vibration trip relays, flame detectors, or solenoid valve feedback signals. In these cases, rack slot availability must be confirmed, and the Mark V configuration software must be updated to recognize the new module address. Signal isolators may be required between field devices and the board’s input terminals if the field voltage levels differ from the board’s rated input range.

For control cabinet upgrades where the Mark V panel is being retained but the HMI layer is being modernized, the DS200TCDAG1ADA’s discrete status signals are typically re-mapped to updated HMI screens in Wonderware, iFIX, or GE’s own Cimplicity SCADA platform. Ensuring that all digital input tags are correctly re-associated with the new HMI database is a critical commissioning step that should be completed and verified before returning the unit to automatic control.

Downtime Control During System Migration

Minimizing downtime during a DS200TCDAG1ADA replacement is achievable with structured pre-work. The recommended approach is to perform the board swap during a planned maintenance window — ideally coordinated with a scheduled turbine inspection or outage — rather than as an emergency corrective action. Before the outage window opens, the replacement board should be on-site, pre-tested, and confirmed compatible with the installed Mark V revision.

During the swap, the original program logic stored in the Mark V controller (typically in the DS200TCQCG1A or the main processor board) is not affected by removing and replacing the DS200TCDAG1ADA, as the control program resides in the controller, not the I/O board. However, the module address DIP switches on the replacement board must be set identically to the original before insertion to prevent the controller from flagging a configuration mismatch fault on restart.

After board insertion, the Mark V diagnostic display should be monitored during power-up to confirm that the new board is recognized without fault codes. Field wiring continuity should be verified at the I/O terminal board before re-enabling automatic control. A supervised manual test of each discrete input and output channel — confirming that field signals are correctly read and that output relays operate as expected — is strongly recommended before returning the turbine to service. This structured commissioning approach typically allows the full board replacement to be completed within a two-to-four hour maintenance window, keeping unplanned production loss to a minimum.

Retrofit Support FAQ

Q1: Is the DS200TCDAG1ADA a direct drop-in replacement for all Mark V panel configurations?
The DS200TCDAG1ADA is designed for the GE Mark V Speedtronic platform and is a direct replacement for the same part number. Minor revision variants (e.g. DS200TCDAG1ADB) are generally cross-compatible, but customers should verify the DIP switch configuration and firmware revision against their existing panel documentation before installation. NINERMAS can assist with compatibility verification based on your panel serial number and configuration printout.

Q2: What pre-shipment testing is performed on each unit?
Each DS200TCDAG1ADA supplied by NINERMAS undergoes functional testing prior to shipment, including digital input signal acquisition verification, output relay switching confirmation, and backplane communication integrity checks. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How do I verify terminal wiring compatibility before installation?
Terminal wiring for the DS200TCDAG1ADA is defined by the associated I/O terminal board (typically the DS200TCEAG1A) and the plant’s original loop drawings. Before installation, compare the field wiring schedule from your as-built drawings against the terminal block layout on the replacement board. If the original loop drawings are unavailable, NINERMAS can provide reference wiring documentation based on the standard Mark V I/O architecture.

Q4: What is the lead time and stock availability?
NINERMAS maintains inventory of the DS200TCDAG1ADA to support urgent spare parts requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers with planned maintenance schedules, we recommend confirming stock availability and placing orders at least 4–6 weeks in advance to allow for pre-shipment testing, export documentation, and logistics coordination.
