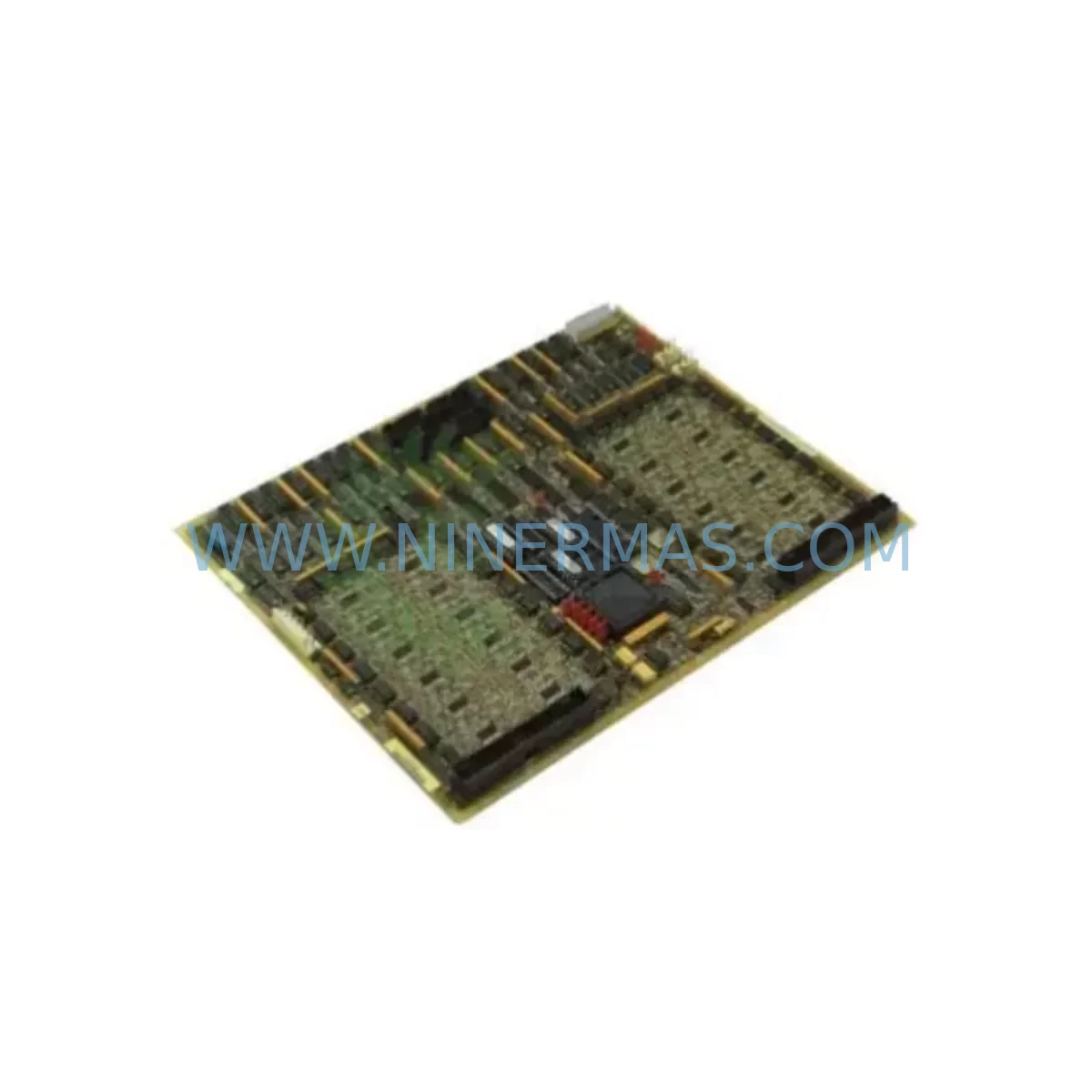

The GE DS200TCDAG1BFD (also cross-referenced as DS215TCDAG1BZZ01A) is a high-integrity analog and digital I/O interface board engineered for the GE Speedtronic Mark V turbine control platform. Designed to operate at the heart of safety-critical turbine control cabinets, this board manages real-time signal acquisition and distribution across protective relay circuits, speed sensing loops, and emergency shutdown interlocks. In continuous production environments where unplanned downtime carries severe operational and financial consequences, the DS200TCDAG1BFD delivers the signal fidelity and electrical robustness that plant engineers and maintenance teams depend on.

At NINERMAS, every DS200TCDAG1BFD unit is sourced from verified original supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent replacement requirements, minimizing the exposure window between failure detection and control system restoration.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark V turbine control cabinet, the DS200TCDAG1BFD does not operate in isolation — it is one node in a tightly integrated safety architecture. Signal integrity on this board directly affects the performance of adjacent components including the DS200TCQCG1BFD quad core processor board, which arbitrates voting logic across redundant I/O channels. Any degradation in analog signal quality — whether from connector oxidation, capacitor aging, or surge damage — can propagate upstream to the DS200TCEAG1BFD excitation control board, causing erroneous generator field adjustments that trigger nuisance trips.

Power supply stability is equally critical. The DS200TCPSG1A power supply board feeds regulated DC rails to the I/O backplane; a failing power supply can induce voltage ripple that manifests as signal drift on the DS200TCDAG1BFD’s analog inputs, leading to false alarm conditions in the turbine’s protective relay system. Pairing a replacement DS200TCDAG1BFD with a verified DS200TCPSG1A ensures the entire power-signal chain is restored to specification.

Communication integrity between the Mark V panels relies on the DS200TCRAG1AFD communication board, which handles inter-panel data exchange over the Mark V’s proprietary , , redundant communication links. A compromised communication board can cause the DS200TCDAG1BFD’s I/O data to be misread by the master controller, resulting in control loop instability. In high-vibration environments such as gas turbine enclosures, the DS200TCDAH1BHD — a hardware variant of the TCDA family — provides enhanced mechanical retention for connector assemblies, reducing the risk of intermittent contact faults that are notoriously difficult to diagnose during live operation.

For sites operating GE Mark V systems in parallel with legacy relay-based safety circuits, the DS200TCQAG1BFD quad analog input board complements the DS200TCDAG1BFD by expanding the system’s capacity to monitor additional process variables — temperature, pressure, and flow — without overloading the primary I/O board’s channel allocation. In petrochemical and power generation facilities where safety instrumented system (SIS) requirements mandate redundant signal paths, deploying both boards in a validated configuration supports compliance with IEC 61511 functional safety standards.

Surge protection at the field terminal level is often overlooked during spare parts planning. The DS200TCSDG1A surge protection module, installed at the cabinet’s field wiring interface, shields the DS200TCDAG1BFD’s input circuits from transient overvoltages caused by lightning strikes, motor switching, or capacitor bank energization — events that are common in outdoor substations and heavy industrial switchyards. Maintaining a stock of both the DS200TCDAG1BFD and its associated surge protection components is a recognized best practice for sites with aggressive maintenance intervals.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous catalytic cracking (FCC) and hydrocracking units, the Mark V system governs compressor trains and process gas turbines that must maintain uninterrupted operation. The DS200TCDAG1BFD’s role in monitoring anti-surge valve position feedback and compressor inlet guide vane signals makes it a safety-critical component. A board failure in this context can force an emergency compressor shutdown, triggering a plant-wide production upset. NINERMAS maintains ready stock to support 24–72 hour emergency replacement cycles for refinery clients.

Power Generation — Gas & Steam Turbines: Utility-scale gas turbines operating in combined cycle power plants rely on the Mark V’s I/O infrastructure to manage combustion dynamics, exhaust temperature spreads, and fuel control valve positioning. The DS200TCDAG1BFD interfaces directly with thermocouple multiplexer boards and fuel valve actuator feedback circuits. Degraded signal resolution on this board can cause combustion instability, increasing NOx emissions and risking hot section damage. Scheduled spare parts replacement — rather than run-to-failure maintenance — is the standard risk mitigation strategy at ISO-certified power stations.

Mining & Mineral Processing: Large ball mill drives, conveyor systems, and crusher motor control systems in mining operations increasingly incorporate GE Mark V-based control platforms for their proven reliability in high-vibration, high-dust environments. The DS200TCDAG1BFD’s robust PCB construction and conformal coating make it suitable for these demanding conditions, where ambient particulate levels and mechanical shock loads would compromise less ruggedized I/O hardware.

Water & Wastewater Treatment: Pumping stations and water treatment facilities operating large centrifugal pumps with GE turbine-driven configurations use the Mark V system for pump protection and process control. The DS200TCDAG1BFD monitors vibration sensor outputs and bearing temperature signals that feed into the pump’s protective shutdown logic. Reliable spare parts availability is essential for utilities operating under regulatory uptime commitments.

Metallurgy & Steel Production: Blast furnace blower turbines and rolling mill drive systems in integrated steel plants operate under extreme thermal and electrical stress. The DS200TCDAG1BFD’s ability to maintain signal accuracy in high-temperature, high-EMI environments — characteristic of electric arc furnace (EAF) facilities — makes it a preferred replacement component for maintenance engineers managing aging Mark V installations.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the DS200TCDAG1BFD?
The 12-month warranty covers functional failure of the DS200TCDAG1BFD under normal operating conditions consistent with GE Mark V system specifications. This includes failure of onboard analog signal conditioning circuits, digital I/O logic, and backplane interface components. Physical damage resulting from incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded. NINERMAS provides direct warranty support without requiring third-party intermediaries.

Q2: What pre-shipment testing is performed on each unit?
Every DS200TCDAG1BFD dispatched by NINERMAS undergoes a structured functional verification process that includes power-on self-test confirmation, analog channel signal integrity checks, digital I/O state verification, and visual inspection of PCB, connectors, and component condition. Test records are maintained and available upon request for quality-audited procurement processes.

Q3: Is the DS200TCDAG1BFD compatible with all Mark V panel configurations?
The DS200TCDAG1BFD is designed for use in GE Speedtronic Mark V <TCDA> slot positions across standard Mark V, Mark V LM, and Mark V LMRB configurations. The DS215TCDAG1BZZ01A is a direct functional equivalent and can be used as a drop-in replacement in compatible panel assemblies. For site-specific compatibility confirmation, NINERMAS technical support can review your panel configuration documentation prior to order.

Q4: Can NINERMAS support long-term supply for end-of-life GE Mark V components?
Yes. NINERMAS specializes in long-term spare parts supply for legacy and end-of-life industrial control systems including the GE Speedtronic Mark V platform. We maintain strategic inventory positions on high-demand Mark V boards and actively source from verified original supply channels globally. Clients with multi-year maintenance contracts or fleet-wide Mark V installations are encouraged to discuss framework supply agreements to secure pricing and availability commitments beyond standard spot-purchase terms.
