Allen-Bradley 2711C-T10C/B Retrofit HMI for Legacy Systems

Allen-Bradley 2711C-T10C/B Retrofit HMI for Legacy Systems

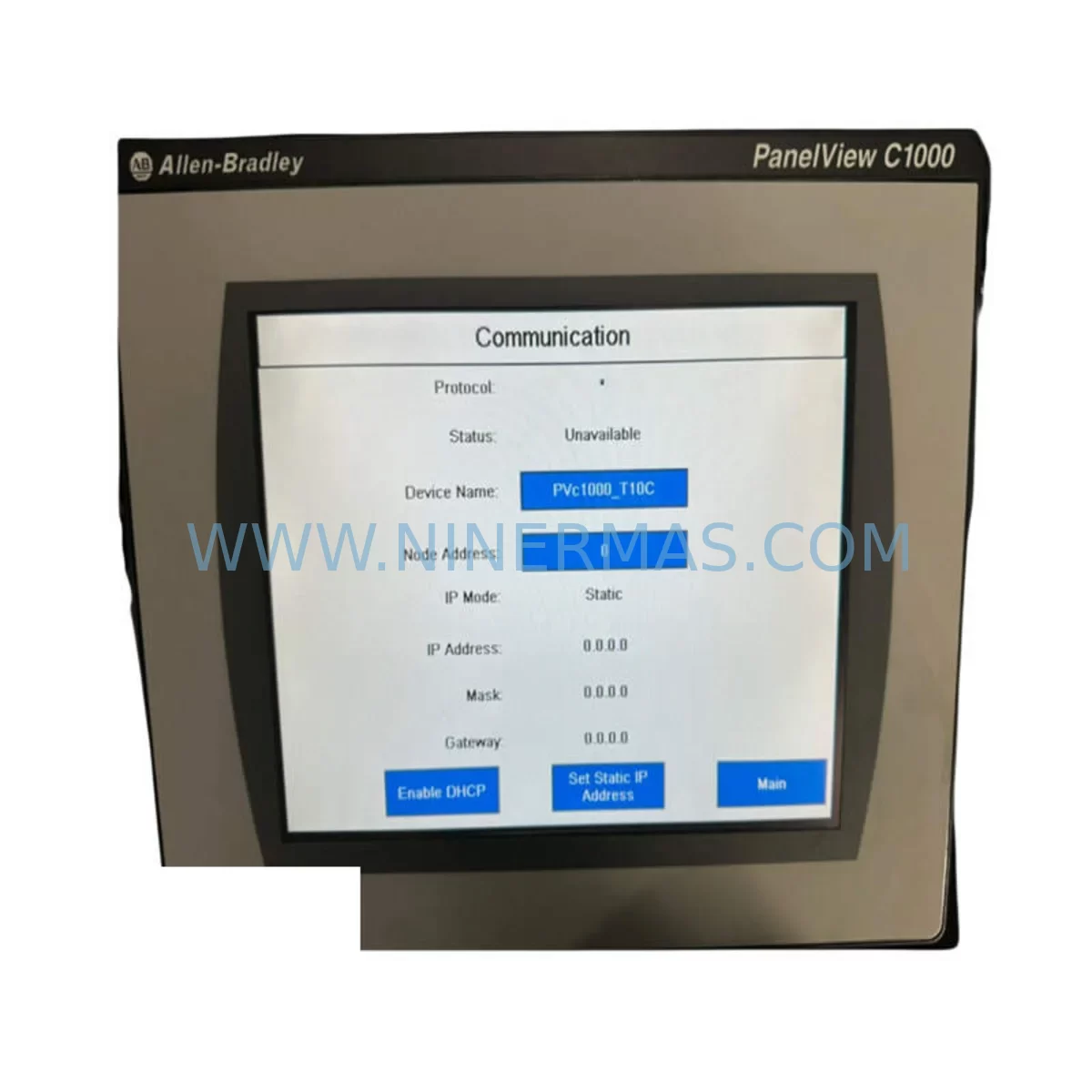

The Allen-Bradley 2711C-T10C/B is a 10-inch color touchscreen HMI terminal from the PanelView Component C1000 series, designed for machine-level operator interface applications on Rockwell Automation control platforms. As legacy PanelView 550, PanelView 600, and PanelView Plus 6 installations reach end-of-life, the 2711C-T10C/B has become a primary retrofit-compatible replacement for facilities seeking to modernize operator interfaces without undertaking full control system redesigns. Its compact footprint, native EtherNet/IP connectivity, and compatibility with RSLogix 5000 and Studio 5000 Logix Designer programming environments make it a practical upgrade path for aging control cabinets across process, packaging, and discrete manufacturing industries.

When planning a retrofit from a discontinued PanelView 550 or PanelView 600 terminal, engineers must verify several critical parameters before committing to the 2711C-T10C/B as the replacement unit. Panel cutout dimensions differ between legacy and current-generation HMI families — the 2711C-T10C/B requires a cutout of approximately 261 mm × 196 mm, which may necessitate panel modification or the use of an adapter plate kit when replacing smaller legacy terminals. Power supply requirements must also be confirmed: the 2711C-T10C/B operates on 24 VDC, and existing 120 VAC or 240 VAC power feeds serving older PanelView units will require a dedicated 24 VDC power supply module such as the 1606-XLP95E or equivalent Rockwell-compatible DIN-rail power supply rated for the control cabinet environment.

Communication migration is a central concern in any PanelView retrofit. Legacy PanelView 550 and 600 terminals typically communicated via DH-485, DH+, or Remote I/O (RIO) protocols, none of which are natively supported by the 2711C-T10C/B. Facilities retaining legacy MicroLogix 1100, SLC 5/05, or ControlLogix L6x controllers with existing DH+ backplane communication will need to evaluate protocol conversion options or plan a parallel controller upgrade. In many cases, the retrofit of the 2711C-T10C/B is paired with a controller migration to a CompactLogix L3x or L4x platform, which natively supports EtherNet/IP and eliminates the need for protocol bridges. The 1761-NET-ENI or 1761-NET-AIC serial-to-Ethernet adapters have been used as interim solutions where controller replacement is deferred.

Screen application migration from legacy PanelView terminals to the 2711C-T10C/B is performed using FactoryTalk View Machine Edition (ME) software. Existing PanelView 550 or 600 applications created in PanelBuilder 32 cannot be directly imported and must be recreated or converted using FactoryTalk View ME Studio. Tag database mapping, alarm configuration, and display navigation logic must be re-validated against the new terminal’s capabilities. Where the original system used a 1747-L553 SLC 5/05 controller with a 1747-SN Remote I/O scanner module, the tag addressing structure will require remapping to match the EtherNet/IP tag-based addressing used by the 2711C-T10C/B and its associated Logix controller.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 2711C-T10C/B retrofit begins with a thorough audit of the existing control cabinet. Engineers should document the current terminal model, power feed voltage, communication wiring (including shield grounding and termination resistors on DH-485 networks), and the controller backplane configuration. Where a 1746-A10 SLC 500 chassis is in use with a 1746-NI8 analog input module and a 1746-OB16 digital output module, the I/O addressing structure must be preserved in the new FactoryTalk View ME application to avoid process disruptions during cutover.

For facilities running a ControlLogix L61 or L62 controller with a 1756-EN2T EtherNet/IP communication module, the 2711C-T10C/B integrates directly without additional hardware. The terminal connects to the plant Ethernet switch, and the FactoryTalk View ME application references controller tags by name rather than by slot address, simplifying the migration from legacy numeric addressing. Where a 1756-DHRIO module is present for legacy DH+ or Remote I/O device communication, it can remain in the chassis to serve other legacy devices while the new HMI communicates exclusively over EtherNet/IP.

In packaging and conveyor applications where a MicroLogix 1400 (1766-L32BXB) controller is already installed with an Ethernet port, the 2711C-T10C/B can be commissioned with minimal infrastructure changes. The terminal’s built-in web server and USB port support both remote diagnostics and local application transfer, reducing the need for a dedicated programming workstation on the plant floor. Facilities that also operate a 2711P-T10C21D8S PanelView Plus 7 terminal on adjacent lines will find that FactoryTalk View ME applications share a common development environment, allowing screen templates and alarm configurations to be reused across both terminal types.

Where signal isolation is required between the HMI power circuit and field instrumentation, a DIN-rail mounted signal isolator such as the MTL5541 or equivalent 4–20 mA loop isolator should be installed between the analog output module and field transmitters. This is particularly relevant in hazardous area installations or where long cable runs introduce ground loop interference that could affect HMI display accuracy for process variable readbacks.

Downtime Control During System Migration

Minimizing unplanned downtime during an HMI retrofit requires a structured cutover plan. The recommended approach is to complete all FactoryTalk View ME application development and simulation testing offline before the scheduled maintenance window. The new 2711C-T10C/B should be pre-configured, application-loaded, and bench-tested against a spare controller or simulator prior to installation. During the cutover window, the sequence is: power down the control cabinet, remove the legacy PanelView terminal, complete panel cutout modification if required, mount the 2711C-T10C/B, connect 24 VDC power and Ethernet, power up, and verify HMI-to-controller communication before restoring process control.

Where the existing controller program contains HMI-triggered outputs or interlocks referenced by the operator interface, the FactoryTalk View ME application must replicate all control-critical screen objects — including momentary pushbuttons, setpoint entry fields, and alarm acknowledgement functions — before the legacy terminal is removed. Failure to map these objects correctly can result in loss of operator control over critical process variables during the transition period. A parallel run period, where both the legacy terminal and the new 2711C-T10C/B are connected simultaneously (where cabinet space permits), allows operators to validate screen navigation and alarm behavior before the legacy unit is decommissioned.

All 2711C-T10C/B units supplied by NINERMAS undergo pre-shipment functional testing, including power-on verification, touchscreen calibration check, and communication port validation. This reduces on-site commissioning time and lowers the risk of receiving a defective unit during a time-critical maintenance window. Units are covered by a 12-month warranty against hardware defects from the date of shipment, providing procurement teams with confidence in long-term spare parts availability and lifecycle support.

Retrofit Support FAQ

Q1: Can the 2711C-T10C/B directly replace a PanelView 550 (2711-T5A2L1) without controller changes?
Not directly. The PanelView 550 communicates via DH-485 or DH+, while the 2711C-T10C/B uses EtherNet/IP exclusively. If the existing controller (e.g. SLC 5/03 or SLC 5/04) does not have an Ethernet port, a protocol converter or controller upgrade is required. The MicroLogix 1400 or CompactLogix L2x are common controller upgrade paths that enable direct EtherNet/IP communication with the 2711C-T10C/B.

Q2: What wiring changes are needed at the terminal end?
The 2711C-T10C/B requires a 24 VDC power connection (typically 2-wire: +24V and 0V/GND) and a standard RJ-45 Ethernet cable to the plant network or directly to the controller’s Ethernet port. Legacy DH-485 or DH+ wiring (typically Belden 9842 shielded twisted pair) is not reused and can be removed or capped. Confirm that the 24 VDC power supply has sufficient current capacity — the 2711C-T10C/B draws approximately 1.5 A at 24 VDC under normal operating conditions.

Q3: Is pre-shipment testing included, and what does the 12-month warranty cover?
Yes. All units are functionally tested before shipment, including power-on, display, touchscreen, and Ethernet port verification. The 12-month warranty covers hardware defects under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or environmental conditions outside the product’s rated specifications. Warranty claims are handled directly through NINERMAS with replacement or repair as the standard resolution.

Q4: How quickly can the unit be delivered, and is stock available?
NINERMAS maintains inventory of the 2711C-T10C/B to support urgent maintenance and planned retrofit projects. Lead times and current stock levels are confirmed at the time of inquiry. For time-critical shutdowns or emergency spare requirements, contact the sales team directly to confirm availability and expedited shipping options.
