Allen-Bradley 2711PC-T10C4D8 Retrofit-Compatible HMI Terminal

Allen-Bradley 2711PC-T10C4D8 Retrofit-Compatible HMI Terminal: Seamless Legacy System Upgrade

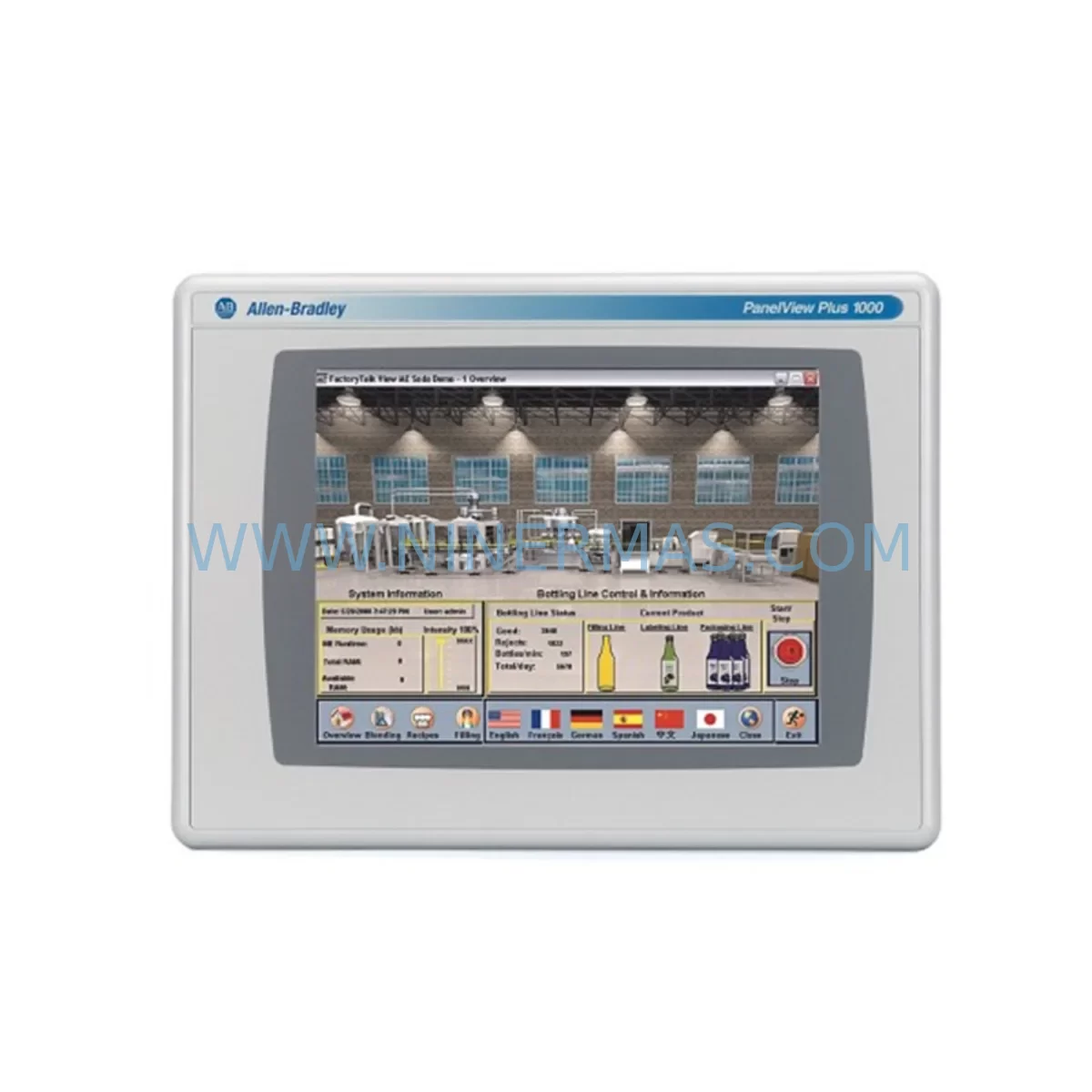

The Allen-Bradley 2711PC-T10C4D8 is a ruggedized 10-inch PanelView Plus HMI terminal engineered for demanding industrial environments. As legacy control panels age and original equipment manufacturers discontinue support for older HMI platforms, the 2711PC-T10C4D8 stands as a proven retrofit-compatible solution for facilities seeking to modernize their operator interface layer without a full control system overhaul. Whether you are replacing an end-of-life 2711P-T10C4D8 unit, migrating from an older PanelView 1000 or PanelView Plus 6 platform, or upgrading a control cabinet that has been in service for over a decade, this terminal provides the display resolution, communication flexibility, and environmental tolerance required for continuous industrial operation.

At NINERMAS, we supply the 2711PC-T10C4D8 with full pre-shipment functional testing, a 12-month warranty, and documented compatibility verification to support your retrofit planning process from procurement through commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2711PC-T10C4D8 into an existing automation line requires a structured pre-installation assessment. The first step is to audit the existing control cabinet for available panel cutout dimensions and rear-depth clearance. Many older enclosures housing a PanelView Plus 6 700 or PanelView Plus 6 1000 were designed with tight rear-depth tolerances, and the 2711PC-T10C4D8’s mounting depth must be confirmed against the enclosure drawing before ordering.

Power supply capacity is the next critical checkpoint. The 2711PC-T10C4D8 draws 24VDC and the existing panel power supply — often a 1606-XLP or similar Allen-Bradley power supply module — must have sufficient headroom to support the terminal alongside other 24VDC loads such as I/O modules, relay coils, and communication adapters. If the existing power budget is marginal, a supplementary 1606-XLP power supply should be added to the retrofit bill of materials.

Communication architecture deserves careful attention. Older PanelView terminals frequently communicated via DH+ or DH-485 networks using a 1784-KTX or 1784-U2DHP communication adapter. The 2711PC-T10C4D8 natively supports EtherNet/IP and DF1 serial, so facilities still operating on DH+ backbones will need to introduce a 1761-NET-AIC or 1763-NC01 protocol converter, or plan a broader network migration to EtherNet/IP using a 1756-ENBT or 1756-EN2T Ethernet bridge module in the ControlLogix or CompactLogix rack.

For sites running a 1756-L61 or 1756-L71 ControlLogix processor, the transition to EtherNet/IP is straightforward — the existing RSLogix 5000 or Studio 5000 program requires no logic changes, only a communication path update in the HMI application. For older SLC 500 or MicroLogix 1100 controllers communicating via DF1, the 2711PC-T10C4D8’s RS-232 port provides a direct replacement path with minimal wiring changes at the terminal strip.

I/O wiring at the field terminal blocks should be documented before any panel work begins. If the existing HMI was connected to a 1734-AENT POINT I/O adapter or a 1769-L24ER CompactLogix local I/O rack, those connections remain unchanged — the retrofit only affects the HMI terminal itself, not the I/O subsystem. This distinction is important for minimizing the scope of the retrofit and controlling downtime.

FactoryTalk View ME application migration is typically the most time-consuming element of the retrofit. Existing screens built in PanelBuilder 32 must be converted and validated in FactoryTalk View ME Studio. Tag database mapping, alarm configuration, and trend displays should each be verified against the original application before the new terminal is powered on in the field. A parallel test environment using a PC-based FactoryTalk View ME runtime is strongly recommended to validate screen navigation and data display before the cutover window.

Downtime Control During System Migration

Minimizing production downtime during an HMI retrofit requires a disciplined cutover strategy. The recommended approach is to complete all pre-staging work — application conversion, communication path configuration, and bench testing — before the terminal arrives at the installation site. NINERMAS ships the 2711PC-T10C4D8 with pre-shipment functional testing completed, which eliminates the risk of discovering a hardware defect during a live cutover window.

On the day of cutover, the sequence should begin with a full backup of the existing HMI application and the PLC program. The existing terminal’s communication cable should be labeled and photographed before disconnection. The 2711PC-T10C4D8 should be mounted and powered before the communication cable is transferred, allowing the operator to confirm display startup and runtime loading before the PLC communication link is established.

If the facility operates on a 24/7 production schedule, a hot-standby approach using a temporary operator station — such as a laptop running FactoryTalk View ME Client — can maintain supervisory visibility during the physical swap. This is particularly valuable in process industries where loss of HMI visibility during a transition creates safety or quality risks.

Once the new terminal is online and communicating with the controller, a structured acceptance test covering all screen pages, alarm acknowledgment, setpoint entry, and trend display should be completed before the retrofit is signed off. NINERMAS can provide a standard acceptance test checklist upon request to support your commissioning team.

Retrofit Support FAQ

Q: Is the 2711PC-T10C4D8 a direct drop-in replacement for the 2711P-T10C4D8?
A: The 2711PC-T10C4D8 and 2711P-T10C4D8 share the same display size and general form factor, but panel cutout dimensions and mounting hardware should be verified against your enclosure drawing. The FactoryTalk View ME application from the original unit is compatible and can be loaded directly onto the replacement terminal after a catalog number update in the project file.

Q: What communication protocols does the 2711PC-T10C4D8 support, and will it work with my existing PLC?
A: The terminal supports EtherNet/IP and DF1 serial (RS-232). It is compatible with ControlLogix, CompactLogix, SLC 500, and MicroLogix controllers. Sites using DH+ or DH-485 will require a protocol gateway. Contact NINERMAS to discuss your specific controller model and network topology.

Q: Does NINERMAS test units before shipment, and what warranty is provided?
A: Yes. Every 2711PC-T10C4D8 unit supplied by NINERMAS undergoes pre-shipment functional testing covering display operation, communication ports, and power input. A 12-month warranty is included, covering manufacturing defects and functional failures under normal operating conditions.

Q: How quickly can NINERMAS ship the 2711PC-T10C4D8, and is inventory available?
A: NINERMAS maintains stock of the 2711PC-T10C4D8 to support urgent retrofit and breakdown replacement requirements. Standard lead time is 3–7 business days for international shipments. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and arrange expedited shipping if required.
