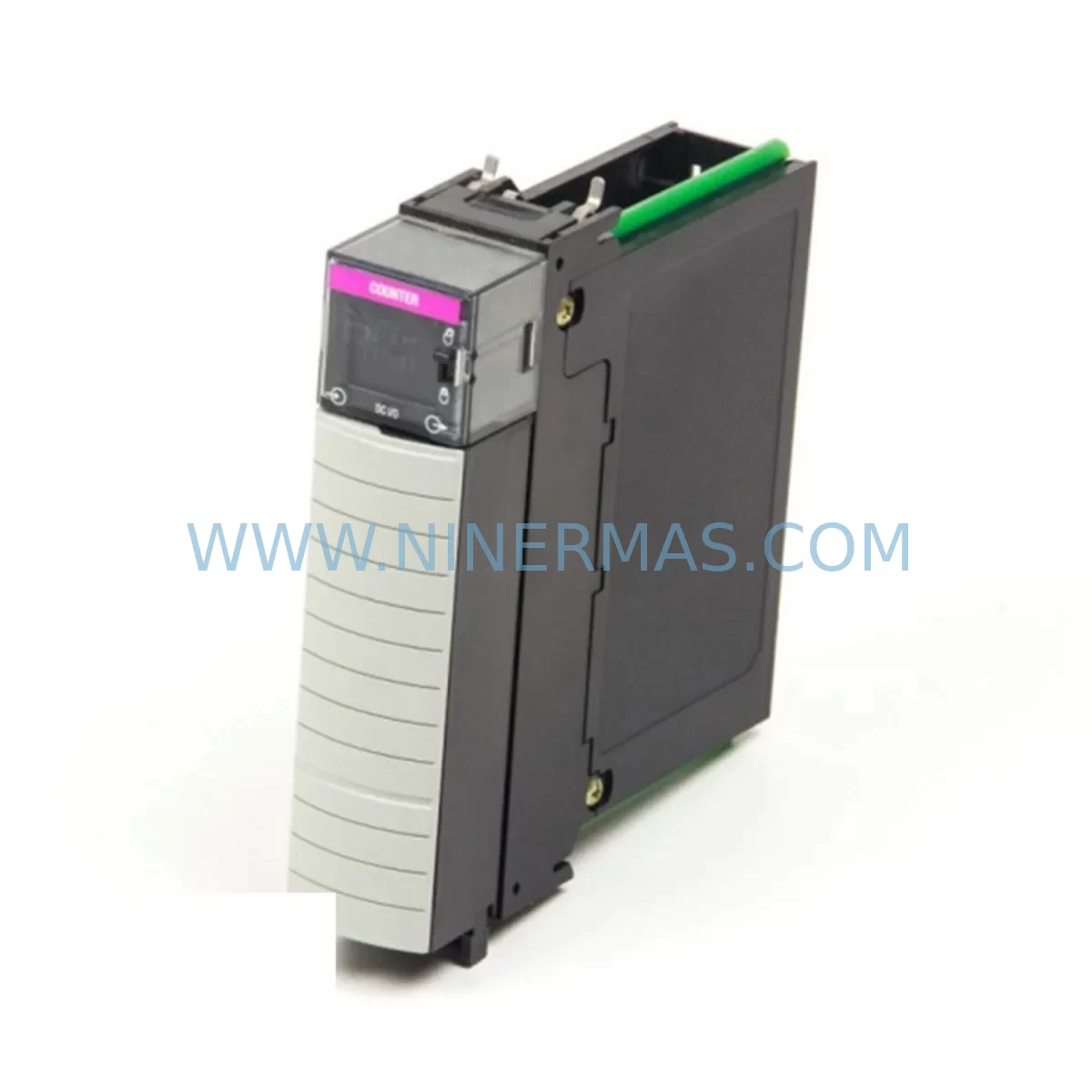

Allen-Bradley 1756-HSC Safety-Reliable High-Speed Counter

Allen-Bradley 1756-HSC Safety-Reliable High-Speed Counter for Critical Control Sites

The Allen-Bradley 1756-HSC is a ControlLogix platform High-Speed Counter Module engineered for mission-critical industrial environments where control loop integrity, signal accuracy, and uninterrupted operation are non-negotiable. Designed to handle encoder feedback, pulse counting, and rate measurement in the most demanding field conditions — including high electromagnetic interference, heavy vibration, extreme temperature fluctuations, and dust- or moisture-laden atmospheres — the 1756-HSC delivers the safety-reliable performance that continuous production and critical interlock systems demand.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet, the 1756-HSC does not operate in isolation — it is part of a tightly integrated safety and control architecture. When paired with the 1756-L85E ControlLogix Controller, the HSC module delivers deterministic scan-cycle performance, ensuring that encoder feedback and high-speed pulse data are processed without latency that could trigger nuisance trips or missed interlock events. The controller’s redundancy-ready design, combined with the HSC’s dedicated output points, enables real-time protective response to overspeed, position deviation, or count-threshold violations.

Power integrity is foundational to reliable counter operation. The 1756-PA75R Redundant Power Supply eliminates single-point power failure risk within the ControlLogix chassis, while the 1756-PSCA2 Power Supply Chassis Adapter supports seamless power switchover without disrupting active I/O modules. For field-side power conditioning, a dedicated 24VDC regulated DIN-rail power supply with surge protection should be installed upstream of encoder and sensor circuits to prevent voltage transients from corrupting high-speed pulse signals.

Signal integrity is equally critical. The 1756-IB16 Digital Input Module and 1756-OB16E Digital Output Module complement the HSC in mixed I/O chassis configurations, handling standard discrete signals while the HSC focuses exclusively on high-frequency encoder and counter inputs. For analog process variables in the same control loop — such as flow rate or pressure feedback — the 1756-IF16 Analog Input Module provides 16-channel, high-resolution measurement that integrates seamlessly into the same ControlLogix program.

Communication reliability is another pillar of risk reduction. The 1756-EN2TR EtherNet/IP Communication Module with dual-port, Device Level Ring (DLR) topology support ensures that network faults do not isolate the controller from SCADA or DCS systems. In high-EMI environments such as variable frequency drive (VFD) rooms or arc furnace control areas, the 1756-DNB DeviceNet Bridge Module provides an alternative fieldbus path with robust noise immunity. For safety-rated communication in SIL-certified loops, the 1756-L8SP Safety Controller can be integrated into the same chassis rack to manage safety-rated I/O alongside the standard HSC application.

Surge and transient protection at the field terminal level is addressed by installing Phoenix Contact or Weidmuller DIN-rail surge protection devices (SPDs) on encoder signal lines entering the 1756-HSC. This is particularly important in outdoor substations, pump stations, and mining conveyor control panels where lightning-induced surges and ground potential differences are common failure modes. Combined with proper cable shielding practices and grounding of the 1756 chassis to a low-impedance earth point, these measures dramatically reduce the risk of signal drift, false counts, and module damage.

Critical Industrial Safety Applications

The Allen-Bradley 1756-HSC is deployed across the most demanding industrial sectors where control interruption carries serious safety and financial consequences.

Petrochemical and Refinery Plants: In compressor train control and turbine overspeed protection systems, the 1756-HSC monitors shaft encoder feedback at frequencies up to 1 MHz, triggering emergency shutdown outputs within microseconds of a threshold breach. Its optical isolation and EMI-hardened design ensure reliable operation in areas classified under ATEX Zone 2 or NEC Class I Division 2, where combustible gas atmospheres demand zero tolerance for spurious trips or missed protective actions.

Electric Power Generation and Transmission: In thermal power plants and hydroelectric stations, the module tracks turbine speed, generator rotor position, and cooling pump flow rates simultaneously across multiple channels. The deterministic backplane communication with the ControlLogix controller ensures that protective relay coordination and load-shedding sequences execute with the timing precision required by grid stability standards.

Mining and Mineral Processing: Conveyor belt speed monitoring, crusher rotor position feedback, and hoist drum rotation counting are typical HSC applications in underground and open-pit mining operations. The module’s vibration and shock resistance ratings make it suitable for installation in mobile equipment control panels and surface-mounted junction boxes subject to continuous mechanical stress.

Water and Wastewater Treatment: Flow totalizing, pump speed control feedback, and chemical dosing pulse counting rely on the 1756-HSC’s multi-mode counter capability. In remote pumping stations with limited maintenance access, the module’s robust design and 12-month warranty-backed reliability reduce the risk of unplanned service calls that could compromise water supply continuity or environmental compliance.

Metallurgy and Steel Production: Rolling mill speed synchronization, coiler tension control, and ladle transfer positioning systems demand the sub-millisecond response and high input frequency capability that the 1756-HSC provides. In environments with intense electromagnetic fields from induction furnaces and large motor drives, the module’s EMC compliance and optical isolation are essential for maintaining signal fidelity.

Port and Marine Applications: Crane hoist position tracking, ship loader belt speed monitoring, and mooring winch rotation counting are applications where the 1756-HSC’s combination of high-speed input capability and dedicated output control enables both precise motion management and immediate protective response to overload or over-travel conditions.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1756-HSC?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to OEM specifications within the warranty period, NINERMAS will arrange replacement or repair at no additional cost. Warranty claims are processed promptly to minimize your downtime exposure.

Q2: What pre-shipment testing is performed on each 1756-HSC unit?
Every 1756-HSC unit undergoes a full functional test before dispatch. This includes verification of all counter channels, output point operation, backplane communication integrity, and input frequency response. Units are tested against original Allen-Bradley OEM specifications to ensure they will perform correctly upon installation in your ControlLogix chassis.

Q3: Is the 1756-HSC compatible with all ControlLogix chassis and controller revisions?
The 1756-HSC is compatible with the full range of 1756 ControlLogix chassis (4-slot through 17-slot) and is supported by Logix Designer (RSLogix 5000) software. Firmware compatibility should be verified against your specific controller revision. NINERMAS technical support can assist with compatibility confirmation for your exact system configuration prior to purchase.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the 1756-HSC?
Yes. NINERMAS maintains dedicated inventory of the 1756-HSC and related ControlLogix modules to support both immediate replacement needs and planned maintenance programs. For critical production sites, we recommend discussing a consignment stock or priority supply agreement to ensure that a replacement module is available within your required response time, eliminating extended lead-time risk for this safety-critical component.
