GE DS200SDCIG1ABA Retrofit-Compatible Signal Conditioning Module

GE DS200SDCIG1ABA Retrofit-Compatible Signal Conditioning Module for Legacy Control System Upgrades

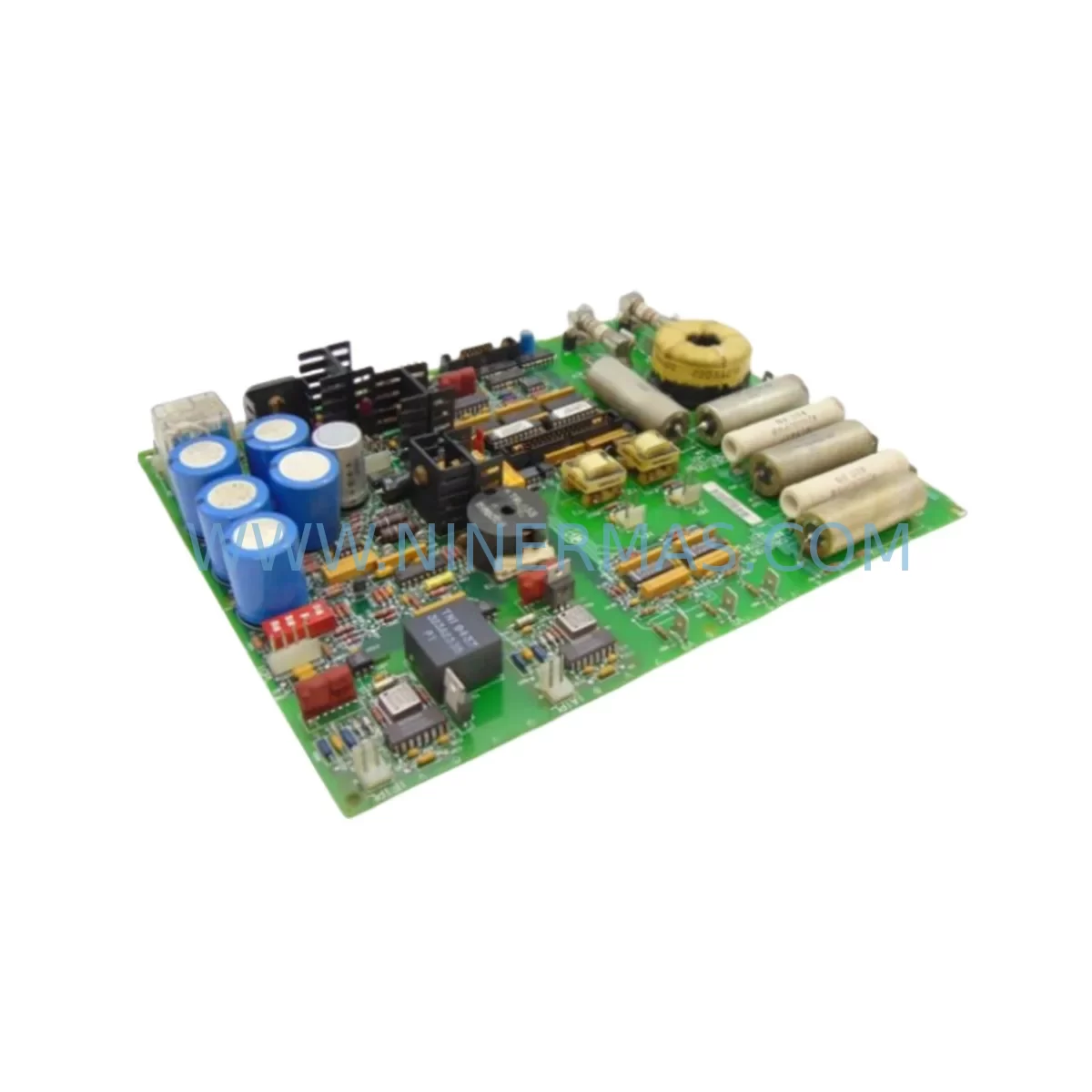

The GE DS200SDCIG1ABA is a ruggedized signal conditioning and instrumentation module originally designed for GE’s DS200 Series turbine control platforms, including the widely deployed Mark V and Mark VI distributed control systems. As these platforms approach or exceed their operational design life, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that maintain signal integrity, backplane compatibility, and program continuity — without triggering a full system overhaul.

NINERMAS supplies the DS200SDCIG1ABA as a tested, shelf-ready retrofit component for facilities managing aging gas turbine, steam turbine, and combined-cycle generation assets. Each unit undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving procurement and reliability teams the confidence to plan scheduled replacements or respond to unplanned failures with minimal lead time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200SDCIG1ABA within an operating turbine control panel requires a structured approach that accounts for the interdependencies between modules sharing the same DS200 rack. In a typical Mark V or Mark VI control cabinet, the SDCIG module works in close coordination with the DS200PPCBG1A power supply board, which distributes regulated DC rails across the backplane. Before initiating any module swap, maintenance engineers should confirm that the power supply is delivering stable voltage on all rails — a degraded DS200PPCBG1A can cause erratic behavior in a newly installed signal conditioning module and may be misdiagnosed as a module fault.

Field wiring connected to the associated terminal board — typically a DS200TBCIG1A or equivalent instrumentation terminal board — should be photographed and documented before any work begins. In most retrofit scenarios, the terminal board itself remains in place; only the module card is extracted and replaced. This approach preserves the existing field wiring, reduces the risk of miswiring during reassembly, and significantly shortens the time the unit is offline.

For facilities that also need to address I/O capacity during the same maintenance window, the DS200DIEBG1A digital input expansion board and the DS200DOEBG1A digital output expansion board are commonly replaced in parallel with signal conditioning modules, since they share the same rack and are subject to similar aging profiles. If the control system includes analog output channels managed by a DS200DAOCG1A, those should be verified for calibration drift before the system is returned to service.

Communication continuity is a critical concern in any DS200-series retrofit. While the SDCIG module itself communicates via the internal backplane bus and does not require protocol reconfiguration, the broader Mark V or Mark VI system may include DS200CPCBG1A communication processor boards that handle Modbus, Profibus, or Ethernet/IP links to the plant DCS or SCADA layer. These communication boards should be verified as operational before and after the module swap to confirm that upstream data flows — including turbine speed, exhaust temperature, and vibration signals — are being correctly transmitted to the control room.

In control cabinets where space is constrained, engineers should also account for the physical clearance required to extract and reseat a VME-format card. Adjacent modules such as the DS200SDCCG1A or DS200TCQAG1A thermocouple input module may need to be temporarily loosened to allow proper card extraction without damaging backplane connectors. Always use an anti-static wrist strap and follow ESD precautions when handling DS200-series boards.

For sites running GE’s ToolboxST configuration environment, the replacement module should be verified against the existing hardware configuration file. If the module firmware revision differs from the original, a configuration download may be required. Coordinate with the controls engineer to schedule this step during the planned outage window to avoid extending downtime. HMI screens built in Cimplicity or third-party SCADA platforms should be monitored during the first post-replacement startup to confirm that all analog signal tags are reading correctly and that no alarm conditions have been introduced by the module change.

Downtime Control During System Migration

Minimizing turbine downtime during a DS200SDCIG1ABA replacement requires pre-staging the replacement module, pre-documenting all wiring and jumper configurations, and coordinating the swap with the plant’s scheduled maintenance interval. In most cases, a like-for-like module replacement — where the terminal board and field wiring remain undisturbed — can be completed within a two- to four-hour maintenance window, provided the replacement unit has been pre-tested and confirmed functional before the outage begins.

NINERMAS pre-ships each DS200SDCIG1ABA with a functional test report, allowing the receiving engineer to confirm module health before the planned outage date. This eliminates the risk of discovering a defective replacement unit only after the original module has been removed from service. For critical generation assets where extended downtime carries significant financial or grid-stability consequences, maintaining a spare DS200SDCIG1ABA in the site’s local inventory is strongly recommended.

Where the retrofit scope extends beyond a single module — for example, when upgrading an entire DS200 rack or migrating from a Mark V to a Mark VI control platform — a phased replacement strategy is advisable. Replacing modules one at a time, with full functional verification at each step, preserves the original program logic and control continuity while reducing the risk of a system-wide fault. The existing ladder logic, function block diagrams, and HMI tag assignments remain valid throughout a phased module-level retrofit, provided the hardware configuration file is updated to reflect each new module’s firmware revision.

For facilities that cannot afford any unplanned downtime, NINERMAS can coordinate expedited shipment of pre-tested DS200SDCIG1ABA units to support emergency replacement scenarios. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 to discuss inventory availability and lead times.

Retrofit Support FAQ

Q1: Is the DS200SDCIG1ABA a direct drop-in replacement for the original module?
In most DS200 Mark V and Mark VI applications, yes. The DS200SDCIG1ABA is a form-fit-function replacement for the original GE part. However, engineers should verify the hardware revision suffix and jumper configuration of the original module before installation, as minor revision differences may require a ToolboxST configuration update. NINERMAS technical support can assist with revision compatibility checks prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the DS200SDCIG1ABA?
Each unit is functionally tested on a DS200-compatible test bench to verify backplane communication, analog signal conditioning accuracy, and power rail integrity. A test report is included with every shipment. The module is covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure under normal operating conditions.

Q3: Can the DS200SDCIG1ABA be installed without taking the entire turbine control system offline?
This depends on the redundancy configuration of the specific Mark V or Mark VI installation. In simplex control configurations, a full unit shutdown is required. In TMR (Triple Modular Redundant) configurations, it may be possible to replace a module in one control path while the other two paths maintain control — however, this should only be attempted by qualified GE controls engineers following the applicable GE maintenance procedures. NINERMAS recommends consulting your site’s controls documentation before attempting a hot-swap.

Q4: What is the typical lead time and inventory availability for the DS200SDCIG1ABA?
NINERMAS maintains stock of DS200-series modules to support both planned maintenance and emergency replacement scenarios. Standard lead time for in-stock units is 3–7 business days for international shipment. For urgent requirements, expedited shipping options are available. Contact sale@ninermas.com or call +0086 187 5021 5667 to confirm current stock levels and delivery timelines.
