GE DS200SDCCG4RGD Service-Ready Spare Part for Industrial Maintenance

GE DS200SDCCG4RGD Service-Ready Spare Part for Industrial Maintenance

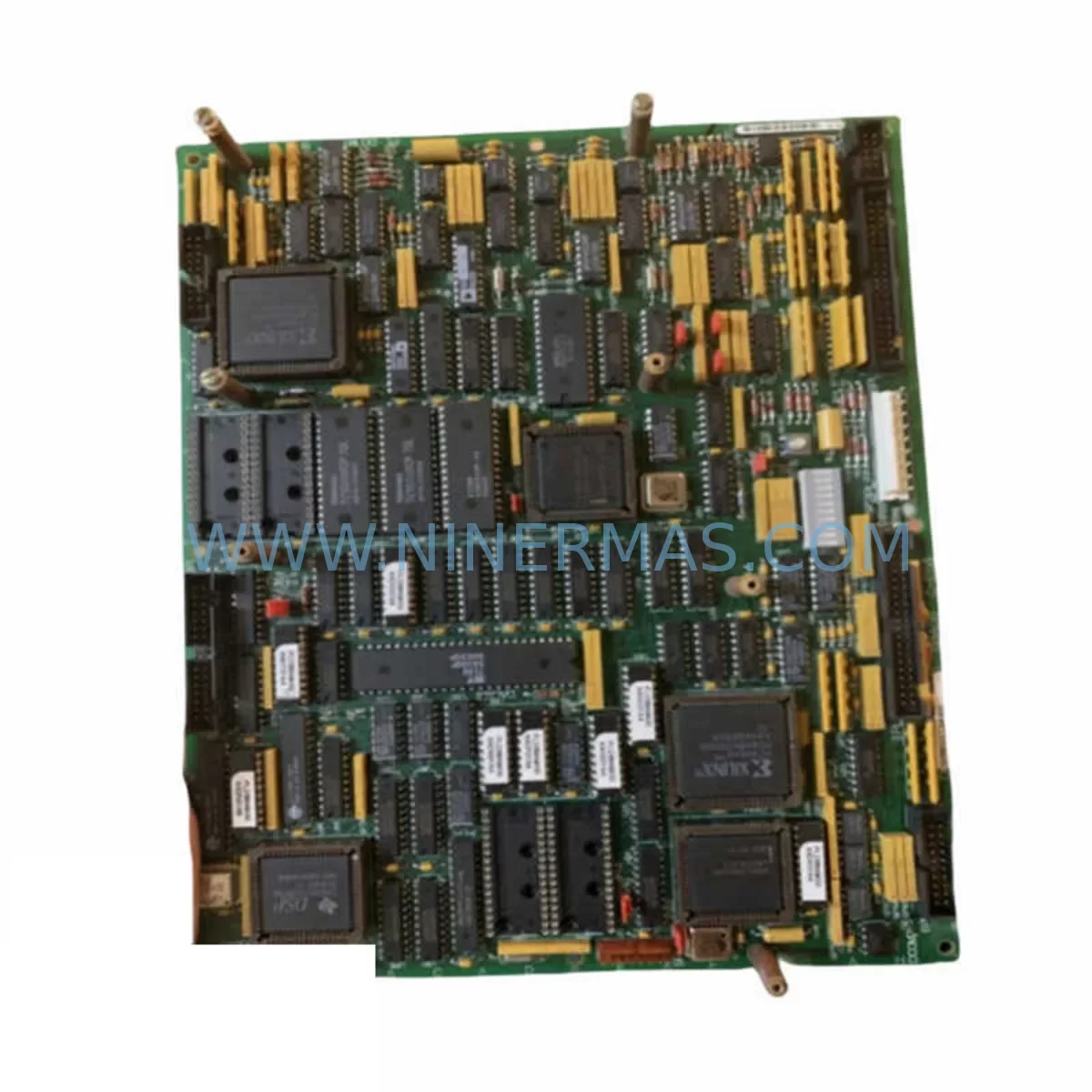

The GE DS200SDCCG4RGD is a Signal Conditioning and Control Card designed for the GE Mark V Speedtronic turbine control platform — one of the most widely deployed gas and steam turbine control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As original equipment reaches end-of-production, sourcing a verified, service-ready spare becomes a critical priority for maintenance engineers managing aging control systems. NINERMAS stocks the DS200SDCCG4RGD as a tested, warranty-backed replacement to support rapid downtime recovery and long-term spare parts planning.

Whether you are responding to an unplanned trip, executing a scheduled annual overhaul, or building a strategic MRO inventory buffer, the DS200SDCCG4RGD is a direct-fit replacement that preserves system compatibility without requiring firmware reconfiguration or backplane modification. Every unit shipped by NINERMAS undergoes pre-shipment functional verification and is covered by a 12-month warranty from the date of delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DS200SDCCG4RGD in a Mark V Speedtronic panel is rarely an isolated task. Experienced maintenance engineers treat a card-level fault as a trigger for a broader cabinet inspection. When pulling the SDCC card, it is best practice to simultaneously inspect the DS200TCQAG1BZZ I/O Terminal Board, which interfaces directly with field wiring and is subject to terminal oxidation and insulation degradation over time. The DS200DSPCH1ADA Digital Signal Processor Card should also be checked for firmware integrity, as SDCC faults can sometimes originate from upstream DSP communication errors rather than the conditioning card itself.

Power integrity is equally critical. The DS200PCCAG1ABB Power Supply Card and associated DS200DCFBG1BDB DC/DC Converter Board should be load-tested during any SDCC replacement event — voltage ripple or transient spikes on the backplane bus are a common root cause of premature card failure. If your facility operates redundant Mark V panels (TMR configuration), verify that the DS200TCDAG1ABB Analog I/O Terminal Board on the redundant path is also within specification.

For facilities running mixed GE turbine fleets, the DS200SDCIG1AFB Signal Conditioning Card is a closely related variant used in certain Mark V LM configurations and should be stocked alongside the DS200SDCCG4RGD to cover cross-unit maintenance scenarios. Communication health should be validated through the DS200TCPSG1A Communication Power Supply Board, and relay output integrity confirmed via the DS200RTBAG1ABA Relay Terminal Board. For facilities that have begun transitioning toward Mark VI, the IS200SRTDH1A RTD Input Terminal Board may be relevant for hybrid panel configurations.

A complete annual inspection checklist for a Mark V cabinet should also include: fuse condition on the DS200FCGDH1A Fuse Board, backplane connector seating on all occupied slots, and calibration verification of any DS200TCEAG1BHF Excitation Control Board installed in the same enclosure. Proactive replacement of these components — rather than reactive repair — is the most effective strategy for reducing unplanned outage duration and protecting turbine availability KPIs.

Site Replacement Workflow

Replacing the DS200SDCCG4RGD on-site follows a structured sequence to minimize downtime and avoid introducing new faults during the swap. Begin by documenting the current alarm and fault log from the Mark V HMI — this baseline record is essential for post-replacement verification and warranty claim support if required.

Step 1 — Isolation: Place the turbine in a safe, controlled shutdown state per your site’s lockout/tagout (LOTO) procedure. Confirm that the Mark V panel is de-energized at the appropriate breaker before opening the cabinet door.

Step 2 — Card Extraction: Identify the SDCC slot on the Mark V backplane (refer to your panel’s wiring diagram for slot assignment). Release the card ejector levers and withdraw the DS200SDCCG4RGD slowly to avoid backplane pin damage. Inspect the ejected card for visible burn marks, swollen capacitors, or corroded edge connectors — photograph any anomalies for your maintenance record.

Step 3 — Compatibility Verification: Confirm that the replacement DS200SDCCG4RGD revision (G4RGD) matches the revision expected by your panel’s software configuration. Mismatched revisions can cause initialization faults. If your panel was originally configured for an earlier revision, contact NINERMAS technical support before installation.

Step 4 — Installation & Power-Up: Seat the replacement card firmly until both ejector levers click into the locked position. Re-energize the panel and observe the Mark V startup sequence. Confirm that the SDCC card initializes without fault codes and that all associated I/O channels report correctly on the HMI.

Step 5 — Post-Replacement Validation: Run a full I/O loop check on all channels served by the DS200SDCCG4RGD. Compare live readings against pre-fault baseline values. Log the replacement in your CMMS with the new card’s serial number and the NINERMAS invoice reference for warranty tracking.

This workflow is applicable to both emergency replacement scenarios and planned maintenance windows. NINERMAS recommends maintaining at least one DS200SDCCG4RGD in your on-site critical spare inventory to eliminate lead-time risk during unplanned outages.

Spare Parts Support FAQ

Q1: Is the DS200SDCCG4RGD a new OEM part or a refurbished unit?
NINERMAS supplies both new OEM and professionally refurbished units depending on availability. All refurbished units are fully disassembled, cleaned, component-tested, and functionally verified before shipment. Each unit — new or refurbished — carries the same 12-month warranty and is shipped with a test report upon request. We clearly disclose the unit condition at the time of quotation so procurement engineers can make an informed sourcing decision.

Q2: How do I confirm compatibility between the DS200SDCCG4RGD and my specific Mark V panel revision?
Compatibility depends on your panel’s software revision, backplane configuration, and the specific turbine application (gas, steam, or combined cycle). Share your panel’s nameplate data, existing card revision list, and HMI software version with our technical team at sale@ninermas.com. We will cross-reference against our compatibility database and confirm suitability before shipment — at no additional charge.

Q3: What is your lead time and long-term supply commitment for the DS200SDCCG4RGD?
In-stock units ship within 2–5 business days from Hong Kong. For customers requiring long-term supply assurance — particularly for multi-unit fleets or multi-year maintenance contracts — NINERMAS offers stock reservation agreements that lock in pricing and availability for 12–36 month horizons. This is especially valuable for DS200-series cards, which are no longer in active OEM production and are subject to increasing market scarcity.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failure under normal operating conditions — including card initialization faults, I/O channel failures, and communication errors attributable to the card itself. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sale@ninermas.com with your invoice number, a description of the fault, and any available fault log data from your Mark V HMI. NINERMAS will arrange return shipping and either repair or replace the unit within the warranty period.
