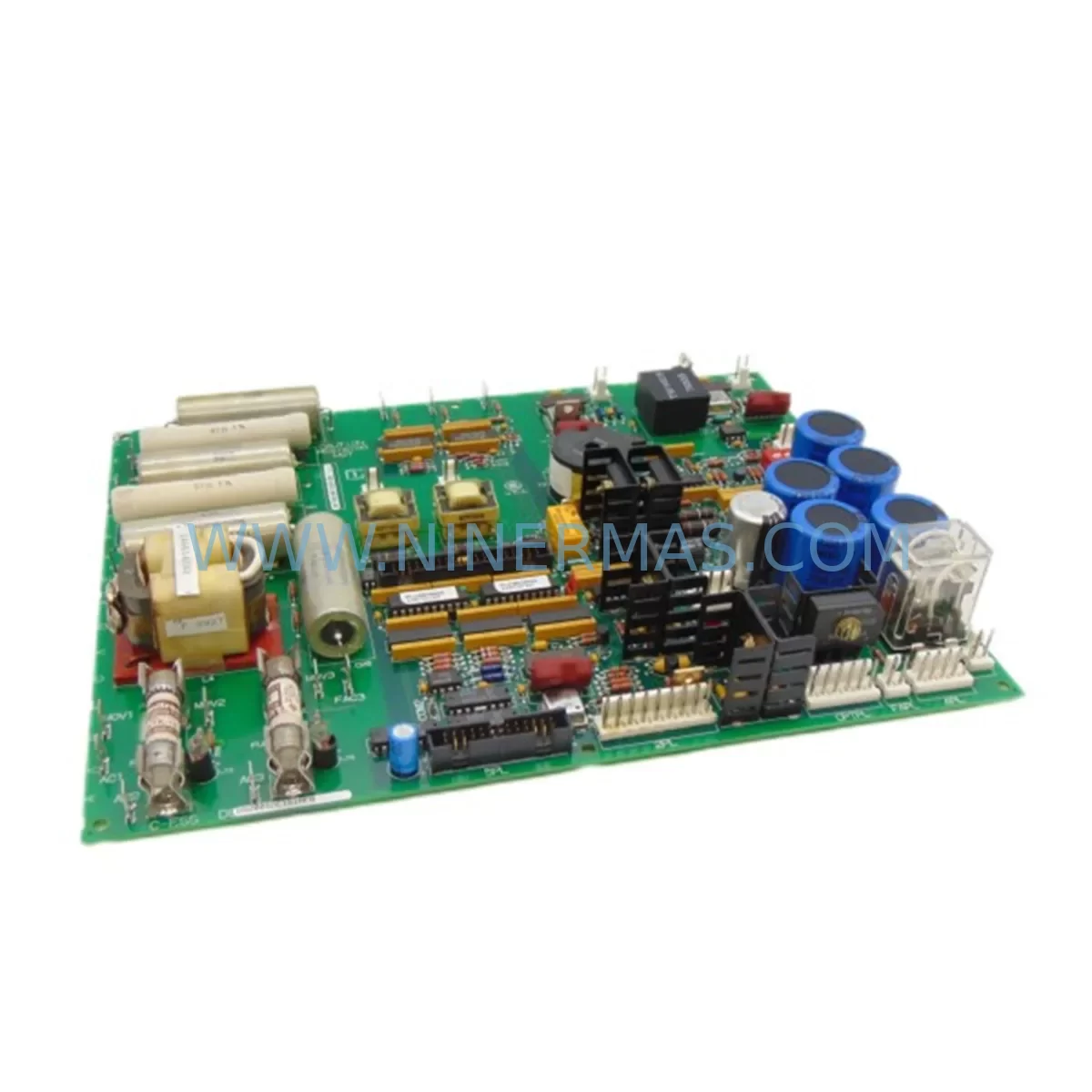

The GE DS200SDCIG1AFB is a signal conditioning card designed for use within the GE Mark V Turbine Control System — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As aging Mark V systems continue to operate well beyond their original design life, the availability of service-ready, tested spare parts like the DS200SDCIG1AFB becomes a critical factor in plant uptime, safety, and maintenance budget control.

At NINERMAS, we supply the DS200SDCIG1AFB as an original, fully tested spare part backed by a 12-month warranty. Every unit undergoes pre-shipment functional verification to ensure it meets GE’s original electrical and signal performance specifications before leaving our facility. Whether you are responding to an unplanned trip event or building a proactive spare parts inventory, we provide reliable supply with short lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the DS200SDCIG1AFB in a Mark V control system is rarely an isolated task. Signal conditioning cards sit at the intersection of field instrumentation and the control processor, meaning that a fault in this card can cascade into erroneous readings across multiple I/O channels. Experienced maintenance engineers know that when pulling a DS200SDCIG1AFB for replacement, it is equally important to inspect the surrounding system components to prevent repeat failures and ensure a clean return to service.

Begin with the DS200SDCIG1AFB’s adjacent I/O terminal boards — particularly the DS200TCQAG1B or equivalent terminal board connected to the card cage slot. Loose or corroded terminal connections are a common root cause of signal noise that can be misdiagnosed as a card failure. While the panel is open, inspect the DS200TCDAG1AFB diagnostic card and any associated DS200DSPCH1A processor cards for fault codes that may indicate upstream or downstream signal integrity issues.

Power supply integrity is equally critical. The Mark V relies on redundant DS200PCCAG1B power conditioning cards and dedicated 24VDC and 5VDC rail supplies within the control cabinet. A degraded power supply can cause intermittent card faults that mimic hardware failure. Always verify rail voltages at the backplane before condemning a signal conditioning card.

For plants running TMR (Triple Modular Redundant) configurations, the DS200TCRAG1AFB relay output card and DS200SDCIG1AFB work in concert to maintain voting logic integrity. If one channel’s signal conditioning is compromised, the TMR system may mask the fault temporarily — but the underlying degradation will eventually trigger a protective trip. Proactive replacement during planned outages is strongly preferred over reactive replacement during a forced outage.

Communication and HMI components should also be reviewed during any Mark V card replacement. The DS200TCPSG1A communication processor and associated Mark V HMI workstation running GE’s CIMPLICITY or Toolbox software should be checked for any latent alarms or diagnostic messages that appeared in the weeks prior to the card fault. These historical alarm logs often reveal early warning signs that were not acted upon.

Finally, for older Mark V installations approaching end-of-life, consider stocking companion spare parts alongside the DS200SDCIG1AFB: the DS200EXPSG1AED expansion processor card, DS200TCQCG1B I/O terminal boards, and DS200SDCIG1AFB-compatible fuse assemblies are all high-attrition items in aging turbine control cabinets. A well-structured spare parts kit reduces mean time to repair (MTTR) and gives maintenance teams the confidence to execute rapid card swaps without waiting on emergency procurement.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the DS200SDCIG1AFB, document all active alarms and I/O channel statuses from the Mark V HMI. Take photographs of wiring and card slot positions. Confirm the replacement unit’s part number suffix matches the installed card (AFB revision in this case).

Step 2 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. For TMR systems, confirm that the remaining two channels are healthy before isolating the faulted channel. Do not remove the card under live power unless your site procedure explicitly permits hot-swap for this card type.

Step 3 — Card Removal and Inspection: Remove the DS200SDCIG1AFB carefully using the card ejector handles. Inspect the card edge connector and backplane connector for corrosion, bent pins, or burn marks. Clean the backplane connector with approved contact cleaner if contamination is present.

Step 4 — Replacement Installation: Seat the new DS200SDCIG1AFB firmly into the card cage slot. Ensure the card is fully engaged with the backplane connector. Re-secure any retaining hardware.

Step 5 — Power-Up and Verification: Restore power and observe the card’s LED status indicators. Navigate to the Mark V diagnostic screen and confirm that the replaced channel is reporting healthy signal values. Compare live readings against known-good reference values from your instrumentation calibration records.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System), including the old card’s serial number, fault symptoms, replacement date, and the new card’s part number and warranty start date.

Spare Parts Support FAQ

Q1: Is the DS200SDCIG1AFB compatible with both TMR and Simplex Mark V configurations?
Yes. The DS200SDCIG1AFB is used across both TMR (Triple Modular Redundant) and Simplex Mark V control panel configurations. Always verify the card slot assignment and revision suffix (AFB) against your panel’s bill of materials before installation to ensure full compatibility.

Q2: What is included in NINERMAS’s 12-month warranty for this part?
Every DS200SDCIG1AFB supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions. Each unit is functionally tested prior to shipment. In the event of a warranty claim, we provide a replacement unit or full refund based on the situation.

Q3: How quickly can NINERMAS ship the DS200SDCIG1AFB, and do you support emergency orders?
In-stock units are dispatched within 3–5 business days under standard orders. For emergency unplanned outage situations, please contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to discuss expedited shipping options. We understand that turbine downtime is extremely costly and we prioritize emergency supply requests.

Q4: Can NINERMAS provide long-term supply assurance for DS200SDCIG1AFB and other Mark V spare parts?
Yes. NINERMAS maintains ongoing inventory of high-demand Mark V spare parts and can establish blanket purchase agreements or annual supply contracts for customers with recurring maintenance needs. We also source companion components such as DS200TCQAG1B terminal boards, DS200PCCAG1B power cards, and DS200DSPCH1A processor cards to support complete Mark V cabinet maintenance programs.
