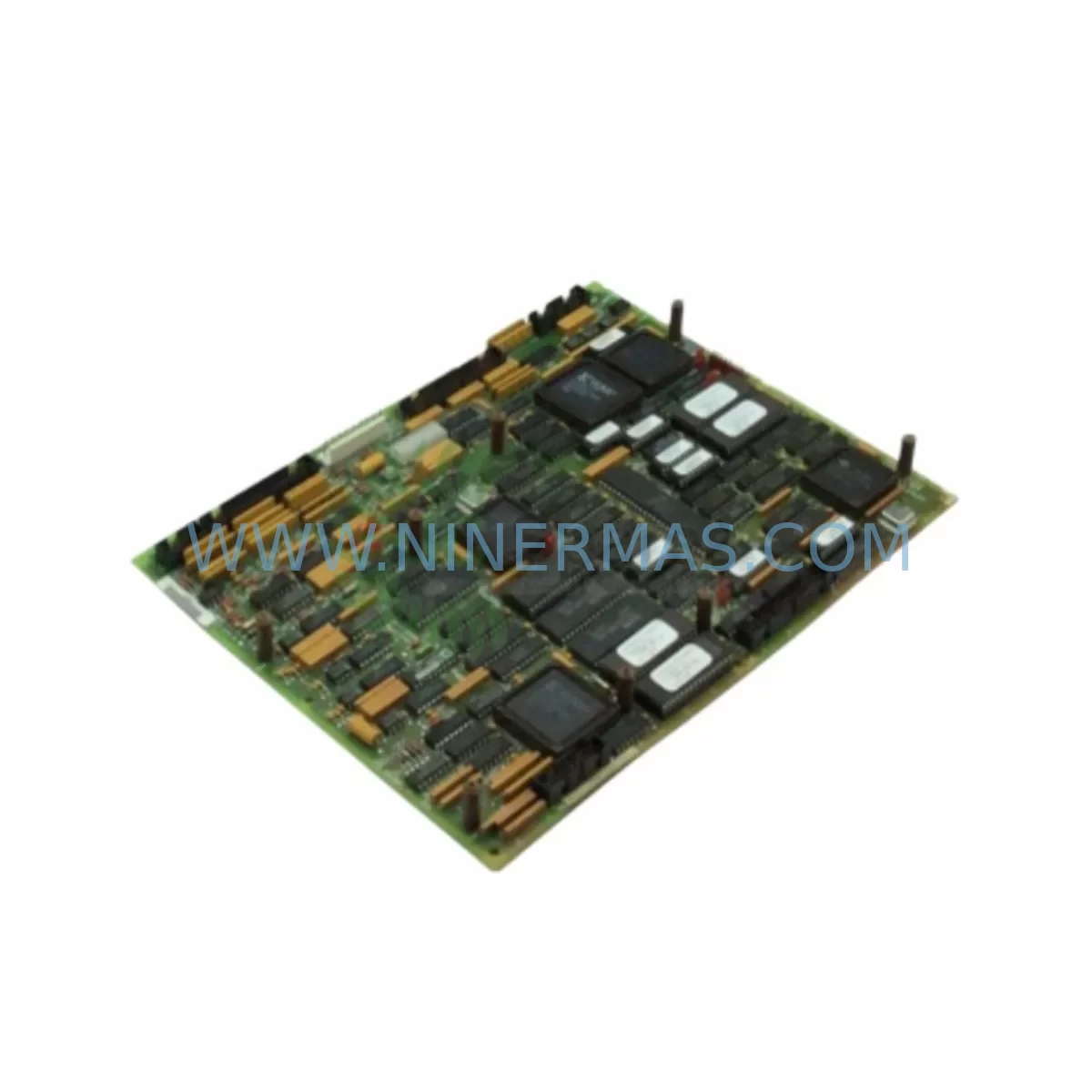

GE DS200SDCCG5RHD Safety-Reliable Drive Control Board

GE DS200SDCCG5RHD Safety-Reliable Drive Control Board for Critical Control Sites

The GE DS200SDCCG5RHD is a high-integrity Drive Control Board engineered for demanding industrial environments where control continuity, signal fidelity, and system uptime are non-negotiable. Designed as part of GE’s Mark V and Mark VI turbine control platform, this board plays a central role in managing drive logic, feedback processing, and protective relay coordination across critical control cabinets. Whether deployed in power generation, petrochemical processing, or heavy industrial automation, the DS200SDCCG5RHD delivers the operational stability and fault tolerance required to protect personnel, assets, and production continuity.

At NINERMAS, every DS200SDCCG5RHD unit undergoes pre-shipment functional testing and visual inspection to verify board integrity, connector condition, and component health before dispatch. This quality assurance process ensures that replacement parts arrive ready for installation, minimizing commissioning risk and reducing unplanned downtime at critical sites.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a Mark V or Mark VI turbine control cabinet, the DS200SDCCG5RHD does not operate in isolation. Its reliability is directly linked to the integrity of the surrounding control architecture. Signal drift, power fluctuation, and communication anomalies in adjacent modules can cascade into drive faults or protective trips — making component-level quality across the entire cabinet essential.

The DS200SDCIG1A and DS200SDCIG2A interface boards work in close coordination with the DS200SDCCG5RHD, managing I/O signal routing and feedback conditioning. Degraded performance in these interface boards can introduce latency or signal noise that the drive control board must compensate for, increasing wear on processing logic. Replacing aging interface boards alongside the DS200SDCCG5RHD during scheduled maintenance windows significantly reduces the risk of nuisance trips and control interruptions.

Power supply stability is equally critical. The DS200PCCAG1A power supply board and associated DS200TCQAG1A I/O terminal board must deliver clean, regulated voltage to the drive control board. Voltage sags, transient surges, or ripple from aging capacitors in the power supply chain can corrupt drive logic states and trigger unplanned shutdowns. Surge protection devices and UPS-backed panel feeds are strongly recommended in high-risk installations.

Communication integrity between the DS200SDCCG5RHD and the broader control network depends on the health of communication interface modules such as the DS200DSPCH1A DSP control board and the IS200TTURH1C turbine control board. In high-EMI environments — common in motor control centers, arc furnace facilities, and variable frequency drive (VFD) installations — shielded cabling, proper grounding, and periodic communication diagnostics are essential to prevent data corruption and false fault signals.

For sites operating in dusty, humid, or chemically aggressive atmospheres, the DS200GDDAG1AEB gate driver board and DS200TCDAG1A analog I/O board should be inspected and replaced on a proactive schedule. Contamination on board surfaces can cause leakage currents, intermittent faults, and accelerated component degradation — all of which increase the probability of unplanned outages in continuous production environments.

A comprehensive spare parts program that includes the DS200SDCCG5RHD alongside these complementary boards ensures that maintenance teams can respond rapidly to any control cabinet fault without waiting on extended lead times. NINERMAS maintains stocked inventory of Mark V and Mark VI series components to support emergency replacement, planned turnaround, and long-term lifecycle extension programs.

Critical Industrial Safety Applications

The GE DS200SDCCG5RHD is deployed across a wide range of critical industrial sectors where control system reliability directly impacts safety, regulatory compliance, and production economics.

Power Generation: In gas turbine and steam turbine power plants, the DS200SDCCG5RHD manages drive control logic for auxiliary systems including fuel control actuators, cooling fans, and lube oil pump drives. A failure in this board can result in turbine trip, loss of generation capacity, and potential safety system activation. Pre-tested replacement stock ensures rapid restoration of turbine control integrity.

Petrochemical and Refinery Operations: Continuous process plants operating compressors, pumps, and agitators under SIL-rated safety instrumented systems (SIS) require drive control boards that maintain deterministic response under all operating conditions. The DS200SDCCG5RHD’s robust design supports reliable operation in high-temperature, high-vibration, and chemically aggressive environments typical of refinery control rooms and field junction boxes.

Mining and Mineral Processing: Conveyor drives, crusher motors, and hoisting systems in underground and surface mining operations place extreme demands on drive control hardware. The DS200SDCCG5RHD’s tolerance for vibration, dust ingress, and wide temperature swings makes it a dependable choice for maintaining drive availability in remote and harsh mining environments.

Water and Wastewater Treatment: Pump station control systems and aeration blower drives in municipal and industrial water treatment facilities require continuous, unattended operation. The DS200SDCCG5RHD supports reliable drive control in these applications, reducing the risk of pump failures that could compromise water supply or environmental compliance.

Metallurgy and Steel Production: Rolling mill drives, ladle transfer cars, and furnace atmosphere control systems in steel plants operate under extreme electrical noise and thermal stress. The DS200SDCCG5RHD’s EMI-hardened design and conformal coating provide the resilience needed to maintain control accuracy in these demanding environments.

Port and Marine Applications: Crane drives, mooring winches, and vessel propulsion control systems in port and offshore environments require drive control boards that can withstand salt air, humidity, and mechanical shock. The DS200SDCCG5RHD’s industrial-grade construction supports reliable operation in these corrosive and mechanically demanding conditions.

Safety and Quality FAQ

Q1: What warranty does the DS200SDCCG5RHD carry?
All DS200SDCCG5RHD units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions and is supported by our technical team for troubleshooting and replacement coordination.

Q2: Is the DS200SDCCG5RHD tested before shipment?
Yes. Every unit undergoes pre-shipment inspection and functional verification, including visual examination of PCB condition, connector integrity, and component health. This process ensures that boards dispatched to critical sites meet the quality standards required for industrial control applications.

Q3: Is the DS200SDCCG5RHD compatible with both Mark V and Mark VI systems?
The DS200SDCCG5RHD is primarily associated with GE’s Mark V and Mark VI drive control platforms. Compatibility should be verified against the specific panel configuration and firmware revision at the installation site. NINERMAS technical support can assist with cross-referencing part numbers and confirming compatibility before purchase.

Q4: Can NINERMAS support long-term supply and emergency replacement for the DS200SDCCG5RHD?
Yes. NINERMAS maintains stocked inventory of the DS200SDCCG5RHD and related Mark V/VI series components to support both planned maintenance programs and emergency replacement requirements. Our supply commitment includes fixed lead times and priority dispatch for critical site outage situations, supporting lifecycle extension programs for aging GE turbine control systems.
