Siemens 6SL3020-2TE21-0AA4 Service-Ready Spare Part: Minimizing Downtime in Industrial Drive Systems

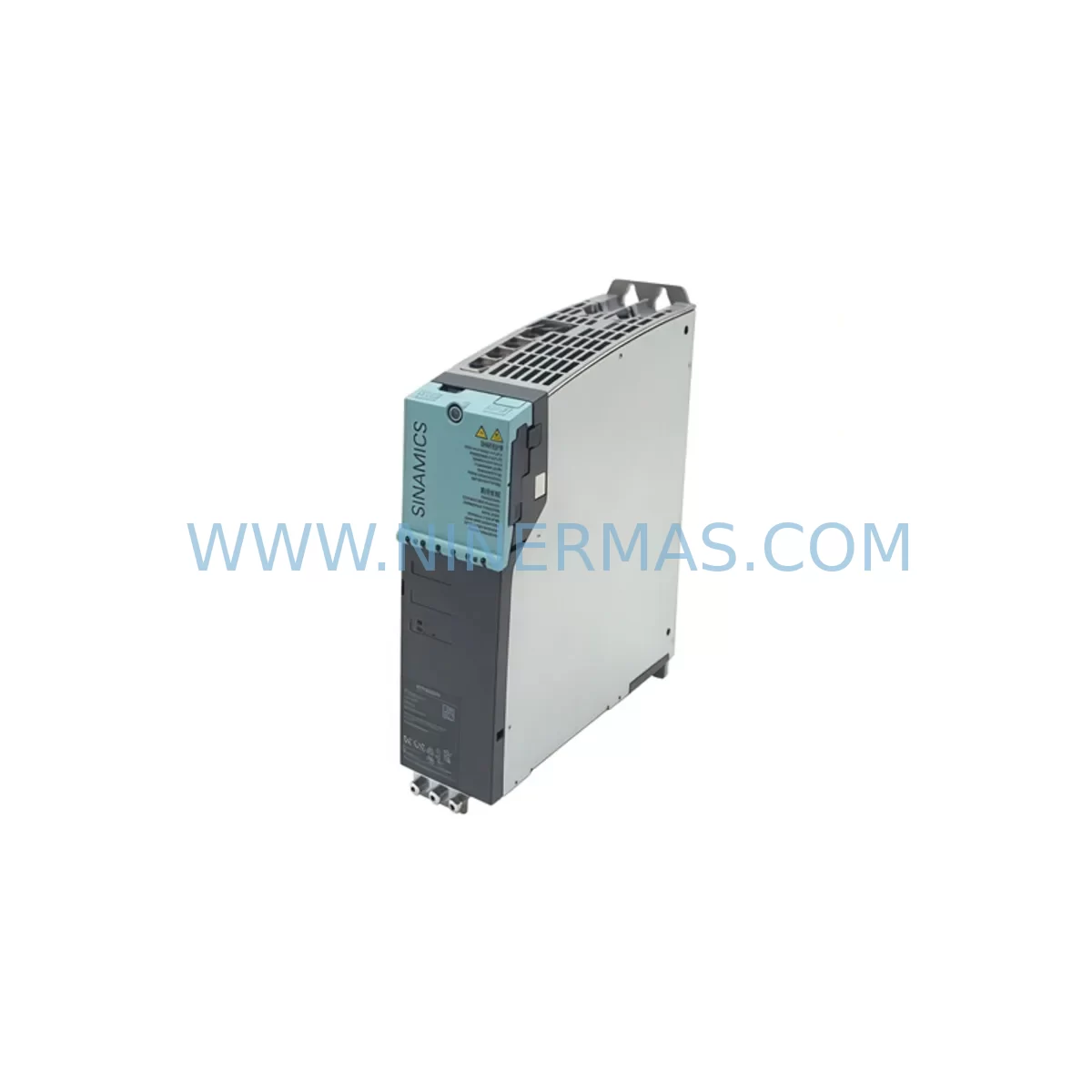

The Siemens 6SL3020-2TE21-0AA4 is a ruggedized Double Motor Module belonging to the SINAMICS S120 booksize cabinet series, engineered for demanding industrial environments where vibration, temperature extremes, and continuous duty cycles are the norm. As a service-ready spare part sourced and tested by NINERMAS, this module is prepared for immediate deployment in maintenance scenarios ranging from emergency line recovery to scheduled annual overhauls. Whether you are a maintenance engineer managing a multi-axis CNC machining center or a procurement engineer building a strategic spare parts inventory, the 6SL3020-2TE21-0AA4 represents a critical asset in sustaining drive system uptime.

The Double Motor Module topology allows a single unit to simultaneously control two independent motor axes, making it a compact and cost-effective solution for coordinated motion applications such as gantry systems, dual-spindle lathes, and synchronized conveyor drives. Its ruggedized design extends operational reliability in harsh environments — including foundry floors, outdoor enclosures, and high-humidity processing lines — where standard modules may exhibit premature failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6SL3020-2TE21-0AA4 in a live production environment requires a structured approach to avoid secondary failures and ensure a clean system restart. Maintenance engineers should treat this module replacement as an opportunity to audit the surrounding drive architecture. Begin by inspecting the DRIVE-CLiQ cables connecting the motor module to the Control Unit — typically a CU320-2 DP or CU320-2 PN — as cable degradation is a common root cause of axis faults that are incorrectly attributed to the motor module itself.

The DC bus connection should be checked for signs of arcing, loose busbars, or oxidized contacts. If the cabinet houses a Smart Line Module (SLM) or Active Line Module (ALM) such as the 6SL3130-6AE21-0AB1, verify that the infeed module is operating within its rated capacity after the new Double Motor Module is installed, particularly if the axis load profile has changed since the original commissioning.

Power supply integrity is equally important. The 24 V DC SITOP power supply feeding the control electronics should be load-tested; a marginal supply can cause intermittent faults that mimic motor module failures. Inspect the terminal block assemblies and fuse holders within the cabinet for signs of thermal stress, especially on circuits feeding the motor module’s enable and ready signals.

For multi-axis systems, also review the status of adjacent Single Motor Modules (e.g., 6SL3120-1TE21-0AA3) sharing the same DC bus segment. A failing neighbor module can inject ripple or transient voltages that accelerate wear on the replacement unit. If the system includes Sensor Modules Cabinet-Mounted (SMC) for encoder feedback, confirm that the SMC30 or SMC20 units are correctly parameterized for the connected motors after the module swap.

Communication health should not be overlooked. Verify that the PROFIBUS DP or PROFINET network segment connected to the drive is free of topology errors, and that the PLC — often a Siemens SIMATIC S7-300 or S7-1500 — correctly recognizes the new module’s hardware revision in the hardware configuration. If the system uses a Basic Operator Panel (BOP20) or an Advanced Operator Panel (AOP30) for local diagnostics, use it to confirm that all axis parameters have been correctly restored from the backup dataset before returning the line to production.

Procurement engineers should note that the 6SL3020-2TE21-0AA4 is a long-lifecycle component within the SINAMICS S120 platform, but Siemens periodically revises hardware versions. NINERMAS maintains buffer stock of this and related modules to support long-term supply continuity, reducing the risk of extended lead times during critical maintenance windows.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the Control Unit’s diagnostic buffer (accessible via STARTER, Startdrive, or the operator panel) to confirm that the fault originates from the 6SL3020-2TE21-0AA4 and not from upstream infeed or downstream motor/encoder components. Document the fault codes before powering down.

Step 2 — Safe Isolation: Follow your site’s lockout/tagout procedure. Discharge the DC bus capacitors fully before touching any bus connections — use a calibrated voltmeter to confirm bus voltage is below 50 V DC before proceeding.

Step 3 — Module Removal: Disconnect DRIVE-CLiQ cables, motor power connectors (U2/V2/W2 and U3/V3/W3), and the DC bus busbars. Note the physical position of all connectors and label them if necessary to avoid cross-connection during reinstallation.

Step 4 — Replacement Installation: Mount the new 6SL3020-2TE21-0AA4 in the booksize slot. Reconnect all connectors in reverse order. Torque busbar bolts to the manufacturer’s specification to ensure low-resistance DC bus connections.

Step 5 — Firmware and Parameter Verification: Power up the Control Unit only (not the power section) and verify that the new module is recognized. Download the saved parameter set from the CU’s memory card or from the engineering tool. Confirm that motor data, encoder configuration, and safety function parameters are correctly assigned to each axis.

Step 6 — Commissioning Test: Run each axis at reduced speed and load before returning to full production. Monitor current feedback, temperature, and DRIVE-CLiQ communication status for the first 30 minutes of operation. Log the results for your maintenance records.

This workflow is compatible with both new installations and like-for-like replacements of older hardware revisions, ensuring system compatibility is maintained without requiring full recommissioning of the drive line-up.

Spare Parts Support FAQ

Q1: Is the 6SL3020-2TE21-0AA4 compatible with all SINAMICS S120 booksize configurations?
The 6SL3020-2TE21-0AA4 is designed for the SINAMICS S120 booksize drive line-up and is compatible with standard ALM, SLM, and BLM infeed modules sharing the same DC bus. Compatibility with specific Control Unit firmware versions should be verified using Siemens’ compatibility tool or by consulting the drive’s commissioning documentation. NINERMAS can assist with compatibility verification prior to shipment upon request.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every 6SL3020-2TE21-0AA4 unit dispatched by NINERMAS undergoes functional verification testing before shipment. This includes power-on self-test, DRIVE-CLiQ interface check, and inspection of all connectors and mechanical components. Units are packaged in anti-static, shock-protected packaging to maintain integrity during international transit.

Q3: What does the 12-month warranty cover, and how is it claimed?
NINERMAS provides a 12-month warranty from the date of shipment covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are initiated by contacting sale@ninermas.com with the order reference, fault description, and photographic evidence of the issue. NINERMAS will arrange for replacement or repair at no additional cost for valid warranty claims.

Q4: Can NINERMAS support long-term or repeat procurement of this spare part?
Yes. NINERMAS maintains strategic buffer stock of the 6SL3020-2TE21-0AA4 and related SINAMICS S120 components to support customers with ongoing maintenance programs, annual overhaul schedules, and OEM spare parts lists. Framework agreements and scheduled delivery programs are available for procurement engineers managing multi-site or high-volume maintenance operations. Contact our team to discuss supply continuity arrangements.
