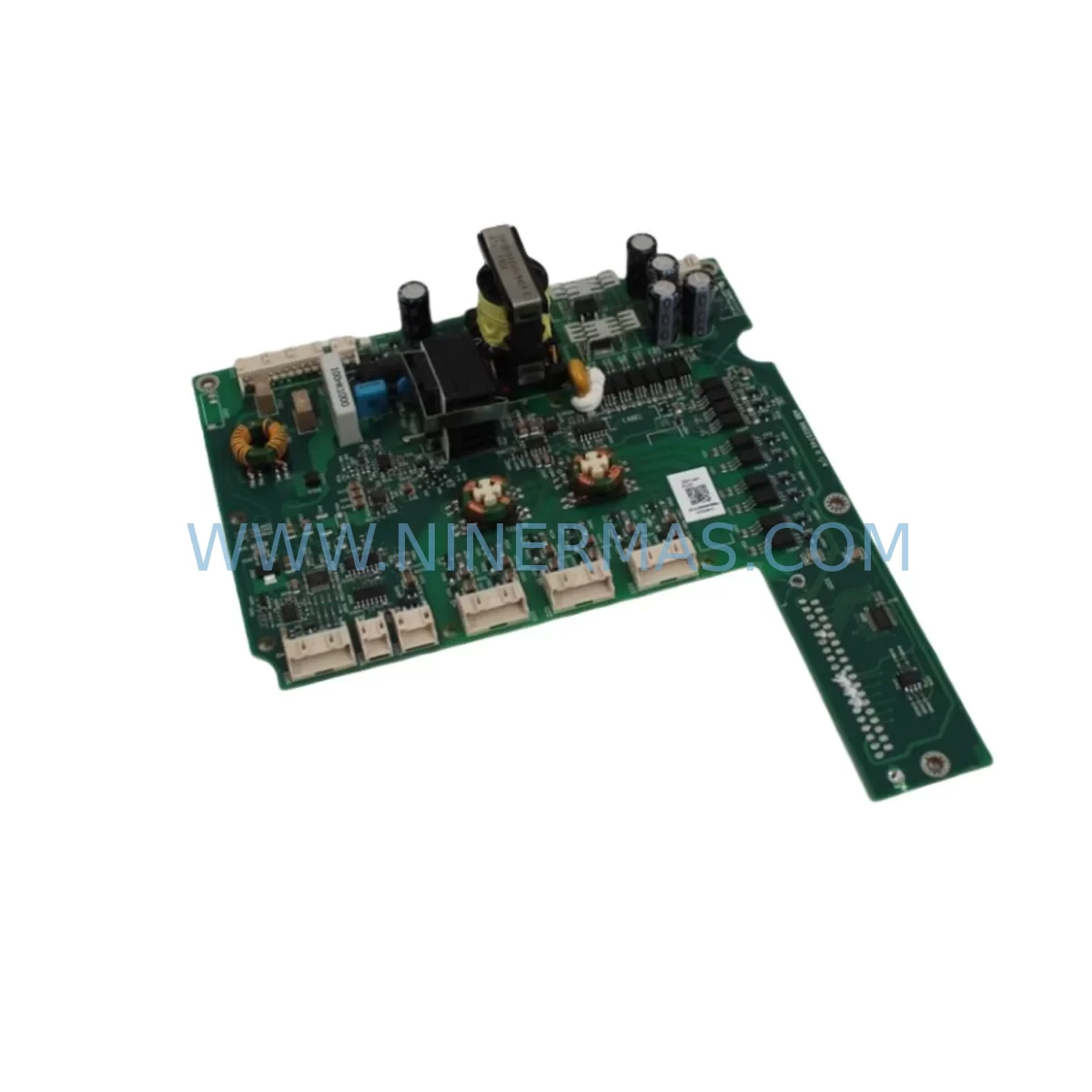

ABB ZINT-541 3AUA0000065896R Retrofit Drive Board for Legacy Systems

ABB ZINT-541 3AUA0000065896R Retrofit Drive Board for Legacy Systems: Seamless Legacy Compatibility and Smooth Upgrade

The ABB ZINT-541 (part number 3AUA0000065896R) is a communication and gate driver interface board originally designed for ABB ACS-series frequency converters, including the ACS880 and ACS580 drive platforms. As these drive systems age and original boards reach end-of-life, plant engineers and maintenance teams face increasing pressure to source verified replacement components that maintain full electrical and functional compatibility with existing control architectures. The ZINT-541 addresses this challenge directly: it is a retrofit-compatible board that can be integrated into legacy drive cabinets without requiring full drive replacement, preserving existing wiring, program logic, and HMI configurations.

For facilities running legacy ABB ACS drives in continuous production environments, the ZINT-541 serves as a critical spare part that extends the operational life of installed equipment by years. Whether you are replacing a failed board in an emergency shutdown scenario or proactively stocking spares to reduce future downtime risk, this component is tested before shipment and backed by a 12-month warranty, ensuring confidence in every deployment.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the ZINT-541 in an existing ABB drive installation requires a structured approach to avoid introducing new faults during the changeover. Before removing the failed board, maintenance engineers should document the current drive parameter set using Drive Composer or DriveStudio software connected via the RDCU-12C control unit. This ensures that all application-specific parameters, motor data, and I/O configurations can be restored to the replacement board without manual re-entry, significantly reducing commissioning time and the risk of parameter errors.

Power supply integrity is the first hardware check. The NPOW-42C power supply board, which feeds the drive’s internal logic circuits, must be verified to deliver stable voltage within specification before the new ZINT-541 is seated. A degraded power board can cause intermittent faults on a new communication board, leading to misdiagnosis and repeated failures. Similarly, the backplane connector on the drive chassis should be inspected for bent pins or oxidation before insertion.

Terminal wiring on the drive’s I/O section — typically managed through the AINT-02C analog I/O extension board or the BINT-12C digital I/O board — should be photographed and labeled before any board removal. In many legacy installations, field wiring has been modified over years of operation and may not match the original commissioning drawings. Accurate documentation at this stage prevents wiring errors during reassembly.

For drives integrated into a PROFINET or EtherNet/IP network, the communication adapter — such as the FENA-21 Ethernet adapter or the FPNO-21 PROFINET module — must remain powered and connected during the board swap if the network topology requires continuous heartbeat signals to the PLC. Coordinate with the control room to place the drive in a safe local control mode before isolating the communication board slot.

HMI screens linked to the drive via the RDCU-12C control unit may display fault codes or lose drive status during the replacement window. Operators should be briefed in advance, and the SCADA or DCS system should be configured to suppress nuisance alarms during the planned maintenance window. After the ZINT-541 is installed and the drive is powered up, verify that the ZMAC-524 main control board recognizes the new communication board and that all I/O channels report correctly before returning the drive to automatic mode.

In rack-based control cabinet installations where the ACS880 drive shares a cabinet with other ABB modules, confirm that the installation space allows for safe board extraction without disturbing adjacent wiring looms or the ZINT-592 gate driver board in neighboring slots. Use anti-static precautions throughout and ensure the replacement ZINT-541 is stored in its original ESD packaging until the moment of installation.

Downtime Control During System Migration

Minimizing production downtime during a ZINT-541 replacement requires preparation that begins well before the maintenance window opens. The most effective strategy is to have a tested spare board on-site before the failure occurs. Given the lead times associated with discontinued or low-volume ABB drive components, maintaining at least one verified spare ZINT-541 in the plant’s critical spares inventory is strongly recommended for facilities where the associated drive controls a high-availability process.

When an unplanned failure occurs, the priority is to protect the existing program logic. If the RDCU-12C control unit remains functional, the parameter backup should be extracted immediately via the USB port or communication link before any power cycling. This backup file becomes the recovery baseline for the replacement board and eliminates the need to reconstruct motor tuning data, PID parameters, and fieldbus node addresses from memory or outdated documentation.

During the physical swap, the drive should be fully de-energized and locked out following site LOTO procedures. Residual DC bus voltage in ACS880 drives can remain hazardous for several minutes after AC supply isolation — always verify with a calibrated meter before touching internal components. Once the replacement ZINT-541 is installed and the parameter set is restored, perform a controlled no-load test run before reconnecting the mechanical load. This confirms that the drive’s output frequency, current limits, and protection settings are operating correctly and that the communication link to the PLC or DCS has been re-established without address conflicts.

For planned migrations — such as upgrading a legacy ACS800 installation to an ACS880 platform — the ZINT-541 replacement can be scheduled during a planned production shutdown, allowing time for full commissioning, HMI screen updates, and fieldbus reconfiguration. In these scenarios, the 12-month warranty on the replacement board provides assurance that the upgraded system is covered against component defects throughout the initial post-migration operating period.

Retrofit Support FAQ

Q1: Is the ABB ZINT-541 (3AUA0000065896R) a direct drop-in replacement for the original board in my ACS880 drive?
In most cases, yes. The ZINT-541 is designed to fit the standard board slot in compatible ABB ACS-series drives. However, you should verify the firmware version of your RDCU-12C control unit against the board’s compatibility matrix before installation. If your drive has been upgraded with a newer firmware revision, confirm that the replacement board supports that revision to avoid communication faults after installation.

Q2: What commissioning steps are required after installing the replacement ZINT-541?
After physical installation, restore the parameter backup from your Drive Composer or DriveStudio file. Verify all I/O channel assignments on the AINT-02C and BINT-12C boards, confirm the fieldbus node address on the FENA-21 or FPNO-21 adapter, and perform a no-load test run to validate drive output and protection settings. Check that the HMI displays correct drive status before returning to automatic production mode.

Q3: Has the replacement board been tested before shipment, and what warranty is provided?
Yes. Every ZINT-541 unit is functionally tested before dispatch to verify board integrity and basic communication functionality. The board is covered by a 12-month warranty from the date of delivery, covering manufacturing defects and component failures under normal operating conditions. Warranty claims are supported by our technical team at sale@ninermas.com.

Q4: What is the typical lead time, and do you maintain stock of the ZINT-541?
We maintain inventory of the ZINT-541 (3AUA0000065896R) to support urgent replacement requirements. Lead times vary depending on current stock levels and destination. Contact us at sale@ninermas.com or +0086 187 5021 5667 for real-time availability confirmation and expedited shipping options for critical plant maintenance situations.
