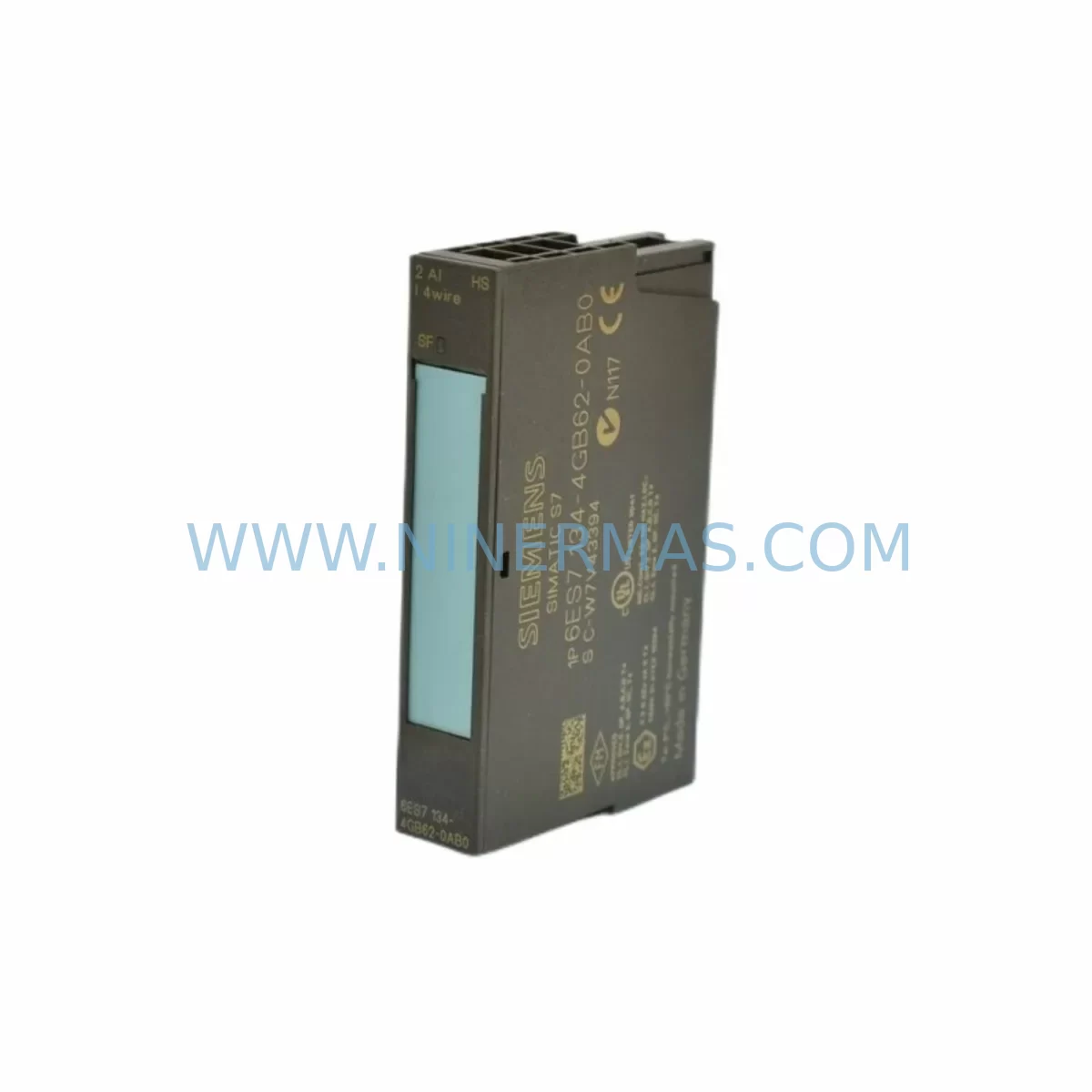

The Siemens 6ES7134-4GB62-0AB0 is a 2-channel analog input module designed for the ET 200S distributed I/O system, operating under SIMATIC S7-300 and S7-400 PLC architectures. Built for demanding industrial environments, this module supports high-accuracy analog signal acquisition — critical for process control in chemical, oil & gas, power generation, and heavy manufacturing facilities. When this module fails or degrades, the consequences extend beyond a single I/O channel: entire process loops, safety interlocks, and SCADA feedback paths can be compromised, triggering unplanned shutdowns that cost far more than the part itself.

At NINERMAS, we supply the 6ES7134-4GB62-0AB0 as a service-ready spare part — pre-inspected, tested prior to dispatch, and backed by a 12-month warranty. Whether you are responding to an emergency fault, executing a scheduled annual overhaul, or building a strategic spare parts inventory for aging ET 200S infrastructure, this module is available for rapid fulfillment with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 6ES7134-4GB62-0AB0 in an ET 200S station is rarely an isolated task. Maintenance engineers working on ET 200S racks understand that analog input faults often cascade from upstream power quality issues, wiring degradation, or adjacent module failures. A disciplined replacement workflow should include inspection of the following components within the same control cabinet or I/O station:

Begin with the ET 200S Interface Module (such as the 6ES7151-1BA02-0AB0 IM 151-1 Standard) — the communication backbone of the entire ET 200S station. A degraded interface module can cause intermittent analog channel errors that are misdiagnosed as input module failures. Verify firmware version and bus connector integrity before condemning the analog module.

Next, inspect the terminal module paired with this analog input (typically a 6ES7193-4CA40-0AA0 or equivalent 4-pin terminal module). Terminal modules are subject to contact oxidation and mechanical wear over years of field service; a faulty terminal module will cause the replacement 6ES7134-4GB62-0AB0 to exhibit the same fault symptoms as the original.

The ET 200S power module (e.g., 6ES7138-4CA01-0AA0 PM-E 24VDC) should be checked for output voltage stability. Analog input modules are sensitive to supply voltage ripple; a power module approaching end-of-life can introduce noise into analog readings long before it triggers a hard fault. Use a calibrated multimeter to verify 24 V DC output under load.

For installations involving 4–20 mA transmitters — common in pressure, temperature, and flow measurement loops — inspect the signal cables and shielding between the field transmitter and the ET 200S terminal. Damaged cable shielding or loose shield terminations at the cabinet entry gland are a leading cause of analog signal drift in process plant environments. Consider replacing with shielded twisted-pair instrumentation cable rated for the installation environment.

If the ET 200S station includes digital output modules (such as the 6ES7132-4BD32-0AA0 4DO 24VDC/0.5A) controlling solenoid valves or motor starters in the same process loop, verify that inductive load switching is not inducing voltage spikes onto the analog signal wiring. Installing signal isolators or barriers (e.g., Phoenix Contact MINI MCR or equivalent DIN-rail signal conditioners) between the field transmitter and the analog input module is a recommended upgrade for aging installations.

Where the ET 200S station communicates via PROFIBUS DP, inspect the bus connector (6ES7972-0BA52-0XA0 or similar) and termination resistor status at both ends of the PROFIBUS segment. A degraded bus connector can cause the entire ET 200S station to drop off the network, making analog module replacement ineffective until the communication layer is restored.

Finally, for sites running SIMATIC S7-300 CPUs (such as the CPU 315-2 DP or CPU 317-2 PN/DP) as the host controller, confirm that the hardware configuration in STEP 7 or TIA Portal correctly reflects the 6ES7134-4GB62-0AB0 module address and channel parameters after replacement. An incorrect hardware configuration will prevent the module from initializing even if the hardware itself is fully functional.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the SIMATIC Manager or TIA Portal diagnostic buffer to confirm the fault is isolated to the 6ES7134-4GB62-0AB0 module. Check the module’s SF (System Fault) and EXTF LEDs. Document the channel number and fault code before proceeding.

Step 2 — Safe Isolation: Place the affected ET 200S station in STOP mode via the PLC CPU. De-energize the 24 V DC supply to the ET 200S rack using the upstream circuit breaker or isolator. Follow site LOTO (Lockout/Tagout) procedures. Do not attempt hot-swap unless the ET 200S station and PLC configuration explicitly support it.

Step 3 — Module Removal: Disconnect the terminal module wiring if required. Release the module locking mechanism and slide the 6ES7134-4GB62-0AB0 out of the terminal module. Note the slot position for reinstallation reference.

Step 4 — Replacement Installation: Insert the new 6ES7134-4GB62-0AB0 into the same terminal module slot. Ensure the module clicks fully into the terminal module connector. Reconnect field wiring per the original wiring diagram. Verify shield termination.

Step 5 — Configuration Verification: Re-energize the ET 200S station. In STEP 7 or TIA Portal, perform a hardware comparison to confirm the replacement module is recognized. Download the hardware configuration if required. Monitor the analog channel values in the online diagnostic view to confirm signal integrity before returning the process loop to automatic control.

Step 6 — Commissioning Record: Update the maintenance log with the replacement date, new module serial number, and post-replacement signal readings. Schedule the next inspection interval (recommended: 12 months or per site maintenance plan).

Spare Parts Support FAQ

Q1: Is the 6ES7134-4GB62-0AB0 a direct drop-in replacement for other ET 200S 2-channel analog input modules?
The 6ES7134-4GB62-0AB0 is compatible with the ET 200S terminal module system and is a functional replacement within the same analog input module family. However, channel parameter settings (input range, measurement type) must be verified in the PLC hardware configuration after replacement. Always confirm the terminal module type (4-pin vs. 2-pin) matches the replacement module’s wiring requirements before installation.

Q2: What pre-shipment testing does NINERMAS perform on this module?
Every 6ES7134-4GB62-0AB0 supplied by NINERMAS undergoes functional testing prior to dispatch, including power-on verification, channel signal response check, and visual inspection for physical damage. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for ET 200S analog modules?
Yes. NINERMAS offers long-term spare parts supply agreements for customers managing aging ET 200S infrastructure. We maintain stock of the 6ES7134-4GB62-0AB0 and related ET 200S modules to support annual maintenance schedules, emergency call-off orders, and multi-site procurement programs. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements.

Q4: What should I do if the replacement module shows a fault immediately after installation?
If the new 6ES7134-4GB62-0AB0 shows a fault LED immediately after installation, do not assume the replacement unit is defective. First, verify that the terminal module is fully seated and undamaged. Second, confirm the PLC hardware configuration matches the module type and slot address. Third, check the 24 V DC supply voltage at the ET 200S power module. If the fault persists after these checks, contact NINERMAS technical support with the diagnostic buffer fault code — we will assist with root cause analysis and, if required, arrange a warranty replacement.
