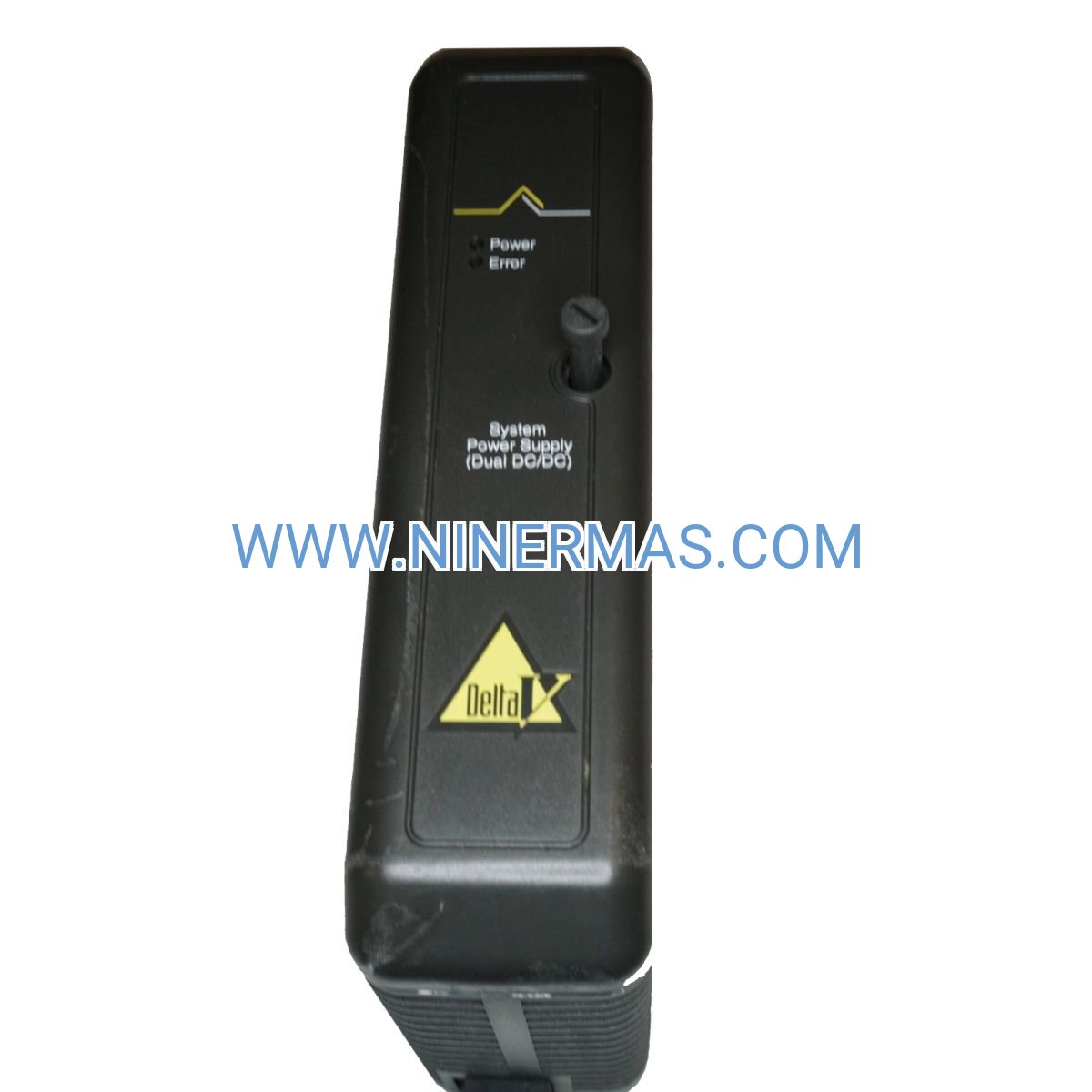

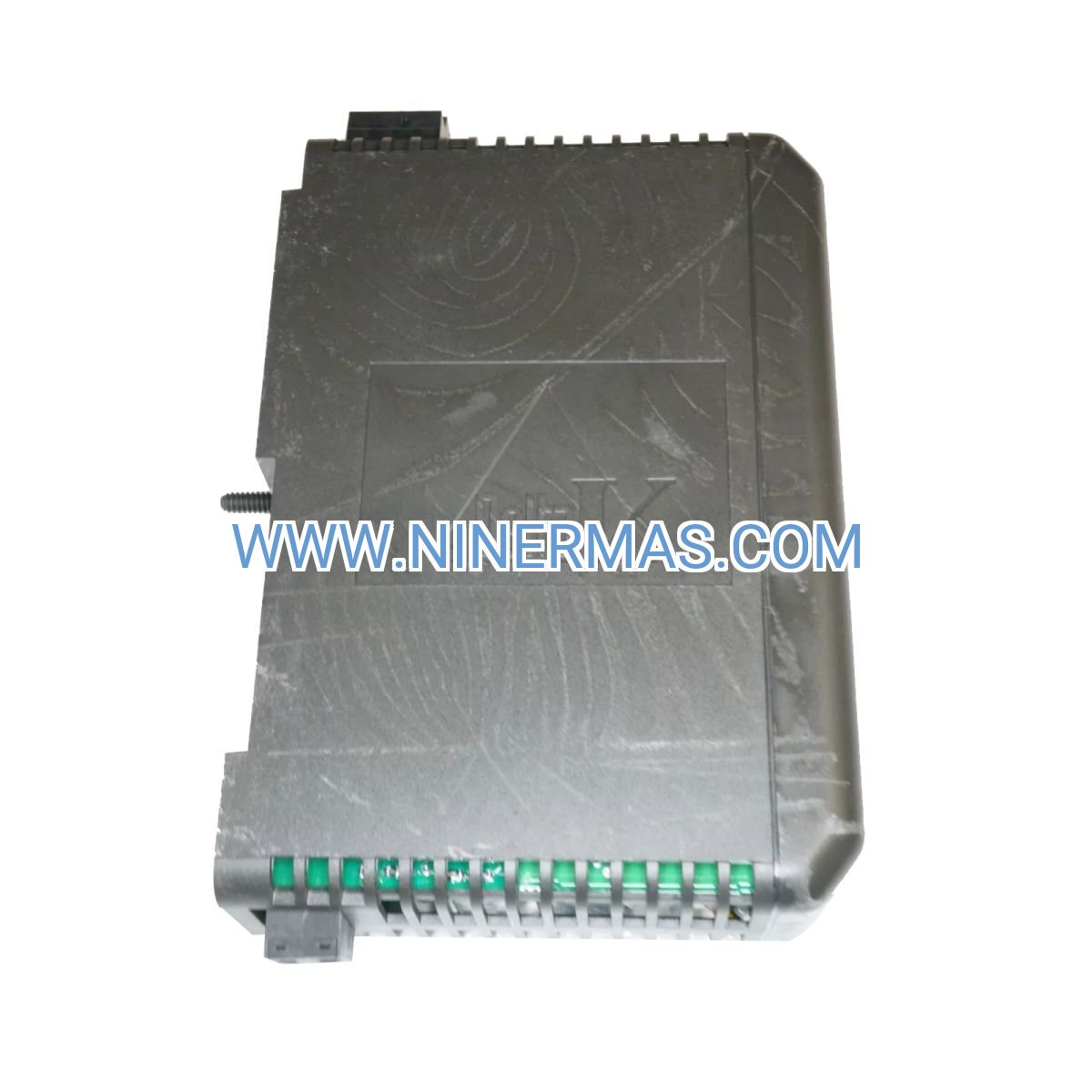

VE5008 Switching Power Module (Industrial-Grade 12VDC Converter)

Engineered for mission-critical process control environments, the VE5008 switching power module transforms 24VDC field power into precision-regulated 12VDC logic power for Emerson DeltaV automation platforms. This compact DC-DC converter combines high-efficiency switch-mode architecture with robust protection circuitry, delivering 60W continuous power to M-series controllers, S-series I/O subsystems, and communication interfaces across chemical processing, oil & gas, pharmaceutical manufacturing, and power generation facilities.

Designed to withstand harsh industrial conditions, the VE5008 maintains ±2% voltage regulation across temperature extremes (-40°C to +70°C), input voltage fluctuations (18-30 VDC), and electrical noise from motor drives, welding equipment, and lightning transients. Advanced thermal management and multi-layer protection ensure 200,000+ hour MTBF in continuous-duty applications.

Whether you're building new DeltaV installations, upgrading legacy linear supplies, or implementing redundant power architectures, the VE5008 provides the reliability and performance demanded by modern process automation systems.

Technical Advantages & Business Value

→ High-Efficiency Conversion Reduces Operating Costs
85% conversion efficiency at full load minimizes heat dissipation and energy waste. Compared to traditional linear regulators (50-60% efficiency), the VE5008 cuts power consumption by 40% and reduces cooling requirements in control cabinets, lowering HVAC expenses and extending equipment lifespan.

→ Wide Input Voltage Range Simplifies Installation
18-30 VDC input acceptance compensates for voltage drops in long cable runs (up to 500 meters) without requiring oversized conductors or voltage boosters. This flexibility reduces copper costs by 25-35% in distributed I/O installations and eliminates the need for local power conditioning equipment.

→ Multi-Layer Protection Prevents Costly Downtime
Electronic overcurrent limiting, overvoltage crowbar protection, and thermal shutdown safeguard both the power supply and connected controllers during fault conditions. Automatic recovery from transient faults eliminates manual intervention, reducing mean time to repair (MTTR) by 60% compared to fuse-protected linear supplies.

→ Compact Form Factor Maximizes Cabinet Space
120mm × 80mm × 40mm footprint occupies 70% less volume than equivalent transformer-based supplies, freeing valuable DIN-rail space for additional I/O modules or safety instrumentation. Integrated heat spreader eliminates external heatsinks, further reducing installation complexity.

✓ Plug-and-Play DeltaV Integration
Pre-configured output harnesses and DIN-rail mounting brackets enable 15-minute installation on standard DeltaV carriers. No external wiring between power supply and controller slots reduces commissioning time by 40% and eliminates wiring errors.

✓ Proven Reliability in Hazardous Environments
Survives 100V/1ms surge pulses, ±2kV ESD events, and continuous operation in Zone 2/Division 2 classified areas. IEC 61000-4-2 compliance ensures operation in electrically noisy environments with frequent motor starts, VFD switching, and arc welding activities.

Industry Applications & Use Cases

Chemical Processing Plants
Power DeltaV controllers managing reactor temperature control, distillation column automation, and batch sequencing in continuous and semi-batch chemical production. Wide operating temperature range (-40°C to +70°C) suits outdoor analyzer shelters and unheated equipment rooms.

Oil & Gas Production Facilities
Supply reliable 12VDC power to wellhead controllers, separator automation systems, and pipeline monitoring equipment in remote locations with unstable field power. 20ms holdup time bridges momentary power interruptions during generator transfers without controller resets.

Pharmaceutical Manufacturing
Meet stringent validation requirements for critical process control in API synthesis, sterile filling, and lyophilization systems. 100% factory burn-in testing and comprehensive documentation support 21 CFR Part 11 compliance and equipment qualification protocols.

Power Generation & Utilities
Provide auxiliary power for boiler controls, turbine protection systems, and emissions monitoring in coal, gas, and renewable energy plants. High MTBF (200,000+ hours) reduces maintenance frequency and spare parts inventory costs.

Water & Wastewater Treatment
Drive DeltaV I/O subsystems controlling aeration blowers, chemical dosing pumps, and clarifier mechanisms in municipal and industrial treatment facilities. Conformal coating and sealed construction resist humidity, corrosive gases, and temperature cycling.

Electrical Specifications & Performance Data

Selection Guidelines: For DeltaV M-series controllers with standard I/O configurations (8-16 modules), a single VE5008 provides adequate power. High-density I/O racks (>24 modules) or redundant controller pairs require dual VE5008 modules in parallel configuration. Calculate total load current by summing controller base (0.8A), I/O module consumption (0.15-0.3A each), and communication interface requirements (0.2-0.5A).

Advanced Features & Integration Options

Redundant Power Architectures: Deploy two VE5008 modules with diode-OR output coupling for N+1 redundancy in critical control loops. Automatic load balancing distributes current evenly between parallel supplies, while independent fault isolation prevents single-point failures from affecting system operation.

Remote Monitoring Integration: Output voltage and current status signals interface with DeltaV diagnostic systems via discrete I/O modules, enabling predictive maintenance alerts when output voltage drifts beyond ±1% or load current exceeds 90% rated capacity.

Brownfield Retrofit Compatibility: Direct replacement for legacy Emerson linear power supplies (VE3005, VE3006 series) without controller reconfiguration or wiring modifications. Mounting footprint and terminal assignments maintain backward compatibility with existing DeltaV installations dating to 2005.

Custom Output Voltages: Factory-configurable output voltage options (5V, 15V, 24V) available for special applications requiring non-standard logic power levels. Consult factory for minimum order quantities and lead times for custom configurations.

Delivery, Warranty & Technical Support

Lead Time: Standard VE5008 modules ship within 3-5 business days from regional distribution centers in North America, Europe, and Asia-Pacific. Custom configurations require 4-6 weeks factory lead time plus international shipping.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship under normal operating conditions. Extended warranty programs (up to 60 months) available for high-reliability applications in pharmaceutical and nuclear industries.

Technical Support: Global application engineering team provides load calculations, thermal analysis, and system integration guidance via phone, email, and web conferencing. Average response time <4 hours for critical production issues.

Documentation Package: Each VE5008 includes installation manual, dimensional drawings, electrical schematics, and compliance certificates (UL, CSA, CE, RoHS). CAD models (STEP, IGES formats) and EPLAN macros available for download from manufacturer portal.

Frequently Asked Questions

Can the VE5008 power non-DeltaV equipment like PLCs or HMI panels?
Yes, the VE5008 provides standard 12VDC output compatible with any equipment rated for 12V ±2% input voltage. Verify that total load current remains below 5A continuous rating and connected equipment can tolerate <100mVpp ripple voltage.

What wire gauge should I use for input power connections?
For cable runs <50 meters, use 18 AWG (0.75mm²) minimum. For 50-200 meter runs, use 16 AWG (1.0mm²). For 200-500 meter runs, use 14 AWG (1.5mm²) to limit voltage drop below 2V at full load. Always follow local electrical codes for industrial wiring practices.

How much heat does the VE5008 generate during operation?
At full 60W output load with 85% efficiency, the VE5008 dissipates approximately 10.6W as heat. In enclosed control cabinets, ensure minimum 50mm clearance above and below the module for natural convection cooling. Forced-air cooling recommended for ambient temperatures >50°C.

Is the VE5008 suitable for SIL-rated safety instrumented systems?
The VE5008 is not SIL-certified as a standalone component. For safety applications requiring SIL 2 or SIL 3 certification, use redundant VE5008 modules with independent input power sources and implement 1oo2 or 2oo3 voting logic in the DeltaV safety system configuration.

Can I parallel multiple VE5008 modules to increase output current?
Yes, up to three VE5008 modules can be paralleled using external Schottky diodes (40V, 10A rating minimum) on each output. Total output current equals the sum of individual module ratings minus 10% derating for load imbalance. Ensure all modules share common input voltage source.

What is the expected service life in continuous 24/7 operation?
Electrolytic capacitor aging is the primary life-limiting factor. At 40°C ambient temperature, expected service life exceeds 15 years (131,000 hours) of continuous operation. At 60°C ambient, service life reduces to approximately 8 years (70,000 hours). Preventive replacement recommended at 80% of calculated service life.

Request Technical Consultation

Our automation specialists help you select the optimal power supply configuration for your DeltaV system architecture. Contact us with your controller model, I/O module count, and installation environment details for personalized load calculations and redundancy recommendations.

Get a quote within 24 hours → Email your project specifications or call our technical sales team to discuss volume pricing, custom configurations, and integration support services.
