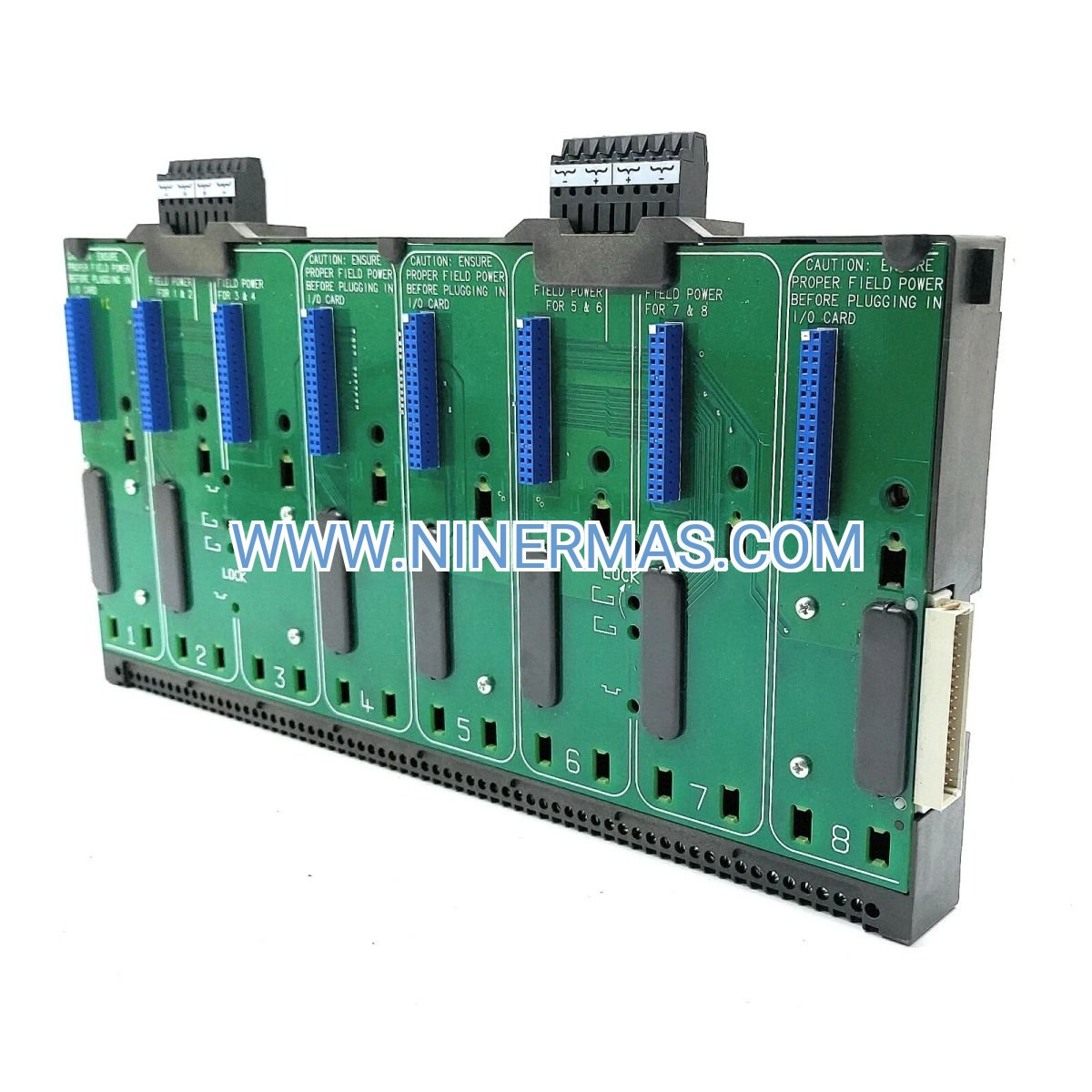

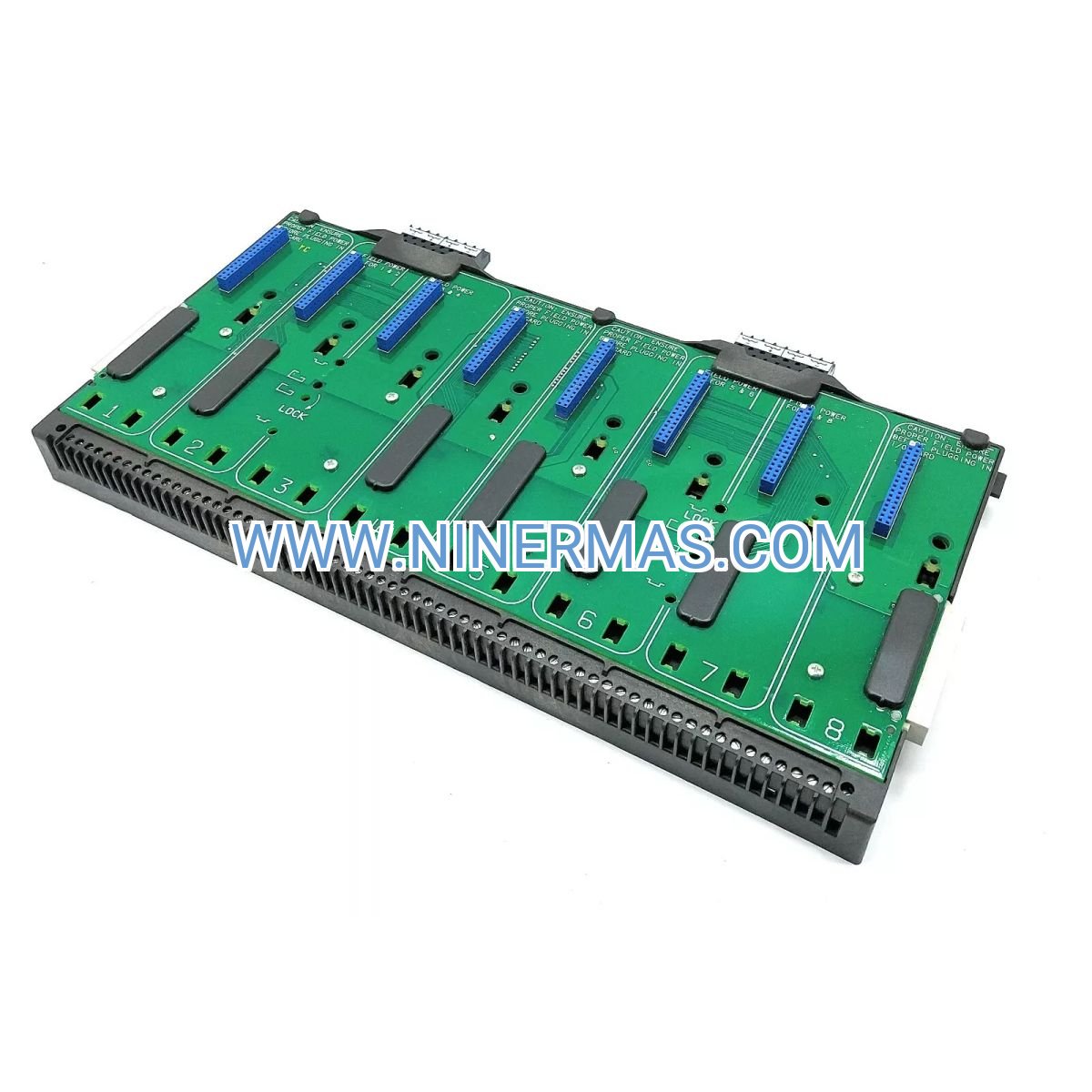

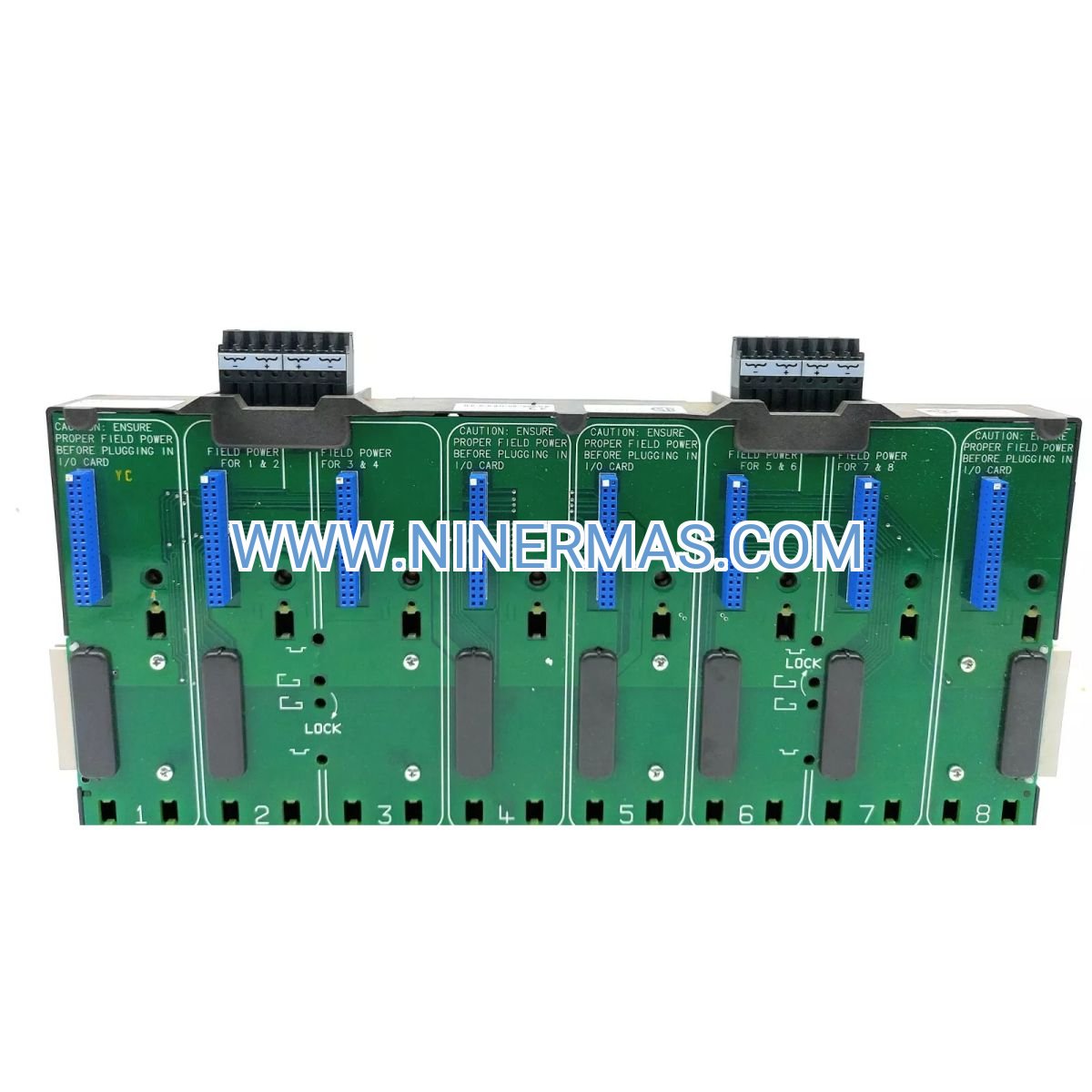

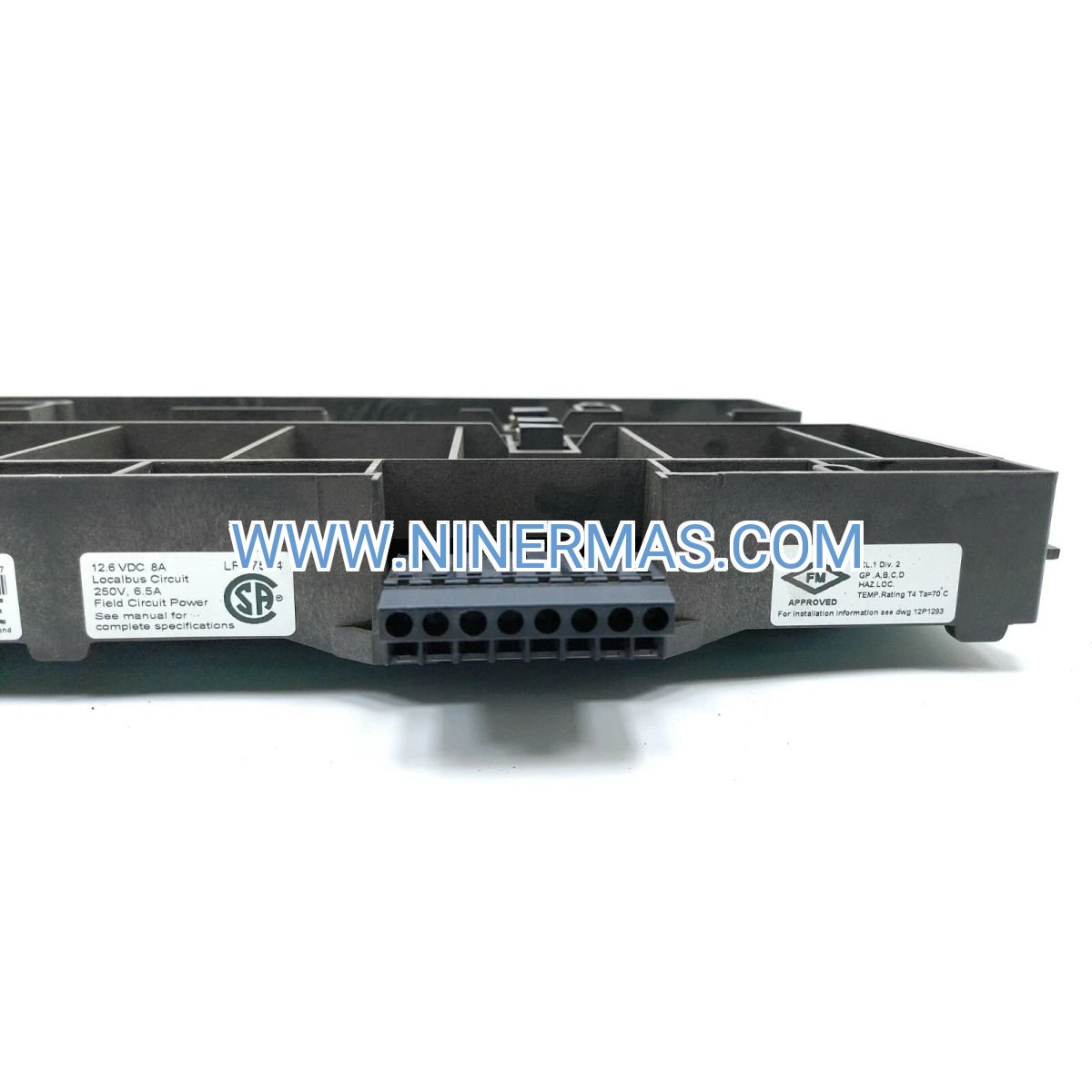

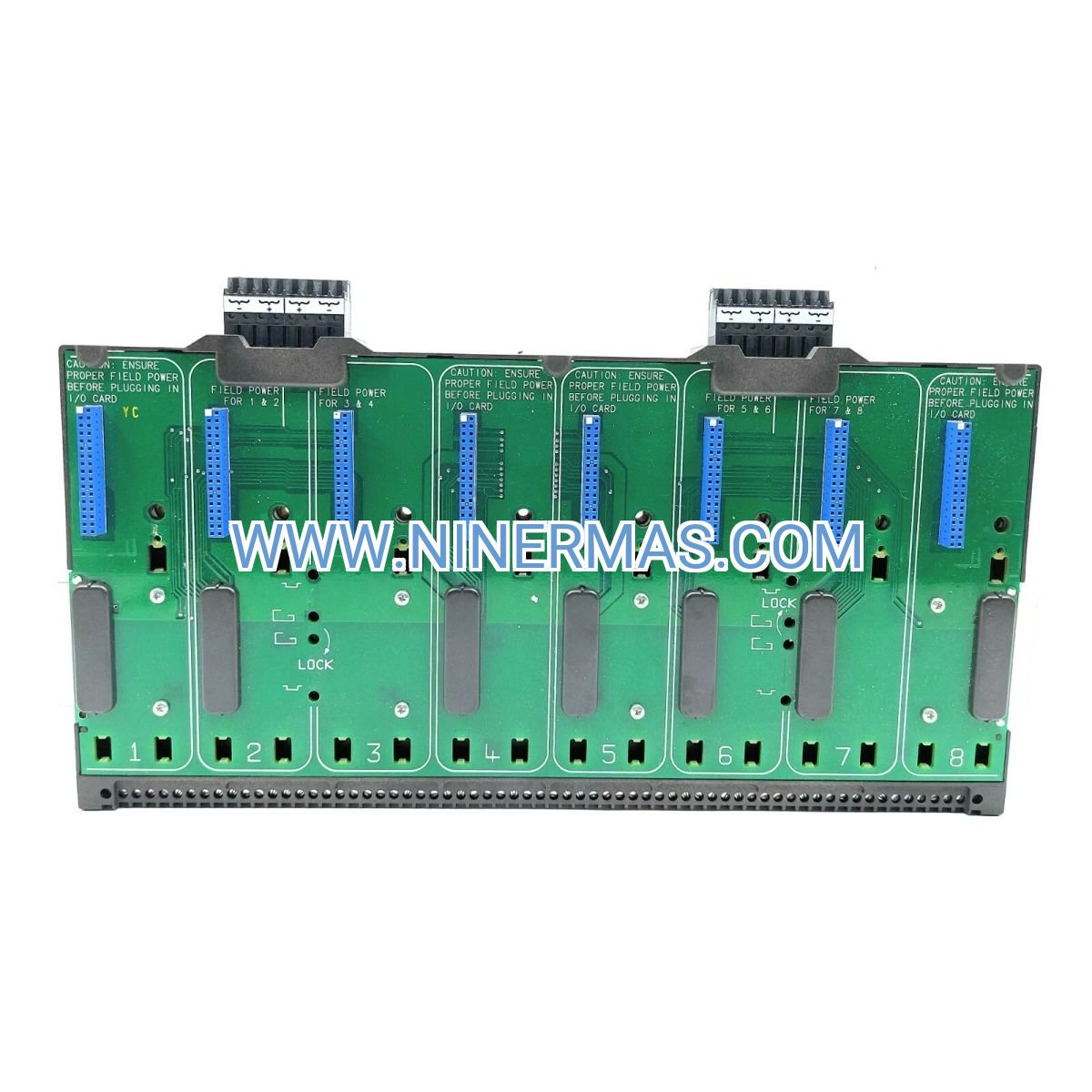

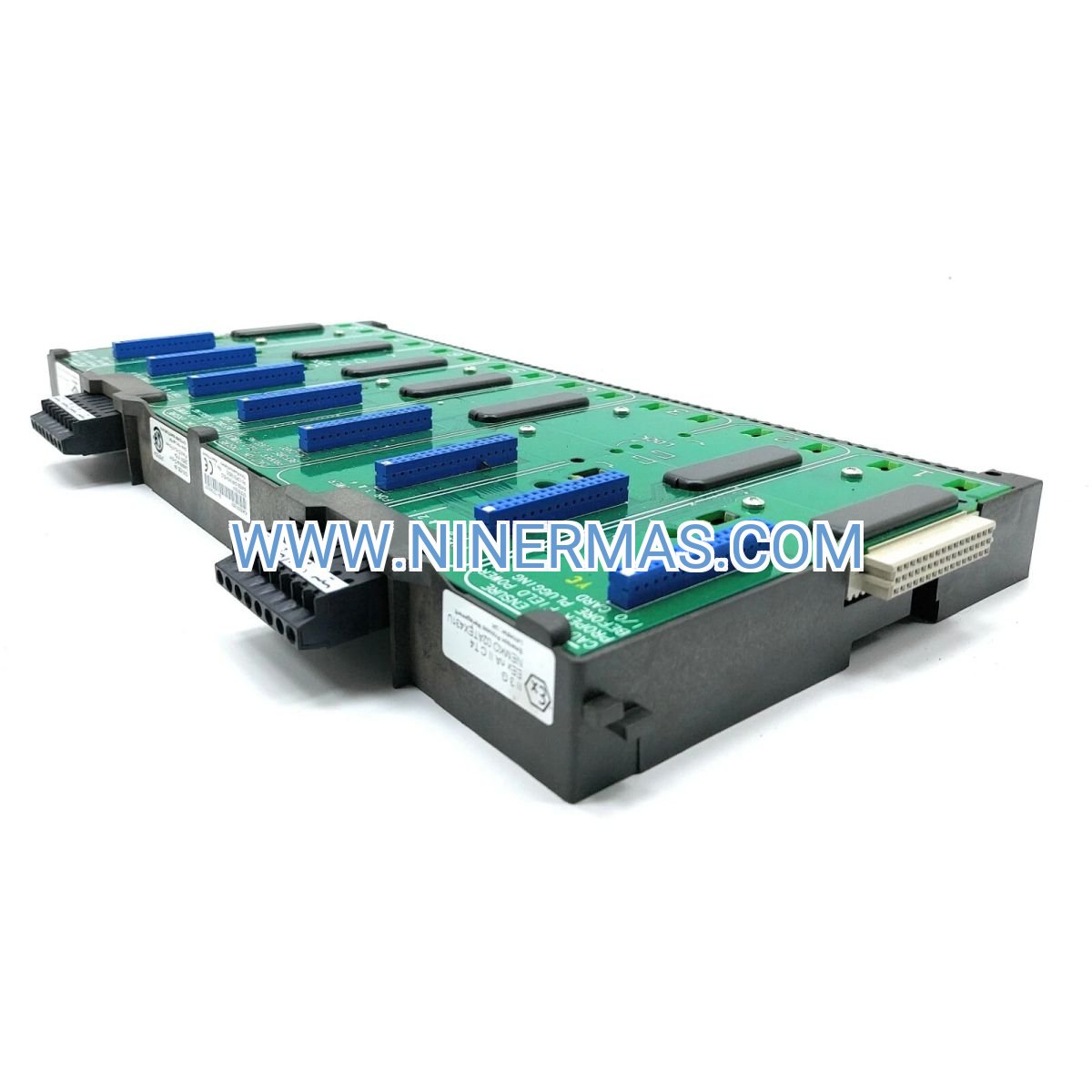

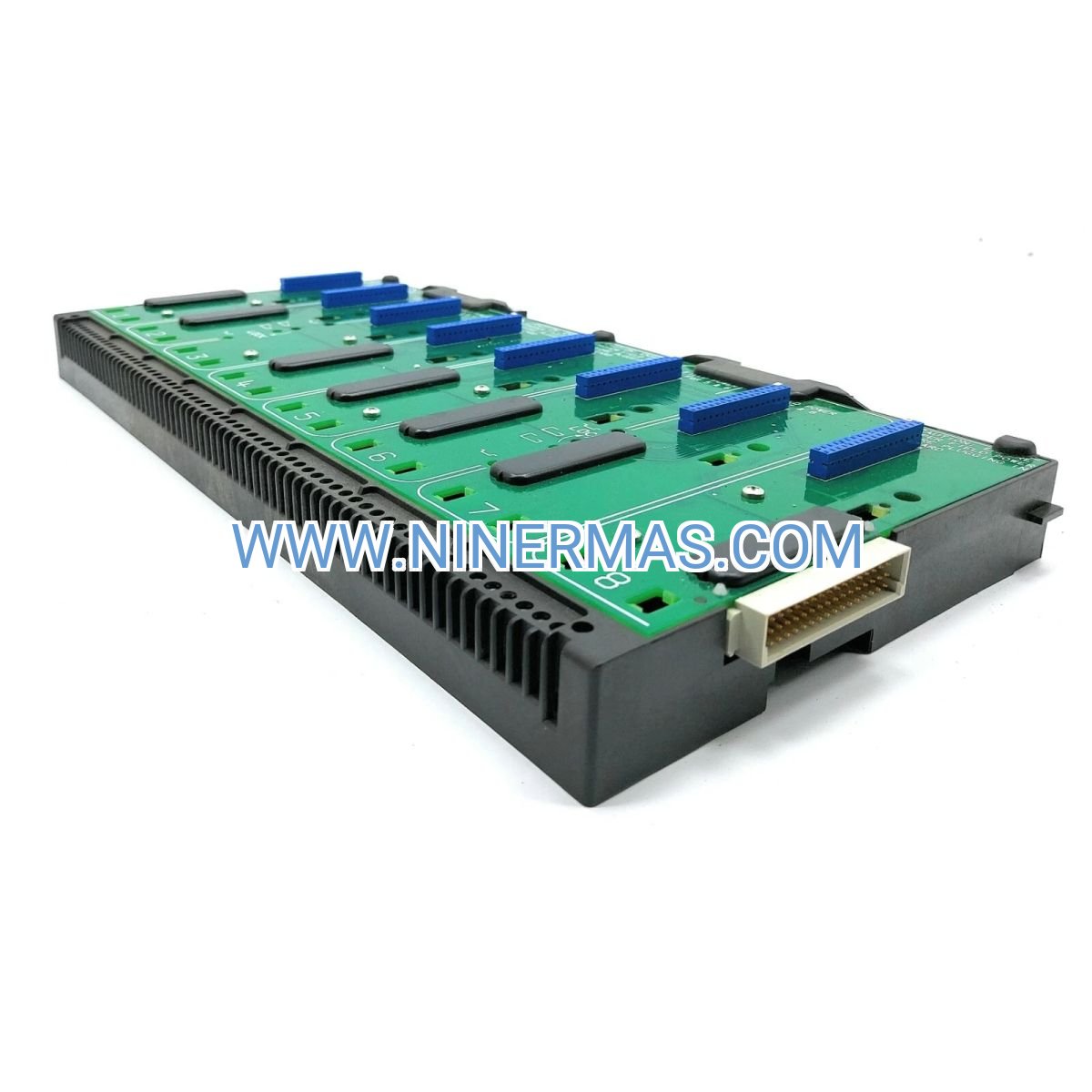

VE4050S2K1C0 DeltaV Safety Logic Solver Carrier (Industrial-Grade SIS Platform)

The VE4050S2K1C0 represents Emerson's advanced horizontal mounting infrastructure for DeltaV Safety Instrumented System deployments. This 8-slot carrier delivers the mechanical backbone and electrical connectivity required for mission-critical safety logic execution in process industries where equipment protection, personnel safety, and environmental containment depend on certified SIL 3 performance.

Designed for integration into emergency shutdown systems, fire and gas detection networks, and high-integrity pressure protection schemes, this carrier addresses the operational challenge of maintaining safety availability while accommodating proof testing, module diagnostics, and system expansion requirements. Process facilities operating under IEC 61511 functional safety mandates gain a pre-certified hardware platform that accelerates SIL verification and simplifies lifecycle documentation.

The horizontal slot orientation optimizes vertical rack space in control room cabinets while maintaining technician access for online maintenance activities. Redundant backplane architecture ensures safety function continuity during single-point electrical failures or communication path disruptions, meeting the fault tolerance requirements of high-demand safety applications in refineries, chemical plants, and offshore production platforms.

Technical Capabilities & Performance Advantages

→ Certified Safety Foundation: TÜV-certified SIL 3 hardware per IEC 61508 standards provides the documented failure rate data and diagnostic coverage metrics required for safety integrity level calculations during HAZOP and LOPA engineering studies.

→ Redundant Communication Paths: Dual SISNet backplane channels with automatic failover in under 100 milliseconds maintain logic solver connectivity during network faults, preventing safety system unavailability that could force production shutdowns.

→ Hot-Swap Module Capability: Individual logic solver modules can be removed and replaced during operation without disrupting adjacent safety channels, enabling proof testing compliance without full system de-energization.

→ Extended Environmental Tolerance: -40°C to +70°C operating range with conformal coating protection supports installation in non-climate-controlled equipment shelters, offshore modules, and hazardous area enclosures.

→ Galvanic Isolation Architecture: 1500 VAC slot-to-slot isolation prevents electrical faults in one safety channel from propagating to adjacent channels, maintaining voting logic integrity in 2oo3 and 1oo2 configurations.

→ Integrated Diagnostic Monitoring: Continuous self-testing with >99% diagnostic coverage detects latent faults between proof test intervals, reducing probability of failure on demand (PFDavg) to levels supporting SIL 3 classification.

Industrial Application Scenarios

✓ Refinery Emergency Shutdown Systems: In crude distillation units and fluid catalytic crackers, the VE4050S2K1C0 hosts logic solver modules executing multi-stage shutdown sequences. When process deviations exceed safe operating limits, the carrier's redundant architecture ensures isolation valve commands and pump trip signals execute reliably, preventing equipment damage and hydrocarbon releases even during partial system failures.

✓ Offshore Platform Fire & Gas Detection: On floating production storage and offloading (FPSO) vessels, this carrier supports voting logic for multi-sensor toxic gas and flame detector arrays. The 2oo3 voting capability reduces false alarms that trigger unnecessary platform evacuations while maintaining detection reliability for H2S, methane, and fire events in harsh marine environments.

✓ Chemical Plant Burner Management: Industrial furnaces and process heaters require flame monitoring and ignition sequencing logic compliant with NFPA 85 standards. The carrier's 50-millisecond scan cycle and FM-approved certification enable deployment in burner management systems where fuel valve control timing directly impacts explosion prevention.

✓ Pipeline High-Integrity Pressure Protection: In subsea pipeline systems where conventional pressure relief valves add unacceptable weight, HIPPS logic hosted on the VE4050S2K1C0 provides fast-acting overpressure prevention. Sub-100ms response times from pressure transmitter input to isolation valve output prevent pipeline rupture while eliminating the maintenance burden of mechanical relief devices.

✓ Power Generation Turbine Protection: Gas and steam turbine control systems utilize this carrier for overspeed detection, vibration monitoring, and emergency trip logic. The seismic qualification supports installation in earthquake-prone regions where power plant infrastructure must maintain safety function availability during seismic events.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the VE4050S2K1C0 when your safety instrumented system design requires horizontal slot orientation for cabinet space optimization, or when integrating with existing DeltaV SIS infrastructure using KJ2201X1, KJ2271X1, or KJ3241X1 logic solver modules. For vertical mounting applications or non-safety I/O requirements, consider the VE4050E1C0 standard carrier alternative. Confirm compatibility with your DeltaV SIS software version (4.x through 6.x supported) and verify that your safety function scan time requirements fall within the 25-200 ms configurable range.

Advanced Integration & Customization Options

DeltaV Ecosystem Connectivity: The carrier integrates seamlessly with DeltaV ProPlus operator workstations for safety function monitoring, alarm management, and proof test scheduling. SISNet communication enables direct connection to DeltaV SIS Studio engineering workstations for online logic modifications and diagnostic data retrieval without interrupting safety function execution.

Third-Party System Integration: Modbus TCP and OPC UA communication options (via KJ3241X1 serial interface modules) enable safety status reporting to plant-wide historian systems, asset management platforms, and corporate SCADA networks while maintaining IEC 61511 separation requirements between safety and control layers.

Cybersecurity Hardening: When deployed in facilities subject to NERC CIP, IEC 62443, or API 1164 cybersecurity mandates, the carrier supports network segmentation strategies with dedicated safety network VLANs, MAC address filtering, and encrypted communication options available through DeltaV SIS version 6.x and later.

Expansion Flexibility: Multiple carriers can be networked via SISNet to support distributed safety architectures spanning multiple process units. Up to 32 carriers per safety controller pair enables scalable deployment from small skid-mounted packages to facility-wide integrated safety systems with hundreds of I/O points.

Delivery Timeline & Service Commitments

Standard Lead Time: 4-6 weeks for factory-new units with full TÜV certification documentation, installation manual, and safety function test procedures. Expedited 2-week delivery available for critical path projects subject to availability confirmation.

Warranty Coverage: 24-month manufacturer warranty covering material defects, workmanship issues, and safety performance specifications. Warranty includes replacement carrier shipment and return freight for defective units, minimizing downtime during warranty claims.

Technical Support Services: Global application engineering support provides SIL verification calculations, proof test procedure development, and functional safety consulting for IEC 61511 lifecycle compliance. Remote diagnostic assistance available 24/7 for troubleshooting communication faults, module recognition issues, and backplane diagnostics.

Documentation Package: Each carrier ships with TÜV SIL 3 certificate, FMEA data for PFD calculations, installation drawings, terminal block wiring diagrams, and proof test procedures required for safety lifecycle documentation under IEC 61511 management of change protocols.

Frequently Asked Questions

Q: Can the VE4050S2K1C0 carrier support mixed module types in a single chassis?
A: Yes, the carrier accommodates any combination of DeltaV SIS logic solver modules (KJ2201X1, KJ2271X1) and serial interface modules (KJ3241X1) across its 8 slots. Each slot operates independently with galvanic isolation, allowing different module types to coexist without electrical interference or communication conflicts.

Q: What is the maximum cable distance between the carrier and DeltaV SIS controller?
A: SISNet communication supports up to 100 meters (328 feet) between carrier and controller using standard twisted-pair cabling. For extended distances up to 2 kilometers, fiber optic SISNet media converters are available. Always verify cable specifications meet the 120-ohm impedance requirement for reliable deterministic communication.

Q: How does hot-swap capability work during proof testing activities?
A: Individual logic solver modules can be removed from energized carriers without disrupting adjacent channels. The backplane maintains power and communication to remaining modules while the extracted module undergoes functional testing. Reinsertion triggers automatic module recognition and logic download from the controller, typically completing in under 30 seconds.

Q: Does the carrier require special installation considerations for hazardous area deployment?
A: The ATEX/IECEx Zone 2 rating permits installation in Division 2 / Zone 2 classified areas when mounted in appropriate enclosures. Ensure cabinet ingress protection (IP54 minimum recommended) and verify that ambient temperature remains within the -40°C to +70°C specification. Conformal coating provides additional protection against corrosive atmospheres in offshore and chemical processing environments.

Q: Can existing DeltaV standard I/O carriers be upgraded to SIS-certified carriers?
A: No, the VE4050S2K1C0 SIS carrier and VE4050E1C0 standard carrier are distinct products with different backplane architectures and certification levels. Safety instrumented systems require SIS-certified carriers from initial installation. Mixing SIS and standard carriers in the same safety loop violates IEC 61511 requirements and invalidates SIL certification.

Q: What diagnostic information is available for troubleshooting carrier communication faults?
A: The carrier provides LED status indicators for power, SISNet communication, and module fault conditions. DeltaV ProPlus workstations display detailed diagnostics including backplane voltage levels, communication error counters, module recognition status, and individual slot health. Event logs capture timestamped fault data for root cause analysis during maintenance activities.

Request Technical Specifications & Pricing

Contact our industrial automation specialists for detailed SIL verification data, application-specific configuration guidance, and project quotations. Our team provides proof test procedure templates, FMEA documentation for PFD calculations, and integration support for DeltaV SIS deployments across oil & gas, chemical processing, and power generation industries.
