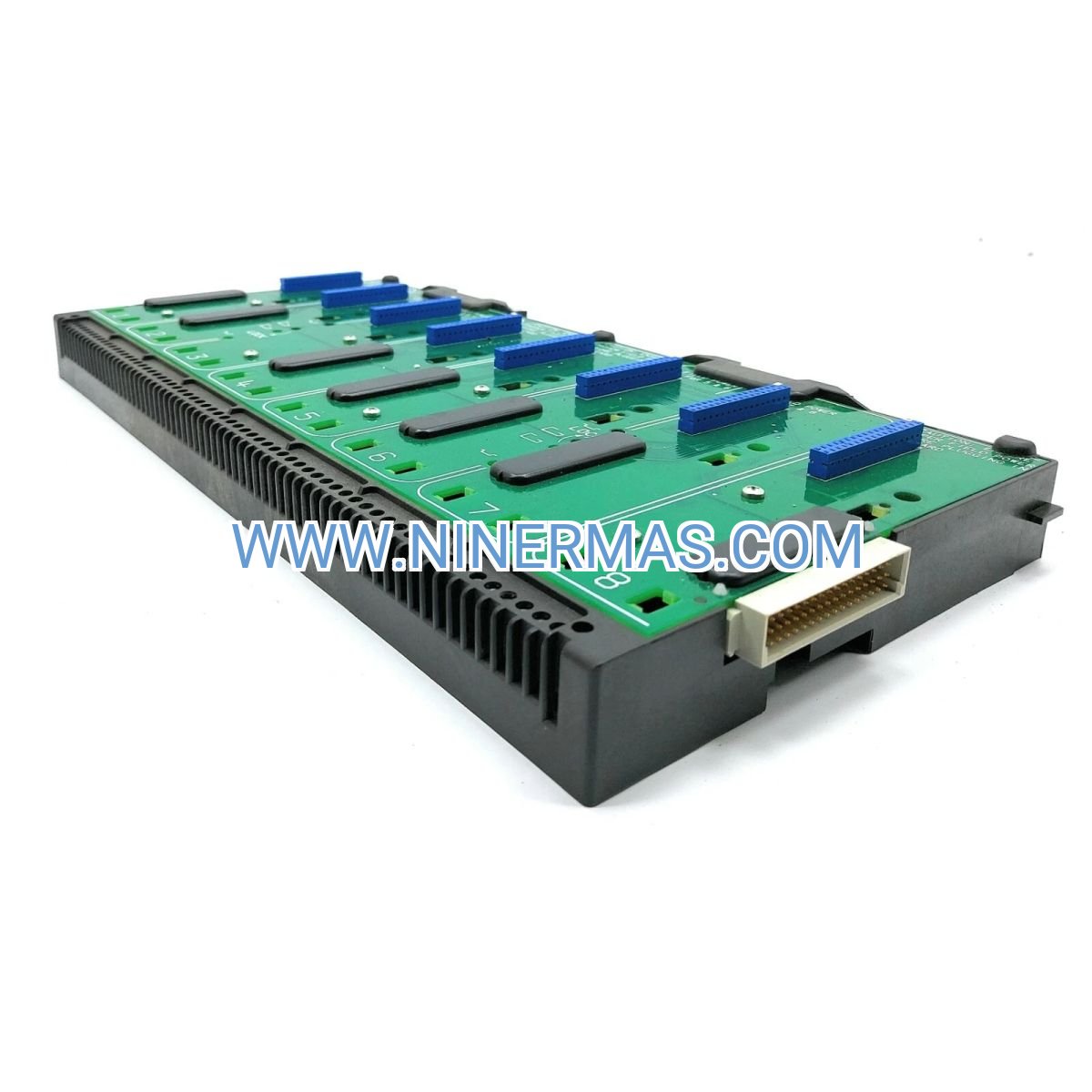

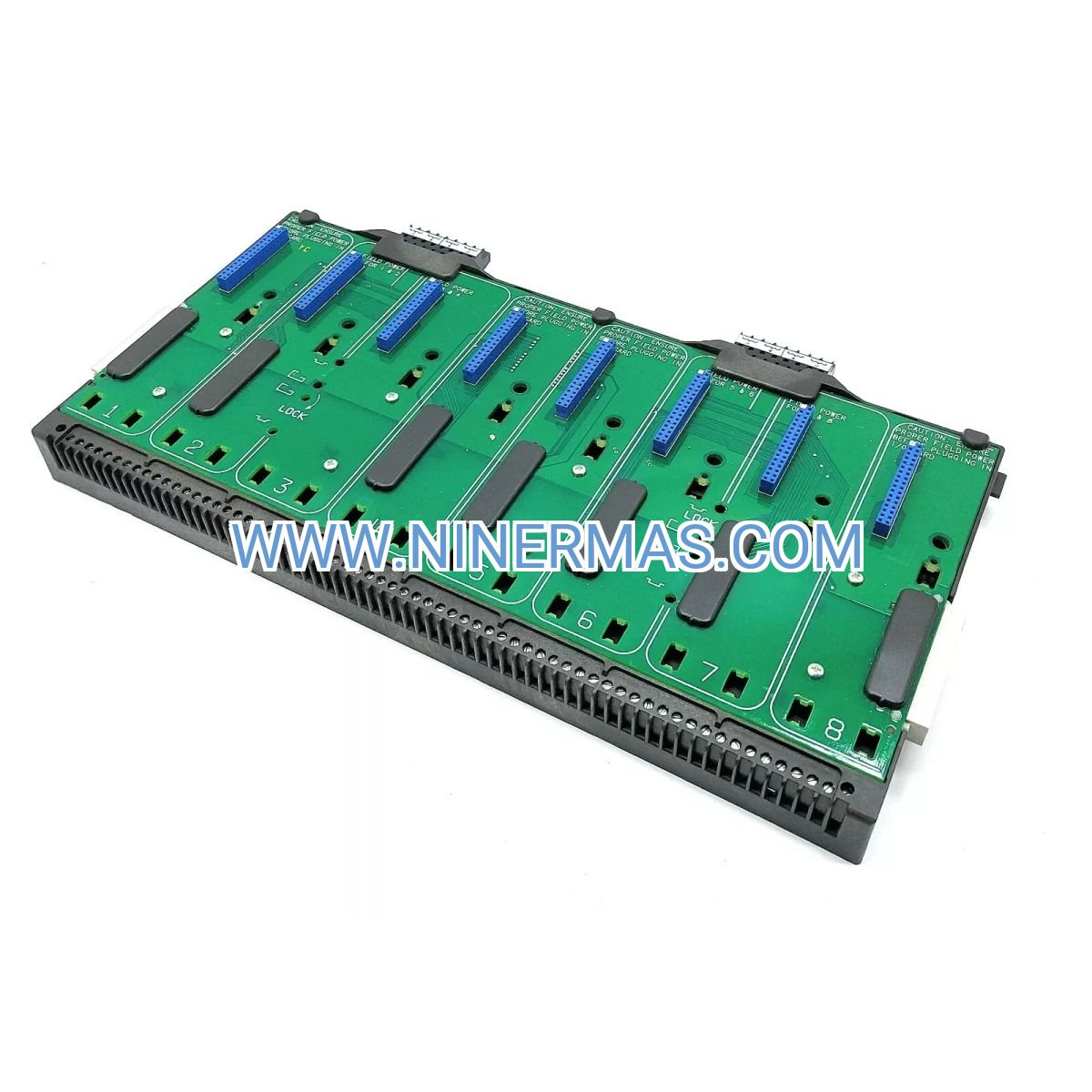

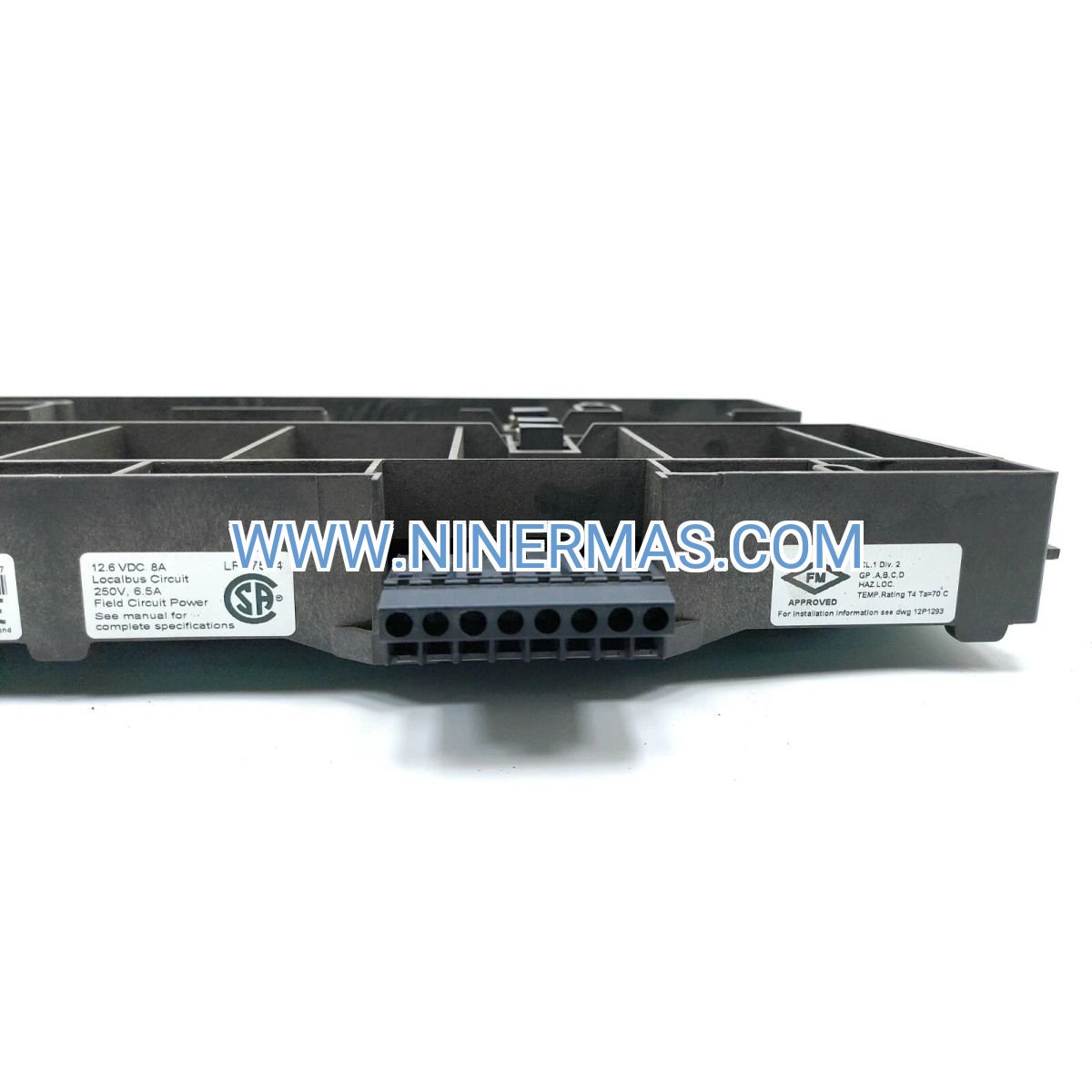

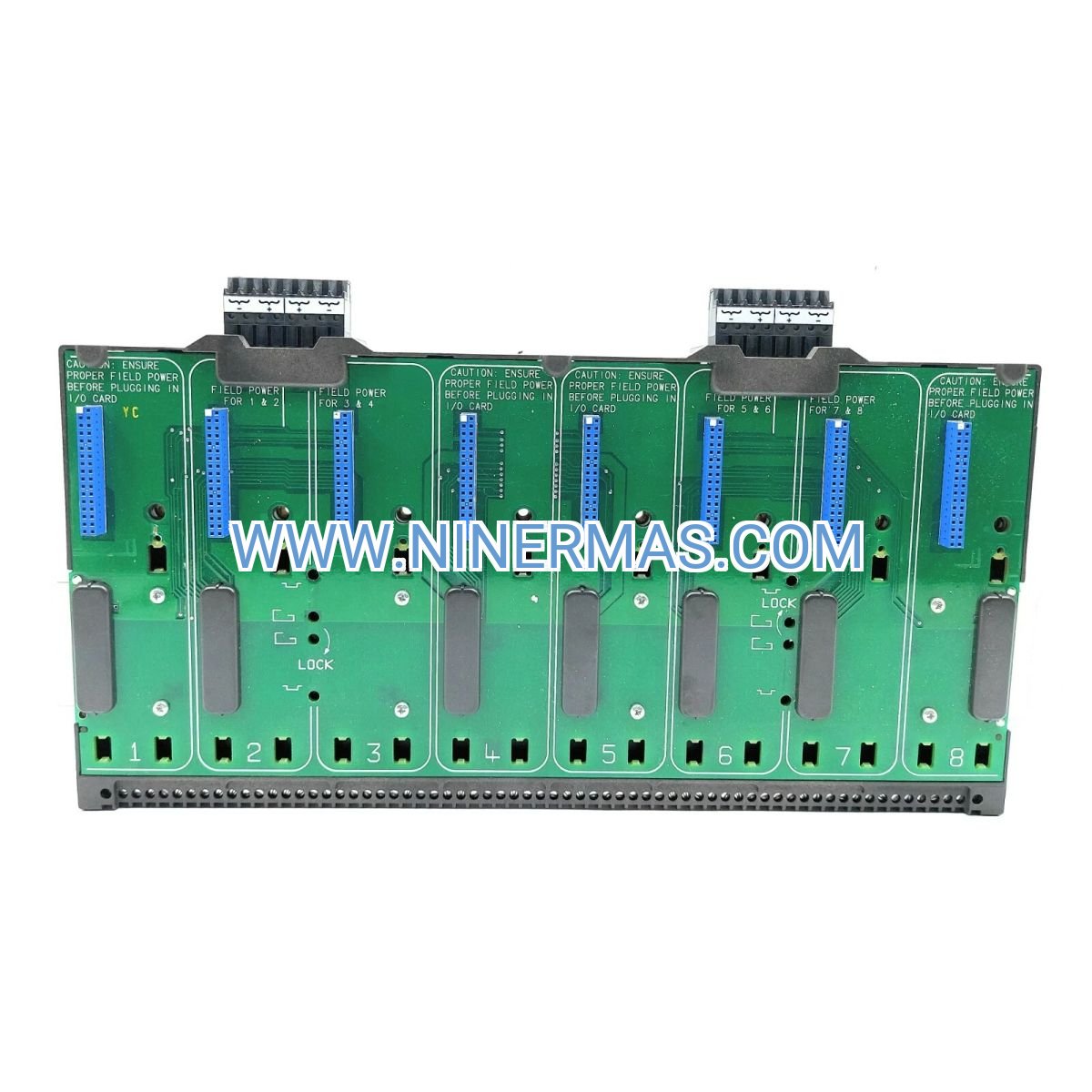

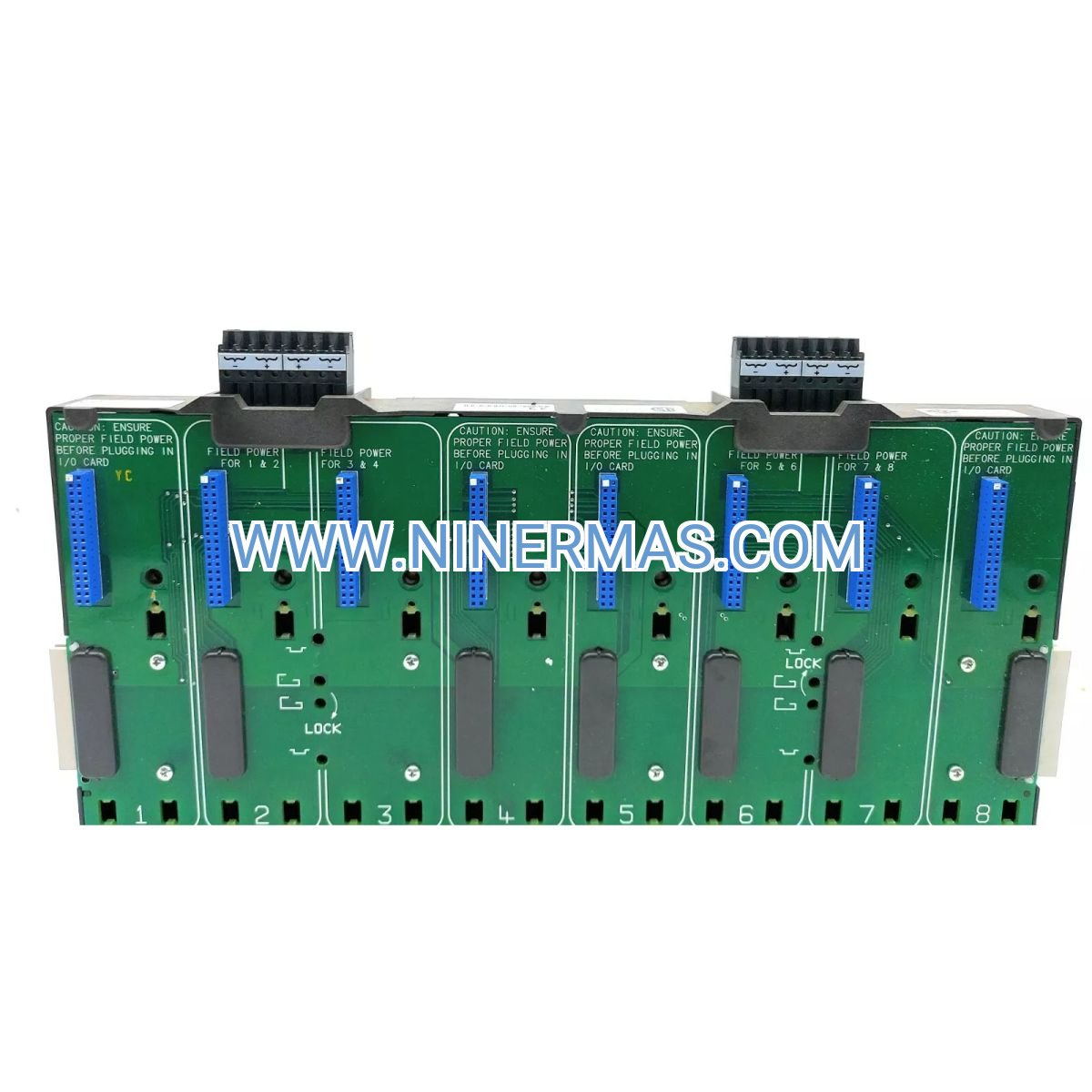

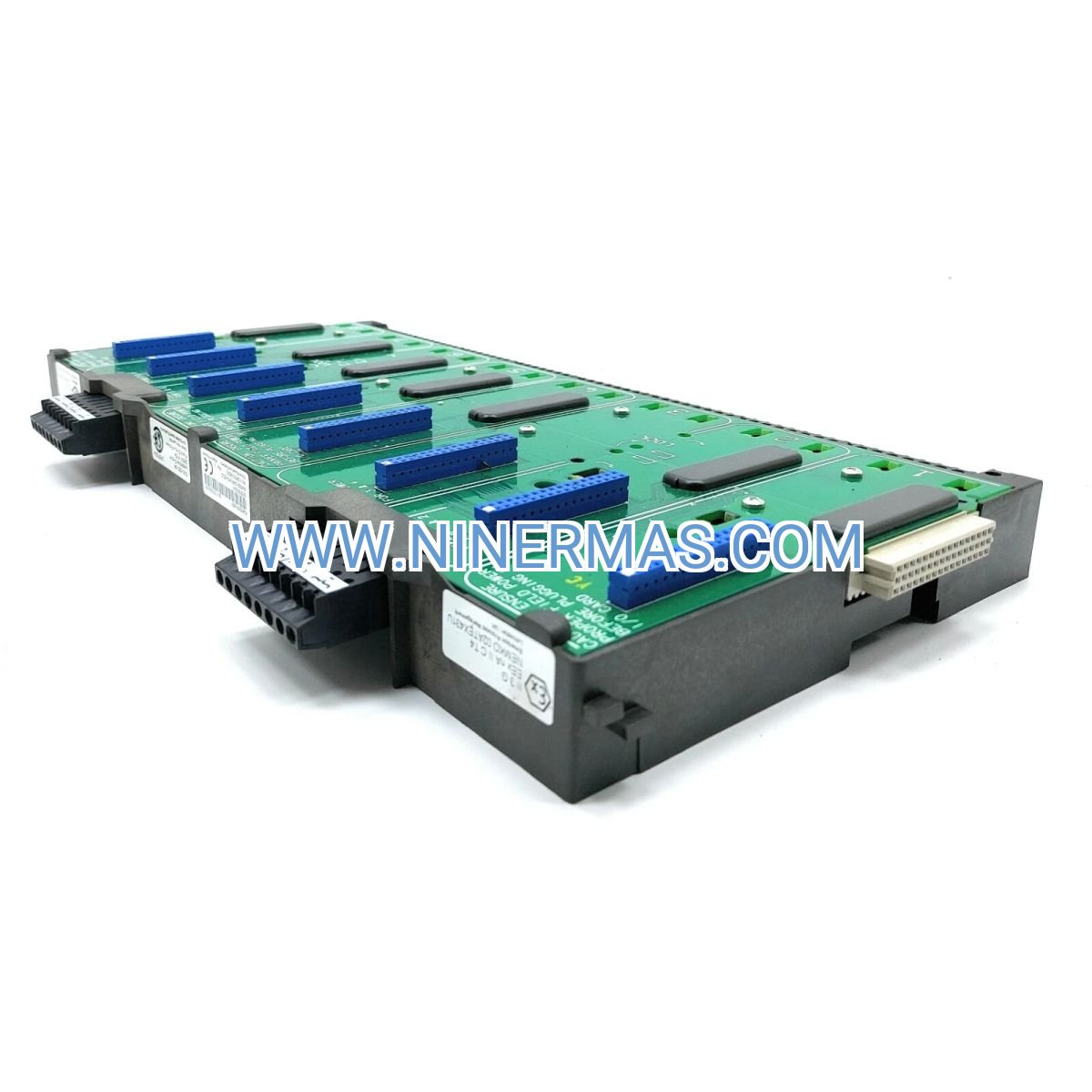

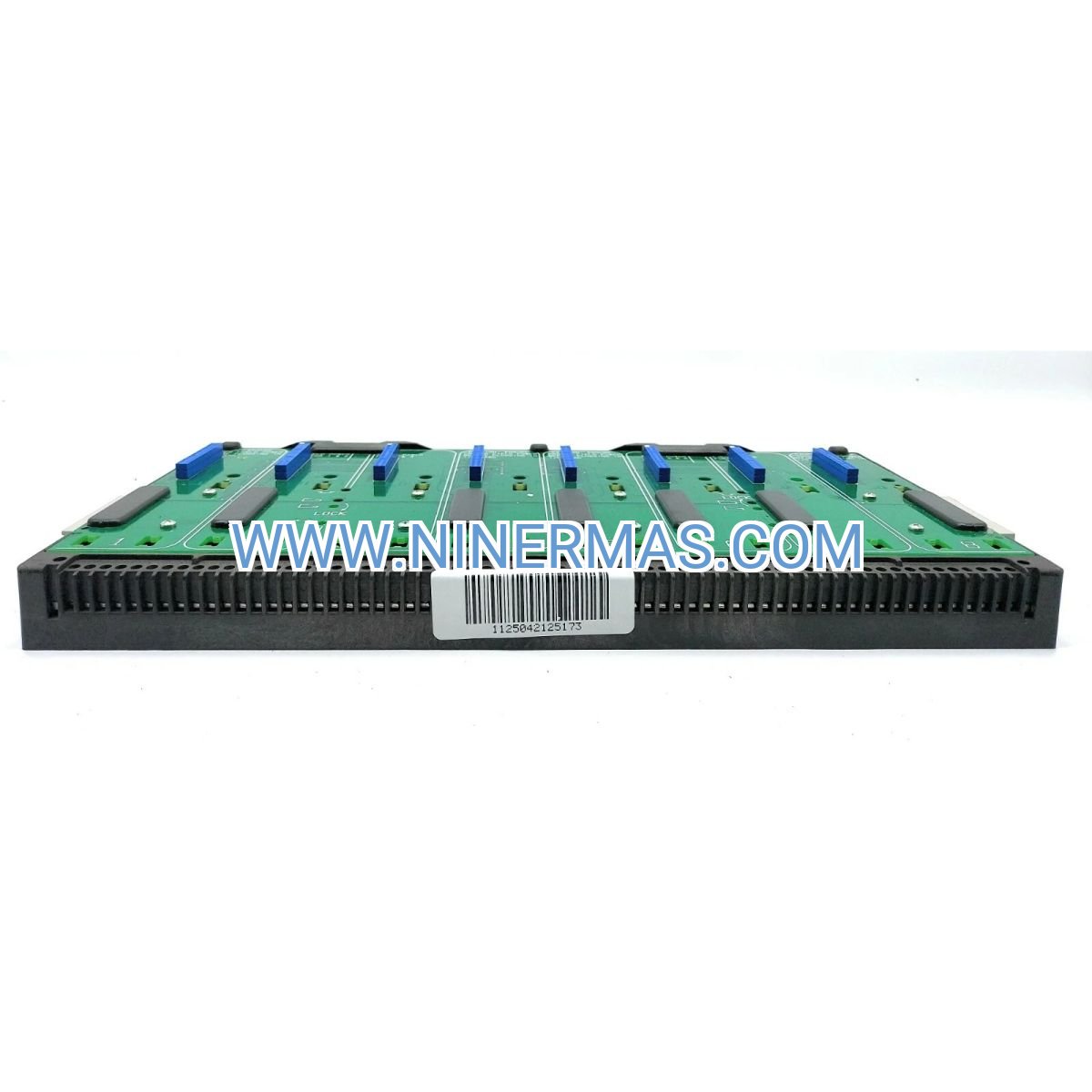

VE4050E1C0 DeltaV I/O Carrier (Industrial-Grade 8-Slot Platform)

The VE4050E1C0 represents Emerson's advanced horizontal I/O carrier solution engineered specifically for DeltaV M-series distributed control environments. This 8-slot modular platform delivers exceptional flexibility for process industries requiring scalable field device integration across analog, digital, and specialty I/O functions.

Designed for mission-critical applications in chemical processing, oil & gas, pharmaceutical manufacturing, and power generation facilities, this carrier eliminates traditional I/O expansion bottlenecks while maintaining system reliability through redundant communication paths and hot-swap serviceability.

Whether you're expanding existing DeltaV installations or designing greenfield automation systems, the VE4050E1C0 provides the foundation for high-density I/O deployment with minimal footprint requirements and maximum operational uptime.

Core Features & Benefits

→ Universal Slot Architecture
All eight slots accept any S-series I/O module type without pre-configuration requirements. Mix RTD inputs, 4-20mA outputs, discrete I/O, HART communicators, and FOUNDATION Fieldbus interfaces within a single carrier assembly. This eliminates dedicated carrier types and reduces spare parts inventory by 60%.

→ Zero-Downtime Maintenance
Hot-swap backplane design enables online I/O card replacement during active process operation. Per-slot current limiting and automatic module detection prevent system disruption when servicing individual channels. Reduce maintenance windows from hours to minutes.

→ Redundant Communication Infrastructure
Dual LocalBus connections provide automatic failover protection during controller switchovers or network faults. 12 Mbps data rate supports sub-100ms I/O update cycles with 1500 VAC isolation between communication and chassis grounds.

→ Extended Environmental Tolerance
Conformal-coated circuitry withstands -40°C to +70°C ambient temperatures, 5-95% humidity, and vibration levels exceeding IEC 60068-2-6 specifications. Certified for Class I Division 2 hazardous locations and ATEX Zone 2 explosive atmospheres.

→ Intelligent Diagnostics
Real-time monitoring of backplane voltage, per-slot current draw, and LocalBus integrity with millisecond fault detection. LED indicators provide instant visual status while detailed diagnostics stream to DeltaV operator workstations for predictive maintenance.

→ Simplified Installation
Pre-wired terminal blocks with color-coded harnesses reduce field wiring time by 50%. Removable terminals enable bench-side preparation and testing before final deployment. Integrated cable management maintains power/signal separation for optimal noise immunity.

Typical Application Scenarios

Chemical Batch Processing
Deploy in reactor control panels requiring mixed analog/digital I/O for temperature monitoring, valve actuation, and agitator speed control. Eight-slot capacity consolidates I/O that traditionally required multiple 4-wide carriers, reducing panel space by 40% and simplifying wiring infrastructure.

Remote Field Junction Boxes
Install in hazardous area enclosures up to 100 meters from DeltaV controllers without signal repeaters. LocalBus connectivity eliminates expensive fiber optic converters while maintaining deterministic I/O performance. Ideal for tank farms, pump stations, and distributed compressor controls.

Safety Instrumented Systems (SIS)
Integrate with DeltaV SIS logic solvers for SIL 2/3 safety functions in emergency shutdown systems. Redundant architecture ensures continuous I/O availability during controller diagnostics or planned maintenance. Meets IEC 61508 functional safety requirements for process industries.

Brownfield System Expansions
Add I/O capacity to legacy DeltaV installations (versions 10.3 through 15.1 LTS) without controller hardware upgrades. Backward compatibility protects existing investments while enabling incremental capacity growth as production demands increase.

Skid-Mounted Equipment Packages
Provide OEMs and system integrators with compact I/O solutions for pre-engineered process skids. Factory configuration services pre-load module assignments and controller addressing for plug-and-play commissioning at end-user sites.

Technical Parameters & Selection Guide

Selection Criteria: Choose the VE4050E1C0 when your application requires more than 4 I/O modules per carrier location, when horizontal mounting is preferred for rack installations, or when future I/O expansion flexibility is critical. For vertical mounting or space-constrained applications, consider the VE4050S2K1C0 vertical carrier alternative. For smaller I/O counts (2-4 modules), the KL4104X1-BA1 dual carrier or VE4070 4-wide carrier may offer better cost efficiency.

Extended Functions

Advanced Configuration Management: Factory configuration services pre-program I/O module assignments, controller addressing, alarm thresholds, and diagnostic parameters into carrier firmware. Configuration backup to SD card enables rapid emergency replacement with automatic restoration of all settings upon power-up.

IoT Integration Readiness: Compatible with DeltaV Edge Environment for secure cloud connectivity and remote monitoring. Export I/O diagnostics, power consumption data, and maintenance logs to enterprise historians and predictive maintenance platforms via OPC UA interfaces.

Customization Options: Available with extended temperature ratings (-55°C to +85°C), marine-grade conformal coating for offshore platforms, and custom terminal block configurations for specialized wiring requirements. Consult factory for lead times on modified specifications.

Delivery & Service Assurance

Standard Lead Time: 3-5 business days for stock configurations; 2-3 weeks for factory-configured units with pre-loaded settings

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Performance specifications guaranteed to meet published datasheet values.

Technical Support: Global application engineering assistance for system design, I/O capacity planning, and integration troubleshooting. Phone and email support available during business hours with 4-hour response commitment.

Documentation Package: Includes installation manual, wiring diagrams, DeltaV configuration templates, dimensional drawings, and certification documents (UL, ATEX, IECEx). Digital downloads available immediately upon shipment.

Frequently Asked Questions

Q: Can I mix different I/O card types in the same VE4050E1C0 carrier?
A: Yes, all eight slots are universal and accept any S-series I/O module without restrictions. You can simultaneously install analog inputs, analog outputs, digital I/O, HART communicators, and FOUNDATION Fieldbus cards in any slot combination.

Q: What is the maximum distance between the carrier and DeltaV controller?
A: LocalBus supports up to 100 meters (328 feet) of cable run without signal repeaters. For longer distances, use LocalBus extenders or consider fiber optic communication options.

Q: Does hot-swapping I/O cards require shutting down the entire carrier?
A: No, individual I/O cards can be replaced during operation without affecting other modules in the carrier. The backplane design isolates each slot electrically and communicates module removal/insertion events to the controller automatically.

Q: Is the VE4050E1C0 compatible with older DeltaV system versions?
A: Yes, backward compatibility extends to DeltaV version 10.3 and later. However, some advanced diagnostic features may require version 12.3 or newer. Verify your system version before ordering.

Q: What power supply specifications are required for the carrier?
A: The carrier requires 24 VDC nominal (18-30 VDC operating range) with minimum 10A capacity to support fully populated configurations. Use redundant power supplies for critical applications to maintain operation during power source failures.

Q: Can this carrier be used in SIL-rated safety systems?
A: Yes, when paired with DeltaV SIS logic solvers and appropriate S-series safety I/O cards, the VE4050E1C0 supports SIL 2 and SIL 3 safety instrumented functions per IEC 61508/61511 standards. Consult safety manual for specific configuration requirements.

Ready to Optimize Your DeltaV I/O Infrastructure?

Contact our automation specialists today for application-specific recommendations, system design assistance, and volume pricing. We provide complete technical support from initial specification through commissioning and lifecycle maintenance.
