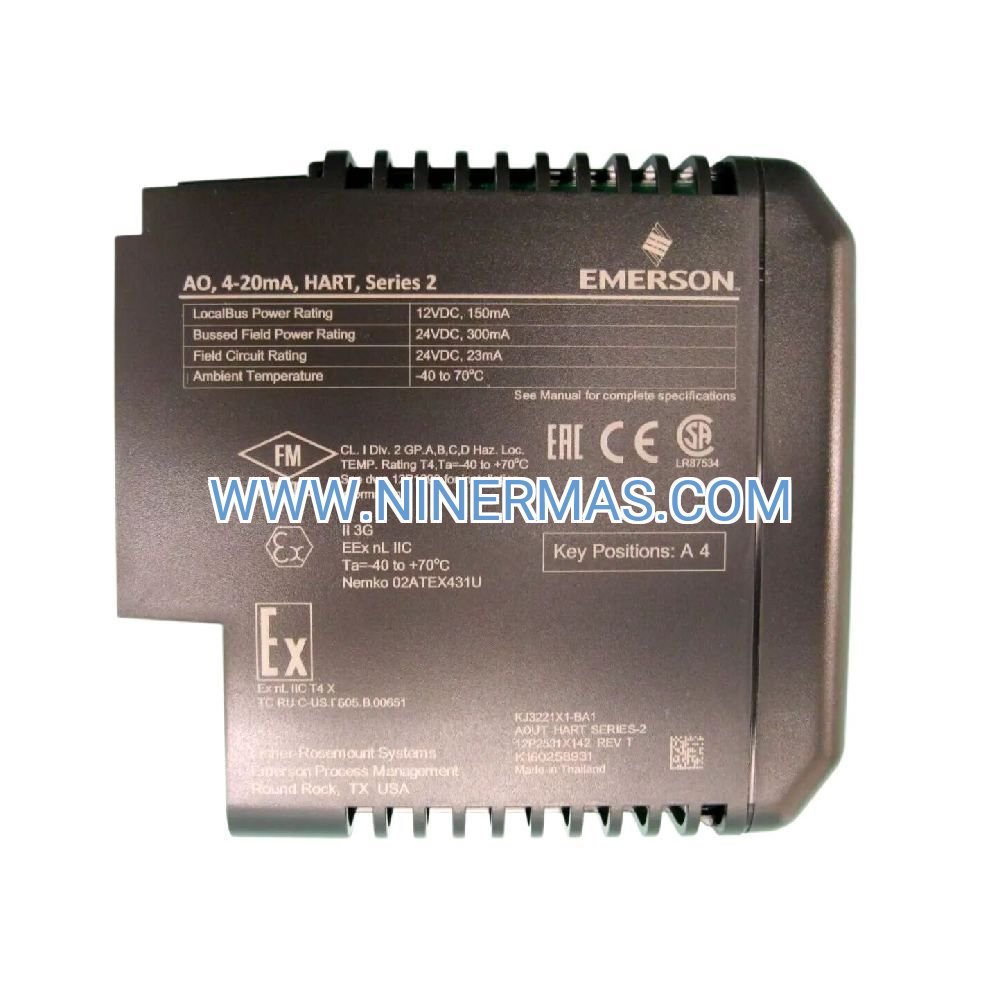

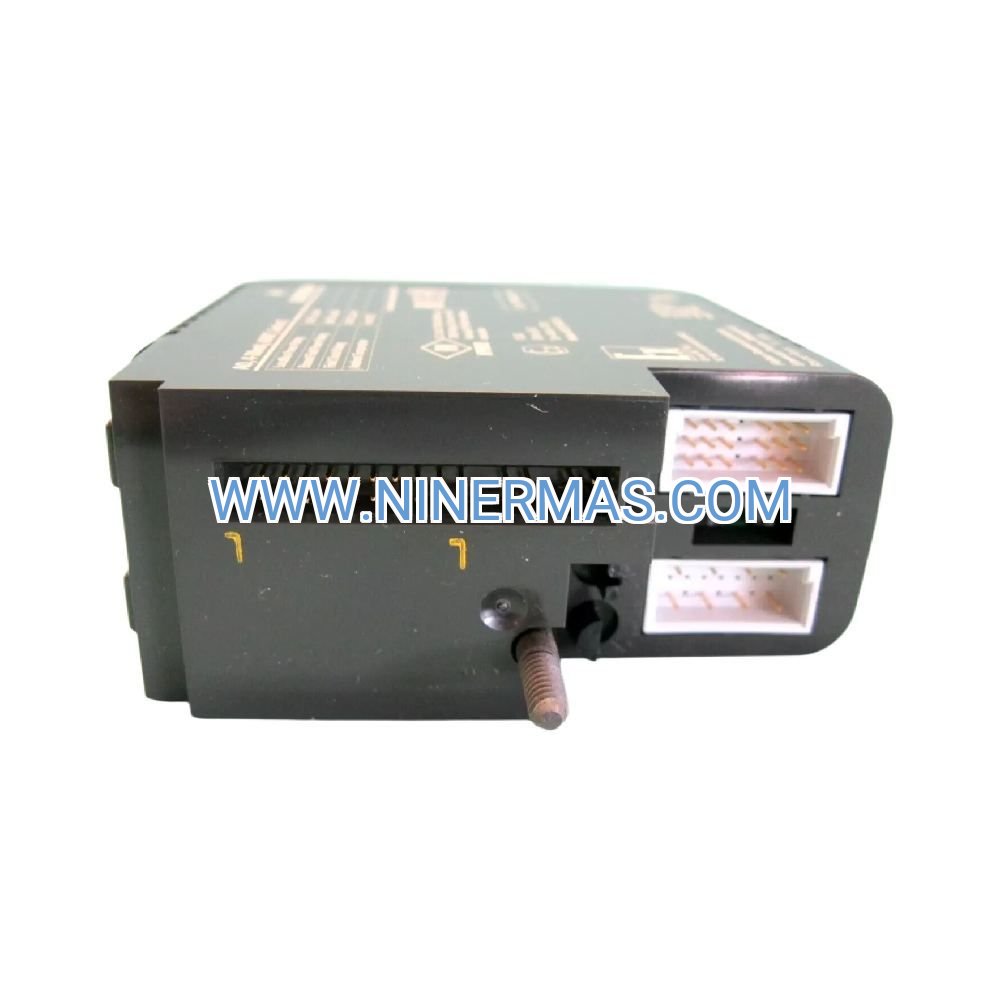

VE4035S2B1 KJ3221X1-BA1 Redundant Analog Output Module (Industrial-Grade DeltaV I/O Solution)

The VE4035S2B1 featuring KJ3221X1-BA1 card represents a mission-critical analog output solution engineered for continuous process control environments where downtime translates to substantial operational losses. This dual-redundant I/O module transmits precise 4-20 mA signals across eight independent channels while maintaining HART digital communication capabilities for advanced device diagnostics and configuration.

Designed for industries demanding uninterrupted control—including oil refining, chemical processing, power generation, and pharmaceutical manufacturing—this module addresses the fundamental challenge of single-point failure in critical control loops. When valve positioners, variable frequency drives, or pneumatic actuators require constant command signals to maintain safe process conditions, the VE4035S2B1's 1oo2 redundancy architecture ensures seamless operation even during component failures or maintenance activities.

Process engineers and automation specialists choose this module for applications where control system availability directly impacts production throughput, product quality, and personnel safety. The combination of sub-50-millisecond failover response, ±0.1% signal accuracy, and comprehensive diagnostic coverage delivers the reliability foundation required for SIL 2-rated safety instrumented systems and high-availability distributed control architectures.

Core Capabilities & Technical Advantages

→ Dual-Channel Redundancy Architecture: Independent signal processing paths with automatic bumpless transfer eliminate single points of failure, achieving 99.9%+ control loop availability in mission-critical applications while supporting hot-swap module replacement without process interruption.

→ Precision Current Loop Control: Eight isolated 4-20 mA outputs deliver ±0.1% accuracy across 0-750 Ω loads with configurable update rates from 50-100 ms, enabling tight regulatory control for fast-responding processes such as compressor anti-surge and reactor temperature management.

→ HART 7 Protocol Integration: Simultaneous analog control and digital communication allows real-time device configuration, calibration verification, and predictive maintenance diagnostics without interrupting process variable transmission to final control elements.

✓ Advanced Fault Detection: Built-in diagnostics monitor open-wire conditions, short-circuit events, out-of-range signals, and channel degradation with >95% coverage, triggering automated alarms and failover sequences before process upsets occur.

✓ Hazardous Area Certification: ATEX/IECEx Zone 2, FM/CSA Class I Division 2 approvals combined with optional intrinsically safe barriers enable deployment in explosive atmospheres common to upstream oil/gas facilities and chemical plants.

✓ Extended Environmental Tolerance: -40°C to +70°C operating range with 5-95% relative humidity resistance supports installations in non-climate-controlled field enclosures, offshore platforms, and desert processing facilities.

Industry-Specific Application Scenarios

Refining & Petrochemical Processing:
In fluid catalytic cracking units (FCCU), the module controls critical slide valves, regenerator air blowers, and fractionator reflux pumps where loss of control signal could trigger emergency shutdowns costing $500K-$2M per incident. Redundant outputs maintain precise catalyst circulation and temperature profiles during controller switchovers or I/O card maintenance.

Power Generation Facilities:
Combined-cycle and coal-fired plants deploy these modules for boiler feedwater control, turbine governor positioning, and selective catalytic reduction (SCR) systems. The sub-50ms failover ensures steam temperature stability and emissions compliance during grid frequency disturbances or equipment faults that would otherwise force unit derates.

Pharmaceutical Batch Manufacturing:
Bioreactor pH control, sterile filtration pressure regulation, and clean-in-place (CIP) valve sequencing require validated control systems with full audit trails. The module's HART diagnostics provide FDA 21 CFR Part 11-compliant documentation of calibration status, configuration changes, and loop performance trending.

Water & Wastewater Treatment:
Chemical dosing pumps for coagulation, disinfection, and pH adjustment benefit from redundant control to prevent permit violations and protect downstream biological treatment processes. The module's isolated channels eliminate ground loop interference common in distributed pump stations.

Pulp & Paper Production:
Digester chemical addition, bleach plant sequencing, and paper machine headbox consistency control utilize the module's fast update rates and load-driving capability to maintain product specifications across grade changes and equipment startups.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose redundant analog output modules for control loops where process safety time (time to hazardous condition after control loss) is less than mean time to repair non-redundant I/O. Typical applications include emergency shutdown valves, compressor surge control, fired heater fuel valves, and reactor cooling systems. For non-critical loops such as tank level indication or flow totalizers, standard simplex I/O provides cost-effective alternatives.

Advanced Integration & Connectivity Features

The KJ3221X1-BA1 card integrates seamlessly with DeltaV M-series controllers (MD, MD Plus, MQ) through deterministic LocalBus communication, supporting distributed control architectures with up to 2000 I/O points per controller. Compatible carrier options include VE4070 redundant carriers for maximum availability and KL4104X1 dual-wide carriers for space-constrained installations.

HART multiplexing enables simultaneous process control and asset management functions—configure smart positioner setpoints, retrieve valve travel diagnostics, and perform loop current verification without taking control loops offline. The module supports EDDL and FDT/DTM device integration for third-party intelligent transmitters, analyzers, and actuators, eliminating proprietary protocol barriers.

For hazardous area applications, pair with KJ4110X1 intrinsically safe barriers to create FISCO-compliant loops suitable for Zone 0/Division 1 installations. The module's galvanic isolation architecture prevents fault propagation between field circuits and control system backplane, maintaining system integrity during wiring shorts or ground faults.

Delivery Timeline & Support Infrastructure

Standard Lead Time: 3-5 business days for in-stock modules with factory calibration certificates and configuration documentation
Custom Configuration: 10-15 business days for pre-programmed modules with customer-specific HART device descriptors and loop scaling
Warranty Coverage: 18-month comprehensive warranty covering materials, workmanship, and calibration drift beyond ±0.15% specification
Technical Support: Application engineering assistance for loop sizing, redundancy configuration, and DeltaV system integration via phone, email, and remote desktop sessions
Documentation Package: Installation manual, wiring diagrams, HART device descriptors, calibration certificates, and DeltaV library objects included with every shipment

Frequently Asked Questions

How does the redundant analog output module interface with existing DeltaV control strategies?
The module appears as a standard CHARM I/O card within DeltaV Explorer configuration software. Control strategies access redundant channels through single function block assignments—the DeltaV controller automatically manages primary/secondary channel selection, health monitoring, and failover logic without requiring custom programming. Existing control modules migrate to redundant I/O through simple I/O assignment changes during scheduled maintenance windows.

What load resistance range ensures optimal signal transmission performance?
The module drives 4-20 mA signals into loads from 0-750 Ω at 24 VDC supply voltage. For maximum noise immunity in electrically noisy environments, maintain loop resistance between 250-600 Ω by selecting appropriate wire gauge and run length. Loads below 100 Ω may reduce signal-to-noise ratio in high-EMI areas, while loads exceeding 700 Ω risk voltage compliance issues during transient conditions.

Can the module support energy-efficient control strategies for variable speed drives?
Yes—the 50 ms minimum update rate and ±0.1% accuracy enable precise VFD speed control for pumps, fans, and compressors in energy optimization applications. HART communication allows real-time monitoring of drive power consumption, motor current, and frequency setpoint verification, supporting closed-loop energy management strategies that reduce electrical costs by 15-30% in variable-load applications.

What installation requirements apply to hazardous area deployments?
For Class I Division 2 / Zone 2 installations, mount modules in purged/pressurized enclosures or general-purpose NEMA 4X cabinets located outside hazardous zones. Division 1 / Zone 1 applications require intrinsically safe barriers (KJ4110X1 or equivalent) between module outputs and field devices, with proper grounding, shielding, and entity parameter verification per NEC Article 504 and IEC 60079-11 standards.

How does remote diagnostics capability reduce maintenance costs?
HART-enabled diagnostics provide real-time visibility into loop current accuracy, channel health status, and field device performance without physical test equipment. Integration with AMS Device Manager or DeltaV Insight enables predictive maintenance alerts for valve packing wear, positioner calibration drift, and wiring degradation—reducing unplanned shutdowns by 40-60% and extending mean time between calibrations from 12 to 24+ months.

What upgrade path exists for legacy DeltaV systems using older I/O modules?
The VE4035S2B1 maintains backward compatibility with DeltaV versions 11.3.1 through current 15.1 LTS releases. Brownfield upgrades replace older VE4003/VE4005 simplex modules with redundant equivalents using identical terminal block footprints and wiring schemes. DeltaV Bulk Edit tools migrate I/O assignments across multiple control modules simultaneously, minimizing commissioning time during planned outages.

Take the Next Step Toward Zero-Downtime Control

Eliminate single-point failures in your critical control loops with proven redundant I/O technology trusted by Fortune 500 process manufacturers worldwide. Our application engineers provide complimentary loop analysis, redundancy architecture design, and DeltaV integration planning to ensure optimal system performance.

Request a technical consultation: Contact our automation specialists at sale@ninermas.com or call +0086 187 5021 5667 to discuss your specific application requirements, obtain detailed specifications, and receive project-specific pricing for volume deployments.
