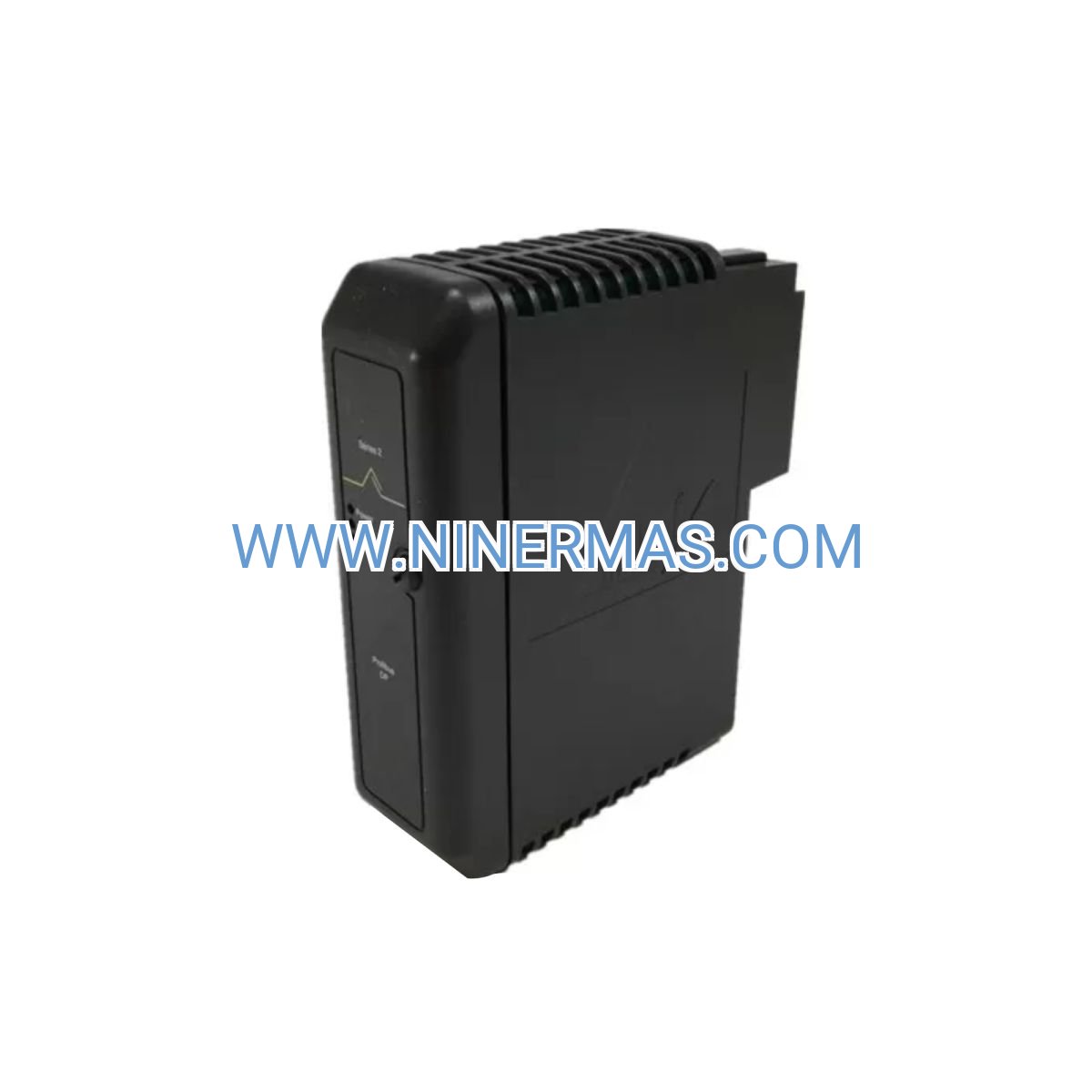

VE4022 Profibus DP Communication Module (Industrial-Grade DeltaV Integration)

The VE4022 represents a mission-critical communication gateway designed to unify Profibus DP field networks with Emerson DeltaV M-Series control platforms. Engineered for continuous industrial operation, this interface card delivers deterministic data exchange between DeltaV controllers and third-party Profibus-enabled instrumentation, drives, and analytical equipment across process industries.

Built for environments demanding zero-downtime performance, the VE4022 addresses the fundamental challenge of multi-vendor system integration—enabling plant operators to leverage best-in-class field devices regardless of manufacturer while maintaining centralized DeltaV control and visualization. Whether coordinating pharmaceutical batch sequences, managing refinery separation units, or orchestrating power generation auxiliaries, this module provides the protocol translation and diagnostic intelligence required for mission-critical automation.

Target users include DCS engineers, instrumentation technicians, and plant automation managers responsible for brownfield expansions, legacy device integration, or greenfield installations requiring Profibus connectivity. The VE4022's hot-swappable architecture and auto-configuration capabilities reduce commissioning timelines by 60-70% compared to traditional hardwired I/O approaches, delivering measurable ROI through faster project execution and reduced engineering labor.

Core Capabilities & Business Value

→ Universal Device Compatibility: Supports DP-V0, DP-V1, and DP-V2 protocol classes, enabling integration of 3,000+ certified Profibus devices from global manufacturers. Eliminates vendor lock-in and preserves capital investment in existing field instrumentation.

→ Plug-and-Play Commissioning: GSD file-based auto-configuration automatically generates I/O mappings, scaling parameters, and diagnostic thresholds. Reduces engineering hours by 40-60% during startup and modification phases.

→ Fault-Tolerant Operation: Seamless integration with redundant DeltaV controller pairs ensures <100ms failover during primary controller loss. Maintains process control continuity during planned maintenance or component failures, protecting against production losses averaging $50,000-$500,000 per hour in continuous process industries.

✓ Hot-Swap Serviceability: Field-replaceable design allows card replacement during live operation without network shutdown or process interruption. Minimizes MTTR (Mean Time To Repair) and supports predictive maintenance strategies.

✓ High-Throughput Performance: Auto-detects and operates at baud rates from 9.6 kbps to 12 Mbps, supporting demanding applications with 100+ I/O points per segment. Ensures deterministic scan times critical for fast-loop control (PID, cascade, feedforward) and coordinated drive systems.

✓ Comprehensive Diagnostics: Real-time monitoring of bus health metrics (signal quality, collision rates, segment utilization) and device-level status (communication timeouts, configuration errors, parameterization faults). Generates prioritized alarms and provides built-in oscilloscope functions for rapid troubleshooting, reducing diagnostic time by 50-70%.

Industrial Deployment Scenarios

Chemical & Petrochemical Processing:
Challenge: Integrate Profibus VFDs controlling reactor agitators, mass flow controllers for feedstock metering, and smart positioners on control valves into a unified DeltaV advanced process control (APC) strategy.
Solution: VE4022 enables real-time coordination between DeltaV regulatory control and third-party actuation devices, supporting model predictive control (MPC) algorithms that optimize yield and energy consumption. Acyclic communication services allow on-the-fly drive parameter tuning without interrupting production.
Value: 3-8% yield improvement, 12-18% energy reduction, and elimination of $200K+ in custom gateway hardware.

Pharmaceutical & Biotech Manufacturing:
Pain Point: Batch recipe execution requires precise coordination of Profibus-enabled weighing systems, analytical instruments (pH, conductivity, dissolved oxygen), and CIP/SIP sterilization skids under 21 CFR Part 11 compliance.
Implementation: The VE4022 consolidates multi-vendor devices under DeltaV batch management, enabling electronic batch records (EBR) with full audit trails. GSD-based configuration ensures validated system states and simplifies regulatory documentation.
Outcome: 40-60% reduction in batch record review time, elimination of manual transcription errors, and streamlined FDA audit preparation.

Power Generation & Utilities:
Scenario: Coordinate DeltaV boiler controls with Profibus-based turbine governors, burner management systems, and continuous emissions monitoring (CEMS) equipment during load-following operations.
Deployment: VE4022's 12 Mbps capability ensures millisecond-level synchronization between combustion control loops and turbine speed regulation, critical for grid stability and emissions compliance.
Benefit: Maintains NOx/SOx emissions within permit limits during rapid load changes, avoiding $10K-$100K daily penalties and supporting renewable energy integration strategies.

Water & Wastewater Treatment:
Application: Link geographically distributed Profibus filtration systems, UV disinfection units, chemical dosing pumps, and flow meters to centralized DeltaV SCADA.
Advantage: Multi-drop topology reduces field wiring costs by 30-50% compared to point-to-point analog I/O. Deterministic communication ensures regulatory compliance for effluent quality parameters (turbidity, chlorine residual, pH).
Impact: Simplified compliance reporting, reduced chemical consumption through optimized dosing algorithms, and lower installation costs in retrofit projects.

Oil & Gas Upstream:
Use Case: Interface Profibus smart positioners, flow computers, and gas chromatographs in offshore separation platforms where space and weight constraints limit traditional I/O expansion.
Execution: VE4022's compact form factor and high device density (up to 126 devices with repeaters) maximize utilization of limited DCS cabinet space. Advanced diagnostics detect valve positioning errors and analyzer communication faults before impacting custody transfer accuracy or safety system integrity.
Return: Prevents custody transfer disputes ($50K-$500K per incident), supports predictive maintenance of critical valves, and reduces offshore technician callouts by 40-60%.

Technical Specifications & Selection Criteria

Selection Criteria: Choose VE4022 when integrating 5-126 Profibus devices into DeltaV M-Series systems. For applications requiring >126 devices, deploy multiple VE4022 cards across separate DP segments. Optical variants recommended for installations exceeding 1,200m cable runs or environments with severe EMI/RFI interference. Verify GSD file availability for all target devices before procurement.

Advanced Integration Features

Cyclic Data Exchange: The VE4022 manages deterministic, time-synchronized transfer of process variables (PV), setpoints (SP), and output commands (OP) between DeltaV control modules and Profibus slaves. Configurable scan rates (10ms-1000ms) align with control loop requirements, ensuring regulatory control stability and advanced control algorithm performance.

Acyclic Parameter Services: Beyond real-time I/O, the card supports on-demand read/write operations for device configuration, calibration data, and diagnostic parameters. Engineers can remotely adjust VFD acceleration curves, retrieve valve diagnostic counters, or update analyzer calibration coefficients without field visits—reducing maintenance costs by 30-50% in geographically distributed installations.

Redundancy Synchronization: When paired with redundant DeltaV controllers, the VE4022 maintains synchronized communication states across primary and backup controllers. During failover events (<100ms transition), the standby controller assumes bus master responsibilities while preserving device configurations and diagnostic histories. This architecture supports SIL 2-rated safety instrumented functions (SIF) when combined with certified Profibus safety devices.

Network Segmentation & Scaling: Large installations leverage multiple VE4022 cards to create segmented Profibus networks, each optimized for specific process areas or device types. Segmentation reduces bus arbitration delays, isolates faults to specific segments, and enables phased commissioning during plant expansions. Optical repeaters extend reach to 10+ kilometers for campus-wide or multi-building facilities.

Delivery Timeline & Service Commitments

Standard Delivery: 5-10 business days for in-stock units to North America, Europe, and Asia-Pacific destinations. Expedited 2-3 day shipping available for critical spares and emergency replacements.

Custom Configuration: Pre-configured cards with customer-specific firmware versions or GSD libraries ship within 10-15 business days. Includes factory acceptance testing (FAT) documentation and configuration backup files.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for mission-critical installations.

Technical Support: Lifetime access to application engineering support for GSD file integration, network topology design, and diagnostic troubleshooting. Remote assistance via phone, email, or screen-sharing within 4 business hours.

Documentation Package: Each shipment includes installation manual, GSD file library (500+ common devices), quick-start configuration guide, and DeltaV Explorer integration instructions. Compliance certificates (CE, UL, ATEX) provided upon request.

Frequently Asked Questions

Q: How do I connect VE4022 to existing DeltaV M-Series controllers?
A: The VE4022 installs directly into any available slot on DeltaV M-Series 8-wide or 12-wide I/O carriers. Physical installation requires no tools—simply align the card with carrier guides and press firmly until locking tabs engage. Logical configuration occurs via DeltaV Explorer software: assign a unique network address, import device GSD files, and map Profibus data to DeltaV control modules. The configuration wizard validates topology and activates the bus. Typical installation time: 15-30 minutes for physical mounting, 1-2 hours for software configuration depending on device count.

Q: What capacity and device limits apply to VE4022 installations?
A: A single VE4022 supports up to 32 Profibus devices per segment without repeaters, expandable to 126 devices using DP repeaters. Each device consumes a portion of the 244-byte cyclic data budget; typical field instruments (4-20mA transmitters, valve positioners) use 2-8 bytes, while complex devices (analyzers, drives) may require 20-100 bytes. The card's processor handles up to 1,000 I/O points total across all connected devices. For installations exceeding these limits, deploy multiple VE4022 cards on separate DP segments.

Q: Can VE4022 reduce energy consumption in variable speed drive applications?
A: Yes—the VE4022 enables advanced energy optimization strategies by providing real-time, bidirectional communication between DeltaV control algorithms and Profibus VFDs. Engineers can implement coordinated motor control schemes (pump sequencing, compressor load sharing) that reduce total energy consumption by 12-25% compared to standalone VFD operation. Acyclic communication allows dynamic adjustment of VFD parameters (V/Hz curves, acceleration ramps) based on process conditions, further improving efficiency. Documented energy savings of 15-30 kW per motor in HVAC and pumping applications.

Q: What installation requirements must be met for VE4022 deployment?
A: Physical requirements include: (1) Available slot in DeltaV M-Series I/O carrier with ≥5W power budget, (2) Profibus DP cable (Type A or Type B per EN 50170) with proper termination resistors (220Ω + 390Ω to ground at each segment end), (3) Unique network address for the VE4022 (0-125), and (4) GSD files for all connected devices. Environmental requirements: cabinet temperature 0-60°C, <95% RH non-condensing. Software requirements: DeltaV Explorer v11.3 or later with Profibus configuration license. Electrical requirements: Verify carrier backplane power capacity and ensure proper grounding per Emerson installation standards.

Q: Does VE4022 support remote monitoring and predictive maintenance workflows?
A: Absolutely—the VE4022's comprehensive diagnostic capabilities integrate with DeltaV's asset management framework and third-party condition monitoring systems. The card continuously monitors 20+ bus health metrics (signal-to-noise ratio, collision rates, retransmission frequency) and device-level parameters (communication timeouts, configuration mismatches, diagnostic alarms). This data feeds predictive analytics algorithms that identify degrading cables, failing terminators, or devices approaching end-of-life—typically 30-90 days before catastrophic failure. Integration with AMS Device Manager enables centralized asset health dashboards and automated work order generation, reducing unplanned downtime by 40-60%.

Q: How does VE4022 handle network failures or device communication loss?
A: The VE4022 implements multi-layer fault tolerance: (1) Watchdog timers detect communication timeouts and automatically retry failed transactions (configurable retry count and interval), (2) Device-level diagnostics generate prioritized alarms (critical/warning) based on fault severity, (3) Redundant controller configurations maintain process control during VE4022 card failure via automatic failover, and (4) Configurable fault responses allow engineers to define safe-state actions (hold last value, go to predetermined output, trigger shutdown sequence) for each I/O point. Built-in bus diagnostics pinpoint fault locations (cable break, terminator failure, device malfunction) to specific network segments, reducing troubleshooting time by 60-80%.

Take the Next Step

Ready to streamline your DeltaV-Profibus integration? Contact our application engineering team for project-specific guidance on network topology design, device selection, and configuration best practices. Request a detailed quotation including VE4022 interface cards, recommended spare parts, and optional pre-commissioning services.

Order Now: Add to cart for immediate checkout, or reach out to discuss volume pricing for multi-site deployments and annual maintenance agreements.
