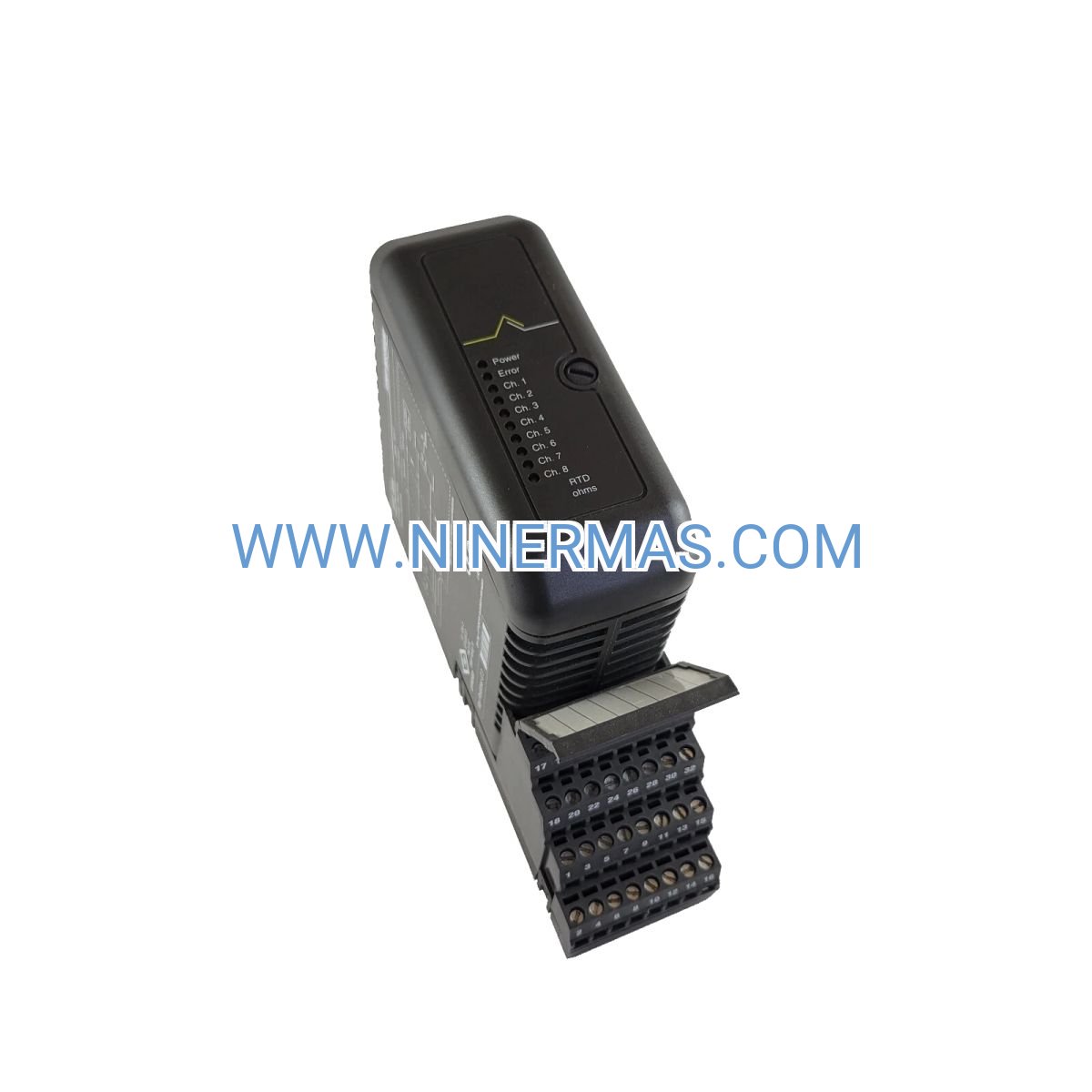

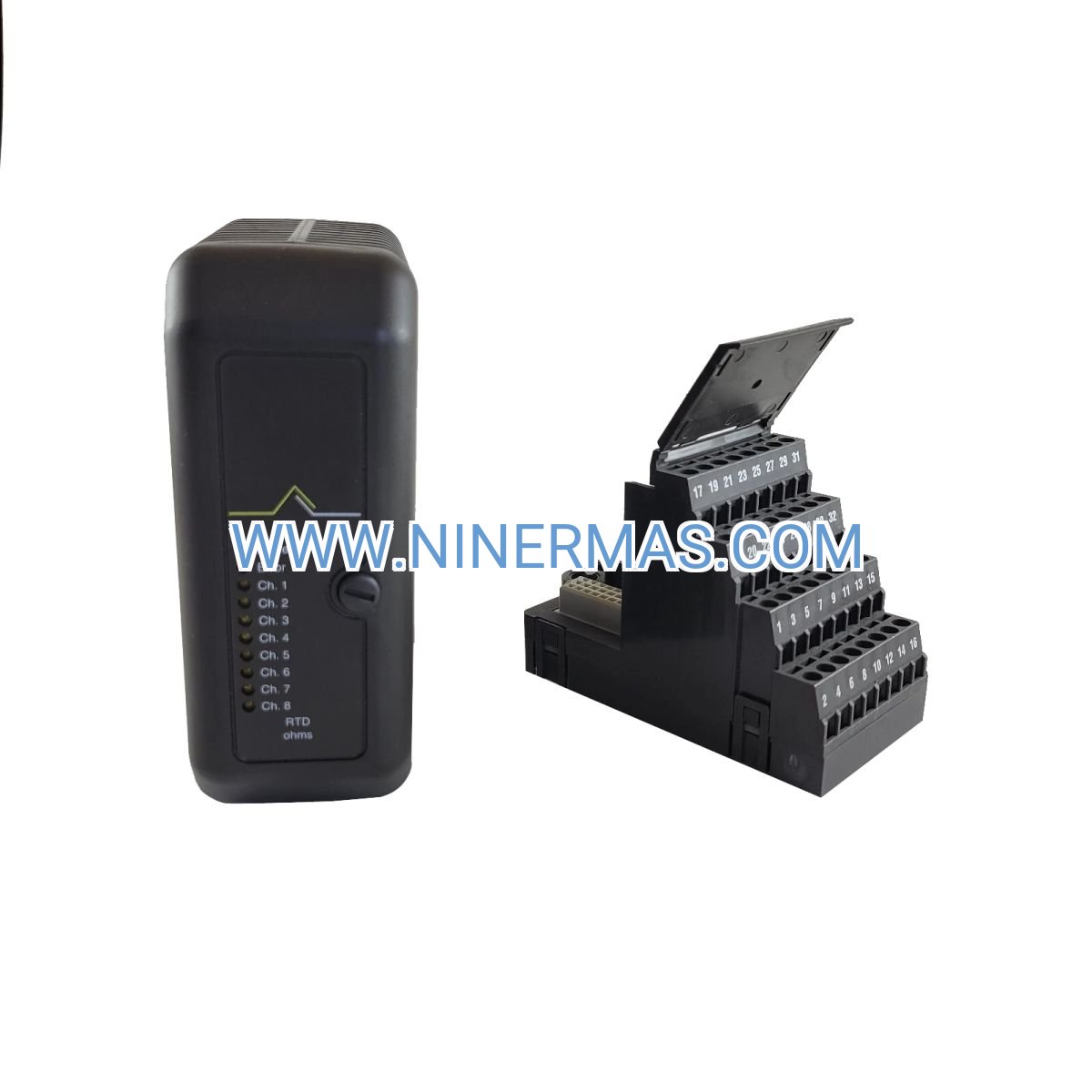

VE4003S6B1 RTD Input Module (Industrial-Grade Temperature Acquisition)

The VE4003S6B1 represents a specialized temperature acquisition solution engineered for DeltaV M-series distributed control architectures. This 8-channel RTD interface module converts resistance-based temperature signals into high-fidelity digital data streams, serving critical monitoring applications across petrochemical processing, pharmaceutical production, and energy generation sectors. With native support for five RTD sensor types and flexible wiring configurations, it addresses the complex temperature profiling demands of modern industrial facilities where measurement accuracy directly impacts product quality, safety compliance, and operational efficiency.

Technical Features & Business Value

→ Multi-Sensor Compatibility: Natively processes Pt100, Pt200, Pt500, Ni120, and Cu10 RTD types without external transmitters, reducing installation costs by 40% compared to traditional analog input architectures while eliminating potential failure points in the signal chain.

→ Flexible Wiring Architecture: Each channel independently supports 2-wire, 3-wire, or 4-wire RTD connections, enabling mixed sensor deployments within a single module—critical for retrofit projects where existing infrastructure dictates connection methods.

✓ Hot-Swap Serviceability: Field-replaceable during live system operation without disrupting adjacent I/O channels or halting production processes, minimizing maintenance windows in continuous manufacturing environments where downtime costs exceed $15,000 per hour.

✓ Extended Measurement Range: Covers -200°C to +850°C temperature span with ±0.1°C typical accuracy (4-wire Pt100 configuration), supporting both cryogenic LNG applications and high-temperature steam systems within unified control infrastructure.

✓ Integrated Diagnostics: Real-time fault detection identifies open circuits, short circuits, lead resistance errors, and out-of-range conditions with color-coded alerts in DeltaV Explorer, reducing troubleshooting time from hours to minutes.

✓ Hazardous Area Certification: ATEX Zone 2 and IECEx approval enables installation in potentially explosive atmospheres without costly purge enclosures, expanding deployment options in chemical processing and oil & gas facilities.

Application Scenarios

Catalytic Reactor Temperature Profiling
Chemical manufacturers deploy the VE4003S6B1 to monitor eight-point temperature gradients across fixed-bed reactors. The 4-wire Pt100 configuration eliminates lead resistance errors in 300-meter cable runs from reactor zones to control rooms, ensuring conversion efficiency optimization and preventing thermal runaway conditions that could damage catalyst beds worth $500,000+.

Steam Turbine Bearing Health Monitoring
Power generation facilities utilize the module for continuous bearing metal temperature surveillance on critical rotating equipment. Built-in open-circuit detection triggers alarms before catastrophic failures occur, protecting turbines valued at $2M+ while enabling predictive maintenance scheduling that reduces unplanned outages by 60%.

Pharmaceutical Sterilization Validation
Biopharma manufacturers leverage multi-zone temperature monitoring to validate autoclave uniformity per FDA 21 CFR Part 11 requirements. Time-stamped data integrates directly with DeltaV batch historians, providing audit-ready documentation that accelerates regulatory inspections and supports GMP compliance.

Cryogenic LNG Processing
Liquefied natural gas terminals employ the module's extended -200°C capability for storage tank and transfer line monitoring. The conformal coating protection (ISA-S71.04 Class G3) withstands corrosive marine atmospheres, delivering 10+ year service life in harsh coastal environments.

Food & Beverage Pasteurization
Dairy processors implement the VE4003S6B1 for HTST (High Temperature Short Time) pasteurization control, where ±0.5°C deviations can compromise product safety. The 1-second update rate per channel enables tight closed-loop control that maintains regulatory compliance while maximizing throughput.

Technical Parameters & Selection Guide

Selection Criteria: Choose 4-wire configuration for applications requiring ±0.1°C accuracy or cable runs exceeding 100 meters. Opt for 3-wire when balancing cost and performance in standard industrial installations. Reserve 2-wire for non-critical monitoring where ±0.5°C accuracy suffices. Verify RTD sensor type matches module configuration—Pt100 offers best accuracy/cost ratio for -50°C to +400°C applications, while Pt500 provides superior resolution in narrow-span measurements.

Extended Capabilities

Redundant I/O Architecture Support: Deploy in simplex or redundant configurations for high-availability applications requiring 99.99%+ uptime. Automatic failover occurs within 200 milliseconds without process disruption.

HART Protocol Integration: When paired with HART-enabled RTD transmitters, the module passes through digital device data for advanced diagnostics and remote configuration—reducing field visits by 50% during commissioning.

Custom Linearization Tables: Upload user-defined RTD curves for non-standard sensor types or specialized applications, extending compatibility beyond the five factory-programmed options.

Cybersecurity Features: Firmware-level authentication prevents unauthorized configuration changes, supporting IEC 62443 industrial cybersecurity standards for critical infrastructure protection.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3–5 business days. Custom-configured modules (special linearization or extended testing) require 2–3 weeks. Expedited processing available for emergency shutdowns.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended 5-year coverage available for critical applications.

Technical Support: Lifetime access to application engineers for configuration assistance, troubleshooting, and system integration guidance. Average response time: 4 hours for critical issues.

Documentation Package: Includes installation manual, DeltaV configuration guide, NIST-traceable calibration certificate, and AutoCAD dimensional drawings for panel layout planning.

Frequently Asked Questions

Q: Can the VE4003S6B1 interface with third-party DCS platforms beyond DeltaV?
A: The module is DeltaV-specific and requires M-series I/O carriers with LocalBus communication. For non-DeltaV systems, consider universal RTD input modules with Modbus or HART output protocols.

Q: What maximum cable length is supported for 3-wire Pt100 sensors?
A: Up to 300 meters using 18 AWG shielded twisted-pair cable. Beyond 150 meters, 4-wire configuration is recommended to eliminate lead resistance errors that degrade accuracy.

Q: Does the module support intrinsically safe (IS) RTD sensors for Zone 0 applications?
A: The VE4003S6B1 itself is Zone 2 rated. For Zone 0/1 installations, pair with approved IS barriers (e.g., MTL7728+) that maintain signal integrity while providing galvanic isolation.

Q: How does diagnostic performance compare to universal analog input modules?
A: Dedicated RTD conditioning provides 5× faster fault detection (sub-second vs. 5-second scan cycles) and identifies 12 distinct fault types versus 3 generic alarms in universal modules, significantly reducing MTTR.

Q: Can I mix 2-wire and 4-wire RTD connections on the same module?
A: Yes—each of the eight channels is independently configurable via DeltaV Explorer software. This flexibility is ideal for retrofit projects integrating new high-accuracy sensors with legacy 2-wire infrastructure.

Q: What energy efficiency benefits does the module provide?
A: At 150 mA @ 12 VDC consumption, the VE4003S6B1 uses 65% less power than equivalent transmitter-based systems (which require 24 VDC loop power per channel), reducing panel cooling requirements and energy costs in large I/O installations.

Get Your Temperature Monitoring Solution

Contact our industrial automation specialists for application-specific configuration guidance, volume pricing, or technical compatibility verification. We provide same-day quotations and can arrange factory acceptance testing (FAT) for critical projects requiring pre-shipment validation.
