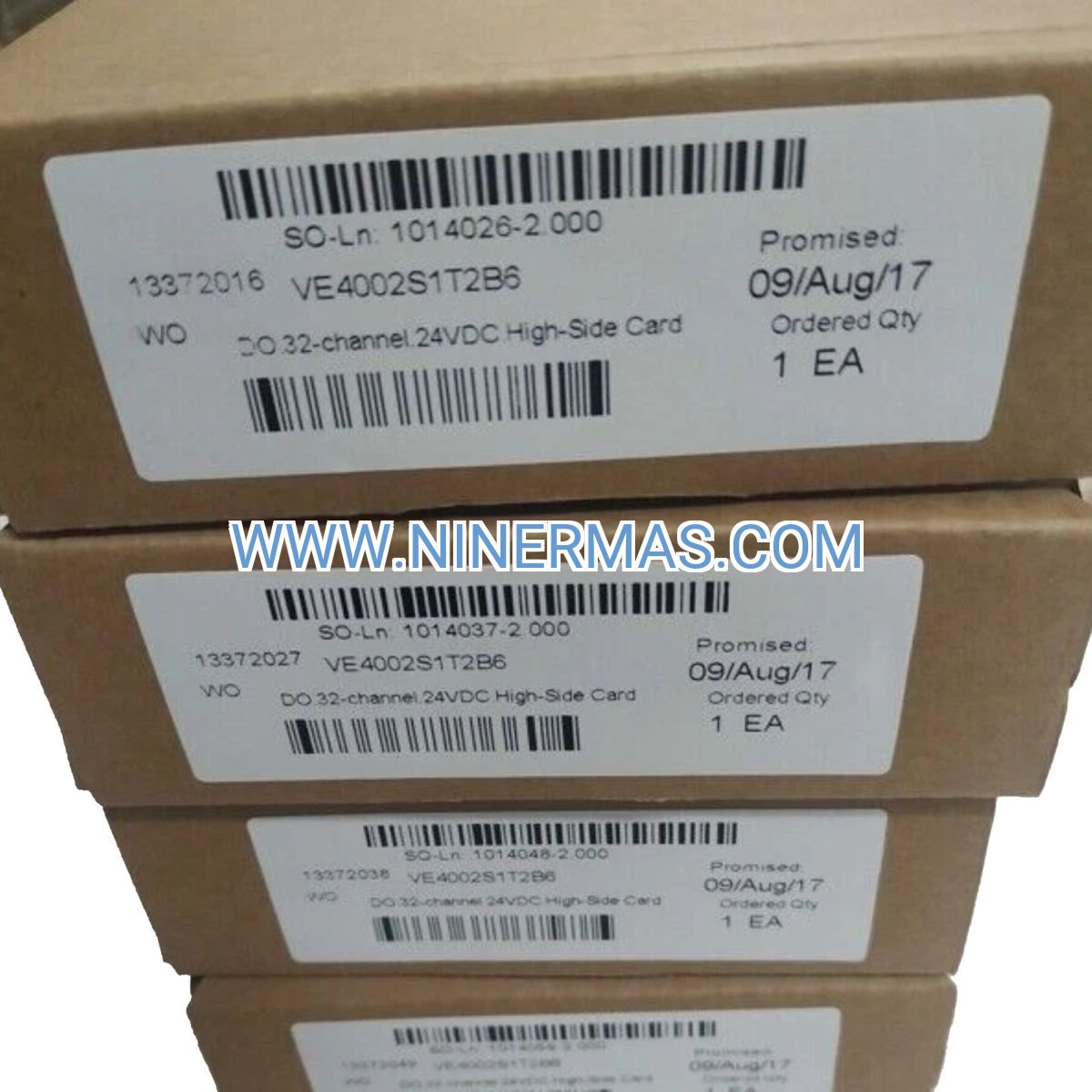

VE4002S1T2B6 High-Density Discrete Output Module (Industrial-Grade DeltaV I/O)

The VE4002S1T2B6 is a professional-grade discrete output interface card designed for Emerson DeltaV distributed control architectures. This 32-channel module delivers reliable high-side 24VDC switching for industrial actuators, solenoid valves, and motor contactors in process-critical environments. Built with dual 16-channel mass termination blocks, it streamlines field wiring while maintaining channel-level isolation and diagnostic capabilities essential for pharmaceutical, petrochemical, and power generation facilities.

Process engineers and automation integrators choose the VE4002S1T2B6 to eliminate wiring complexity in high-density control cabinets. Each channel provides 0.5A continuous output with built-in short-circuit protection, reducing commissioning time and minimizing troubleshooting during plant startups. The module's hot-swappable carrier design enables maintenance without system shutdown, directly addressing uptime requirements in 24/7 production environments.

With CE, UL, CSA, and ATEX Zone 2 certifications, this discrete output card meets global safety standards for hazardous area installations. Optical isolation between channels and backplane prevents ground loops and electrical noise interference, ensuring signal integrity across extended cable runs up to 500 meters. Real-time fault detection with LED indicators accelerates diagnostics, cutting mean-time-to-repair by up to 40% compared to legacy relay-based systems.

Core Features & Technical Advantages

✓ Dual Mass Termination Architecture
Two 40-pin MTB connectors replace 64 individual wire terminations, reducing installation labor by 60% and eliminating wiring errors during commissioning or retrofit projects.

✓ Per-Channel Fault Diagnostics
Integrated open-circuit, short-circuit, and overload detection with millisecond response time enables predictive maintenance strategies and reduces unplanned downtime.

✓ High-Side Switching Design
24VDC positive switching configuration provides fail-safe operation for safety-critical applications, automatically de-energizing outputs during power loss or controller faults.

✓ Industrial Temperature Range
Operates reliably from 0°C to 60°C (32°F to 140°F) without derating, suitable for non-climate-controlled electrical rooms and outdoor enclosures in extreme climates.

✓ Hot-Swappable Carrier Module
Field-replaceable design allows technicians to swap cards during operation without disrupting adjacent I/O channels or requiring DCS shutdown, critical for continuous process industries.

✓ EMI/RFI Hardened Construction
Built-in surge suppression and electromagnetic filtering maintain signal integrity in electrically noisy environments with VFD drives, welding equipment, and high-voltage switchgear.

Industrial Application Scenarios

→ Refinery Emergency Shutdown Systems
Controls pneumatic actuated block valves and depressurization solenoids in SIS-rated safety loops. The module's certified isolation and diagnostic capabilities meet IEC 61511 requirements for safety instrumented functions, while dual-channel redundancy options support SIL 2 architectures.

→ Pharmaceutical Batch Processing
Manages CIP valve sequencing, reactor agitator interlocks, and material transfer pumps in FDA-regulated manufacturing. Audit trail integration with DeltaV Batch Executive provides 21 CFR Part 11 compliant event logging for validation documentation.

→ Power Plant Auxiliary Systems
Operates boiler feedwater pump recirculation valves, cooling tower fan starters, and ash handling conveyor controls. The module's wide temperature range and vibration resistance suit turbine hall and coal handling environments.

→ Water Treatment SCADA Networks
Drives chemical dosing pump contactors, filter backwash valves, and clarifier rake mechanisms across distributed lift stations. Long-distance signal integrity supports remote I/O installations up to 500m from the DeltaV controller.

→ Food & Beverage Packaging Lines
Controls pneumatic actuators for filling nozzles, capping stations, and product diverters in high-speed bottling operations. Washdown-rated enclosure compatibility and stainless steel mounting options meet sanitary design standards.

Technical Parameters & Selection Guide

Selection Criteria: Choose the VE4002S1T2B6 when your application requires more than 16 discrete outputs in a single I/O slot, or when mass termination blocks are mandated for project wiring standards. For applications needing individual channel current >0.5A, consider relay output modules or solid-state contactors. Verify that your DeltaV carrier supports dual-width modules before ordering.

Extended Functionality & Integration

DeltaV System Integration: The module auto-configures within DeltaV Explorer software, with pre-built function blocks for sequential control, pulse output, and time-proportional control strategies. Channel assignments synchronize automatically with P&ID tag databases through AMS Device Manager.

Redundancy Options: Supports DeltaV CHARMs (Channel Redundancy Modules) for critical control loops requiring 1:1 output redundancy. Automatic switchover occurs within 100ms upon primary channel failure, maintaining process continuity.

Cybersecurity Features: Firmware-level authentication prevents unauthorized configuration changes. Integration with DeltaV SIS (Safety Instrumented System) enables secure separation between basic process control and safety functions per IEC 62443 standards.

Customization Services: Factory pre-wiring to customer-specified MTB pinouts available for OEM panel builders. Custom firmware for specialized pulse-width modulation or frequency output applications can be quoted for orders >50 units.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units (North America/Europe), 7-10 days for Asia-Pacific regions. All modules ship factory-tested with calibration certificates traceable to NIST standards.

Expedited Options: 24-hour emergency dispatch available for critical plant shutdowns or turnaround projects. Premium freight includes dedicated courier with real-time tracking and signature confirmation.

Warranty Coverage: 18-month comprehensive warranty covering manufacturing defects, component failures, and firmware issues. Extended 5-year service contracts include annual preventive maintenance inspections and priority spare parts allocation.

Technical Support: 24/7 multilingual helpdesk staffed by certified DeltaV engineers. Remote diagnostics via secure VPN connection, on-site commissioning assistance, and customized training programs available globally.

Documentation Package: Each shipment includes installation manual, wiring diagrams, AutoCAD terminal block drawings, HART device description files, and sample control narratives for common applications.

Frequently Asked Questions

Q: Can the VE4002S1T2B6 interface directly with Allen-Bradley or Siemens PLCs?
A: No, this module is designed exclusively for Emerson DeltaV systems using proprietary CHARMs carriers. For third-party PLC integration, consider Emerson's VE5004 universal I/O gateway with Modbus TCP/IP or PROFINET connectivity.

Q: What is the maximum cable distance between the module and field devices?
A: Up to 500 meters (1640 feet) using shielded 18AWG cable with proper grounding. For distances exceeding 300m, install surge protection at both ends and verify voltage drop remains below 2VDC under full load conditions.

Q: Does this card support pulse-width modulation for proportional valve control?
A: Standard firmware provides fixed on/off switching only. PWM functionality requires custom firmware (minimum order quantity applies) or use of DeltaV analog output modules with external PWM converters.

Q: How do I replace a failed module without disrupting adjacent I/O channels?
A: The hot-swap procedure involves: (1) Place controller in manual mode, (2) Remove front retaining clip, (3) Pull module straight out while carrier remains powered, (4) Insert replacement module until it clicks, (5) Verify green status LED, (6) Return controller to auto mode. Total downtime: <60 seconds.

Q: Are conformal coating or potting options available for harsh environments?
A: Standard units include conformal coating for humidity and dust protection (IP20 rating). For corrosive atmospheres or offshore installations, specify IP65-rated enclosures with sealed MTB connectors (consult factory for lead times).

Q: Can I monitor individual channel status remotely via SCADA or HMI?
A: Yes, all 32 channels report real-time status (on/off/fault) to DeltaV controllers, accessible via OPC-UA, Modbus TCP, or native DeltaV graphics. Alarm notifications can trigger email/SMS alerts through DeltaV Event Chronicle.

Request Technical Consultation

Our application engineers provide complimentary system design reviews for projects requiring 10+ I/O modules. Submit your P&ID drawings and I/O lists for optimized module selection, panel layout recommendations, and budget quotations within 48 hours.
