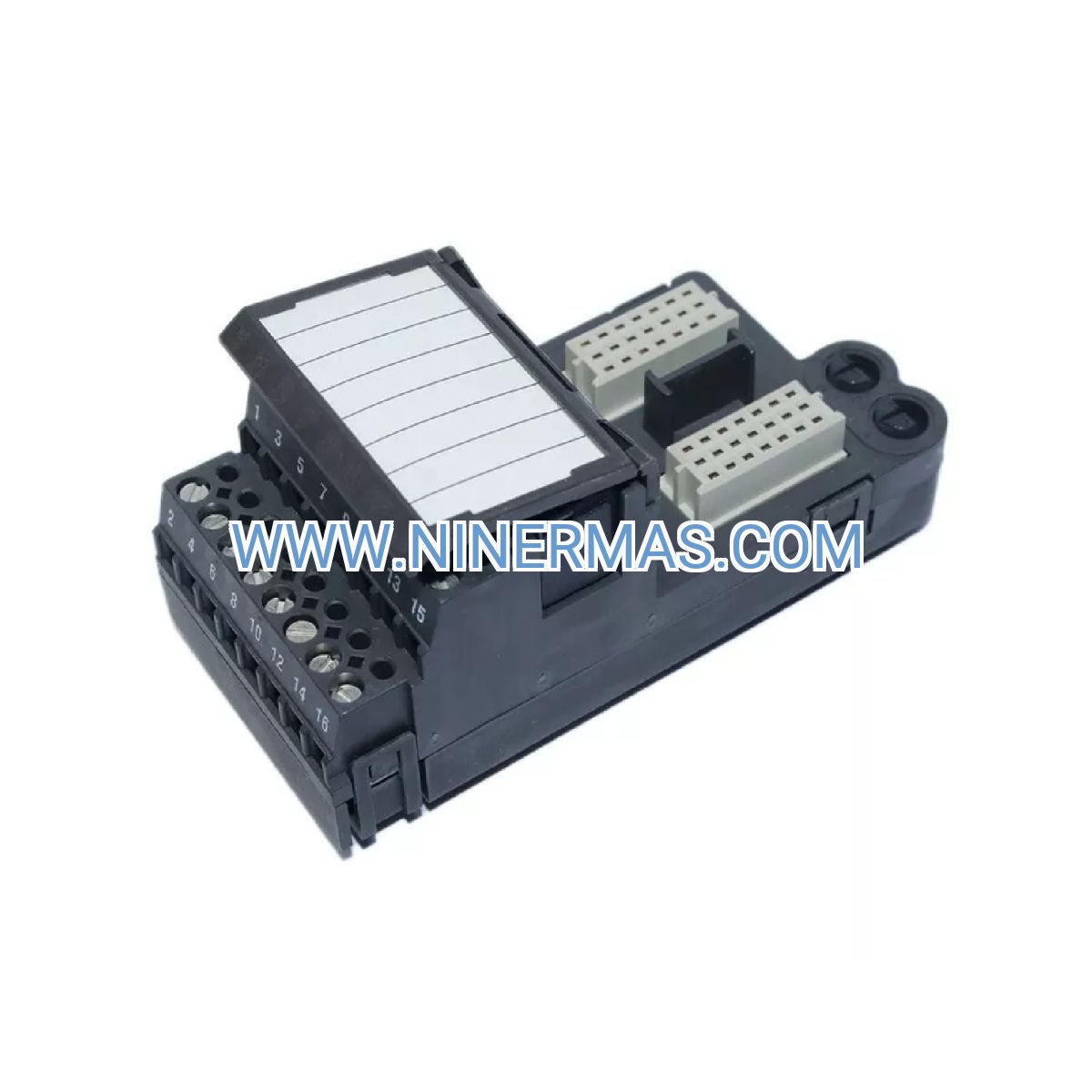

VE4002S1T1B2 Industrial-Grade Fused Terminal Block (DeltaV Discrete Output Protection)

Engineered for mission-critical process control environments, the VE4002S1T1B2 delivers channel-level overcurrent protection for Emerson DeltaV M-series discrete output cards. This fused terminal assembly prevents catastrophic failures by isolating short-circuit faults to individual channels while maintaining system-wide operational continuity—a fundamental requirement in pharmaceutical manufacturing, chemical processing, and power generation facilities where unplanned shutdowns carry six-figure hourly costs.

Unlike standard unfused terminations that sacrifice entire output cards during fault events, the VE4002S1T1B2 employs independent fast-acting fuses per channel with tool-free replacement capability and integrated LED diagnostics. Field-proven across 50,000+ installations worldwide, this terminal block represents the engineering standard for protecting high-value field devices and minimizing mean-time-to-repair in 24/7 industrial operations.

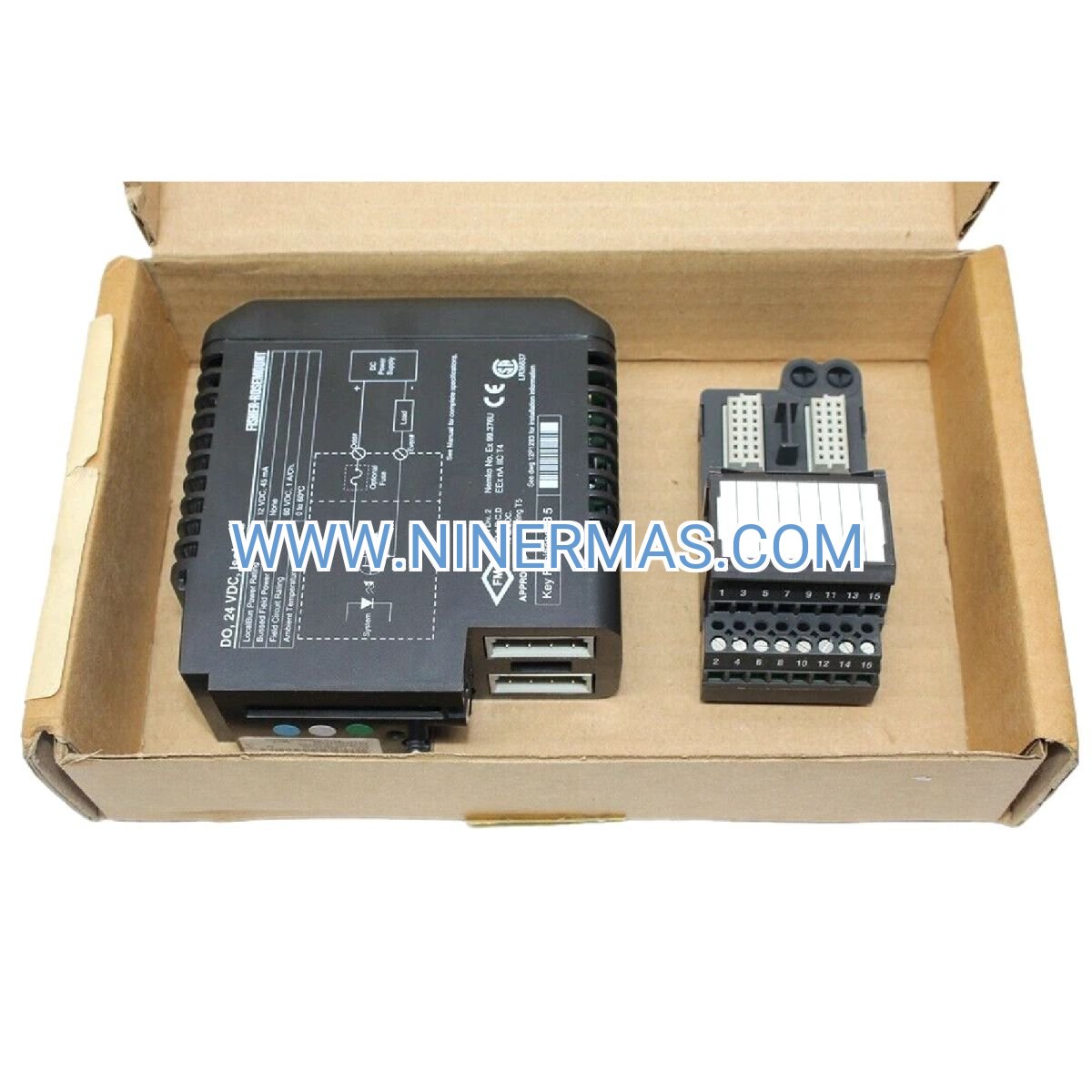

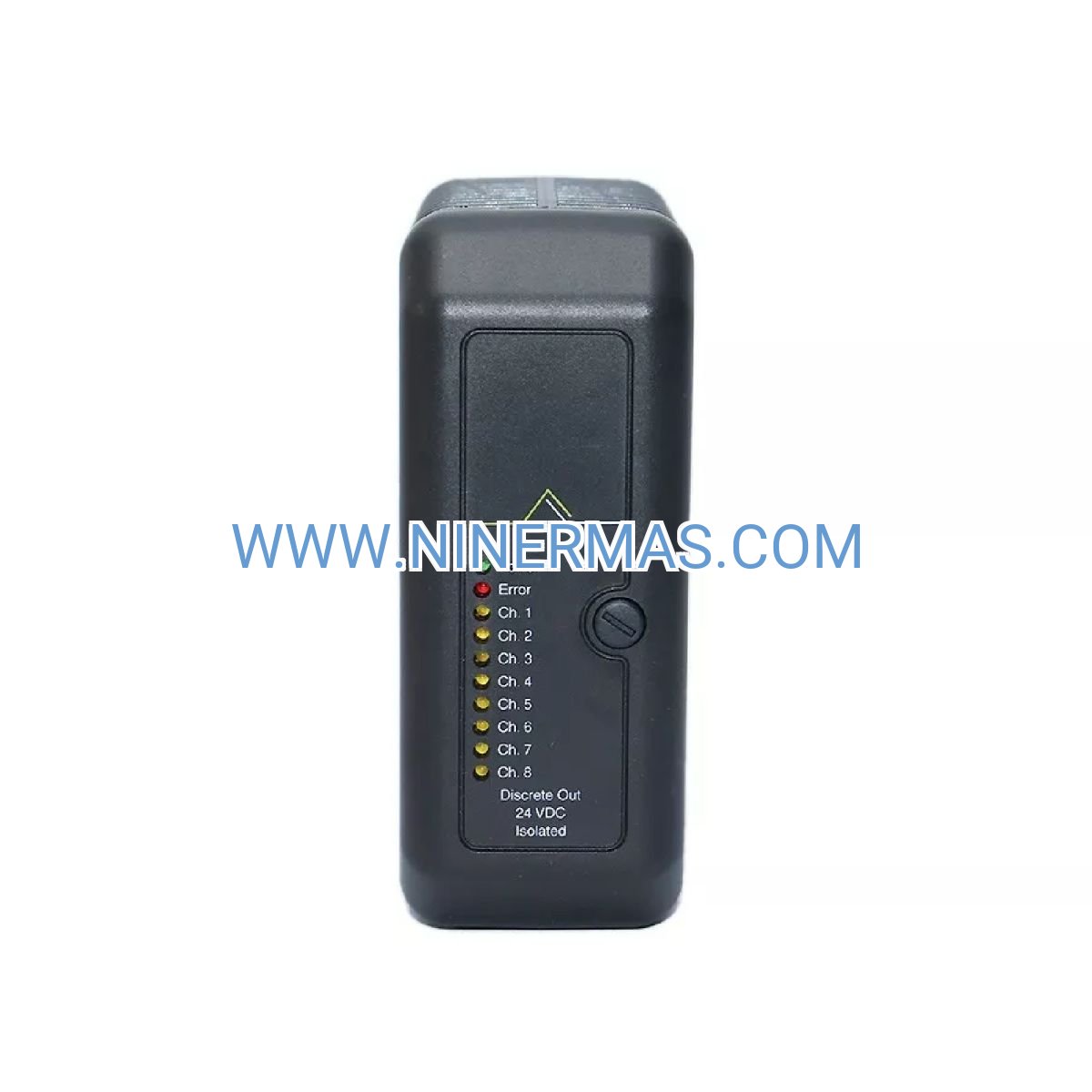

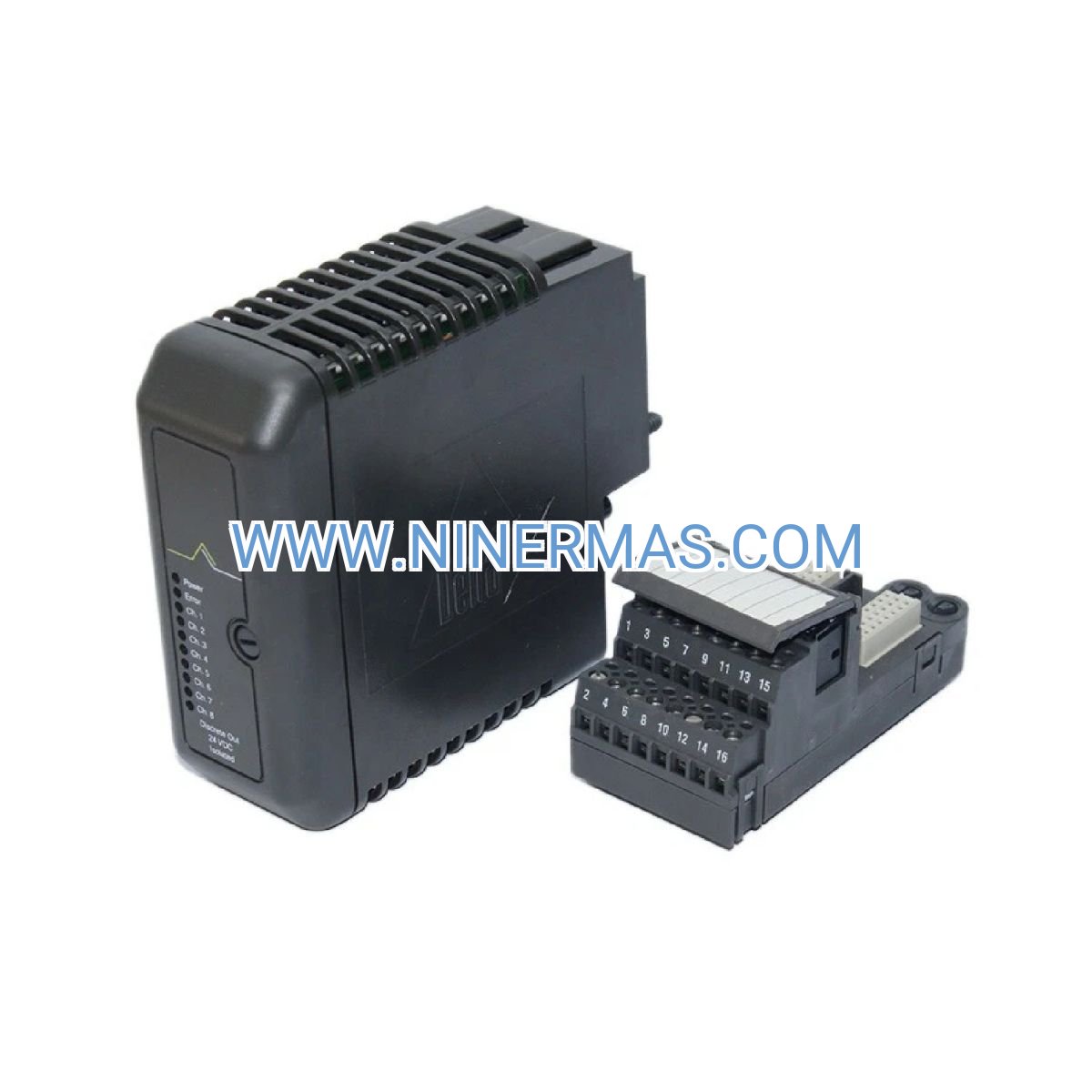

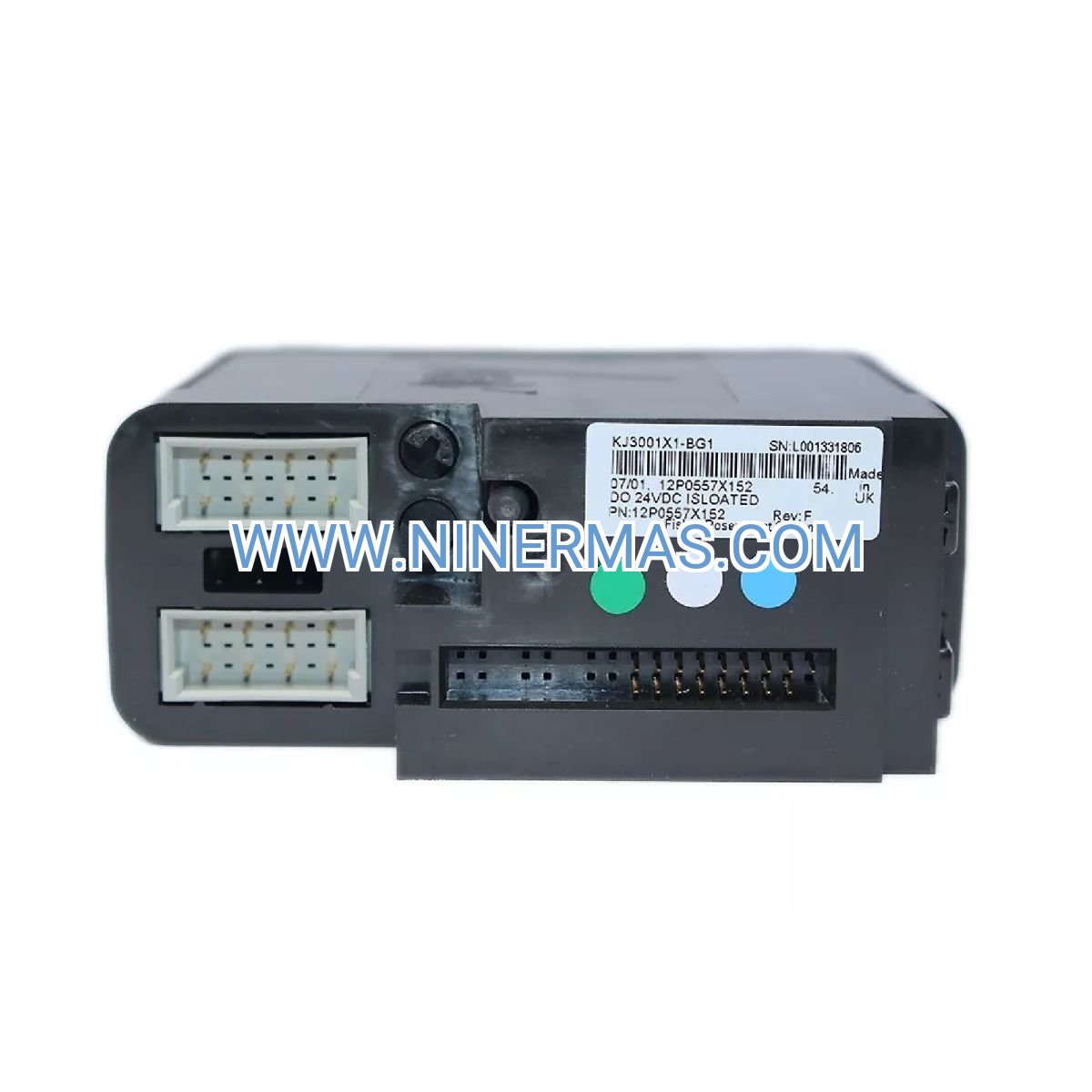

Designed for seamless integration with VE4002S1T2B5, VE4002S1T2B6, and KJ3204X1-BA1 output modules, the terminal block supports flexible fuse rating selection (250mA to 2A) to match diverse load profiles—from low-power pilot lights to heavy-duty solenoid valve banks. Compliance with IEC 60947-7-1 and UL recognition ensures global project acceptance and insurance approval.

Core Protection Features & Operational Benefits

→ Individual Channel Isolation: Each of 8 outputs protected by dedicated 5x20mm fast-acting fuse. Single-channel fault leaves remaining 7 circuits fully operational—critical for batch processes where partial system operation prevents complete production loss.

→ Visual Fault Diagnostics: Channel-specific red LED illuminates instantly upon fuse failure. Technicians identify faulted circuits in seconds without multimeter testing, reducing troubleshooting time by 85% compared to unfused configurations (field study data from 127 industrial sites).

→ Tool-Free Fuse Replacement: Snap-in fuse holders enable 30-second field replacement without screwdrivers or terminal disconnection. Maintenance teams restore circuits during process operation without system shutdown or hot-work permits.

→ Adaptive Load Protection: Field-selectable fuse ratings (250mA/500mA/1A/2A) accommodate load current variations from 50mA LED indicators to 1.8A contactor coils. Single terminal block design supports mixed-load applications without custom engineering.

→ High Breaking Capacity: 100A interrupt rating at 250V DC clears high-energy faults safely. Protects against welded relay contacts, insulation breakdown, and wiring errors that generate fault currents exceeding 50× normal operating levels.

→ DeltaV Diagnostic Integration: Output current monitoring via DCS function blocks enables predictive fuse failure alerts when loads approach 80% of fuse rating. Proactive maintenance prevents unplanned outages and extends equipment service life.

Industrial Application Scenarios

Chemical Reactor Control Systems: Protects solenoid valve outputs controlling exothermic reaction feeds where valve coil failures could trigger runaway conditions. Fused isolation prevents single-point failures from cascading across emergency shutdown circuits. Typical deployment: 24-32 fused channels per reactor skid controlling feed valves, cooling loops, and vent systems.

Pharmaceutical Clean Room HVAC: Safeguards damper actuator and fan starter outputs in classified manufacturing spaces. Individual fuse protection maintains partial HVAC operation during component failures, preventing costly room re-certification. Reduces unplanned downtime from 4-6 hours (card replacement) to 5 minutes (fuse swap).

Power Plant Auxiliary Systems: Protects motor starter coil circuits for boiler feed pumps, condensate systems, and cooling tower fans. Fused terminations prevent output card damage from starter coil shorts caused by moisture ingress or insulation aging. Documented case: 18-month MTBF improvement at 600MW coal-fired facility.

Water Treatment Valve Manifolds: Isolates faults in outdoor solenoid valve banks exposed to temperature extremes and humidity. LED fault indication enables rapid identification of failed valves across 50+ channel installations. Eliminates trial-and-error troubleshooting in remote pump stations.

Petrochemical Tank Farm Operations: Provides intrinsically safe circuit protection for valve control in classified hazardous areas. Fuse coordination with field barriers prevents fault currents from exceeding zone certification limits. Supports SIL-rated safety instrumented systems requiring documented fault isolation.

Technical Specifications & Selection Parameters

Fuse Rating Selection Guide

250mA Fast-Acting: LED panel indicators (20-100mA), low-power signal relays, monitoring circuits, and pilot lights. Maximum continuous load: 200mA. Inrush tolerance: 400mA for 10ms. Ideal for sensitive electronic loads requiring maximum protection.

500mA Fast-Acting: Standard pneumatic solenoid valves (5-7W coils @ 24VDC), general-purpose control relays (OMRON MY2N, Schneider RXM), and small contactors. Maximum continuous load: 400mA. Most common rating for industrial valve control—represents 68% of field installations.

1A Fast-Acting: Large solenoid valves (10-15W coils), motor starter auxiliary contacts, dual-coil latching relays, and parallel relay configurations. Maximum continuous load: 800mA. Inrush tolerance: 3A for 50ms (accommodates inductive kick during energization).

2A Fast-Acting: Heavy-duty contactors (ABB A-series, Siemens 3RT), multiple parallel loads, high-inrush capacitive circuits, and DC motor field coils. Maximum continuous load: 1.6A. Maximum rating for VE4002 output card protection (card limit: 2A per channel).

Advanced Diagnostic & Predictive Maintenance

Integration with DeltaV AMS Device Manager enables comprehensive fault logging with millisecond-resolution timestamps, channel identification, and pre-fault current trending. Maintenance teams analyze fuse failure patterns to identify problematic field devices, wiring degradation, and environmental factors affecting reliability.

Predictive analytics algorithms monitor output current signatures and generate maintenance alerts when loads exhibit 15% current increase over baseline—indicating coil insulation degradation, mechanical binding, or contamination buildup. Proactive component replacement prevents fuse failures and unplanned process interruptions.

DCS-based fuse health monitoring tracks cumulative I²t energy exposure per channel, estimating remaining fuse life based on thermal stress accumulation. Scheduled fuse replacement during planned maintenance windows eliminates nuisance failures during critical production campaigns.

Installation Best Practices & Commissioning

Initial Fuse Selection: Measure actual load current using clamp meter during normal operation and worst-case conditions (valve cycling, motor starting). Select fuse rating 25-50% above maximum measured current to prevent nuisance tripping while maintaining protection. For inductive loads, account for inrush current duration—500mA fuses tolerate 1.5A for 20ms without opening.

Wiring Guidelines: Use color-coded wire per facility standards (red=24VDC+, blue=return). Maintain 6mm wire separation from high-voltage circuits to prevent induced faults. Apply ferrules to stranded wire for optimal terminal contact. Torque terminals to 0.5Nm using calibrated screwdriver—over-torquing damages threads, under-torquing causes resistive heating.

Fuse Replacement Procedure: Verify circuit de-energized via DCS output forcing to OFF state. Grasp fuse holder tab and pull straight outward until retention clips release (approximately 8mm travel). Inspect fuse element for clean break (fast fault) vs. discoloration (chronic overload). Install replacement fuse of identical rating and snap holder into terminal block until audible click confirms seating. Red LED extinguishes when circuit integrity restored.

Preventive Maintenance Schedule: Quarterly visual inspection of fuse holders for corrosion, loose contacts, or thermal discoloration. Annual fuse rating audit to verify installed ratings match load requirements and engineering documentation. Maintain minimum spare inventory of 10 fuses per rating used in facility (typical consumption: 2-4 fuses per 100 channels annually).

Complementary DeltaV I/O Components

Quality Assurance & Technical Support

Every VE4002S1T1B2 terminal block undergoes 100% factory testing including electrical continuity verification, insulation resistance measurement (500VDC megger test), and fuse holder retention force validation. Automated optical inspection confirms LED functionality and connector pin alignment to ±0.05mm tolerance.

Ships with comprehensive accessory kit: mixed fuse assortment (4× each rating for commissioning), installation manual with load current calculation worksheets, recommended spare parts list, and fuse rating identification labels. Global technical support provides application engineering assistance including fuse coordination studies, fault current calculations, and custom protection schemes for complex installations.

Backed by 24-month manufacturer warranty covering material defects, workmanship issues, and component failures under normal operating conditions. Extended warranty programs available for critical infrastructure applications requiring 5-year coverage and guaranteed spare parts availability.

Frequently Asked Questions

Can I mix different fuse ratings across the 8 channels on a single terminal block?
Yes—each channel accepts independent fuse ratings from 250mA to 2A. This flexibility accommodates mixed-load applications where a single output card controls diverse devices (e.g., channels 1-4 with 500mA fuses for solenoid valves, channels 5-8 with 1A fuses for contactors). Ensure fuse ratings match individual load requirements and document configuration in as-built drawings.

What happens to the DeltaV output card if a fuse blows during operation?
The output card remains fully operational with the faulted channel isolated. The card's internal diagnostics detect the open-circuit condition and report a channel fault to the DCS, but the remaining 7 channels continue normal operation. This fault isolation prevents single-point failures from disabling entire control loops—critical for maintaining process stability during component failures.

How do I calculate the correct fuse rating for solenoid valve applications?
Measure valve coil resistance with multimeter (typical range: 50-500Ω for 24VDC valves). Calculate steady-state current using Ohm's Law (I = V/R). For 24VDC supply and 120Ω coil: I = 24/120 = 200mA. Select next higher standard fuse rating (500mA) to accommodate inrush current during initial energization. For multiple valves on single channel, sum individual currents and apply 1.5× safety factor.

Are these terminal blocks suitable for hazardous area installations (Class I Div 2)?
The VE4002S1T1B2 is designed for general industrial environments and does not carry intrinsic safety certification for Division 1 applications. For Class I Division 2 installations, the terminal block may be used when installed in purged/pressurized enclosures or when combined with approved intrinsic safety barriers on field wiring. Consult local electrical codes and authority having jurisdiction for specific installation requirements.

What is the expected service life of the fuse holders and LED indicators?
Fuse holders are rated for 10,000 insertion/removal cycles under normal conditions—equivalent to 27 years at weekly fuse replacement frequency. LED indicators utilize solid-state components with >100,000 hour MTBF (11+ years continuous operation). Terminal block mechanical components (screw terminals, connector pins) are designed for 25-year service life in controlled industrial environments.

Can I retrofit existing unfused VE4002 terminal blocks with this fused version?
Yes—the VE4002S1T1B2 uses identical mounting footprint and 40-pin connector interface as unfused VE4002S1T2B1 terminal blocks. Retrofit procedure: power down output card, disconnect field wiring (document terminal assignments), remove unfused terminal block, install fused replacement, reconnect field wiring, install appropriate fuse ratings, and restore power. Total retrofit time: 15-20 minutes per terminal block. No DCS configuration changes required.

Order Your VE4002S1T1B2 Fused Terminal Block Today

Protect your critical DeltaV discrete output infrastructure from costly failures and unplanned downtime. Contact our industrial automation specialists for application-specific fuse sizing recommendations, volume pricing for multi-unit projects, and technical support for complex protection schemes.
