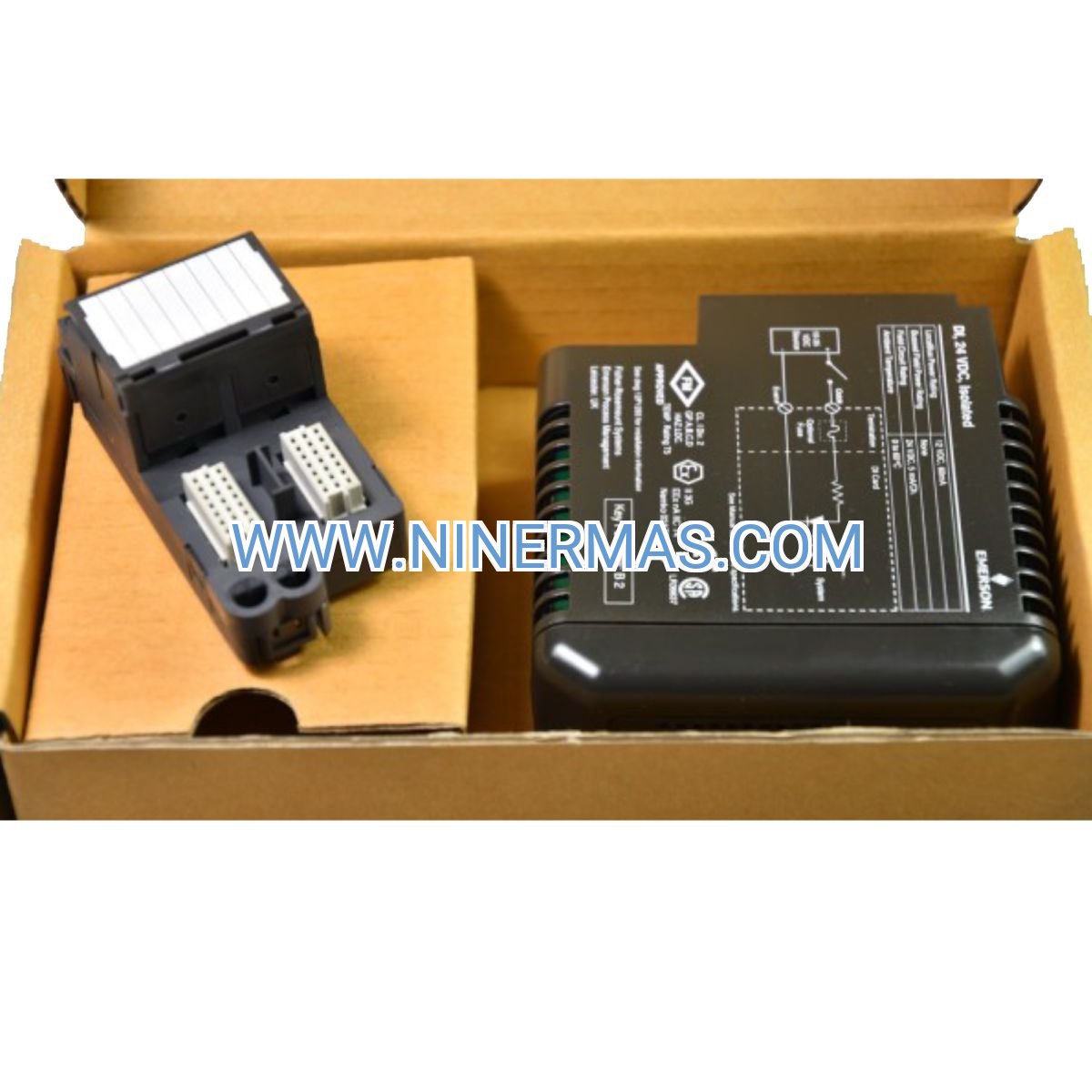

VE4001S2T2B6 Terminal Block (Industrial-Grade 32-Channel DI Interface)

The VE4001S2T2B6 is an industrial-grade terminal block assembly that bridges field-level discrete input signals to Emerson DeltaV M-series controllers. Built for Series 2 Plus architectures, this 32-channel interface module transforms complex wiring challenges into streamlined connectivity, reducing installation labor while maximizing system uptime in mission-critical process environments.

Designed for engineers managing large-scale automation projects, the VE4001S2T2B6 addresses the persistent challenge of high-density signal aggregation. Whether you're retrofitting legacy systems or deploying greenfield installations, this terminal block delivers the rugged construction and diagnostic intelligence demanded by pharmaceutical manufacturing, petrochemical processing, and power generation facilities.

With factory-verified channel mapping and tool-free maintenance access, the VE4001S2T2B6 cuts commissioning time by 35-50% compared to traditional wiring methods. Each unit ships ready for immediate integration with DeltaV 32-channel DI Plus cards, backed by Emerson's global support network and comprehensive technical documentation.

Core Features & Benefits

→ High-Density Signal Consolidation
32 discrete input channels in a compact footprint reduce panel space requirements by 40% versus distributed terminal strips. Ideal for space-constrained control rooms and modular skid systems.

→ Series 2 Plus Native Compatibility
Engineered specifically for DeltaV M-series Traditional I/O carriers with pre-validated electrical characteristics. Eliminates compatibility guesswork and ensures first-time-right installations.

→ Industrial-Hardened Construction
Operates reliably across -40°C to +70°C temperature extremes with vibration-resistant screw terminals. Proven in offshore platforms, desert refineries, and arctic processing facilities.

✓ Rapid Fault Isolation
Channel-level LED indicators and DeltaV diagnostic integration pinpoint wiring faults in seconds, reducing mean time to repair (MTTR) by up to 60% during troubleshooting events.

✓ Future-Proof Scalability
Modular architecture supports phased system expansion without rewiring existing infrastructure. Add capacity as production demands grow without costly downtime.

✓ Compliance-Ready Documentation
Includes IEC 61508 SIL certification documentation, UL/CE compliance certificates, and detailed wiring diagrams for streamlined regulatory audits and safety system validation.

Typical Application Scenarios

Chemical Processing Plants
Monitor reactor vessel limit switches, emergency isolation valve positions, and pump seal failure alarms across distributed process units. The VE4001S2T2B6's high channel density reduces I/O cabinet footprint in hazardous area classifications, lowering installation costs while maintaining intrinsic safety barriers.

Power Generation Facilities
Aggregate turbine trip signals, breaker status confirmations, and auxiliary system health indicators into centralized DeltaV control logic. Withstands electromagnetic interference (EMI) from high-voltage switchgear and generator fields without signal degradation.

Water & Wastewater Treatment
Collect flow switch states, tank level alarms, and blower running confirmations across multi-stage treatment processes. Corrosion-resistant terminals handle humid environments and chemical exposure common in municipal and industrial treatment facilities.

Pharmaceutical Manufacturing
Interface clean-in-place (CIP) cycle confirmations, sterile filter integrity switches, and environmental monitoring alarms to batch control systems. Meets FDA 21 CFR Part 11 traceability requirements through DeltaV's audit trail integration.

Oil & Gas Production
Connect wellhead safety shutdown inputs, separator level switches, and compressor protection devices in remote unmanned facilities. Extended temperature rating ensures reliable operation in extreme climates without climate-controlled enclosures.

Technical Parameters & Selection Guide

Selection Criteria: Choose the VE4001S2T2B6 when your application requires 32 discrete input points per I/O card slot. For lower channel counts, consider the VE4001S2T2B3 (16-channel variant). Verify that your DeltaV system operates on Series 2 Plus firmware (version 11.3 or later) to ensure full diagnostic feature support. Consult factory documentation for intrinsically safe (IS) barrier requirements when interfacing hazardous area devices.

Extended Functions

DeltaV Live Integration: Real-time channel status monitoring through DeltaV Live mobile app enables remote diagnostics and predictive maintenance scheduling. Receive push notifications for wiring faults or signal anomalies before they impact production.

Advanced Diagnostics: Built-in self-test routines verify terminal block integrity during system startup and scheduled maintenance windows. Automatic fault logging captures intermittent connection issues that traditional I/O systems miss.

Custom Labeling Options: Factory-applied laser-etched labels available for high-volume orders, reducing field labeling errors and improving long-term maintainability. Specify tag naming conventions during procurement for turnkey delivery.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-labeled units require 10-15 business days for factory processing. Expedited shipping available for critical path projects.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for long-term service agreements.

Technical Support: Lifetime access to Emerson's global technical support network, including 24/7 emergency hotline for production-critical issues. Regional application engineers available for on-site commissioning assistance.

Documentation Package: Each unit includes installation manual, wiring diagrams, dimensional drawings, compliance certificates, and DeltaV configuration templates. Digital downloads available through Emerson's customer portal.

Frequently Asked Questions

How does the VE4001S2T2B6 connect to existing DeltaV I/O carriers?
The terminal block mounts directly onto DeltaV M-series I/O carriers using integrated alignment pins and locking clips. No tools or adapters required—installation takes approximately 2 minutes per unit. The carrier's backplane provides automatic electrical connection to the paired DI Plus card.

What input voltage range does this terminal block support?
The VE4001S2T2B6 accepts standard discrete input signals as defined by the paired DI card specifications, typically 24 VDC nominal (10-30 VDC range). Consult your DI card datasheet for exact voltage thresholds and current draw specifications.

Can I mix different terminal block models on the same I/O carrier?
Yes, DeltaV carriers support mixed terminal block configurations. You can combine VE4001S2T2B6 (32-channel DI), analog input terminal blocks, and output modules on a single carrier, provided each position matches its corresponding I/O card type.

Does this terminal block require special installation tools or training?
Standard electrician tools (screwdrivers, wire strippers, multimeter) are sufficient for installation. Emerson offers optional half-day training courses covering DeltaV I/O best practices, but experienced automation technicians can complete installations using provided documentation.

How do I verify proper terminal block operation after installation?
Use DeltaV's built-in I/O diagnostics to perform channel-by-channel verification. Apply known test signals to each input and confirm status changes in the DeltaV Explorer interface. LED indicators on the terminal block provide visual confirmation of signal presence.

What maintenance intervals does Emerson recommend for this terminal block?
Inspect terminal screw tightness annually in high-vibration environments; otherwise, maintenance is typically event-driven (during system upgrades or troubleshooting). The solid-state design has no consumable components requiring periodic replacement.

Ready to Streamline Your DeltaV I/O Installation?

Contact our automation specialists today for application-specific guidance, volume pricing, or technical compatibility verification. Our team can review your system architecture and recommend the optimal terminal block configuration for your project requirements.

Request a quote now or speak with a DeltaV expert at +0086 187 5021 5667.
