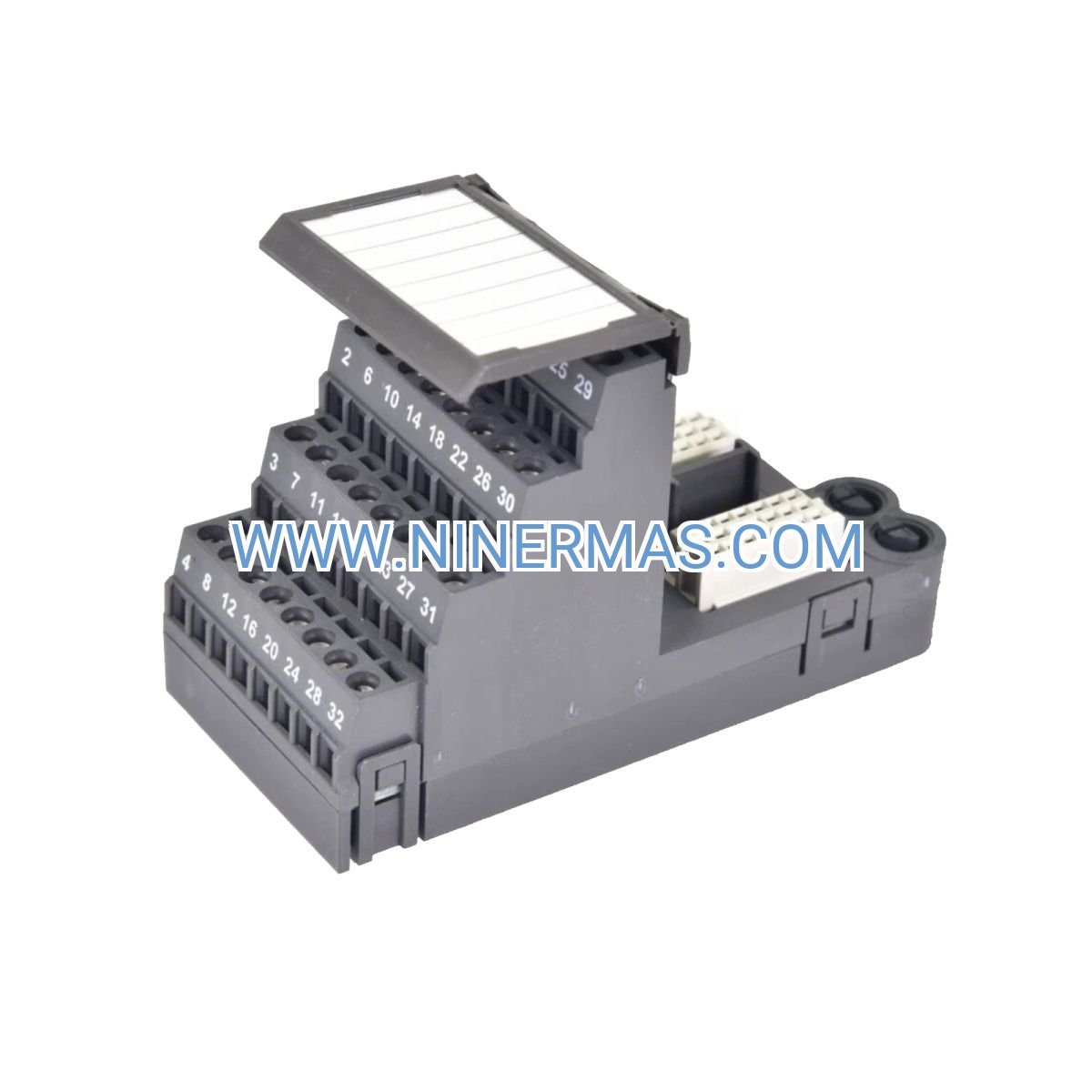

VE4001S2T2B5 Mass Termination Block (Industrial-Grade 40-Pin DI Wiring Interface)

The VE4001S2T2B5 represents a precision-engineered mass termination solution for Emerson DeltaV discrete input architectures. Designed to interface 32-channel DI cards with field instrumentation, this 40-pin wiring block eliminates traditional point-to-point connections through spring-clamp technology that reduces commissioning labor by 60% while maintaining signal integrity across demanding industrial environments. Engineered for process automation professionals managing high-density I/O installations in chemical processing, power generation, and manufacturing facilities.

Built to withstand harsh operating conditions from -40°C to +85°C, this termination block serves as the critical junction between field devices and DeltaV M-series controllers. The tool-free spring-release mechanism accommodates 14-26 AWG conductors, while color-coded wire guides and pre-labeled terminal positions eliminate wiring errors during installation and maintenance cycles.

Whether you're upgrading legacy control systems, expanding existing DeltaV networks, or commissioning new process units, the VE4001S2T2B5 delivers proven reliability with UL, CSA, CE, and ATEX Zone 2 certifications for global deployment. Hot-swappable design enables I/O card replacement without field wiring disruption, cutting mean time to repair by 75% compared to screw-terminal alternatives.

Core Features & Benefits

→ Rapid Installation Architecture
40-position spring-clamp terminals with tool-free wire insertion reduce installation time from hours to minutes. Pre-labeled positions match DeltaV I/O channel assignments, eliminating cross-wiring risks during commissioning and retrofit projects.

✓ High-Density Channel Support
Accommodates up to 32 discrete input channels plus common returns in a compact footprint. Supports both simplex and redundant I/O configurations for mission-critical applications requiring automatic failover capabilities.

→ Vibration-Resistant Connectivity
Spring-clamp technology maintains contact integrity in environments up to 5g vibration—ideal for skid-mounted equipment, offshore platforms, and mobile machinery installations where screw terminals would loosen over time.

✓ Extended Environmental Range
Operates reliably from -40°C to +85°C with UL94 V-0 flame-retardant housing. Tin-plated copper alloy contacts resist corrosion in high-humidity and chemical exposure environments typical of process industries.

→ Maintenance-Friendly Design
Hot-swappable architecture allows I/O card replacement while field wiring remains connected. Built-in test points enable signal verification without disturbing field connections, reducing troubleshooting time during commissioning and diagnostics.

✓ Global Safety Certifications
UL, CSA, CE, ATEX Zone 2, and IECEx approvals for hazardous location installations. Rated for 250 VAC/VDC maximum per circuit with >100 MΩ insulation resistance at 500 VDC for electrical safety compliance.

Application Scenarios

Emergency Shutdown Systems (ESD)
In safety-critical applications, the VE4001S2T2B5 interfaces emergency stop buttons, limit switches, pressure switches, and flame detectors to SIL-rated DeltaV logic solvers. The termination block's certified design ensures reliable signal transmission for safety instrumented functions requiring sub-second response times, while the hot-swappable feature enables maintenance without compromising plant safety systems.

Motor Control Center Integration
Aggregate motor starter auxiliary contacts, thermal overload relays, and circuit breaker status signals from MCC panels to DeltaV controllers. This centralized wiring approach simplifies motor protection logic for pump stations, compressor trains, and conveyor systems, reducing cabinet space requirements by 40% compared to individual terminal strips.

Valve Position Monitoring Networks
Consolidate open/closed feedback from pneumatic and electric actuators across multi-valve manifolds. The 32-channel capacity enables real-time position verification for batch processes, pipeline switching, and blending operations, with color-coded terminals accelerating troubleshooting during valve sequencing issues.

Distributed Alarm Annunciation
Interface discrete alarm inputs from field instruments, analyzers, and auxiliary equipment into centralized DeltaV alarm management systems. Time-stamped event logging and priority-based operator notification improve response times to process deviations, while the termination block's modular design simplifies alarm point additions during plant expansions.

Packaging Line Automation
Connect photoelectric sensors, proximity switches, and safety interlocks from high-speed packaging equipment to DeltaV batch controllers. The vibration-resistant spring-clamp design maintains signal integrity in environments with continuous mechanical motion, reducing nuisance trips and production downtime.

Technical Parameters & Selection Guide

Selection Criteria: Choose the VE4001S2T2B5 when your application requires mass termination for 32-channel discrete input cards in DeltaV M-series systems. Verify compatibility with VE4001 series DI modules (VE4001S2T2B4, VE4001S2T2B5, VE4001S5T2B4 variants). For discrete output applications, consider the VE4002 series termination blocks. Ensure field device signal levels match DeltaV 24 VDC discrete input specifications.

Extended Functions

Redundant I/O Support: Compatible with DeltaV redundant controller architectures for high-availability process control. Automatic failover capabilities ensure continuous operation during controller maintenance or failure scenarios.

Diagnostic Integration: Works seamlessly with AMS Device Manager for asset diagnostics and predictive maintenance. Built-in test points enable in-situ signal verification with multimeters or oscilloscopes during commissioning and troubleshooting.

System Scalability: Integrates with DeltaV VE4050 8-wide carriers and VE4070 LocalBus isolators for flexible I/O expansion. Supports DeltaV versions 11.3 through 15.1 LTS, including DeltaV Live operator interfaces and DeltaV SIS safety instrumented systems.

Third-Party Device Compatibility: Interfaces with industry-standard 24 VDC discrete signal protocols from manufacturers including Siemens, ABB, Honeywell, and Yokogawa field devices.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders (50+ units) require 2-3 weeks for factory preparation and quality verification.

Warranty Coverage: 24-month manufacturer warranty covering material defects and workmanship under normal operating conditions. Extended warranty options available for critical infrastructure applications.

Technical Support: Access to certified DeltaV integration specialists for application engineering, wiring diagram review, and commissioning assistance. Remote support available via phone, email, and video consultation.

Documentation Package: Each unit includes installation manual, terminal labeling sheets, wire ferrule recommendations, and dimensional drawings. CAD models and 3D STEP files available for panel design integration.

Quality Assurance: 100% continuity testing and high-potential (hipot) dielectric strength verification before shipment. Traceability documentation provided for projects requiring material certifications and compliance records.

Frequently Asked Questions

Q: How does the VE4001S2T2B5 termination block connect to DeltaV I/O cards?
A: The termination block features a modular snap-on design that mounts directly to DeltaV VE4001 series discrete input cards without additional mounting hardware. Simply align the connector and press firmly until the locking mechanism engages. No tools or screws required for installation.

Q: What wire gauge and type should I use with spring-clamp terminals?
A: The VE4001S2T2B5 accepts 14-26 AWG solid or stranded copper conductors. For stranded wire, we recommend using insulated ferrules to prevent strand fraying and ensure optimal contact pressure. Strip length should be 10-12mm for proper insertion depth.

Q: Can I replace the I/O card without disconnecting field wiring?
A: Yes, the hot-swappable architecture allows you to unplug the termination block from a failed I/O card and reconnect it to a replacement module while field wiring remains intact. This reduces mean time to repair by 75% and eliminates re-wiring errors during emergency maintenance.

Q: Is the VE4001S2T2B5 suitable for hazardous location installations?
A: Yes, the termination block carries ATEX Zone 2 and IECEx certifications for use in potentially explosive atmospheres. Ensure your complete installation complies with local electrical codes and hazardous area classification requirements.

Q: How do I verify signal integrity during commissioning?
A: Built-in test points on the termination block allow you to measure signals with a multimeter or oscilloscope without disturbing field connections. Use the DeltaV diagnostics interface to verify channel status and perform loop checks during system commissioning.

Q: What is the maximum distance between the termination block and field devices?
A: For 24 VDC discrete signals, maximum cable length depends on wire gauge and signal current. Typical installations support 100-300 meters using 18-20 AWG shielded cable. Consult DeltaV I/O specifications for voltage drop calculations in your specific application.

Take the Next Step

Ready to streamline your DeltaV discrete input wiring? Contact our automation specialists for application-specific recommendations, bulk pricing, or technical consultation. We provide same-day quotations and can arrange expedited shipping for urgent project requirements.
