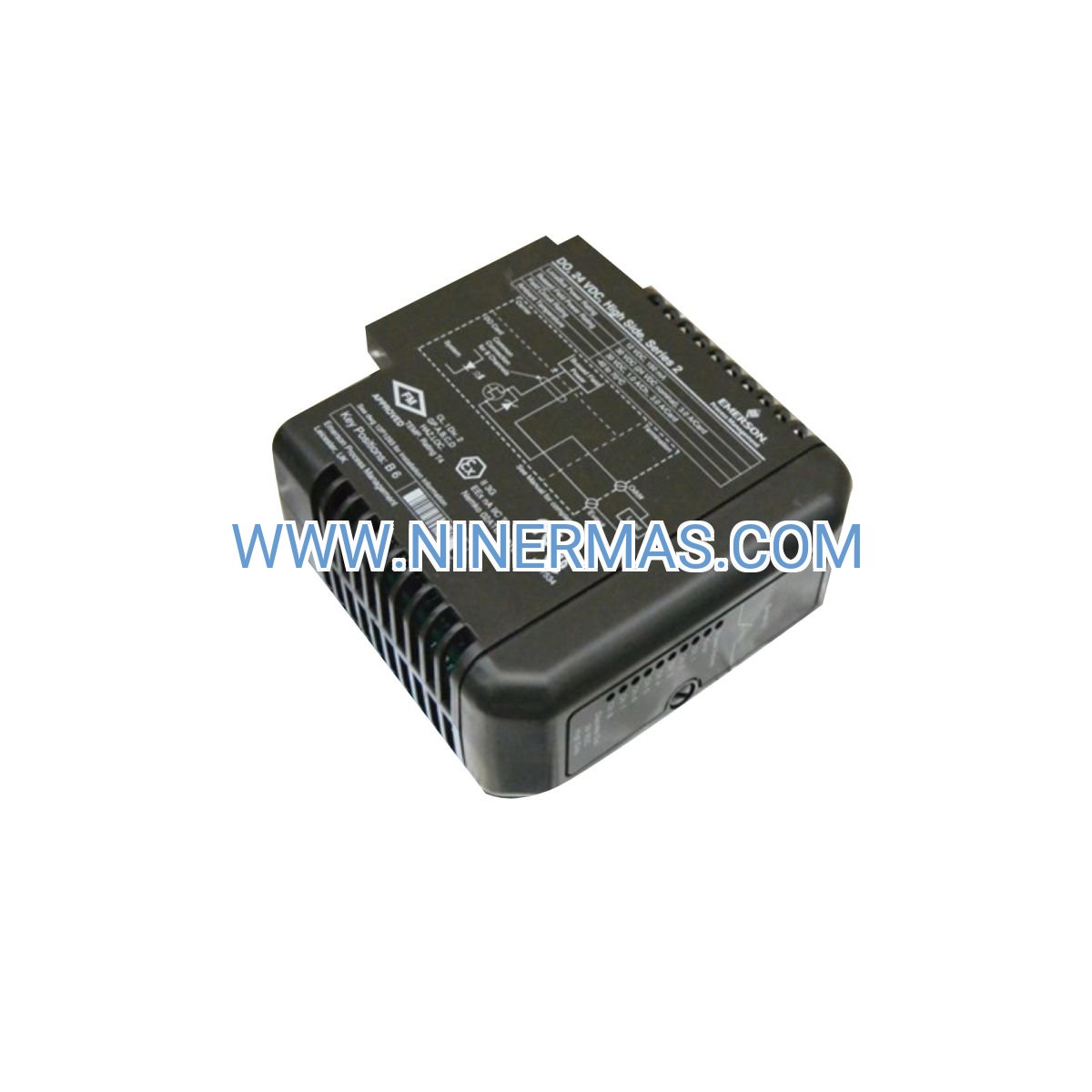

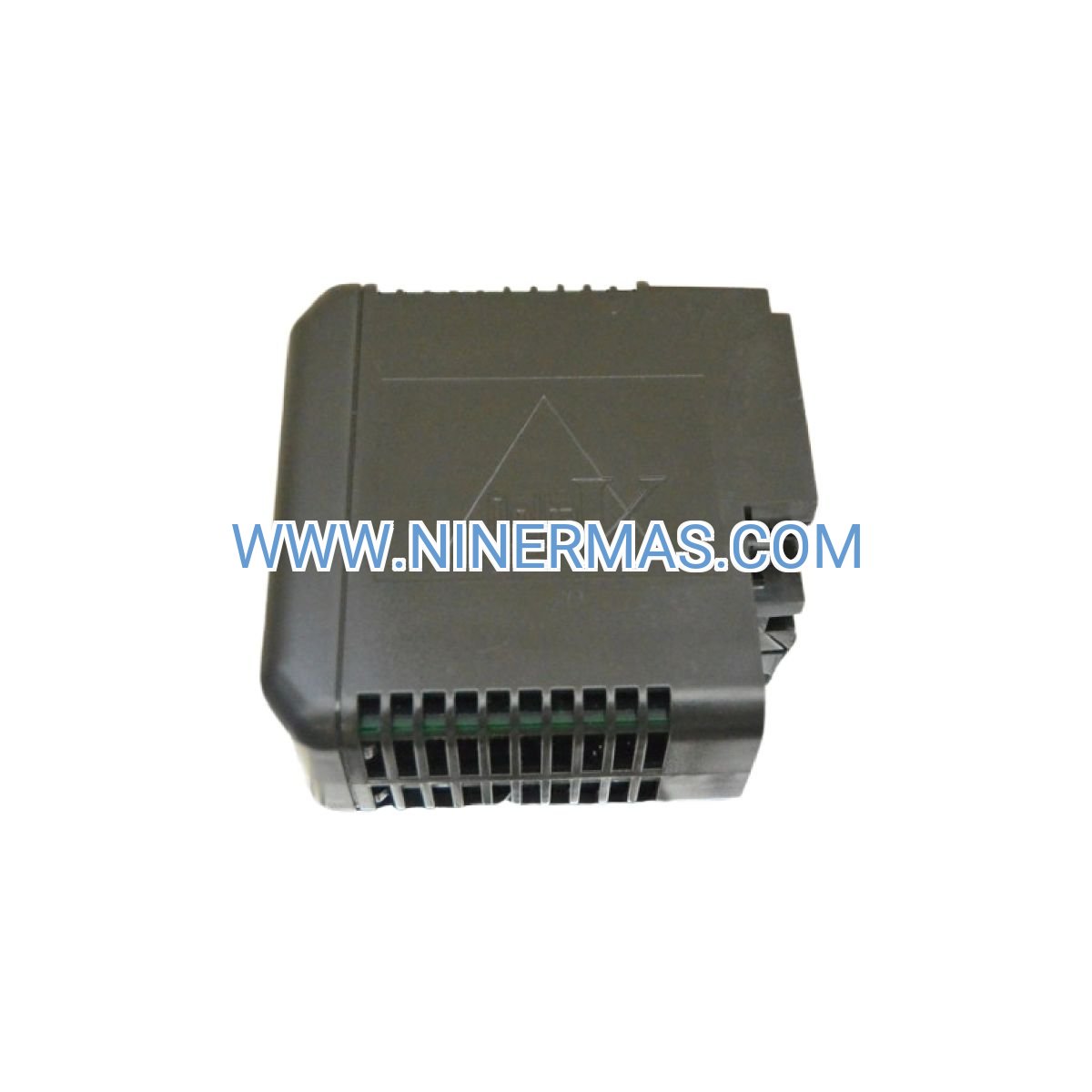

VE4001S2T1B2 Discrete Input Module (Industrial-Grade 32-Channel Solution)

The VE4001S2T1B2 represents a high-density discrete input solution engineered for Emerson DeltaV M-series distributed control architectures. Featuring 32 independent 24 VDC input channels with 1500 VAC optical isolation, this single-slot module consolidates binary signal acquisition from field devices including proximity sensors, limit switches, relay contacts, and safety interlocks across process industries.

Designed for mission-critical applications in oil & gas, chemical processing, power generation, and pharmaceutical manufacturing, the VE4001S2T1B2 delivers the reliability and diagnostic intelligence required for continuous process operations. Its compact footprint reduces panel space requirements by 50% compared to dual 16-channel configurations while maintaining full hot-swap capability for zero-downtime maintenance.

Whether you're upgrading legacy I/O infrastructure or designing new DeltaV installations, this module provides the proven performance and safety certification (SIL 2) demanded by modern industrial control systems. Advanced features include configurable input filtering, per-channel LED diagnostics, and seamless integration with DeltaV control strategies.

Core Features & Technical Advantages

→ High-Density Architecture: 32 discrete inputs in single-slot design eliminate cabinet space constraints and reduce wiring complexity by consolidating multiple legacy cards into one module.

→ Robust Electrical Isolation: 1500 VAC optical isolation between field circuits and control bus prevents ground loops, protects sensitive electronics, and ensures signal integrity in electrically noisy industrial environments.

→ Intelligent Input Conditioning: Software-configurable filtering (1-100 ms) eliminates contact bounce from mechanical switches and suppresses electromagnetic interference without external components.

→ Diagnostic Visibility: Individual LED indicators for all 32 channels accelerate commissioning, simplify troubleshooting, and enable rapid fault isolation during production operations.

→ Safety System Integration: SIL 2 certification enables deployment in safety instrumented systems for emergency shutdown, fire & gas detection, and critical equipment protection applications.

→ Online Serviceability: Hot-swappable design with automatic configuration download allows module replacement during live process operation without production interruption or manual reprogramming.

Typical Application Scenarios

✓ Refinery Emergency Shutdown Systems:
Monitor critical safety inputs from emergency stop stations, flame detectors, high-pressure switches, and valve position confirmations. The module's fast 5 ms response time and SIL 2 rating meet functional safety requirements for protective shutdown logic in hazardous process areas.

✓ Chemical Batch Manufacturing:
Acquire signals from level switches, weight scale contacts, agitator interlocks, and material presence sensors in recipe-driven batch processes. High channel density accommodates complex ingredient sequencing with minimal I/O hardware investment.

✓ Power Plant Auxiliary Systems:
Interface with turbine trip circuits, bearing vibration monitors, lube oil pressure switches, and cooling water flow sensors. Optical isolation protects control systems from electrical transients generated by motor starters and switchgear.

✓ Pharmaceutical Clean Room Automation:
Connect to door interlocks, filter differential pressure switches, temperature alarm contacts, and sterilization cycle confirmations. Configurable input filtering prevents false alarms from contact chatter in relay-based safety circuits.

✓ Mining Conveyor Control:
Process signals from photo-eyes, proximity sensors, pull-cord switches, and belt alignment detectors across distributed material handling systems. Four independent common groups enable flexible grounding schemes for long cable runs in electrically harsh environments.

Technical Parameters & Selection Guide

Selection Criteria: Choose the VE4001S2T1B2 when your application requires high-density discrete input acquisition with safety certification. For applications with fewer than 16 inputs, consider standard 16-channel modules to optimize cost. If your field devices operate at voltages other than 24 VDC, consult alternative input module families supporting 48 VDC, 120 VAC, or 230 VAC signal levels.

Extended Functions & System Integration

DeltaV Ecosystem Compatibility: Seamlessly integrates with DeltaV controllers, operator interfaces, and engineering workstations. Supports advanced control strategies including sequential function charts, continuous control, and batch management without custom programming.

Predictive Diagnostics: Built-in counters track input state transitions for predictive maintenance scheduling. Detect degrading field devices through abnormal switching frequency patterns before catastrophic failures occur.

Cybersecurity Features: Firmware authentication and encrypted configuration downloads protect against unauthorized modifications. Complies with IEC 62443 industrial cybersecurity standards for secure automation infrastructure.

Third-Party Integration: OPC UA and Modbus TCP connectivity enable data exchange with SCADA systems, historians, and enterprise MES platforms for comprehensive production visibility.

Delivery Timeline & Service Guarantee

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping available to major industrial regions worldwide.

Custom Configuration: Factory-configured modules with pre-loaded tag databases and application-specific settings ship within 10-15 business days.

Warranty Coverage: 18-month comprehensive warranty covering manufacturing defects, component failures, and performance specifications. Extended warranty programs available for critical applications.

Technical Support: Global application engineering team provides configuration assistance, troubleshooting guidance, and system optimization recommendations via phone, email, and remote desktop support.

Documentation Package: Complete installation manual, wiring diagrams, DeltaV configuration templates, and AutoCAD panel layout drawings included with every shipment.

Frequently Asked Questions

Q: Can the VE4001S2T1B2 interface with 3-wire proximity sensors?
A: Yes, the module accepts NPN or PNP proximity sensor outputs. For NPN sensors, connect the output to the input terminal with the common tied to 24 VDC positive. For PNP sensors, connect the output to the input terminal with the common tied to ground. Verify sensor current draw does not exceed 7 mA per channel.

Q: What input filter settings work best for mechanical limit switches?
A: Start with 20 ms filtering for standard industrial limit switches. Increase to 50 ms if operating in high-vibration environments (conveyors, crushers) to prevent contact bounce from triggering false alarms. Solid-state switches typically require only 1-5 ms filtering.

Q: How do I calculate field power supply capacity for this module?
A: Each input draws 7 mA when energized. For 32 channels fully populated, provide minimum 250 mA continuous capacity (32 × 7 mA + 20% margin). Use regulated 24 VDC supplies with less than 5% ripple for stable threshold operation.

Q: Is hot-swapping possible during active process control?
A: Yes, the VE4001S2T1B2 supports online replacement without shutting down the DeltaV controller or process. The replacement module automatically downloads configuration from the controller upon insertion. Inputs will read OFF state during the 2-3 second swap interval.

Q: What cable specifications are recommended for long field wiring runs?
A: Use shielded twisted-pair cable (minimum 18 AWG) for runs exceeding 30 meters. Connect shield to ground at the module end only to prevent ground loops. Maximum recommended cable length is 300 meters with 24 VDC field power; voltage drop should not exceed 3 VDC under full load.

Q: Does this module support remote I/O configurations over Ethernet?
A: The VE4001S2T1B2 mounts in DeltaV M-series carriers that communicate via the DeltaV control network. For remote installations, use DeltaV CHARacterization Modules (CHARM) I/O with Ethernet/IP connectivity to extend I/O up to 100 meters from the controller.

Request Your Quote Today

Ready to upgrade your DeltaV discrete input infrastructure? Our industrial automation specialists are standing by to provide technical consultation, application-specific recommendations, and competitive pricing for single modules or complete system upgrades.

Contact our team: Share your I/O count requirements, environmental conditions, and project timeline to receive a detailed quotation within 24 hours. Volume discounts available for multi-module orders and system integrators.
