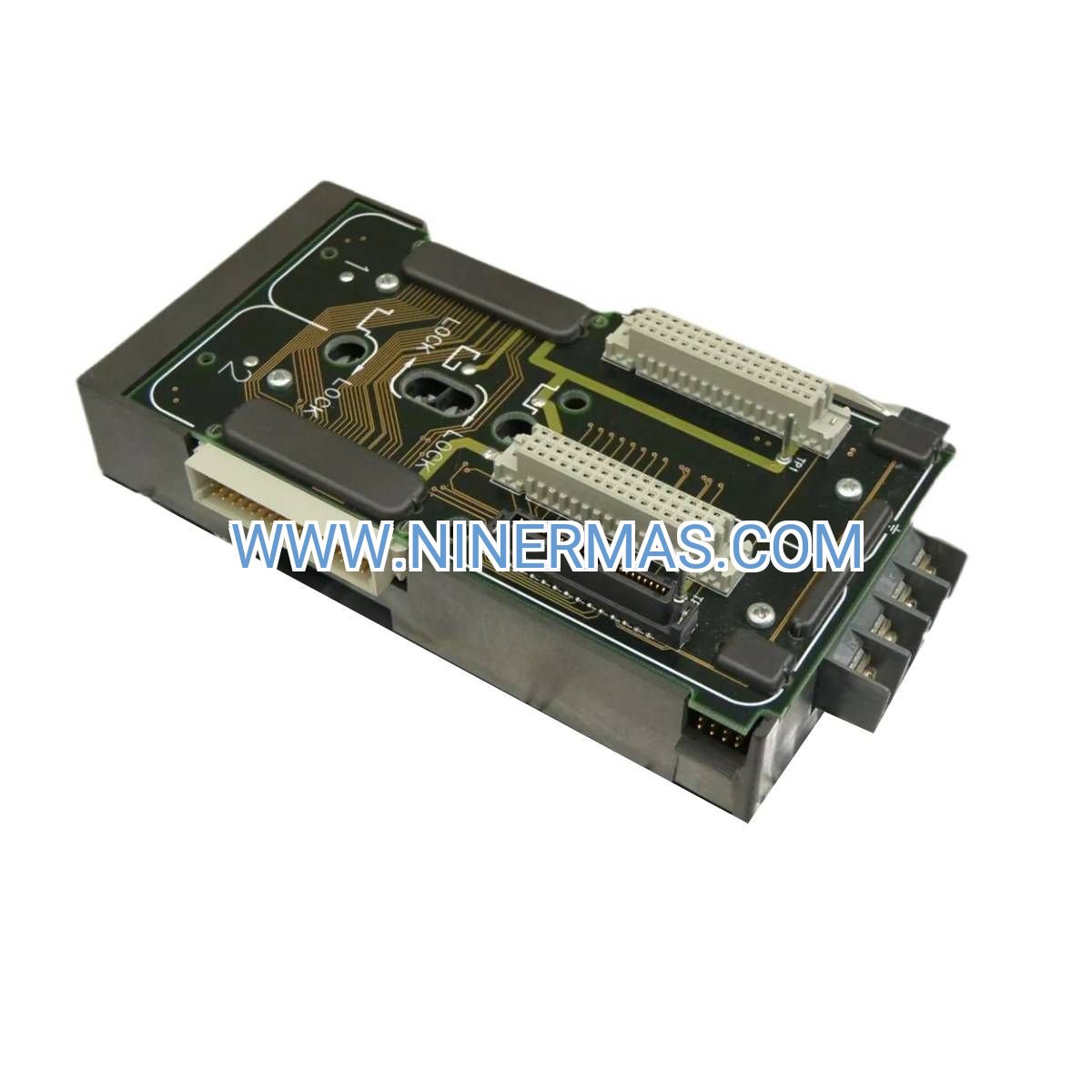

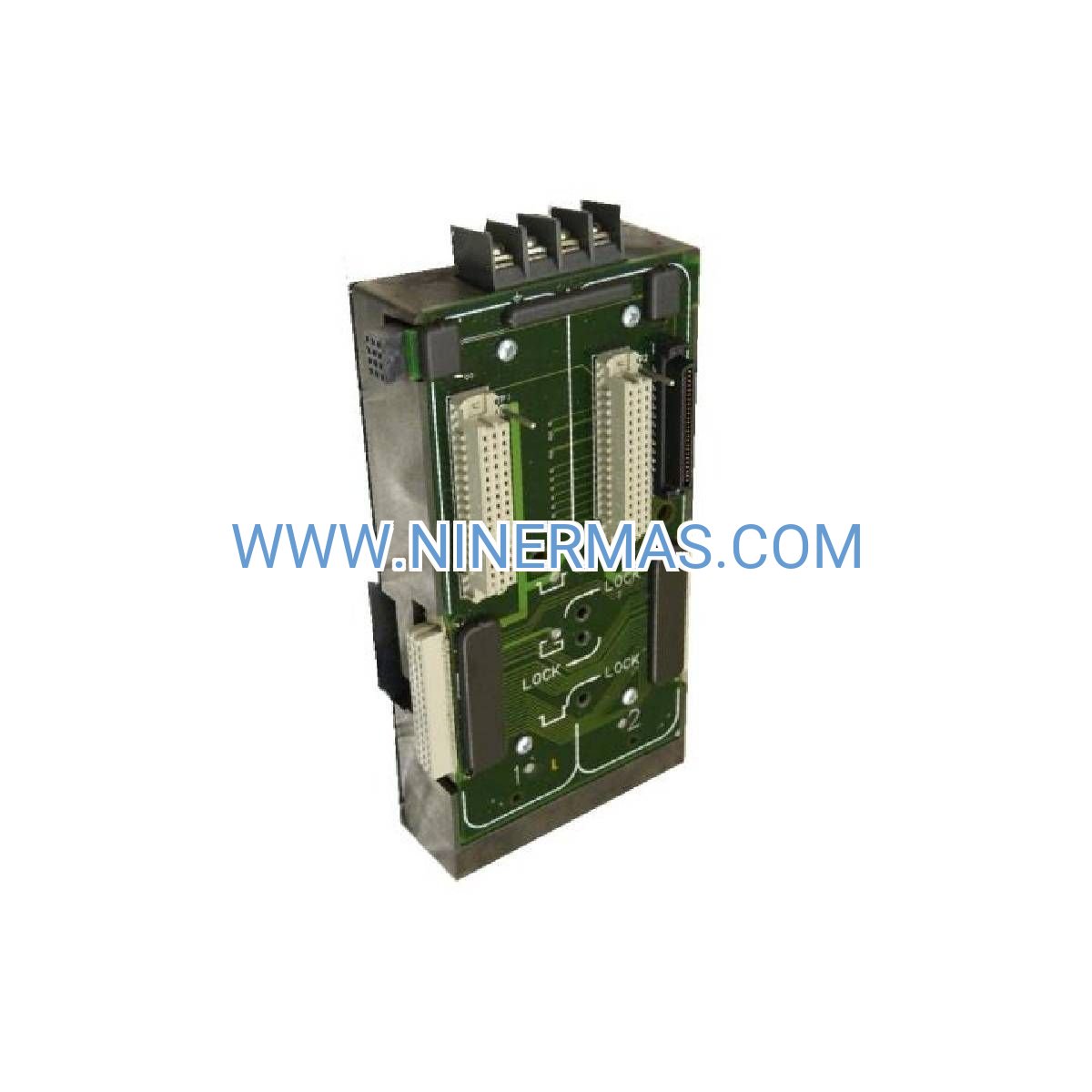

KJ3201X1-BA1 Dry Contact Input Card (Industrial-Grade DeltaV Module)

The KJ3201X1-BA1 represents Emerson's advanced solution for discrete signal acquisition in mission-critical DeltaV distributed control environments. Featuring 32 galvanically isolated input channels, this industrial-grade module transforms field device status signals into actionable control data with exceptional reliability and diagnostic intelligence.

Designed for process industries demanding zero-downtime operation, the KJ3201X1-BA1 combines hot-swap capability with predictive health monitoring to maximize system availability. Whether monitoring safety interlocks in petrochemical facilities or tracking equipment status in pharmaceutical manufacturing, this input card delivers the performance and durability required for continuous industrial operations.

With native compatibility across DeltaV S-series architectures and support for both dry contact switches and wet contact signals, the KJ3201X1-BA1 simplifies system integration while reducing installation complexity and long-term maintenance costs.

Core Capabilities & Business Value

✓ 32 Isolated Input Channels
Maximize cabinet density and reduce hardware footprint by consolidating discrete signals into a single module. Each channel features independent galvanic isolation to prevent ground loops and protect control systems from field voltage transients—critical for maintaining signal integrity in electrically noisy industrial environments.

→ Hot-Swap Architecture
Replace failed or suspect modules during live operation without process interruption or controller shutdown. This capability eliminates costly production downtime and enables proactive maintenance strategies that improve overall equipment effectiveness (OEE).

• Predictive Diagnostics Engine
Built-in health monitoring continuously evaluates channel performance, power supply stability, and communication integrity. Early warning alerts enable maintenance teams to address potential failures before they impact production—reducing unplanned outages by up to 40%.

✓ Dual-Mode Input Compatibility
Accept signals from both dry contact devices (mechanical switches, relay contacts) and wet contact sources (proximity sensors, solid-state outputs) without external signal conditioning. This flexibility reduces BOM costs and simplifies field wiring design.

→ Extended Temperature Range
Operate reliably from -40°C to +70°C, making the KJ3201X1-BA1 suitable for outdoor installations, unheated enclosures, and extreme climate applications where standard I/O modules fail.

• Sub-10ms Response Time
Capture fast-changing discrete events with typical response times under 10 milliseconds, ensuring accurate detection of critical process conditions and safety events in high-speed manufacturing operations.

Industry Applications & Problem-Solving

Chemical Processing & Refining
Monitor emergency shutdown (ESD) valve positions, pump seal failure alarms, and reactor pressure relief device status. The KJ3201X1-BA1's isolation architecture prevents electrical faults in hazardous area devices from propagating to control room equipment, maintaining safety integrity level (SIL) requirements in safety instrumented systems.

Power Generation & Utilities
Track turbine trip circuits, generator breaker status, cooling water flow switches, and auxiliary equipment alarms across thermal, hydro, and renewable energy facilities. Rugged construction withstands vibration and temperature extremes common in power plant environments.

Pharmaceutical & Biotech Manufacturing
Interface with clean-in-place (CIP) valve limit switches, sterilizer door interlocks, and batch reactor agitator status indicators. Predictive diagnostics support FDA 21 CFR Part 11 compliance by providing auditable equipment health records.

Water & Wastewater Treatment
Acquire signals from level switches, flow detection devices, chemical feed pump run status, and blower operation indicators. Low power consumption (3.5W max) reduces heat generation in densely populated control panels.

Food & Beverage Production
Monitor conveyor jam sensors, packaging line status, pasteurizer temperature alarms, and ingredient hopper level switches. Hot-swap capability enables maintenance during brief production changeovers without extending downtime.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the KJ3201X1-BA1 when your application requires high channel density, galvanic isolation, or hot-swap capability. For intrinsically safe (IS) applications, consider the KJ3102X1-BA1 IS-rated alternative. For 24VDC input requirements, specify the KJ3221X1-BA1 variant.

Advanced Integration Features

DeltaV Native Connectivity
The KJ3201X1-BA1 communicates via DeltaV's high-speed fieldbus architecture, automatically registering with controllers upon installation. Configuration through DeltaV Explorer software enables rapid commissioning with pre-built function blocks and diagnostic templates.

Redundancy & Fault Tolerance
Deploy in redundant I/O configurations for critical applications requiring continuous availability. Automatic failover ensures uninterrupted signal acquisition even during module replacement or carrier maintenance.

Remote Monitoring & Analytics
Integrate with DeltaV Live for cloud-based performance monitoring and predictive analytics. Historical channel health data supports reliability-centered maintenance (RCM) programs and asset performance management (APM) initiatives.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier
Custom Configuration: 7-10 business days for factory-programmed modules
Warranty Coverage: 12 months comprehensive warranty covering defects and workmanship
Technical Support: Lifetime application engineering assistance via phone, email, and remote diagnostics
Documentation Package: Installation manual, wiring diagrams, DeltaV configuration templates, and compliance certificates

Frequently Asked Questions

What is the difference between dry contact and wet contact input modes?
Dry contact mode monitors switch closures without external voltage (the card provides excitation). Wet contact mode accepts externally powered signals from active sensors. Configure the input type in DeltaV Explorer to match your field device wiring scheme.

Can I mix dry and wet contact inputs on the same card?
Yes, each of the 32 channels can be independently configured for dry or wet contact operation, providing maximum flexibility for diverse field device types within a single module.

How does the hot-swap feature work during module replacement?
The DeltaV carrier maintains field power and communication during module extraction. Simply release the retention clips, remove the old card, insert the replacement, and secure the clips—the system automatically recognizes the new module and resumes normal operation within seconds.

What cable specifications are recommended for field wiring?
Use shielded twisted-pair cable (18-22 AWG recommended) with shield grounded at the control panel end only. For runs exceeding 100 meters, increase wire gauge to 16 AWG to minimize voltage drop and maintain signal integrity.

Does the module require periodic calibration or maintenance?
No routine calibration is necessary—the KJ3201X1-BA1 is factory-calibrated for life. Recommended maintenance includes annual terminal tightness inspection and visual verification of LED status indicators.

Is the card compatible with legacy DeltaV systems?
The KJ3201X1-BA1 is compatible with DeltaV systems running version 11.3 and later. For older system versions, consult our technical team to verify compatibility and identify any required firmware updates.

Start Your Project Today

Ready to enhance your DeltaV system's discrete input capabilities? Contact our automation specialists for application-specific recommendations, system integration support, and volume pricing. We provide complete project assistance from initial specification through commissioning and beyond.

Request a quote: Share your I/O requirements and receive a detailed proposal within 24 hours
Technical consultation: Speak with DeltaV-certified engineers to optimize your system architecture
Sample evaluation: Request a demonstration unit for hands-on testing in your facility
