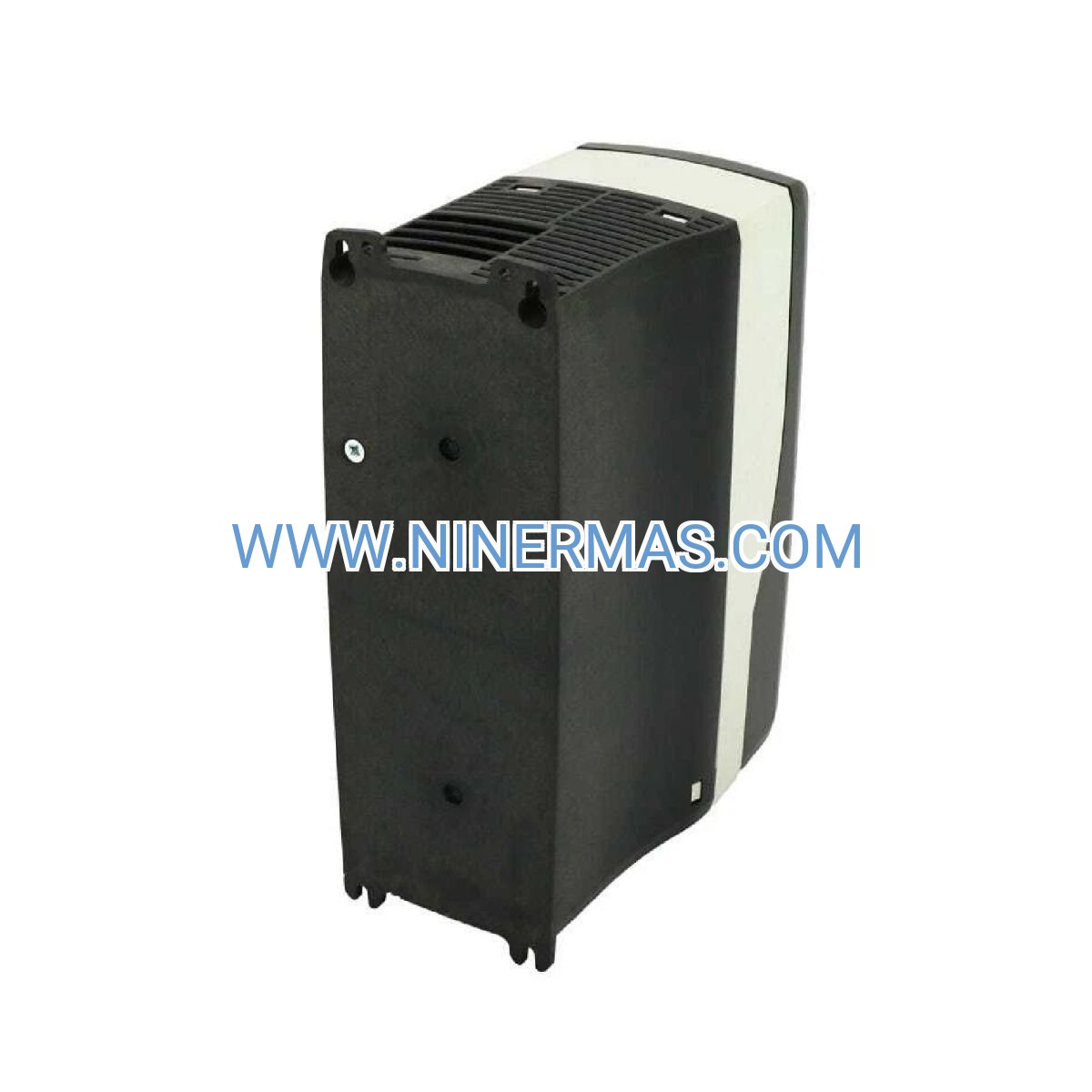

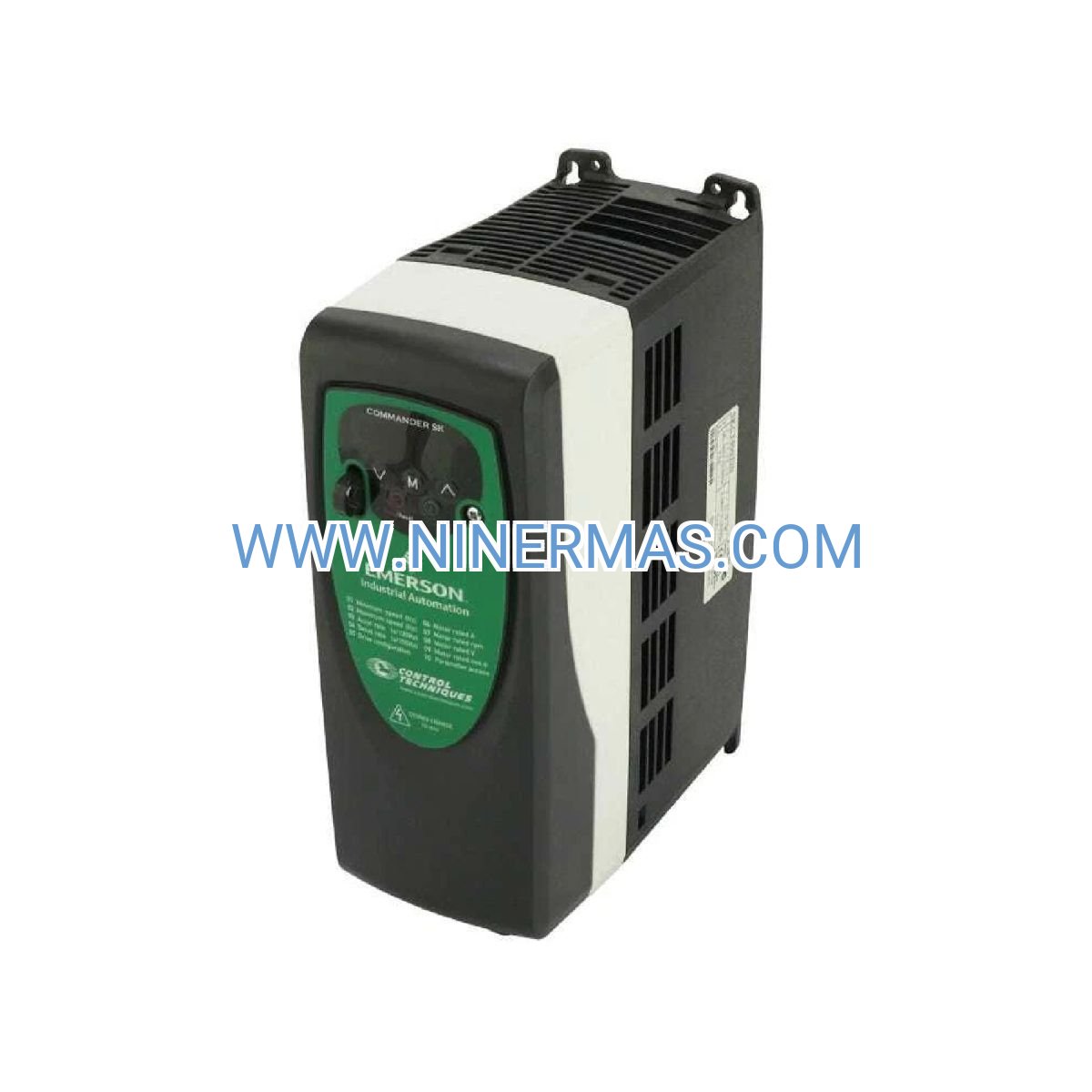

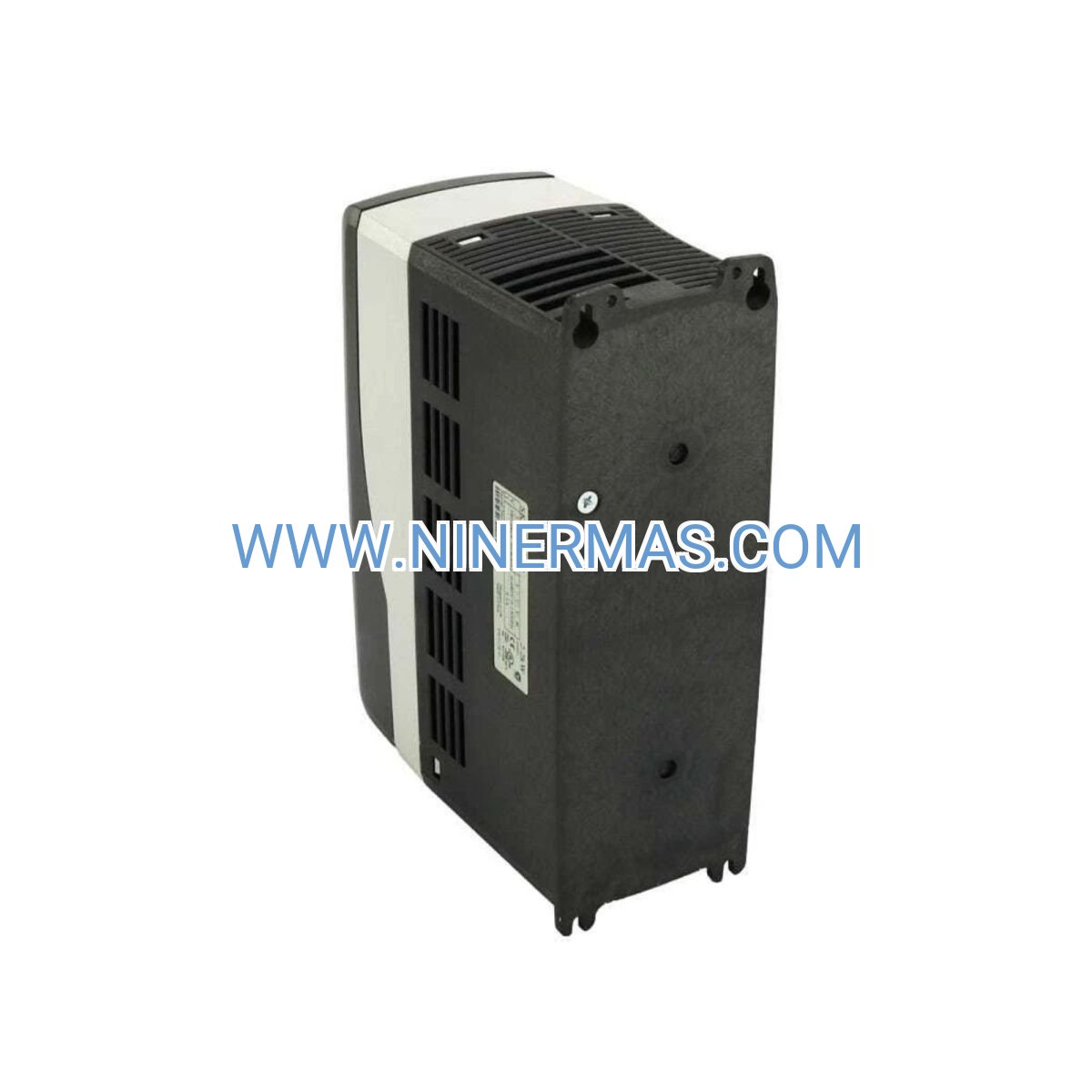

SKC3400220 Commander SK Variable Frequency Drive (Industrial-Grade Motor Controller)

The SKC3400220 Commander SK is a compact yet powerful AC variable frequency drive engineered for precise three-phase motor speed control in industrial automation environments. Manufactured by Control Techniques (Nidec) under the Emerson portfolio, this 2.2kW VFD combines robust construction with intelligent control algorithms to deliver reliable performance across pump systems, fan applications, conveyor networks, and process machinery.

Designed for OEMs and system integrators, the Commander SK series addresses common challenges in motor-driven equipment: energy waste from fixed-speed operation, mechanical stress from hard starts, and limited process flexibility. By enabling smooth acceleration, dynamic speed adjustment, and soft-stop capabilities, this drive extends equipment lifespan while reducing operational costs by up to 30% in variable-torque applications.

Whether you're retrofitting legacy machinery or designing new automation systems, the SKC3400220 offers plug-and-play simplicity with enterprise-ready communication protocols. Its compact 260mm height fits standard control panels, while the IP20-rated enclosure ensures protection in typical industrial environments.

Core Features & Business Value

→ Precision Motor Control Technology
Open-loop vector control delivers superior torque response compared to traditional V/Hz drives, maintaining stable operation from 0.5Hz to 400Hz. Automatic motor tuning optimizes performance for your specific motor characteristics, eliminating manual parameter calculations.

✓ Energy Efficiency Optimization
Intelligent flux optimization automatically reduces magnetizing current during light-load conditions, cutting energy consumption by 15-25% in variable-torque applications like fans and pumps. Built-in sleep mode further reduces standby losses.

→ Industrial Communication Ready
Standard Modbus RTU/RS-485 interface enables seamless integration with PLCs, SCADA systems, and building management platforms. Optional fieldbus modules (Profibus DP, DeviceNet, EtherNet/IP) support advanced industrial networks.

✓ Comprehensive Protection Suite
Multi-layer protection monitors overcurrent, overvoltage, undervoltage, ground faults, motor overtemperature, and drive thermal conditions. Configurable fault responses minimize downtime through automatic restart or controlled shutdown sequences.

→ Flexible I/O Architecture
4 programmable digital inputs support multi-speed presets, forward/reverse commands, and external fault signals. Dual analog inputs (0-10V, 4-20mA) enable remote speed reference and PID feedback. Relay output provides run status or fault indication.

✓ Quick Commissioning Tools
Backlit LCD keypad with plain-language menus accelerates setup. Parameter cloning via removable keypad enables rapid multi-drive deployment. Auto-tuning wizard completes motor optimization in under 2 minutes.

Application Scenarios & Solutions

Pump Control Systems
In water treatment facilities and chemical processing plants, the SKC3400220 eliminates throttle valve losses by matching pump speed to actual demand. Integrated PID controller maintains constant pressure or flow without external controllers, while soft-start capability protects piping from hydraulic shock.

HVAC Fan Management
Building automation systems leverage the drive's analog input for demand-based ventilation control. By modulating fan speed according to CO₂ sensors or occupancy schedules, facility managers achieve 40-60% energy savings compared to damper-controlled systems while maintaining superior air quality.

Material Handling Conveyors
Packaging lines and distribution centers benefit from smooth acceleration profiles that prevent product spillage and reduce mechanical wear. Multi-speed presets enable zone control, while S-curve ramp shaping eliminates belt jerk during speed transitions.

Mixer & Agitator Applications
Food processing and pharmaceutical manufacturing require precise speed control for consistent batch quality. The drive's torque boost function ensures adequate starting torque for high-viscosity materials, while speed regulation maintains ±0.5% accuracy under varying load conditions.

Machine Tool Spindles
CNC routers and milling machines utilize the drive's wide speed range (0-400Hz) for optimal cutting parameters. Dynamic braking capability enables rapid spindle deceleration between operations, improving cycle times without mechanical brake wear.

Technical Specifications & Selection Guide

Selection Criteria: Match drive power rating to motor nameplate power. For applications requiring frequent starts/stops or high inertia loads, select one frame size larger. Verify input voltage compatibility with your facility power supply. For harsh environments (high humidity, dust, or corrosive atmospheres), consider IP54-rated enclosure options or external NEMA 4X cabinets.

Extended Capabilities & Integration Options

Advanced Control Functions
Built-in PID controller eliminates external process controllers for pressure, temperature, or flow regulation. Flying start capability enables bumpless connection to spinning motors. Automatic energy optimization mode reduces losses during partial-load operation.

Industrial IoT Connectivity
Optional Ethernet/IP or Profinet modules enable Industry 4.0 integration, providing real-time diagnostics, predictive maintenance alerts, and energy consumption tracking. Cloud connectivity via edge gateways supports remote monitoring and OTA parameter updates.

Safety Integration
Safe Torque Off (STO) function meets SIL 2 / PLd requirements when paired with safety relay modules. Configurable safe limited speed (SLS) prevents overspeed conditions in personnel-accessible areas.

Customization Services
Our engineering team provides application-specific parameter programming, custom I/O wiring harnesses, and pre-commissioned drive assemblies. Volume customers receive dedicated technical support and preferential lead times.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units to major Asia-Pacific ports (Shanghai, Hong Kong, Singapore). Express air freight available for urgent requirements (1-2 days to most destinations).

Custom Configuration: Pre-programmed drives with customer-specific parameters ship within 7-10 business days. Bulk orders (10+ units) receive priority scheduling.

Warranty Coverage: 24-month manufacturer warranty covers defects in materials and workmanship. Extended warranty plans (up to 5 years) available for critical applications.

Technical Support: Lifetime application assistance via email, phone, and remote desktop support. On-site commissioning services available in select regions (quoted separately).

Documentation Package: Each drive includes quick-start guide, full parameter manual (PDF), AutoCAD dimensional drawings, and sample Modbus register maps. Video tutorials and application notes available on our technical portal.

Frequently Asked Questions

Q: Can the SKC3400220 drive control multiple motors simultaneously?
A: The drive is designed for single-motor applications. For multi-motor control, each motor requires a dedicated drive to ensure proper overload protection and independent speed control. Parallel motor operation voids warranty and creates safety hazards.

Q: What motor types are compatible with this variable frequency drive?
A: The SKC3400220 is optimized for standard three-phase squirrel-cage induction motors rated 0.75-3.0kW. Permanent magnet motors require encoder feedback (not supported). For brake motors, ensure brake power supply is independent of drive output.

Q: How much energy savings can I expect from VFD installation?
A: Energy savings depend on application load profile. Variable-torque loads (fans, pumps) typically achieve 25-50% reduction when operating at 75% speed. Constant-torque applications (conveyors, extruders) see minimal energy savings but benefit from soft-start and process control improvements.

Q: Does the drive require external braking resistors for deceleration?
A: Braking resistors are optional and only required for applications with high-inertia loads or rapid deceleration requirements (>10Hz/sec ramp rate). Standard applications use DC bus capacitor energy absorption. Regenerative braking modules available for frequent braking cycles.

Q: Can I retrofit this drive into existing motor starter panels?
A: Yes, the compact form factor fits most control panels. Ensure adequate ventilation (50mm clearance) and verify input circuit breaker sizing (recommend Type D 16A). Bypass existing overload relays as drive provides electronic motor protection. Retain emergency stop circuits per local electrical codes.

Q: What communication protocols support remote monitoring and control?
A: Standard Modbus RTU enables integration with most PLCs and SCADA systems. Optional modules add Profibus DP, DeviceNet, EtherNet/IP, or Profinet connectivity. For wireless monitoring, pair with Modbus-to-WiFi gateways (sold separately).

Get Expert Application Support Today

Our drive specialists are ready to assist with motor sizing calculations, parameter configuration guidance, and system integration planning. Contact us with your application details (motor nameplate data, load characteristics, control requirements) for personalized recommendations and competitive quotations.

Next Steps: Add to cart for immediate purchase, or request a technical consultation for complex applications requiring custom programming or multi-drive coordination. Volume discounts available for orders of 5+ units.
