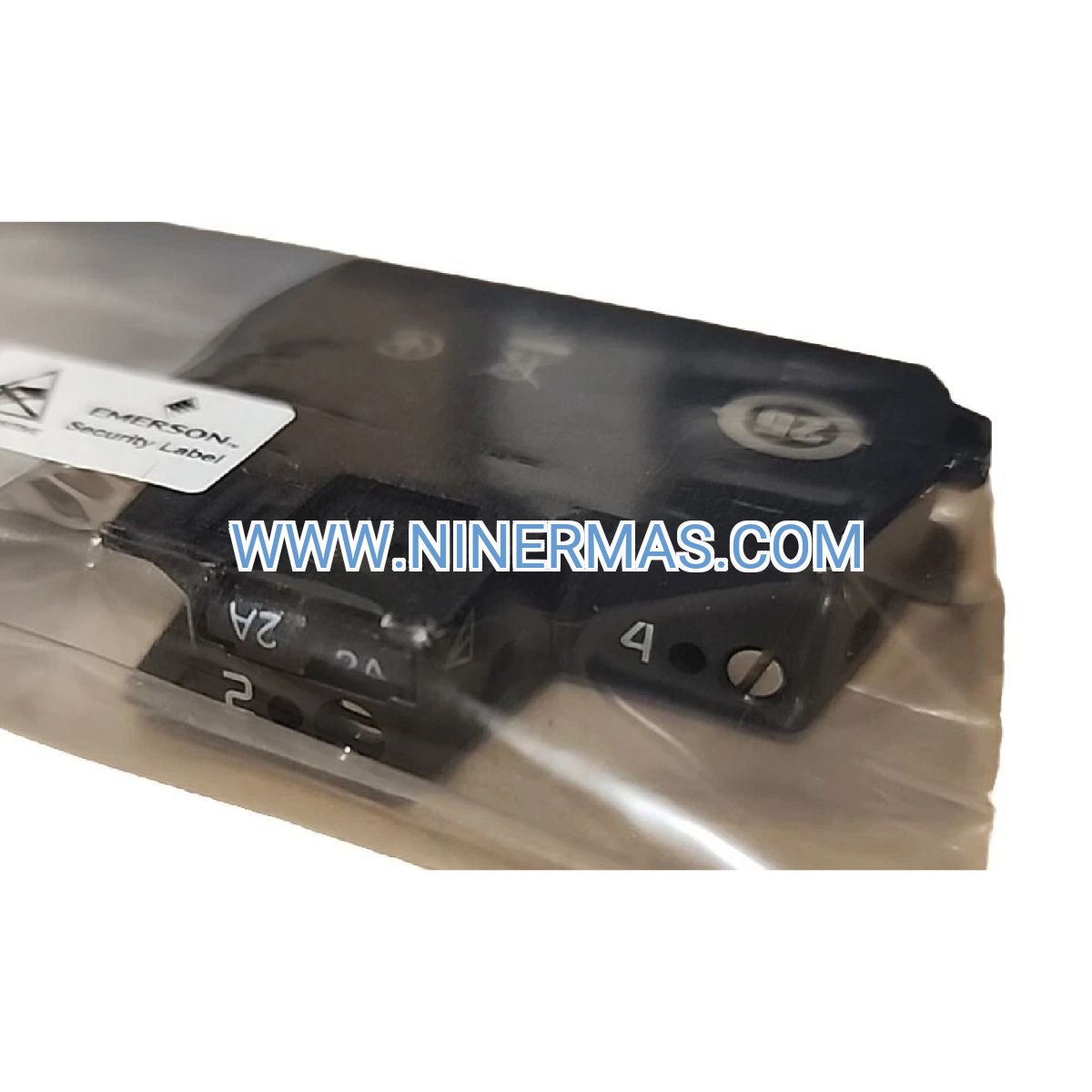

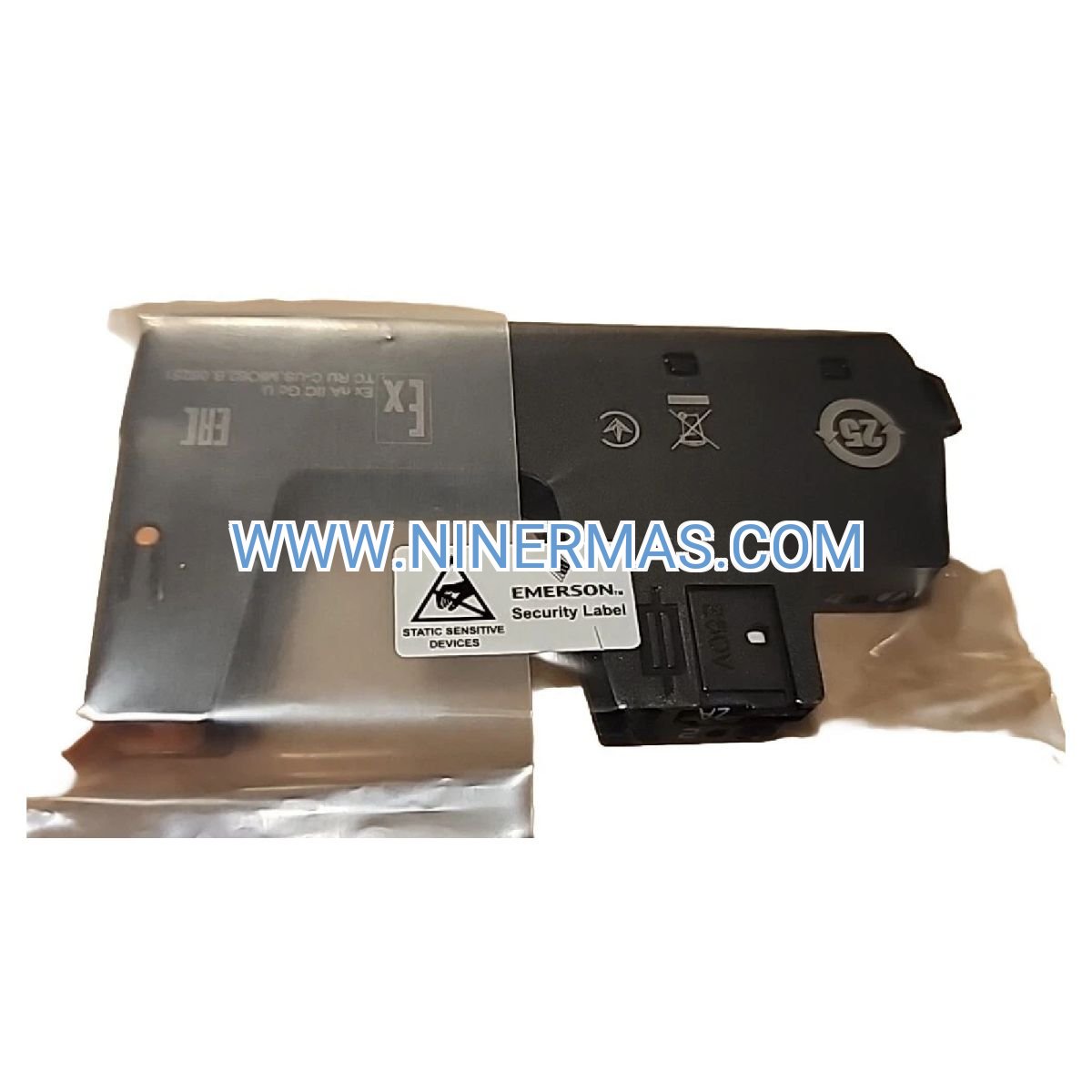

SE4502 Intrinsically Safe Thermocouple/mV Input CHARM (Industrial-Grade Temperature Acquisition)

The SE4502 represents Emerson's advanced solution for certified-safe temperature measurement in explosive atmospheres. This intrinsically safe CHARM module integrates seamlessly with DeltaV distributed control architectures, delivering multi-sensor compatibility and diagnostic intelligence for critical process monitoring applications where safety certification and measurement fidelity are non-negotiable.

Designed for Zone 1/Division 1 classified locations, the SE4502 eliminates the complexity of barrier installations while maintaining full compliance with global hazardous area directives. Process engineers gain access to eight thermocouple types plus millivolt inputs through a single, hot-swappable module that requires zero field calibration across its operational lifetime.

Whether you're monitoring reactor exotherms in pharmaceutical synthesis, tracking distillation profiles in petrochemical units, or validating sterilization cycles in bioprocessing facilities, the SE4502 delivers the accuracy, certification pedigree, and system integration required for mission-critical temperature control loops.

Key Capabilities & Technical Advantages

→ Universal Sensor Compatibility
Single module accepts Types B, E, J, K, N, R, S, T thermocouples plus ±100 mV signals, reducing spare parts inventory by 87% compared to dedicated single-sensor modules while simplifying maintenance logistics.

✓ Certified Intrinsic Safety
FM/CSA Class I Div 2, ATEX II 3(1)G, and IECEx Zone 2 approvals enable direct field installation in explosive gas atmospheres without external barriers, cutting installation costs by $450-$800 per point versus zener-barrier architectures.

→ High-Resolution Signal Processing
16-bit analog-to-digital conversion with integrated cold junction compensation (±0.25°C accuracy) ensures measurement precision from ±0.5°C to ±2.75°C depending on sensor type, meeting pharmaceutical validation and custody transfer requirements.

✓ Diagnostic Intelligence
Bi-color LED status indicators and DeltaV-integrated diagnostics provide real-time visibility into sensor health, wiring integrity, and module performance, reducing troubleshooting time by 60% during commissioning and operations.

→ Hot-Swap Serviceability
Partial ejection locking mechanism allows field replacement without controller shutdown or process interruption, supporting 99.7%+ system availability targets in continuous manufacturing environments.

✓ Marine & Offshore Certification
DNV Marine Certificate and IACS E10 compliance qualify the SE4502 for FPSO, drilling platform, and offshore production applications where vibration, humidity, and salt-fog resistance are critical.

Application Scenarios & Industry Solutions

Petrochemical Refining & Gas Processing
Monitor crude distillation column tray temperatures (18-24 points per column) using Type K thermocouples in Zone 1 areas. The SE4502's intrinsic safety certification eliminates purge panel costs while its multi-sensor capability handles both process (Type K) and high-temperature catalyst bed (Type R) measurements within the same I/O subsystem. Typical deployment: 40-60 SE4502 modules per hydrocracking unit.

Pharmaceutical Batch Manufacturing
Validate autoclave sterilization cycles and lyophilization shelf temperatures with GMP-compliant measurement accuracy. The module's factory calibration and diagnostic capabilities support 21 CFR Part 11 audit trails, while its ±0.5°C accuracy (Type T) meets USP <1211> requirements for sterile processing. Integration with DeltaV Batch enables automated recipe execution and electronic batch records.

Chemical Synthesis & Polymerization
Track exothermic reaction temperatures in jacketed reactors and CSTR vessels where runaway prevention depends on sub-second temperature response. The SE4502's 16-bit resolution detects 0.1°C changes in 500°C spans, enabling advanced control strategies like model-predictive temperature cascades that improve yield by 2-4% while reducing energy consumption.

Power Generation & Cogeneration
Measure gas turbine exhaust temperatures (8-16 points per turbine) using Type R or S thermocouples rated to 1600°C. The module's surge protection and EMC compliance ensure reliable operation in high-EMI environments near generators and switchgear, while its -40°C to 70°C ambient rating supports outdoor enclosure installations.

Food & Beverage Processing
Monitor pasteurization, UHT sterilization, and fermentation temperatures with sanitary thermocouple assemblies. The SE4502's multi-sensor capability handles both process monitoring (Type J) and CIP/SIP validation (Type T) requirements, supporting HACCP compliance and FDA FSMA preventive controls documentation.

Technical Specifications & Performance Data

Selection Guide & System Integration

When to Choose the SE4502:

✓ Your application requires certified intrinsic safety for Zone 1/2 or Division 2 classified areas
✓ You need multi-sensor flexibility (thermocouples + mV) within a single module platform
✓ Measurement accuracy of ±0.5°C to ±2.75°C meets your process control requirements
✓ You're standardizing on DeltaV v11.3.1+ with SD/SX/SQ/MQ/MX/PK controller families
✓ Hot-swap capability and zero-calibration maintenance align with your uptime objectives

System Architecture Considerations:

The SE4502 mounts on the SE4608T01 IS CHARM Baseplate, which accommodates up to eight IS CHARMs per baseplate assembly. Each baseplate connects to a DeltaV controller via the CHARMbus backplane, supporting distributed I/O architectures with up to 64 CHARMs per controller (512 I/O points). For large-scale deployments, consider controller loading (scan time impact) and network topology (star vs. daisy-chain) during system design.

Wiring & Installation:

Light blue IS Terminal Blocks accept 22-14 AWG thermocouple extension wire via 4-position screw cage terminals. Automatic keying prevents incorrect CHARM insertion, while IP20 enclosure rating requires installation in climate-controlled environments (control rooms, analyzer shelters, or NEMA 4X junction boxes with environmental conditioning).

Extended Functionality & Advanced Features

DeltaV Integration & Diagnostics
The SE4502 leverages DeltaV's EDDL (Electronic Device Description Language) framework for automatic parameter configuration and real-time diagnostics. Operators receive predictive alerts for sensor drift, open-circuit conditions, and out-of-range temperatures through DeltaV Operate or mobile notifications via DeltaV Mobile, reducing unplanned downtime by 35-50%.

Cybersecurity & Network Isolation
As a field-level I/O device, the SE4502 operates on the isolated CHARMbus network, physically separated from plant Ethernet and enterprise IT systems. This architecture aligns with IEC 62443 defense-in-depth strategies, preventing direct cyber threats to field instrumentation while maintaining OPC UA/Modbus connectivity at the controller level.

Customization & OEM Integration
Emerson offers factory configuration services for high-volume deployments, including pre-programmed sensor types, custom terminal block labeling, and kitted assemblies with baseplates and protection covers. OEM partners can integrate the SE4502 into packaged skid systems with pre-validated DeltaV control strategies and FAT documentation.

Delivery, Warranty & Technical Support

Lead Times:
→ Standard Configuration: 3-5 business days (stock items)
→ Custom Configuration: 10-15 business days (factory programming)
→ Express Shipping: Available for critical outage support (24-48 hour delivery to major hubs)

Warranty Coverage:
→ 18-month manufacturer warranty from ship date
→ Extended warranty options available (3-year and 5-year plans)
→ Advance replacement program for <4-hour emergency response

Technical Support Services:
→ Pre-sales application engineering (sensor selection, accuracy analysis, system sizing)
→ Commissioning assistance (parameter configuration, loop tuning, diagnostic setup)
→ 24/7 technical hotline for troubleshooting and emergency support
→ On-site field service available in North America, Europe, Middle East, and Asia-Pacific

Documentation Package:
→ Installation & Commissioning Manual (PDF + printed)
→ ATEX/IECEx Certificates of Conformity
→ Control Drawing with terminal assignments and wiring diagrams
→ DeltaV configuration files and EDDL device descriptions

Frequently Asked Questions

Q: Can the SE4502 interface directly with 4-20 mA transmitters or RTD sensors?
A: No, the SE4502 is designed exclusively for thermocouple and millivolt inputs. For RTD applications, use the SE4003 (standard) or SE4503 (IS) RTD CHARM modules. For 4-20 mA signals, specify the SE4001 or SE4501 analog input CHARMs.

Q: What is the maximum thermocouple extension wire length for maintaining specified accuracy?
A: Emerson recommends ≤300 meters (1000 feet) of thermocouple-grade extension wire for Types K, J, T, E, and N. For high-temperature Types R, S, and B, limit extension wire to ≤100 meters due to higher resistance and EMF sensitivity. Always use shielded, twisted-pair cable with shield grounded at one end only.

Q: Does the SE4502 support HART communication or advanced diagnostics protocols?
A: The SE4502 uses Emerson's proprietary CHARMbus protocol for communication with DeltaV controllers. While it doesn't support HART, it provides equivalent diagnostic capabilities through DeltaV's EDDL framework, including sensor health monitoring, wiring fault detection, and predictive maintenance alerts.

Q: Can I mix different thermocouple types on a single SE4502 module?
A: Yes, the SE4502 supports software-selectable sensor types on a per-channel basis. However, all channels share a common cold junction compensation reference. For applications requiring multiple sensor types, ensure all thermocouples terminate at the same ambient temperature (within ±2°C) to maintain accuracy specifications.

Q: What are the power budget implications when adding SE4502 modules to an existing DeltaV system?
A: Each SE4502 consumes 22 mA maximum from the 24V DC CHARMbus supply. A standard SE4608T01 baseplate (8 CHARMs) requires 176 mA, well within the 2A capacity of DeltaV SD/SX/SQ controllers. For MQ/MX/PK controllers with higher I/O density, verify total CHARM count against controller power budgets using Emerson's DeltaV Configurator tool.

Q: Is the SE4502 suitable for SIL-rated safety instrumented systems?
A: The SE4502 is not SIL-certified and should not be used as the sole protection layer in safety instrumented functions. For SIL 2/3 applications, use Emerson's DeltaV SIS (Safety Instrumented System) with certified safety I/O modules, or implement the SE4502 as a non-safety monitoring point with independent SIL-rated trip systems.

Ready to Optimize Your Temperature Measurement Strategy?

Contact our DeltaV specialists today for application-specific recommendations, system sizing assistance, and competitive quotations. Whether you're upgrading legacy I/O, expanding existing DeltaV installations, or designing greenfield projects, our team provides the technical expertise and inventory depth to support your automation objectives.

Request a quote: Include your sensor types, quantity requirements, and delivery timeline for expedited processing.
Technical consultation: Schedule a 30-minute call with our application engineers to discuss accuracy requirements, hazardous area classifications, and integration strategies.
Volume pricing: Discounts available for orders of 10+ modules or complete system packages.
