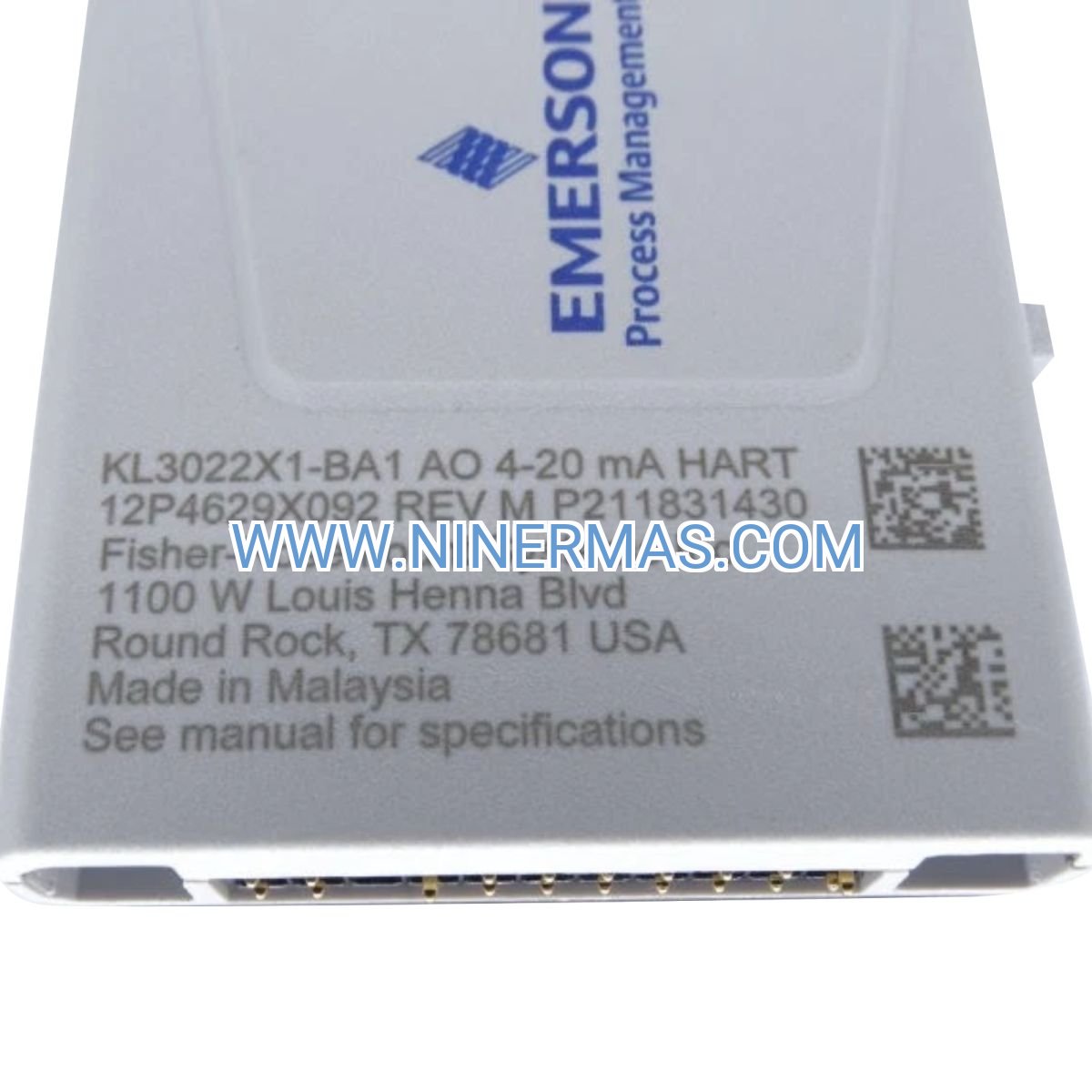

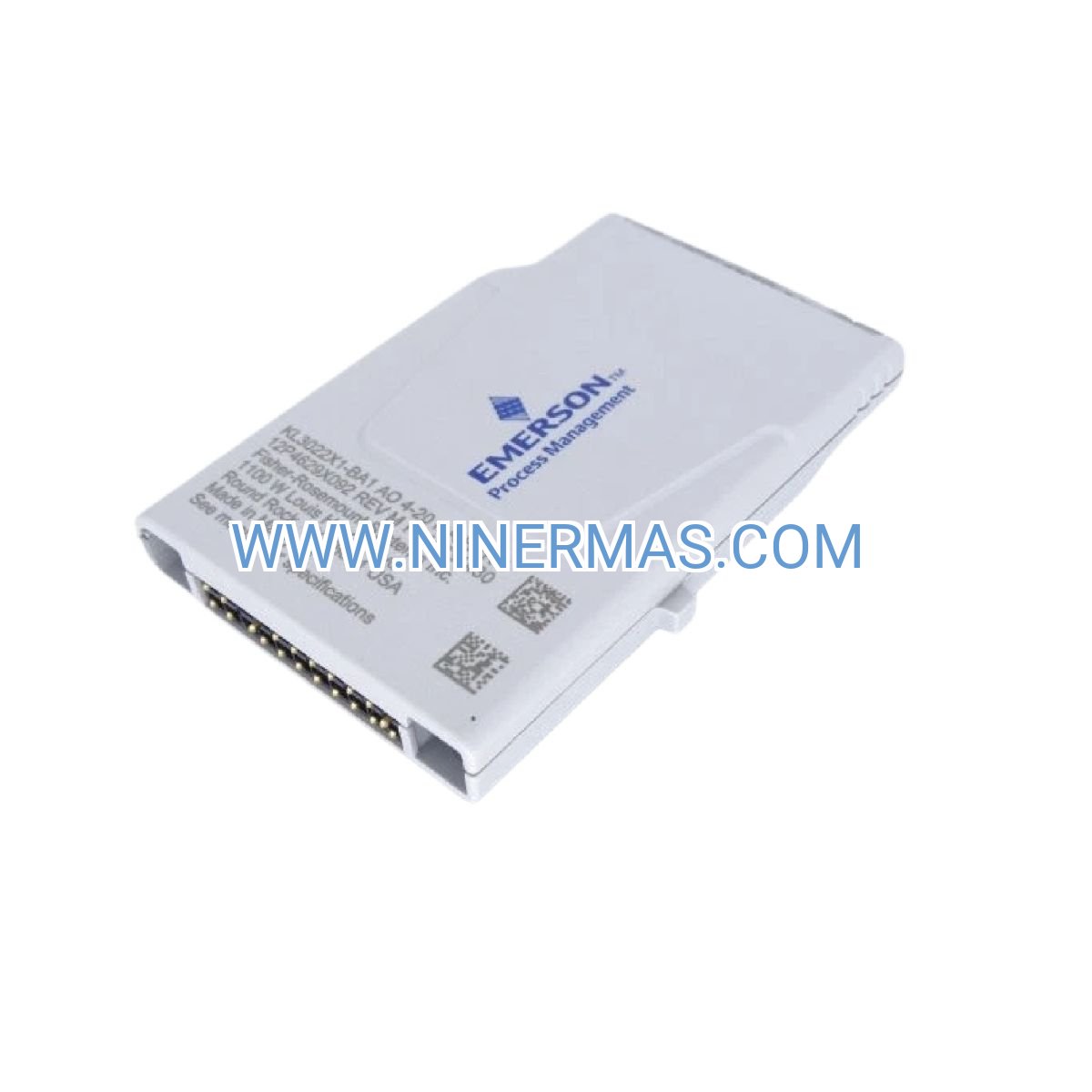

SE4304T01 HART-Enabled Analog Output CHARM (Industrial-Grade Signal Generator)

The SE4304T01 (KL3022X1-BA1) represents a precision-engineered analog output solution for Emerson DeltaV distributed control architectures. Combining 16-bit digital-to-analog conversion with integrated HART v7 bidirectional communication, this CHARM module transforms digital control signals into industry-standard 4-20mA current loops while maintaining simultaneous access to intelligent field device diagnostics and configuration parameters.

Designed for mission-critical process control applications, the module addresses the fundamental challenge of translating high-resolution digital commands into reliable analog signals that drive valve positioners, variable frequency drives, and analytical instruments across oil & gas, chemical processing, pharmaceutical manufacturing, and power generation facilities.

With hazardous area certifications spanning FM, ATEX, IECEx, and marine classifications, the SE4304T01 delivers proven performance in the most demanding industrial environments where safety, accuracy, and uptime are non-negotiable requirements.

Key Performance Advantages & Technical Capabilities

→ Precision Signal Generation: 16-bit D/A converter resolution ensures smooth, stepless control output with ±0.25% accuracy across 0-60°C operating range, eliminating control valve hunting and process variability caused by coarse signal quantization.

→ Dual-Protocol Intelligence: Simultaneous 4-20mA analog transmission and HART v7 digital communication on a single two-wire loop enables real-time device diagnostics, remote configuration, and predictive maintenance without interrupting process control.

→ Extended Field Power Delivery: Supplies 20mA at 15V DC into 750Ω loads, providing sufficient loop power for smart positioners and transmitters while maintaining signal integrity across long cable runs up to 1500 meters.

→ Intrinsic Safety Compliance: Multi-agency hazardous area approvals (FM Class I Div 2, ATEX Zone 2, IECEx) permit installation in classified locations without expensive purge systems or explosion-proof enclosures, reducing capital and operating costs.

✓ Factory-Calibrated Reliability: Lifetime calibration stability eliminates periodic recalibration requirements, reducing maintenance labor by 40-60 hours annually per 100-point system compared to legacy analog I/O requiring biennial calibration cycles.

✓ Integrated Fault Protection: 24mA current limiting circuit prevents field device damage during configuration errors or wiring faults, while dual LED diagnostics provide instant visual indication of power status, communication health, and circuit integrity.

Industrial Application Scenarios & Use Cases

Valve Actuation & Throttling Control
Drive pneumatic and electric valve positioners in flow control, pressure regulation, and level management applications. The SE4304T01's 16-bit resolution translates to 0.0015% control increments, enabling precise throttling in applications like reactor temperature control where ±0.5°C setpoint accuracy depends on smooth valve positioning. Simultaneous HART access reveals valve travel position, actuator air pressure, and diagnostic alerts for packing wear or calibration drift without field visits.

Variable Speed Drive Command Signals
Provide speed reference signals to VFDs controlling centrifugal pumps, induced draft fans, and screw compressors in water treatment plants, HVAC systems, and pneumatic conveying applications. Eliminates the 0.5-1.0% speed oscillation common with 12-bit output cards, reducing energy consumption by 3-8% in variable-torque applications while extending mechanical seal and bearing life through smoother acceleration profiles.

Analytical Instrument Setpoint Control
Interface with gas chromatographs, mass spectrometers, and online analyzers requiring precise sample flow control, column temperature regulation, or carrier gas pressure management. The module's ±0.25% accuracy maintains analytical repeatability within method validation requirements, while HART communication enables remote adjustment of analyzer parameters during method development or troubleshooting.

Temperature & Pressure Loop Regulation
Control SCR power controllers, electric heaters, and cooling valve actuators in jacketed reactors, distillation columns, and environmental test chambers. High-resolution output prevents the ±2-5°C temperature cycling typical of coarse analog signals, improving product quality in polymerization reactions, pharmaceutical crystallization, and heat treatment processes where tight temperature profiles are critical.

Dosing Pump & Metering Applications
Command stroke frequency or stroke length on diaphragm metering pumps used for chemical injection, pH neutralization, and additive dosing. Precise 4-20mA signals enable ±0.5% dosing accuracy required for regulatory compliance in wastewater treatment, boiler water conditioning, and food processing applications.

HART Protocol Integration & Asset Management

• AMS Device Manager Compatibility: Full HART pass-through enables configuration, calibration, and diagnostics via Emerson AMS software without dedicated HART modems or multiplexers
• Device Status Visibility: Access field device health indicators, configuration parameters, and diagnostic counters directly from DeltaV control modules and operator faceplates
• Multi-Drop Mode Support: Configure up to 15 HART devices on a single loop when analog signal transmission is not required, reducing wiring costs in monitoring-only applications
• Fast Data Refresh: HART variable updates faster than 1 second (network loading dependent) enable near-real-time trending of secondary process variables and diagnostic parameters
• Universal Command Set: Supports HART Universal, Common Practice, and Device-Specific commands for interoperability with 4,000+ registered HART field devices

Technical Specifications & Selection Guide

Selection Criteria: Choose SE4304T01 when applications require ±0.25% accuracy, HART diagnostics, or hazardous area certification. For non-HART applications with relaxed accuracy requirements (±0.5%), consider standard analog output CHARMs. For applications requiring galvanic isolation between field circuits, specify isolated output variants.

Advanced Diagnostic & Protection Features

Visual Status Indication: Dual LED system provides instant troubleshooting capability without test equipment. Bi-color Power/Integrity LED indicates Normal (green), Configuration Mode (flashing green), Wiring Fault (red), or Internal Fault (flashing red) conditions. Yellow Field Signal LED confirms circuit energization and current flow.

Conformal Coating Protection: ISA-S71.04-1985 Class G3 coating resists corrosive gases (H₂S, SO₂, Cl₂, NOₓ) common in chemical plants, refineries, and pulp mills, extending service life in harsh atmospheric conditions where uncoated electronics fail within 18-36 months.

Field Wiring Disconnect: Integrated disconnect function enables safe module replacement during maintenance without de-energizing entire I/O subsystem, reducing mean time to repair (MTTR) from 45-60 minutes to under 10 minutes for module swap operations.

Installation & System Architecture

• Mounts on DeltaV CHARM Baseplate with standard 35mm DIN rail installation
• Compatible with SE4501 Standard Terminal Block or SE4502 Fused-Injected-Power Terminal Block
• Accepts 22-14 AWG (0.33-2.08 mm²) field wiring via 2 or 4 screw cage terminals
• Automatic mechanical keying prevents incorrect CHARM type insertion during installation or replacement
• IP20 protection rating suitable for control room and marshalling cabinet environments
• Hot-swap restrictions apply in hazardous area installations per FM/ATEX/IECEx requirements
• Supports redundant controller configurations with automatic failover capability

Delivery Timeline & Service Commitment

Standard Lead Time: 3-5 business days for in-stock items to major industrial hubs (Houston, Singapore, Rotterdam, Shanghai). Express 24-48 hour shipping available for critical outage support.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty programs available for installed base support contracts.

Technical Support: Pre-sales application engineering assistance for loop calculations, HART network design, and hazardous area compliance verification. Post-sales support includes configuration guidance, troubleshooting assistance, and AMS integration consulting.

Documentation Package: Product datasheet, installation instructions, hazardous area certification documents, HART DD (Device Description) files, and AutoCAD control drawings provided with each order.

Frequently Asked Questions

Q: Can the SE4304T01 interface with non-HART field devices?
A: Yes, the module functions as a standard 4-20mA output when connected to conventional analog devices. HART communication is optional and does not interfere with basic analog operation. The module automatically detects HART-capable devices and enables digital communication when available.

Q: What is the maximum loop resistance for reliable HART communication?
A: HART protocol requires minimum 250Ω loop resistance for proper FSK signal modulation. Maximum loop resistance is determined by available field power (20mA @ 15V = 750Ω maximum). For cable runs exceeding 1000 meters, verify total loop resistance including field device burden remains below 750Ω.

Q: Does the module require periodic calibration like traditional analog I/O?
A: No. The SE4304T01 is factory-calibrated for life with guaranteed accuracy specifications maintained over the product's operational lifetime. This eliminates the 2-3 year calibration cycles required for legacy analog output cards, reducing maintenance costs and eliminating process downtime for calibration activities.

Q: Can I use this module in SIL-rated safety instrumented systems?
A: The SE4304T01 is designed for basic process control applications and is not SIL-certified. For safety instrumented functions requiring SIL 2 or SIL 3 certification, specify DeltaV SIS (Safety Instrumented System) I/O modules with appropriate safety certification documentation.

Q: What is the difference between SE4304T01 and KL3022X1-BA1 part numbers?
A: These are equivalent part numbers for the same physical module. SE4304T01 is the CHARM module designation, while KL3022X1-BA1 is the internal Emerson engineering part number. Both numbers reference identical hardware with the same specifications and certifications.

Q: How do I access HART variables from DeltaV control strategies?
A: HART data is accessed via the CHARM's HART_DATA parameter in DeltaV control modules. Configure the HART_ENABLE parameter to TRUE, then map desired HART variables (PV, SV, TV, QV) to control module parameters using function blocks. Consult DeltaV Books Online for detailed HART integration procedures.
