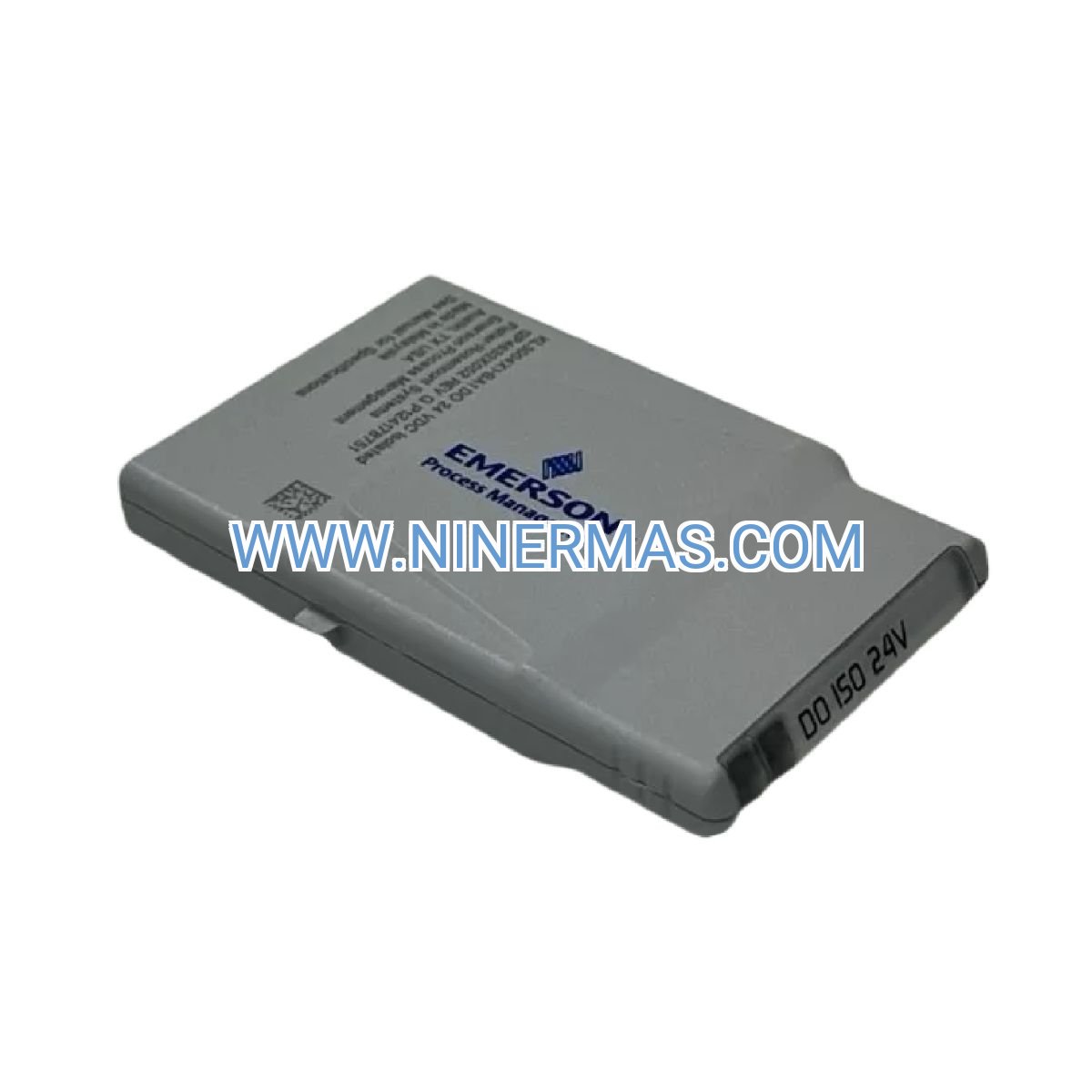

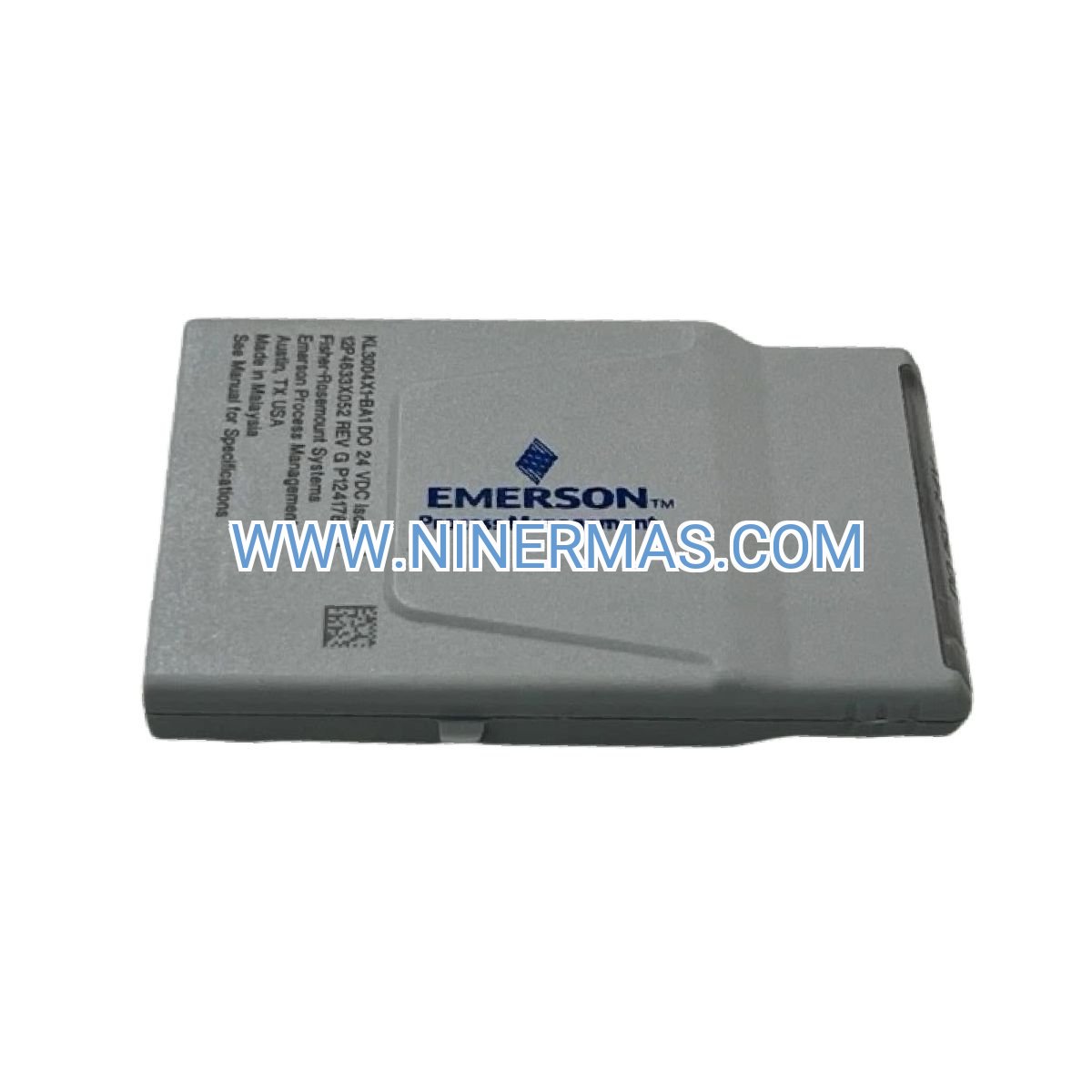

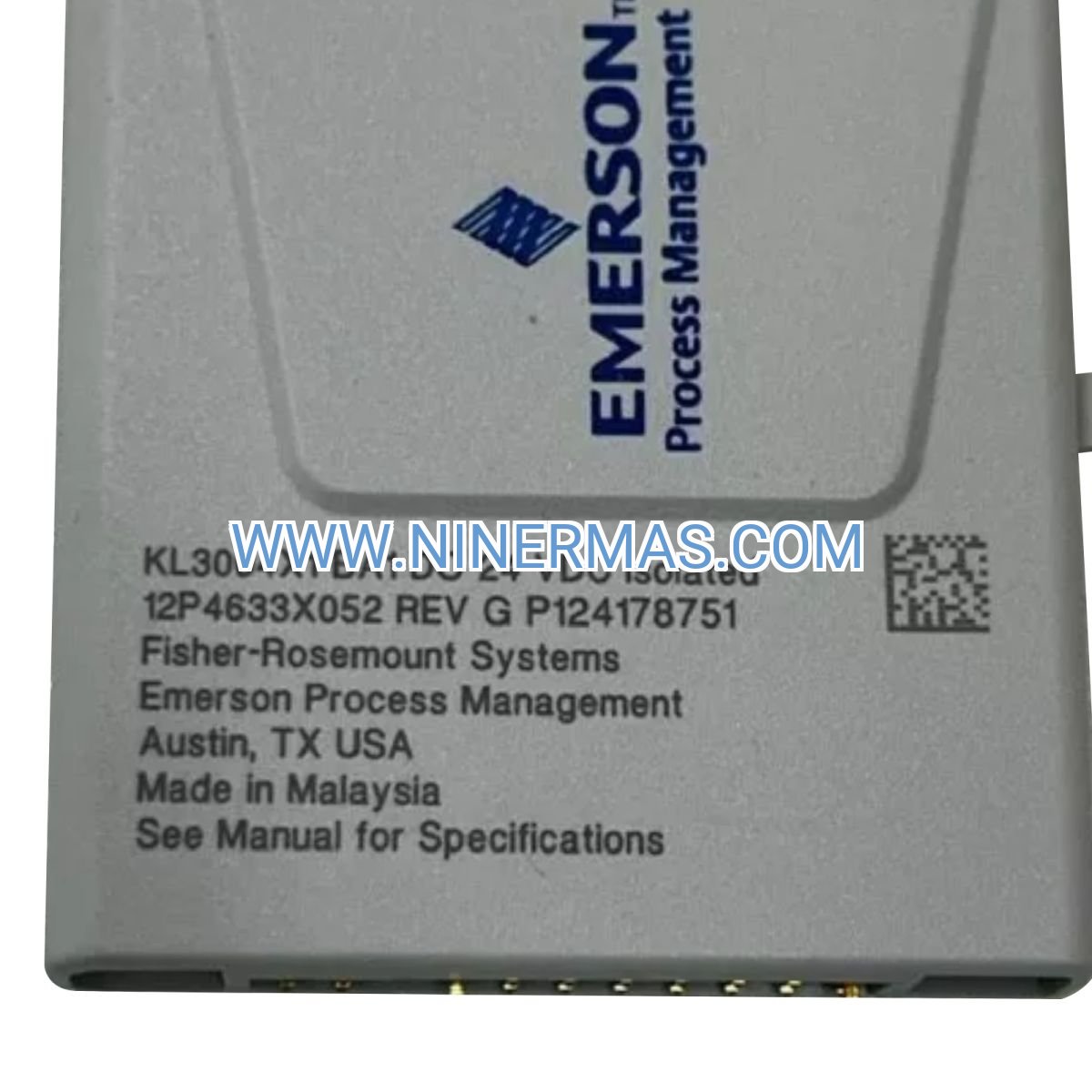

SE4302T02 Isolated Digital Output CHARM (Industrial-Grade 24V DC Control Module)

The SE4302T02 represents a precision-engineered digital output solution for DeltaV electronic marshalling architectures, delivering galvanically isolated 24V DC switching for critical field devices including solenoid valves, motor contactors, and industrial actuators. This single-channel CHARM module combines plug-and-play installation with robust electrical isolation, protecting distributed control systems from ground loops, voltage transients, and field-side electrical faults while maintaining precise output control.

Designed for process industries demanding high reliability and electrical integrity, the SE4302T02 provides 1A continuous output with 2A inrush capability, accommodating the energization profiles of inductive loads. Factory-tested galvanic isolation to 1000V DC per channel ensures complete electrical separation between control logic and field circuits, a critical requirement in large-scale installations where ground potential differences can compromise measurement accuracy and equipment longevity.

Integration into DeltaV v11.3.1 or later systems via CIOC/CIOC2 carriers enables hot-swappable deployment, redundant communication paths, and multi-controller update capabilities—delivering the uptime and flexibility required for continuous process operations. Whether controlling pneumatic valve manifolds in batch sequencing, interfacing motor starters in material handling, or driving annunciator panels in safety systems, the SE4302T02 delivers industrial-grade performance with comprehensive diagnostic integration.

Key Features & Technical Advantages

→ Galvanic Isolation for Electrical Integrity: Each output channel features complete electrical isolation tested to 1000V DC, eliminating ground loop interference and protecting the DCS from field-side electrical transients. This isolation is essential in multi-building facilities where field devices may reference ground potentials separated by significant distances.

→ Optimized for Inductive Load Switching: 1A continuous rating with 2A inrush handling (sub-100ms) accommodates solenoid coil energization profiles without external current-limiting components. Intelligent 4A current-limiting with thermal shutoff provides short-circuit protection with automatic recovery, eliminating the need for field-replaceable fuses.

→ Wide Operating Voltage Range: 4V DC to 32V DC output range supports diverse field device control voltage requirements, from legacy 12V DC systems to modern 24V DC industrial standards. Maximum 1mA off-state leakage ensures complete valve closure and prevents partial energization of sensitive loads.

→ Redundant Architecture Support: Fully redundant communication from CHARM to controller via CIOC carrier, with 50ms update rates to up to four controllers simultaneously. Hot-swappable design with push-button release enables field replacement without system shutdown, minimizing maintenance downtime.

✓ Configurable Output Modes: Programmable momentary pulse, continuous pulse with adjustable duty cycle, and fail-safe output states on communication loss—adapting to event-triggered actions, PWM control applications, and safety-critical shutdown sequences.

✓ Comprehensive Diagnostic Integration: Channel status monitoring, fault detection, and predictive maintenance alerts integrated into DeltaV diagnostics, enabling proactive troubleshooting and reducing unplanned downtime.

Industrial Application Scenarios

Pneumatic & Hydraulic Valve Control:
In chemical processing and oil & gas facilities, the SE4302T02 drives solenoid-operated isolation valves, control valves, and emergency shutdown valves. The 2A inrush capability handles initial coil energization while galvanic isolation prevents ground loop currents in multi-valve manifold installations spanning hundreds of meters. Configurable fail-safe modes ensure valves default to safe positions during communication loss, meeting SIL-rated safety requirements.

Motor Starter & VFD Interfacing:
Provide isolated control signals to motor contactors, soft starters, and variable frequency drives in material handling, pumping, and HVAC systems. The 4-32V DC output range accommodates diverse control voltage standards while electrical isolation protects the DCS from motor starter feedback noise and inductive kickback. Low off-state leakage prevents false triggering of sensitive starter circuits.

Actuator Positioning & Modulating Control:
Control electric actuators for dampers, louvers, and modulating valves in combustion air management, process gas blending, and HVAC applications. Continuous pulse output mode with configurable duty cycle enables time-proportional positioning, while momentary pulse mode supports step-wise positioning sequences for multi-position dampers.

Alarm Annunciation & Panel Indication:
Drive panel-mounted indicator lights, audible alarms, and remote annunciator panels in control rooms and field substations. Isolated outputs prevent alarm circuit faults from propagating into the control system, maintaining system integrity during fault conditions. Supports both steady-state and flashing alarm patterns through programmable pulse modes.

Batch Sequencing & Event-Triggered Actions:
Execute time-critical batch transfer operations, sample collection sequences, and process interlocks in pharmaceutical, food & beverage, and specialty chemical production. Momentary output mode with precise timing control enables coordinated multi-valve sequencing, while diagnostic feedback confirms successful valve actuation.

Technical Specifications & Selection Guide

Selection Criteria:
Choose SE4302T02 when galvanic isolation is required to prevent ground loops in distributed installations, when controlling inductive loads requiring inrush current handling, or when electrical separation between control and field circuits is mandated by safety standards. For non-isolated applications with higher current requirements, consider SE4302T01 High-Side CHARM. For intrinsically safe hazardous area applications, specify SE4302T04 Energy Limited CHARM.

Advanced Protection & Fault Tolerance

Intelligent Current Limiting:
The integrated 4A current-limiting circuit provides short-circuit protection without external fuses, automatically recovering when faults clear. Thermal shutoff prevents module damage during sustained overload conditions, with automatic reset when temperatures normalize—eliminating nuisance trips while protecting against catastrophic failures.

Inductive Load Compatibility:
Optimized for solenoid coils and relay coils with 2A inrush handling for initial energization. External flyback diodes (recommended for inductive loads exceeding 500mH) suppress voltage spikes during coil de-energization, protecting both the CHARM module and connected field devices from transient overvoltage damage.

Low Off-State Leakage:
Maximum 1mA leakage current ensures complete valve closure and prevents partial energization of sensitive loads. This specification is critical for fail-safe valve applications where partial energization could compromise process safety or product quality in pharmaceutical and food processing applications.

Extended Functionality & Integration

IoT & Remote Monitoring Integration:
Channel status and diagnostic data accessible via DeltaV Live for cloud-based monitoring, predictive maintenance analytics, and remote troubleshooting. Integration with Emerson's Plantweb digital ecosystem enables condition-based maintenance scheduling and performance benchmarking across multiple facilities.

Customization Options:
Factory-configurable output characteristics including pulse width, duty cycle, and fail-safe behavior. Custom terminal block configurations and cable assemblies available for high-volume projects. Consult factory for specialized requirements including extended temperature ratings or conformal coating for corrosive environments.

Advanced Control Strategies:
Supports complex control logic including interlocked valve sequencing, time-delayed outputs, and conditional switching based on process variables. Multi-controller update capability enables coordinated control across redundant controllers for critical safety functions.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock items ship within 1-2 business days via express courier (DHL, FedEx, UPS). Custom configurations and project quantities typically ship within 5-7 business days. Expedited same-day shipping available for critical outage situations.

Warranty Coverage: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares and high-volume installations. Advance replacement service ensures minimal downtime for warranty claims.

Technical Support: Complimentary pre-sales application engineering support including load calculations, wiring diagram review, and system architecture consultation. Post-sales support includes troubleshooting assistance, firmware update guidance, and integration support with third-party systems.

Documentation Package: Complete installation manual, wiring diagrams, hazardous area installation instructions, and dimensional drawings provided with each shipment. CAD models and control system configuration files available for download from our technical library.

Frequently Asked Questions

Q: How does the SE4302T02 isolated output differ from the SE4302T01 high-side output?
A: The SE4302T02 features galvanic isolation tested to 1000V DC per channel, providing complete electrical separation between control logic and field circuits. This isolation eliminates ground loop currents critical in distributed installations. The SE4302T01 high-side output shares a common ground with the control system and offers higher current capacity (2A continuous) but lacks galvanic isolation. Choose SE4302T02 when electrical isolation is required by design standards or when field devices reference different ground potentials.

Q: What is the maximum cable length between the CHARM module and field devices?
A: Maximum recommended cable length is 300 meters (1000 feet) using 18 AWG (0.75mm²) shielded cable for 24V DC applications. Longer runs may require voltage drop compensation or higher gauge wire. For critical applications, consult the voltage drop calculation worksheet in the installation manual to ensure adequate voltage at the load under worst-case conditions.

Q: Can the SE4302T02 control AC solenoid valves or only DC valves?
A: The SE4302T02 is designed exclusively for DC loads (4-32V DC range). For AC solenoid valve control, use the SE4302T02 to drive an interposing relay with AC-rated contacts, or specify SE4302T03 AC Output CHARM for direct AC switching. Never connect AC loads directly to DC-rated outputs as this will damage the module and void warranty coverage.

Q: Does the module require external flyback diodes for inductive load protection?
A: External flyback diodes are recommended for inductive loads exceeding 500mH (typical solenoid coils) to suppress voltage spikes during coil de-energization. Install diodes across the load terminals (cathode to positive, anode to negative) as close to the load as possible. The module includes internal transient suppression, but external diodes provide additional protection and extend module service life in high-cycle applications.

Q: Is the SE4302T02 suitable for SIL-rated safety instrumented systems?
A: The SE4302T02 is suitable for use in SIL 2 safety instrumented systems when configured in accordance with IEC 61511 requirements. Consult Emerson's Safety Manual (document SE-UM-001) for specific configuration requirements, proof test intervals, and failure rate data. For SIL 3 applications, redundant output configurations with diagnostic voting logic are required.

Q: What are the power supply requirements for the field device circuit?
A: The SE4302T02 requires an external 24V DC field power supply (4-32V DC range) capable of delivering the sum of all connected load currents plus 20% margin. The field power supply must be isolated from the CHARM carrier power supply to maintain galvanic isolation integrity. Use Class 2 power supplies for compliance with electrical code requirements in most jurisdictions.

Order Your SE4302T02 Isolated Digital Output CHARM Today

Upgrade your DeltaV control system with industrial-grade isolated digital output capability. Our global inventory ensures rapid delivery to your facility, backed by expert technical support and comprehensive documentation. Contact our application engineering team for system design consultation, volume pricing, or custom configuration requirements.
