Emerson SE4301T02 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing DCS modernization initiatives across global process facilities, the Emerson SE4301T02 stands out as a cornerstone hardware upgrade component. In aging DeltaV architectures where discrete signal acquisition modules have reached end-of-service cycles, deploying the Emerson SE4301T02 delivers a measurable leap in system reliability — supporting 24VDC dry contact inputs with low-side sensing, dual-mode operation (DI and pulse counting up to 10kHz), and intelligent fault detection via end-of-line resistor monitoring. This makes it an indispensable asset in any Performance Enhancement roadmap targeting reduced unplanned downtime and extended asset lifecycle.

From a Legacy Compatibility standpoint, the SE4301T02 integrates natively into existing CHARM Baseplates without structural modifications to the control cabinet. It supports DeltaV v11.3.1 and later, making it a viable Retrofit Solution for facilities running SD Plus, SX, SQ, MQ Plus, MQ, MX, and PK controllers at v14.3+. This backward-compatible design dramatically reduces the engineering hours required for system migration, allowing retrofit teams to swap modules without rewriting control strategies or reconfiguring I/O assignments.

From a total cost-of-ownership perspective, the SE4301T02 minimizes migration risk by preserving existing field wiring infrastructure. Its self-keying mechanism eliminates misinstallation errors during hot-swap operations, while conformal coating ensures continued operation in corrosive environments rated to ISA-S71.04-1985 Class G3 — a critical factor when upgrading legacy systems in chemical plants, offshore platforms, and power generation facilities where environmental exposure is severe.

Upgrade Highlights & Compatibility

• ✅ Seamless Integration: Drop-in replacement on existing CHARM Baseplates — zero structural rework required for system migration
• Dual-Mode Flexibility: Software-configurable as standard DI (<2Hz) or high-speed Pulse Counter (0.1Hz 10kHz) — eliminates need for separate legacy modules
• ✅ Legacy Compatibility: Supports DeltaV v11.3.1+ across SD Plus, SX, SQ, MQ Plus, MQ, MX, PK controller families
• Performance Enhancement: Built-in hysteresis (ON >2.25mA / OFF <1.75mA) eliminates false triggers from industrial electrical noise
• ✅ Future-Proofing: ATEX/IECEx, FM/CSA, CE, Marine (ABS, DNV) and Achilles CIOC Level 1 & 2 certified — ready for next-generation compliance requirements
• Predictive Fault Detection: Optional VS6904 EOL resistor monitoring identifies wiring degradation before process disruption occurs

Modernization Use Cases & Success Stories

DCS Modernization — Chemical Processing Plants: In a typical DCS retrofit scenario, aging discrete I/O cards in legacy Emerson DeltaV cabinets are replaced with SE4301T02 CHARMs to restore full diagnostic visibility. The module’s EOL fault detection capability transforms previously blind safety interlock circuits into fully supervised loops — enabling operators to detect degraded wiring on emergency stop buttons and pressure relief valve position indicators before a safety event occurs. Retrofit teams report a 40-60% reduction in field wiring rework compared to full I/O card replacements.

Turbine Supervisory Instrumentation (TSI) Upgrades — Power Generation: In gas and steam turbine modernization projects, the SE4301T02’s pulse counting mode (0.1Hz to 10kHz, 50µs minimum pulse width) provides a direct hardware upgrade path for interfacing with turbine speed sensors, proximity probes, and encoder outputs. This eliminates the need for external pulse conditioning modules that were common in legacy TSI architectures, simplifying the control cabinet layout and reducing single points of failure during system migration.

Offshore & Marine Retrofit Projects: Facilities operating under IACS E10, ABS, and DNV Marine certifications can deploy the SE4301T02 as a certified hardware upgrade without triggering full re-certification of the control system. This is a significant advantage in offshore retrofit projects where regulatory compliance timelines directly impact project economics.

Migration Technical Data Sheet

Supply Chain & Deployment Support

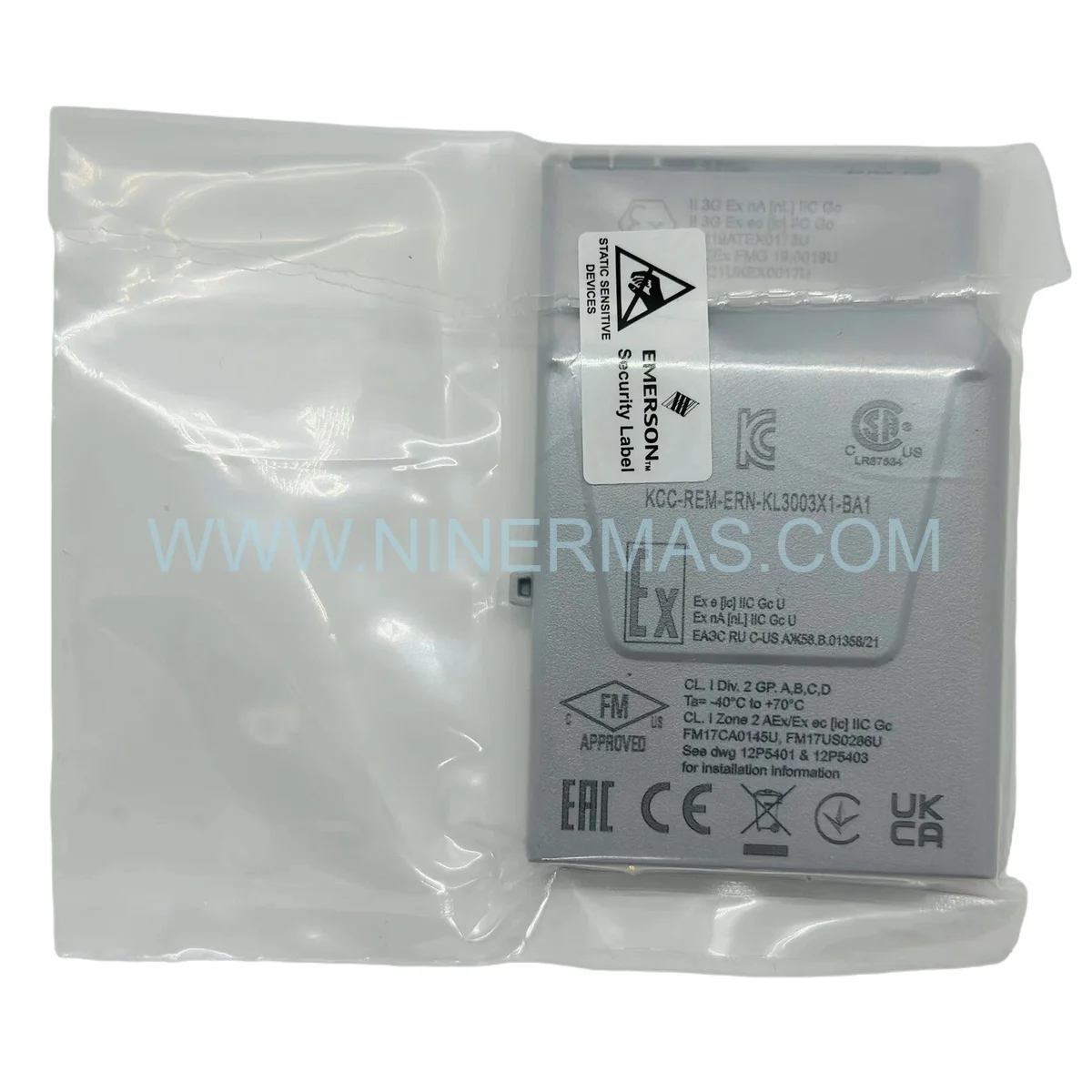

Original & Factory Sealed: Every Emerson SE4301T02 unit is sourced as genuine OEM hardware with full manufacturer traceability documentation. Factory-sealed packaging ensures module integrity is preserved from production to installation — a critical requirement for safety-critical retrofit deployments in regulated industries.

Expedited Global Logistics: We maintain ready inventory of the SE4301T02 to support urgent retrofit and emergency replacement scenarios. Expedited shipping is available to North America, Europe, Middle East, and Asia-Pacific regions, with export documentation and customs compliance support included for international project deployments.

Technical Support for Legacy Hardware: Our engineering team provides dedicated retrofit consultation for obsolete and legacy DeltaV I/O architectures. Services include compatibility verification against existing controller firmware versions, wiring diagram review, EOL fault detection configuration guidance, and pulse counting mode commissioning support — ensuring your system migration proceeds without costly delays.

Retrofit FAQ — Upgrade Guide

Q1: Can the Emerson SE4301T02 be installed in existing CHARM Baseplates without hardware modifications?
Yes. The SE4301T02 uses the standard CHARM form factor with a self-keying mechanism that ensures correct module placement. It installs directly into any compatible CHARM Baseplate without requiring structural changes to the control cabinet, making it an ideal drop-in hardware upgrade for legacy DeltaV I/O systems.

Q2: What DeltaV controller versions are compatible with the SE4301T02 for system migration projects?
The SE4301T02 requires DeltaV v11.3.1 or later. It is compatible with SD Plus, SX, SQ, MQ Plus, MQ, MX, and PK controllers running firmware v14.3 or higher. For facilities running earlier DeltaV versions, a controller firmware upgrade is recommended as part of the overall system modernization plan.

Q3: How does the SE4301T02 handle communication between new DeltaV architectures and legacy field devices?
The module’s low-side sensing configuration and 22.5V wetting voltage with 12.5mA current limiting ensure reliable interfacing with a wide range of legacy dry contact field devices — including older relay contacts, mechanical switches, and proximity sensors — without requiring signal conditioning adapters. This Seamless Integration capability significantly reduces retrofit engineering costs.

Q4: Is the SE4301T02 a viable replacement for obsolete discrete input modules in older DeltaV cabinets?
Absolutely. The SE4301T02 is the current-generation CHARM for 24VDC dry contact discrete input applications and serves as the direct upgrade path for legacy DeltaV I/O cards that have reached end-of-life. Its dual-mode operation (DI and pulse counting) often allows a single SE4301T02 to replace multiple legacy single-function modules, improving cabinet density and reducing spare parts inventory complexity.

Q5: What are the installation space requirements for retrofitting the SE4301T02 into an existing DeltaV cabinet?
The SE4301T02 occupies a single CHARM slot on a standard CHARM Baseplate (12 CHARMs per baseplate, 8 baseplates per CIOC). Its compact CHARM form factor requires no additional panel space compared to the modules it replaces, making it suitable for space-constrained retrofit projects in existing control rooms and field junction boxes.

Q6: Can the SE4301T02 be used as a spare parts strategy for facilities with aging DeltaV systems?
Yes. Given its Active lifecycle status and broad controller compatibility (DeltaV v11.3.1+), the SE4301T02 is an excellent long-term spare parts strategy for facilities managing aging DeltaV infrastructure. Stocking SE4301T02 units provides a standardized, future-proof replacement for multiple legacy discrete input module variants, simplifying spare parts management and reducing the risk of production stoppages due to obsolete hardware unavailability.
