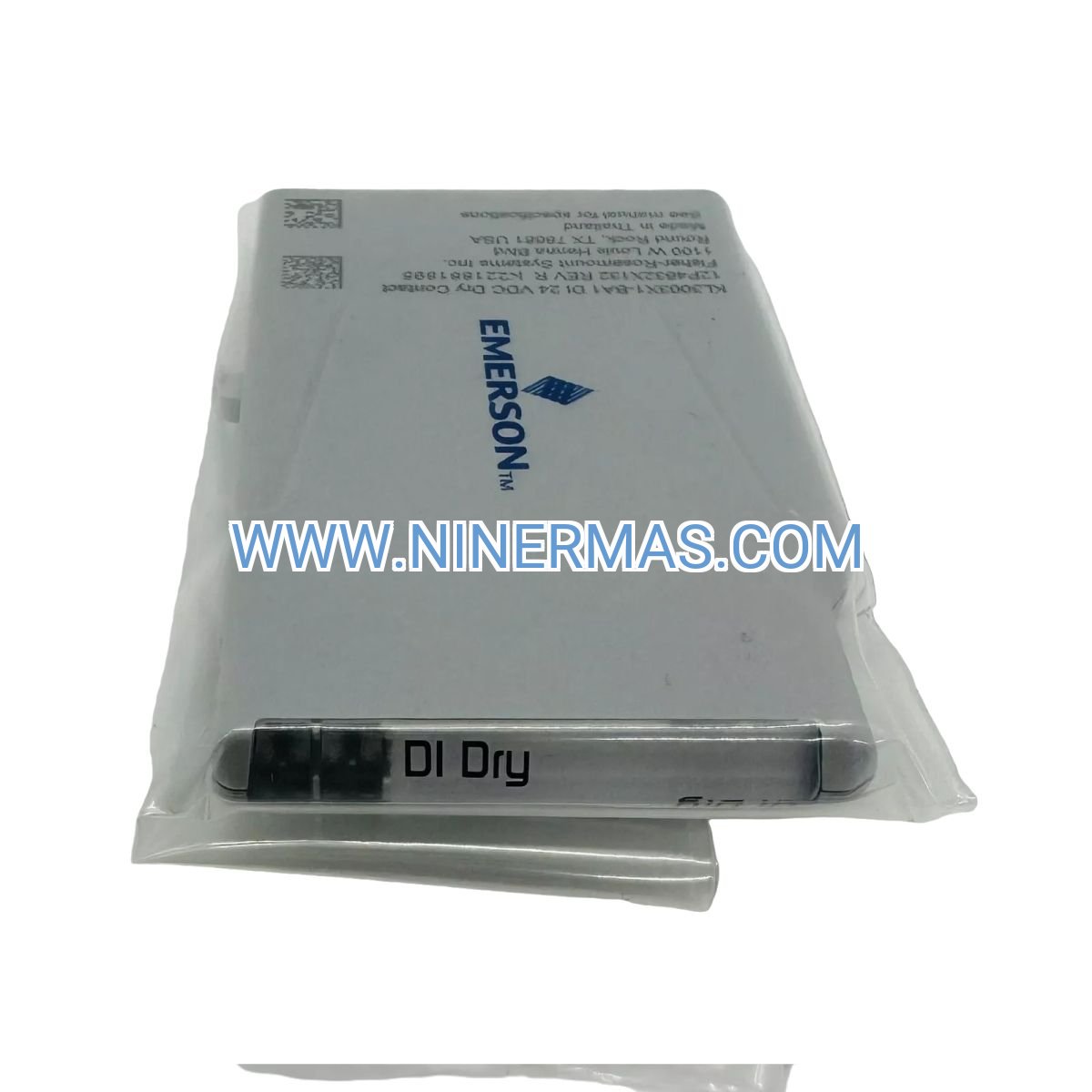

SE4301T02 Digital Input CHARM (Industrial-Grade 24VDC Dry Contact Module)

The SE4301T02 represents Emerson's advanced solution for discrete signal acquisition in DeltaV distributed control environments. Engineered for low-side 24VDC dry contact sensing, this CHARM module delivers exceptional versatility through dual-mode operation—functioning as both a standard digital input for slow-changing signals and a high-speed pulse counter capable of processing frequencies up to 10kHz. Whether monitoring safety interlocks, equipment status, or totalizing flow measurements, the SE4301T02 provides the reliability and diagnostic intelligence demanded by modern process automation.

Key Features & Technical Advantages

→ Dual-Mode Intelligence: Software-configurable operation switches between standard DI mode (signals <2Hz) and high-speed pulse counting (0.1Hz to 10kHz with 50µs minimum pulse width), eliminating the need for separate modules across different applications.

✓ Advanced Fault Detection: Optional end-of-line resistor monitoring identifies short circuits (<100Ω), normal operation (400Ω-40kΩ), and open circuits (>75kΩ), enabling predictive maintenance and reducing unplanned downtime.

• Optimized Signal Conditioning: 4.8kΩ channel impedance with 22.5V wetting voltage and 12.5mA current limiting ensures reliable contact wetting while protecting field devices from overcurrent damage.

✓ Noise-Immune Thresholds: Hysteresis-based detection (ON >2.25mA, OFF <1.75mA) prevents false triggering from electrical noise, contact bounce, and transient signals in harsh industrial environments.

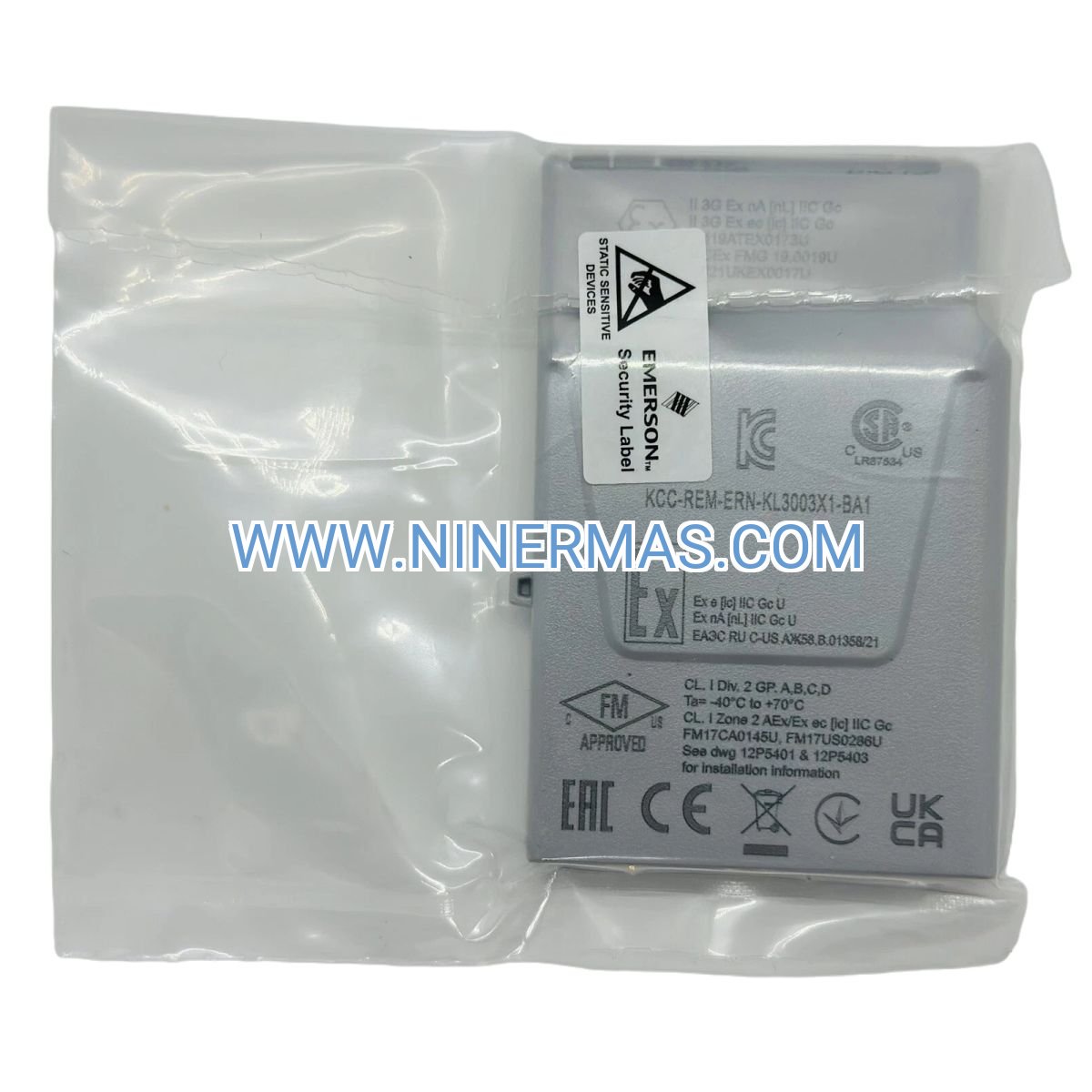

→ Global Safety Compliance: FM/CSA, ATEX/IECEx (Ex ec IIC T4 Gc), CE, IACS E10, and Achilles CIOC certifications for deployment in classified hazardous locations worldwide.

• Rugged Environmental Design: Operates -40°C to +70°C with conformal coating for ISA-S71.04-1985 Class G3 corrosive atmospheres, IP20 protection, and resistance to shock (10g) and vibration (0.7g).

Industrial Application Scenarios

Safety-Critical Interlock Monitoring
In pharmaceutical manufacturing and chemical processing facilities, the SE4301T02 monitors emergency stop circuits, safety gate positions, and pressure relief valve indicators. The end-of-line fault detection capability continuously supervises wiring integrity, alerting operators to degraded connections before they compromise safety systems—a critical requirement for SIL-rated applications.

Equipment Health & Status Tracking
Manufacturing operations rely on the module to interface with motor auxiliary contacts, valve limit switches, pump seal failure alarms, and compressor trip indicators. The low-side sensing configuration simplifies panel wiring where field devices switch to ground, reducing installation time by up to 30% compared to high-side sensing alternatives.

Precision Flow Totalizing & Metering
Water treatment plants and custody transfer applications leverage the 10kHz pulse counting mode to interface with turbine flowmeters, positive displacement meters, and paddle wheel sensors. The 50µs pulse width detection ensures accurate totalizing even at maximum flow rates, supporting revenue-grade metering requirements.

High-Speed Production Counting
Packaging lines and material handling systems connect proximity sensors, photoelectric eyes, and encoder outputs to track parts per minute, conveyor position, and production rates. The module's ability to process 10,000 pulses per second enables real-time throughput monitoring without signal loss.

Batch Process Control
Food & beverage and specialty chemical operations use the SE4301T02 to monitor ingredient addition completion, tank level switches, and agitator running status. Integration with DeltaV batch management ensures recipe execution accuracy and regulatory compliance documentation.

Technical Specifications & Selection Guide

Selection Criteria: Choose SE4301T02 when field devices provide dry contact outputs and low-side sensing simplifies wiring. For high-side sensing requirements, consider SE4305T01. For intrinsically safe NAMUR proximity sensors, specify SE4301T01. Verify controller firmware version meets v14.3 minimum requirement before ordering.

Extended Capabilities & System Integration

DeltaV Ecosystem Compatibility
The SE4301T02 integrates seamlessly with DeltaV v11.3.1 and later systems, supporting SD Plus, SX, SQ, MQ Plus, MQ, MX, and PK controller platforms running firmware v14.3 or higher. Configuration through DeltaV Explorer enables drag-and-drop assignment to control modules, automatic I/O mapping, and real-time diagnostic data propagation to operator workstations.

Flexible Mounting & Wiring
Installation on standard CHARM Baseplate (SE4608T01) supports DIN rail mounting with capacity for 12 CHARMs per baseplate and 8 baseplates per CIOC carrier. The SE4501 terminal block provides 4 screw cage terminals accepting 22-14 AWG (0.32-2.5mm²) wire, plus dedicated shield connections for optimal EMI/RFI protection in electrically noisy environments.

Intelligent Diagnostics
Bi-color Power/Integrity LED provides instant status visibility: Green Solid (normal operation), Green Blink (awaiting configuration), Red Blink (wiring fault detected), Red Solid (internal fault requiring replacement). Yellow Field Signal State LED illuminates when circuit is energized, enabling rapid troubleshooting without test equipment.

Customization & Advanced Features
Software-configurable debounce filtering eliminates contact chatter in mechanical switch applications. Pulse accumulator rollover settings accommodate long-term totalizing without manual reset. Integration with DeltaV alarm management enables automated notification of fault conditions, input state changes, and pulse count thresholds.

Delivery, Warranty & Technical Support

Lead Time & Availability
Standard delivery: 3-5 business days for in-stock items to North America, 5-7 days to Europe/Asia-Pacific. Expedited shipping available for critical outages. Custom configurations and project quantities may require 2-4 weeks—contact our team for specific timelines.

Warranty Coverage
24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares inventory. All products ship with full traceability documentation and factory calibration certificates.

Engineering Assistance
Our certified DeltaV specialists provide pre-sales application consultation, wiring diagram review, pulse counting configuration, fault detection setup, and post-installation troubleshooting. Access to complete technical documentation including installation manuals, control drawings, and configuration guides.

Documentation Package
Every order includes product datasheet, wiring diagrams, DeltaV configuration examples, and safety certification documents. Advanced resources such as AutoCAD control drawings, EPLAN macros, and system integration guides available upon request.

Frequently Asked Questions

Q: Can the SE4301T02 interface directly with 2-wire proximity sensors?
A: No, the SE4301T02 is designed for dry contact devices. For 2-wire NAMUR proximity sensors, use the SE4301T01 DI NAMUR CHARM which provides intrinsically safe excitation and signal conditioning optimized for inductive sensors.

Q: What is the maximum cable length between field devices and the CHARM module?
A: Maximum recommended cable length is 300 meters (1000 feet) using shielded twisted pair cable. Longer runs may require signal conditioning or the use of relay isolation to maintain signal integrity and noise immunity.

Q: How does end-of-line fault detection improve system reliability?
A: The optional VS6904 EOL resistor (installed at the field device) enables the module to distinguish between normal OFF state, wiring faults (short/open), and sensor failures. This predictive diagnostic capability reduces unplanned downtime by alerting maintenance before failures impact production.

Q: Can I use the SE4301T02 for SIL-rated safety instrumented functions?
A: While the SE4301T02 carries appropriate safety certifications (FM, ATEX, IECEx), SIL rating depends on the complete safety loop design including redundancy, voting logic, and proof test intervals. Consult Emerson's SIL documentation and your functional safety engineer for specific SIF applications.

Q: What is the difference between low-side and high-side sensing configurations?
A: Low-side sensing (SE4301T02) means the field device switches the circuit to ground while the module provides positive voltage. High-side sensing (SE4305T01) reverses this—the module provides ground while the field device switches positive voltage. Choose based on your existing panel wiring standards and field device outputs.

Q: How do I configure the module for pulse counting versus standard DI operation?
A: Configuration is performed in DeltaV Explorer during I/O assignment. Select "Pulse Count" mode and specify the frequency range and accumulator settings. The module automatically adjusts signal processing algorithms—no hardware changes or jumpers required.

Order Your SE4301T02 Digital Input CHARM Today

Enhance your DeltaV system's discrete signal acquisition capabilities with the SE4301T02's proven reliability and advanced diagnostics. Our automation specialists are ready to assist with technical specifications, compatibility verification, and volume pricing for project quantities. Contact us for same-day quotations and expedited delivery options.
