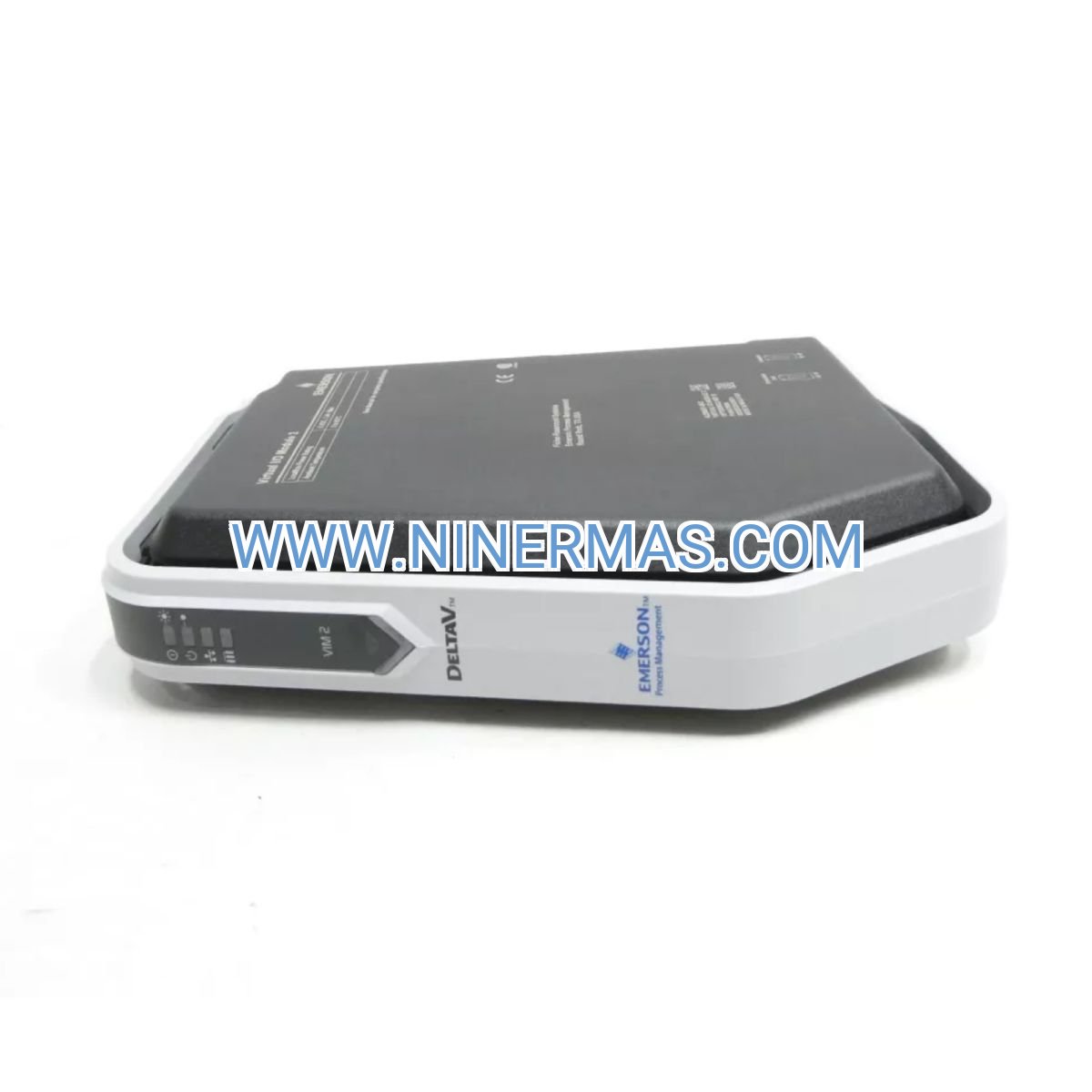

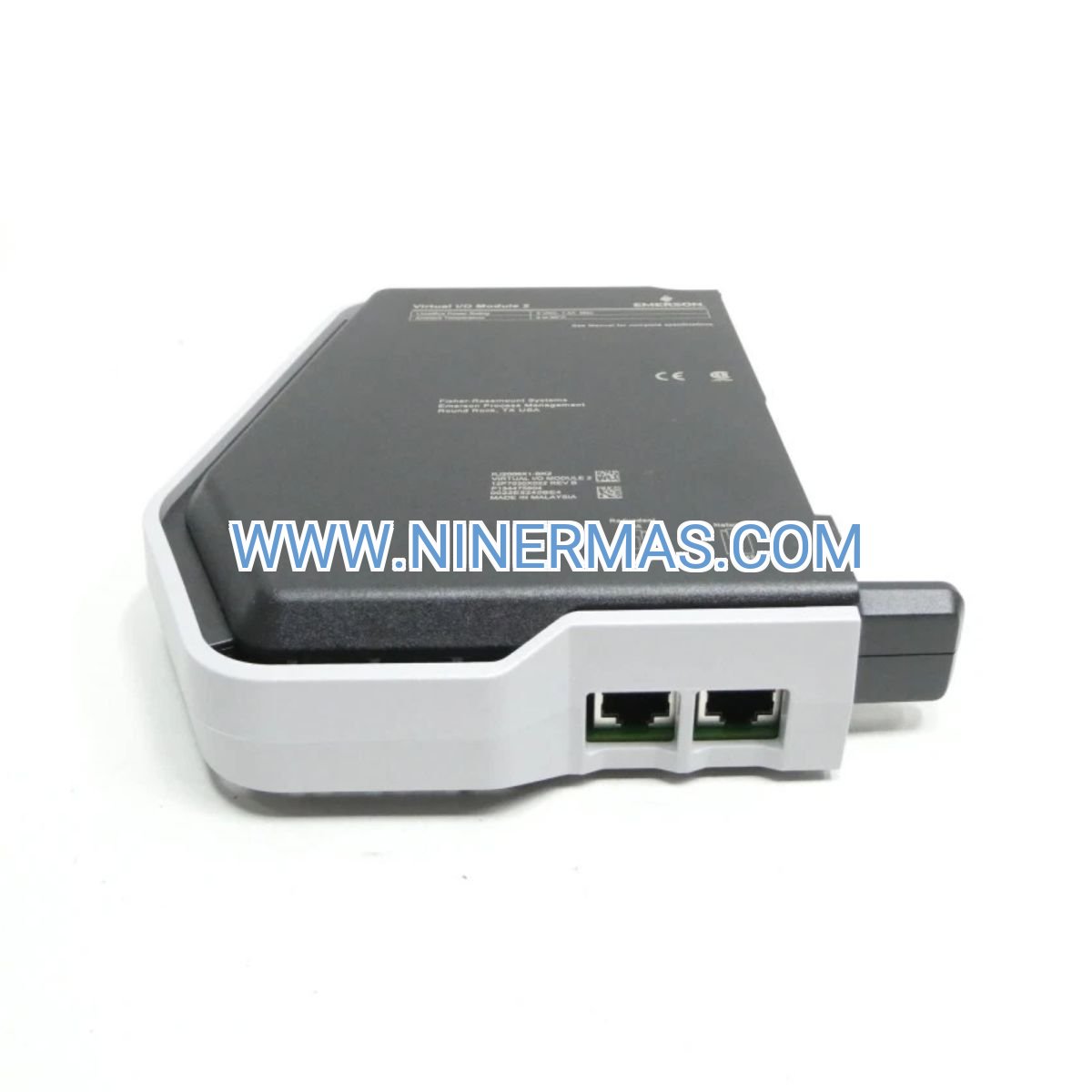

SE4026 Virtual I/O Module 2 (Industrial-Grade DeltaV Integration Platform)

The SE4026 VIM2 delivers dual-mode functionality for modern DeltaV distributed control systems: high-fidelity I/O simulation for offline testing and multi-protocol Ethernet gateway capabilities for third-party device integration. Designed for process industries demanding zero-downtime commissioning and hybrid automation architectures, this module eliminates the traditional barriers between legacy equipment and next-generation control platforms.

Whether you're conducting Factory Acceptance Testing without live field devices, integrating Rockwell PLCs into Emerson ecosystems, or connecting subsea production systems to topside DCS infrastructure, the SE4026 provides the bridge between simulation environments and operational networks. With support for five industrial Ethernet protocols and capacity for 256 concurrent device connections, it transforms DeltaV controllers into universal integration hubs.

Engineered for hazardous area deployment with FM Class I Division 2 and ATEX Zone 2 certifications, the VIM2 operates reliably across -40°C to 60°C temperature extremes while maintaining conformal coating protection against corrosive atmospheres. Redundancy-ready architecture ensures mission-critical applications maintain continuous operation even during module failures or network disruptions.

Core Features & Benefits

• → Dual-Function Architecture: Simultaneously supports DeltaV Mimic I/O simulation (slots 57-64) and Ethernet device integration without resource conflicts, enabling parallel FAT testing and production operations
• li>

✓ Multi-Protocol Flexibility:

• Native support for Modbus TCP (192 devices), EtherNet/IP (256 devices), PROFINET (256 devices), Rockwell PLC Scanner (64 devices), and FMC722 Subsea protocols eliminates costly protocol converters
• → Plug-and-Play Configuration: VIMNet Explorer graphical interface integrates directly into DeltaV Explorer with drag-drop device mapping, auto-discovery, and template-based setup reducing commissioning time by 60%
• ✓ Flash-Upgradeable Firmware: Switch between protocol drivers without hardware replacement, protecting long-term investment as automation standards evolve
• → Redundancy Without Complexity: Active/standby configurations with automatic failover (SE4027 kit) maintain 99.99% uptime for critical process control loops
• ✓ Extensive Signal Capacity: Handle up to 32,640 EtherNet/IP signals or 10,000 PROFINET I/O points per VIM2, supporting large-scale distributed architectures

Typical Application Scenarios

1. Offshore Oil & Gas Production

Challenge: Integrate FMC Technologies subsea TPUs with topside DeltaV control systems across 5km umbilical distances
Solution: SE4026 FMC722 protocol driver connects up to 5 TPUs handling 6,350 I/O points, providing real-time wellhead monitoring and emergency shutdown coordination
Value: Eliminates proprietary gateway hardware, reduces subsea communication latency by 40%, enables unified HMI for surface and subsea operations

2. Pharmaceutical Batch Manufacturing

Challenge: Validate complex batch recipes during FAT without physical reactor vessels, pumps, or analyzers
Solution: DeltaV Mimic software with SE4026 emulates 64 I/O modules including FOUNDATION Fieldbus transmitters and valve positioners, creating virtual plant environment
Value: Compress FAT schedules from 3 weeks to 5 days, identify control logic errors before site installation, train operators on actual DCS interface

3. Chemical Plant Modernization

Challenge: Preserve existing Rockwell ControlLogix PLCs controlling motor control centers while migrating to DeltaV supervisory control
Solution: Rockwell PLC Scanner protocol reads/writes 2,000 tags across 12 CompactLogix controllers via embedded DF1 messaging
Value: Avoid $500K+ PLC replacement costs, maintain OEM motor starter warranties, achieve single-pane-of-glass operations visibility

4. Power Generation Load Balancing

Challenge: Coordinate 8 Siemens S7-1500 PLCs managing turbine auxiliaries with DeltaV boiler controls
Solution: PROFINET driver establishes deterministic 10ms cyclic data exchange for real-time load demand signals and trip interlocks
Value: Improve grid response time by 35%, prevent cascade trips through coordinated shutdown sequences, enable predictive maintenance analytics

5. Water Treatment SCADA Integration

Challenge: Connect 45 remote lift stations with Modbus RTU PLCs to centralized DeltaV SCADA over fiber Ethernet
Solution: Modbus TCP driver polls 192 remote devices every 2 seconds, aggregating flow rates, levels, and pump status
Value: Replace aging radio telemetry, reduce alarm response time from 15 minutes to 30 seconds, support regulatory compliance reporting

Technical Parameters & Selection Guide

Selection Criteria

Choose SE4026 VIM2 when you need:

• Offline control strategy validation using DeltaV Mimic simulation tools
• Integration of non-DeltaV Ethernet devices (PLCs, drives, weigh scales, analyzers)
• Multi-vendor automation architectures requiring protocol translation
• Subsea production system connectivity via FMC722 protocol
• Redundant I/O gateway configurations for high-availability applications

System Prerequisites: DeltaV v11.3 or higher, one 2-wide power/controller carrier, dedicated system power supply. Simulation requires DeltaV Mimic with Railbus Driver license. Ethernet I/O requires protocol-specific driver licenses (IOD-4111 through IOD-4117).

Extended Functions

Advanced Diagnostics & Monitoring

Six-LED status array provides instant visibility into module health: Power (green), Error (red), Active (green), Standby (amber), Network Activity (green), Controller I/O (green). Web-based diagnostics interface accessible via embedded HTTP server displays real-time protocol statistics, device connection status, and memory utilization without DeltaV Explorer access.

IoT & Cloud Integration Pathways

When paired with DeltaV Edge Environment gateways, SE4026-connected devices can publish data to Azure IoT Hub, AWS IoT Core, or OPC UA servers for advanced analytics, machine learning model training, and enterprise MES/ERP integration. MQTT bridging enables lightweight telemetry streaming to cloud historians without impacting control network bandwidth.

Customization & Special Configurations

Factory-configurable options include extended temperature range modules (-55°C to +70°C), enhanced EMI shielding for high-noise environments, and custom firmware builds supporting proprietary Ethernet protocols. Consult NINERMAS engineering team for application-specific adaptations including dual-homed network architectures and VLAN segmentation strategies.

Delivery & Service Guarantee

Lead Time: Standard configurations ship within 3-5 business days from Hong Kong distribution center. Custom firmware or extended-spec modules require 2-3 weeks. Expedited air freight available for emergency shutdowns or project delays.

Warranty Coverage: 24-month manufacturer defect warranty covering materials and workmanship. Advance replacement program ensures 48-hour module swap for critical applications. Warranty excludes damage from improper installation, electrical surges, or unauthorized firmware modifications.

Technical Support: Lifetime access to NINERMAS automation specialists for configuration assistance, troubleshooting, and integration planning. Remote diagnostic sessions available via TeamViewer or Zoom. On-site commissioning support quoted separately for complex multi-protocol deployments.

Documentation Package: Every SE4026 ships with product datasheet, quick-start guide, VIMNet Explorer user manual, protocol driver configuration templates, and DeltaV system integration checklist. Firmware update files and release notes accessible via secure customer portal.

Frequently Asked Questions

Can the SE4026 VIM2 operate both simulation and Ethernet I/O functions simultaneously?

Yes, the 48MB user memory and dual-core processor architecture allow concurrent operation of DeltaV Mimic simulation (slots 57-64) and Ethernet protocol drivers. However, total signal count must remain within memory limits—approximately 8,000 simulated I/O points plus 10,000 Ethernet signals depending on protocol overhead.

What network infrastructure is required for 256-device EtherNet/IP configurations?

Managed industrial Ethernet switches with IGMP snooping, QoS prioritization, and VLAN support are essential. Allocate minimum 10Mbps sustained bandwidth per VIM2 port. For redundant configurations, implement Parallel Redundancy Protocol (PRP) or Device Level Ring (DLR) topologies. Avoid daisy-chaining more than 32 devices per switch to prevent broadcast storms.

How does the SE4026 compare to traditional Modbus gateways in terms of performance?

Unlike standalone gateways requiring separate configuration tools and network hops, the VIM2 integrates directly into DeltaV control strategies with native function block support. Typical scan rates: Modbus TCP 100ms (vs. 500ms for external gateways), EtherNet/IP 10ms (vs. 50ms), eliminating 200-400ms latency penalties. Single-point configuration in DeltaV Explorer reduces commissioning errors by 75%.

What are the power supply requirements for redundant VIM2 installations?

Each SE4026 draws 1.4A @ 5V DC (7W). Redundant pairs require 2.8A total capacity from the 2-wide carrier power supply. Ensure system power supply provides minimum 15W headroom above controller + VIM2 consumption to prevent brownout conditions during network storms or firmware updates. Use SE4027 redundancy kit's dedicated power distribution harness.

Can I upgrade existing VIM1 modules to VIM2 functionality?

No, VIM1 and VIM2 use different hardware architectures and are not field-upgradeable. However, VIM2 maintains backward compatibility with VIM1 configuration files for Modbus TCP and EtherNet/IP protocols. Migration path: export VIM1 device database, import to VIM2 VIMNet Explorer, validate signal mappings, perform hot-swap during scheduled maintenance window.

What cybersecurity features protect the SE4026 from network-based attacks?

Firmware includes stateful packet inspection, MAC address filtering, and port-level access control lists. Supports 802.1X network authentication when paired with RADIUS servers. Disable unused protocol drivers to minimize attack surface. For Defense-in-Depth strategies, deploy VIM2 behind industrial firewalls with unidirectional gateways isolating control networks from enterprise IT infrastructure.

Take the Next Step

Ready to eliminate integration barriers in your DeltaV automation project? Contact our technical sales team for application-specific sizing, protocol driver licensing guidance, and delivered pricing. Request a VIMNet Explorer demo to experience the configuration simplicity firsthand, or schedule a consultation to review your multi-vendor integration architecture.

Order SE4026 VIM2 today and receive complimentary access to our DeltaV Integration Best Practices webinar series, covering Modbus optimization, EtherNet/IP troubleshooting, and redundancy design patterns.
