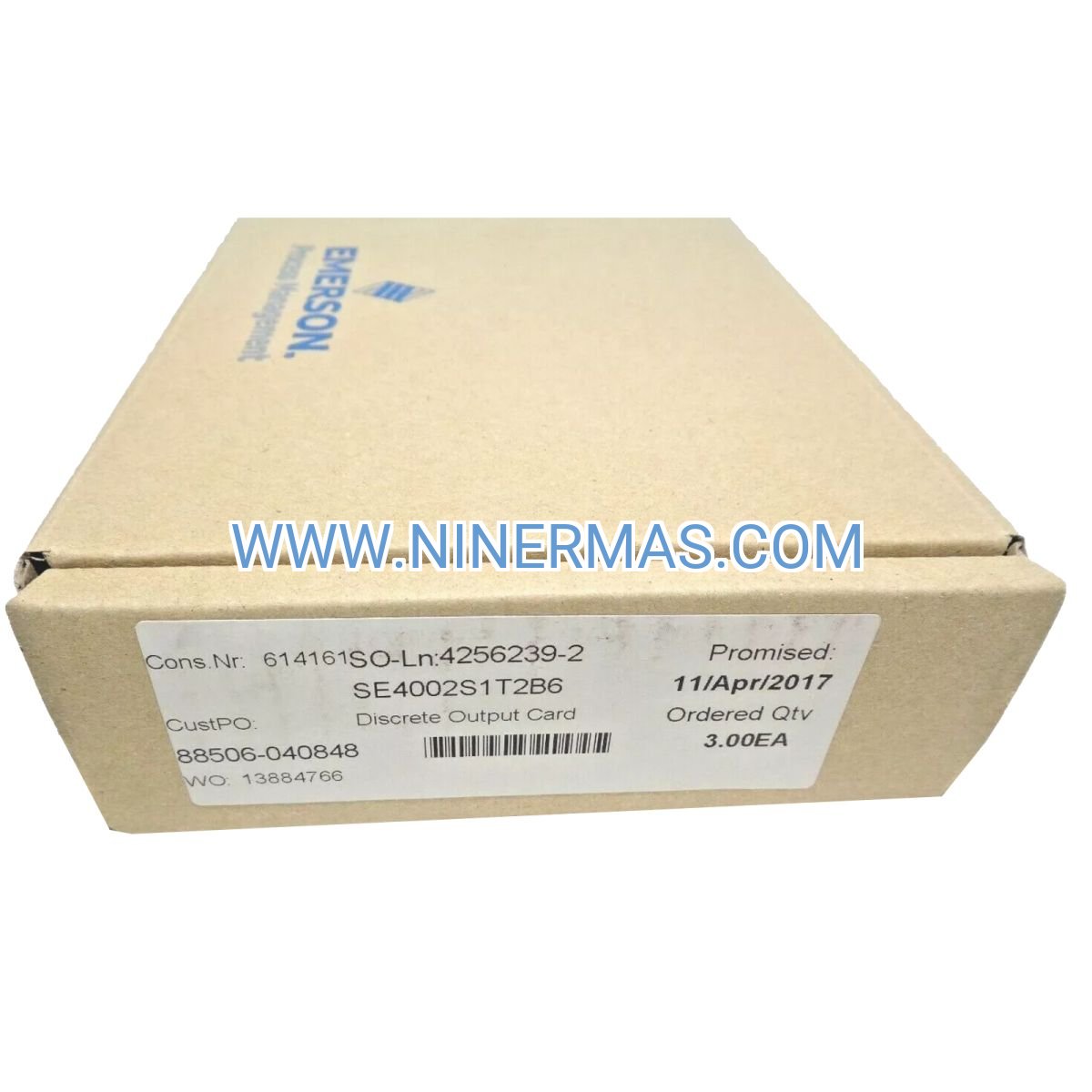

SE4002S1T2B6 Industrial-Grade Discrete Output Module (32-Channel 24V DC)

The SE4002S1T2B6 represents a field-proven solution for high-density discrete output control within Emerson DeltaV S-series architectures. Engineered for process manufacturers requiring reliable on/off switching of solenoid valves, motor contactors, alarm panels, and pneumatic actuators, this module delivers 32 independent channels of 24V DC high-side sourcing with comprehensive fault diagnostics and hot-swap serviceability.

Designed for continuous operation in harsh industrial environments—from chemical processing plants to water treatment facilities—the SE4002S1T2B6 combines robust electrical isolation, intelligent load monitoring, and fail-safe default states to ensure operational integrity during normal and abnormal plant conditions. Integration with DeltaV control networks enables centralized configuration, real-time diagnostics, and predictive maintenance workflows that reduce unplanned downtime.

Whether you're upgrading legacy relay panels, expanding existing DeltaV systems, or designing greenfield automation projects, this output card provides the channel density, diagnostic intelligence, and environmental resilience demanded by modern process control applications. Contact our technical team for application-specific guidance and delivery timelines.

Key Features & Technical Benefits

→ 32 Independent Output Channels
Maximize cabinet space efficiency with high-density channel architecture—control twice the field devices per card slot compared to 16-channel alternatives, reducing hardware costs and simplifying panel layouts.

→ Intelligent Fault Detection
Built-in diagnostics continuously monitor each channel for short-circuit conditions, open-load failures, and overcurrent events. Real-time fault reporting through DeltaV enables rapid troubleshooting and reduces mean time to repair (MTTR) by up to 40%.

→ High-Side 24V DC Switching
Sourced output architecture provides fail-safe operation—all outputs default to de-energized state during power loss or controller faults, ensuring safe plant shutdown sequences without additional safety relays.

→ 1500V Galvanic Isolation
Channel-to-backplane isolation protects control system electronics from field-side electrical transients, ground loops, and voltage surges common in industrial power distribution networks.

→ Hot-Swappable Design
Replace failed modules during live operation without system shutdown or process interruption. CHARM I/O interface automatically recognizes replacement cards and restores configuration parameters from controller memory.

→ Extended Temperature Range
Qualified for -40°C to +70°C ambient operation with conformal coating protection against moisture, dust, and corrosive atmospheres—ideal for outdoor enclosures and non-climate-controlled facilities.

Industrial Application Scenarios

Chemical Batch Processing
Control pneumatic valve manifolds for ingredient dosing, reactor charging, and product transfer sequences. The module's fast response time (<10ms activation) ensures precise timing for recipe-driven batch operations, while diagnostic feedback detects valve actuator failures before they impact product quality.

Water & Wastewater Treatment
Operate pump motor starters, chemical feed systems, and clarifier mechanisms across distributed lift stations and treatment plants. High-side switching eliminates the need for intermediate relay panels, reducing installation costs by 25-35% compared to traditional hardwired architectures.

Oil & Gas Separation
Manage emergency shutdown valves, level control systems, and compressor interlocks in hazardous area applications. SIL 2 certification supports safety instrumented function (SIF) deployment for overpressure protection and fire & gas detection responses.

Power Generation
Interface with turbine control systems, boiler feedwater regulation, and emissions monitoring equipment. The module's transient suppression circuitry withstands inductive kickback from large solenoid coils and motor contactors without degradation.

Food & Beverage Manufacturing
Drive CIP (clean-in-place) valve sequences, conveyor systems, and packaging line controls. Conformal coating meets sanitary design requirements for washdown environments, while diagnostic alerts prevent contamination risks from stuck valves.

Technical Specifications & Selection Guide

Selection Criteria: Choose the SE4002S1T2B6 when your application requires more than 16 discrete outputs per controller location, when field devices operate at 24V DC nominal voltage, or when diagnostic feedback is critical for maintenance planning. For applications requiring lower current loads (<100mA per channel) or AC voltage switching, consult alternative I/O module families.

Extended Capabilities & System Integration

DeltaV Control Network Integration: The module communicates via the CHARM I/O carrier, supporting distributed control strategies across multiple controller nodes. Configuration through DeltaV Explorer software enables graphical function block programming, alarm management, and historical trending of output states.

Predictive Maintenance Features: Continuous monitoring of load current profiles enables early detection of degrading solenoid coils, worn motor contactors, and corroded wiring connections. Trend analysis of activation current signatures can predict failures 2-4 weeks before complete device breakdown.

Redundancy Options: Deploy in redundant I/O configurations for critical control loops requiring >99.9% availability. Automatic failover to backup modules occurs within 100ms of primary card failure, maintaining process continuity during maintenance activities.

Third-Party Device Compatibility: Interfaces with industry-standard 24V DC devices from manufacturers including ASCO, Burkert, Festo, SMC, and Parker. Verify device coil resistance and inrush current specifications against module ratings to ensure compatibility.

Delivery Timeline & Service Commitments

Standard Delivery: 3-5 business days for in-stock units via expedited courier service to major industrial regions. Extended lead times may apply for bulk orders (>10 units) or custom configuration requests.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service—receive replacement unit before returning defective hardware to minimize downtime.

Technical Support: Access to application engineers with DeltaV system expertise for pre-sales consultation, installation guidance, and troubleshooting assistance. Support available via email, phone, and remote diagnostic sessions.

Documentation Package: Each module ships with installation manual, wiring diagrams, configuration templates, and compliance certificates (CE, UL, CSA). Digital resources include CAD drawings, 3D STEP models, and sample control logic.

Frequently Asked Questions

How does the SE4002S1T2B6 connect to existing DeltaV S-series controllers?
The module installs in any available CHARM I/O carrier slot and auto-configures through the DeltaV control network. No manual addressing or DIP switch configuration required—controller automatically recognizes card type and assigns I/O points based on slot position.

What is the maximum cable distance between the output card and field devices?
Recommended maximum cable run is 300 meters (1000 feet) using 18 AWG shielded twisted-pair wiring. Longer distances may require voltage drop compensation or signal repeaters to maintain reliable switching performance.

Can this module drive inductive loads like solenoid valves and relay coils?
Yes—integrated flyback diodes suppress voltage transients from inductive load de-energization. Each channel withstands repetitive inductive kickback without degradation. For loads exceeding 0.5A, use external power relays or contactors.

Does the SE4002S1T2B6 support remote monitoring and diagnostics?
Full diagnostic data streams to DeltaV operator stations and historian databases in real time. Configure alarm notifications for fault conditions, and access channel status remotely through DeltaV Mobile or web-based HMI interfaces.

What certifications does this output card hold for hazardous area installations?
The module carries Class I Division 2 / Zone 2 approvals for installation in non-incendive circuits within hazardous locations. For Division 1 / Zone 1 applications, install in purged enclosures or use intrinsically safe barrier interfaces.

How do I replace a failed SE4002S1T2B6 module without shutting down the process?
The hot-swap procedure involves: (1) Place controller in maintenance mode, (2) Remove failed card from carrier, (3) Insert replacement card, (4) Controller auto-downloads configuration, (5) Resume normal operation. Total swap time typically under 2 minutes with zero process interruption.
