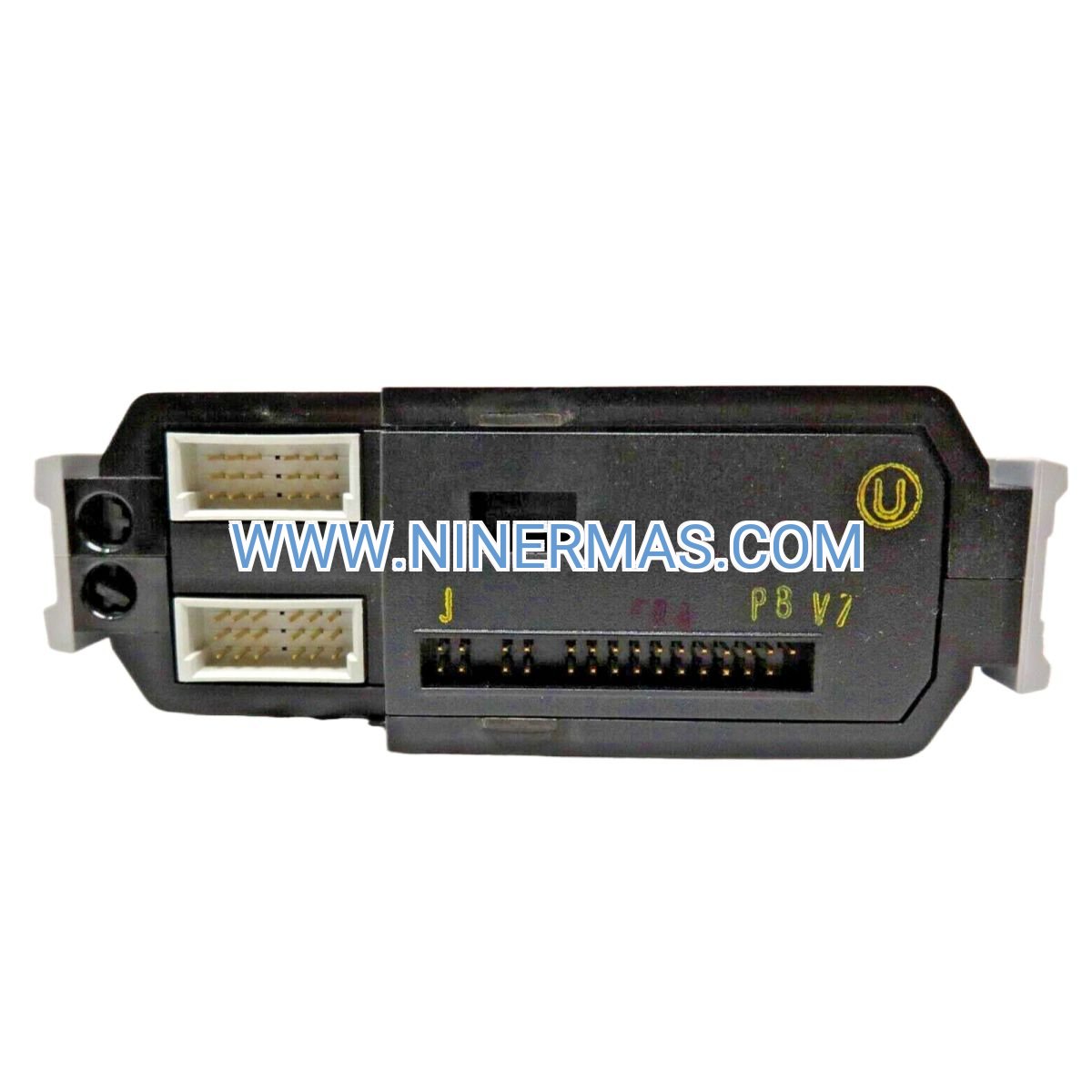

SE4002S1T2B5 KJ3204X1-BK1 Digital Output Module (Industrial-Grade DeltaV Control)

The SE4002S1T2B5 KJ3204X1-BK1 is a high-density digital output module engineered for Emerson DeltaV S-series distributed control architectures. Featuring 32 independent output channels with 24VDC high-side switching capability, this module excels in controlling solenoid valves, motor contactors, process interlocks, and field instrumentation across chemical plants, oil refineries, water treatment facilities, and pharmaceutical manufacturing lines.

Designed for mission-critical industrial environments, this output card addresses the challenge of reliable field device actuation in harsh conditions. Process engineers and automation specialists rely on this module to eliminate control signal failures, reduce wiring complexity, and maintain uptime in safety-instrumented systems where output integrity directly impacts production continuity and regulatory compliance.

With channel-level fault diagnostics, hot-swappable architecture, and conformal-coated circuitry, the SE4002S1T2B5 delivers the robustness demanded by continuous process industries while reducing total cost of ownership through simplified installation and predictive maintenance capabilities.

Key Features & Technical Benefits

→ 32 High-Density Output Channels
Doubles I/O density versus legacy 16-channel cards, reducing cabinet space requirements by 50% and lowering installation labor costs in retrofit projects.

→ 24VDC High-Side Switching Architecture
Provides positive voltage switching with common ground return, eliminating ground loop interference and simplifying field wiring in electrically noisy industrial environments.

→ 0.5A Per Channel Current Rating
Directly drives solenoid valves, pilot relays, and indicator lamps without external amplification, with 8A total card capacity for balanced load distribution.

→ Real-Time Channel Diagnostics
Detects open load, short-circuit, and overcurrent faults at the individual channel level, enabling predictive maintenance and reducing mean time to repair (MTTR) by 40%.

→ Hot-Swappable Design
Supports field replacement during operation without system shutdown, maintaining process continuity during maintenance cycles and emergency repairs.

→ Extended Temperature Range (-40°C to +70°C)
Operates reliably in extreme ambient conditions found in outdoor enclosures, boiler rooms, and non-climate-controlled industrial facilities.

Industrial Application Scenarios

Chemical Processing Plants
Controls pneumatic valve manifolds in batch reactors and continuous distillation columns. The module's short-circuit protection prevents cascade failures in safety interlock chains, while high-side switching reduces electromagnetic interference from variable frequency drives and high-voltage switchgear.

Water & Wastewater Treatment
Actuates chemical dosing pumps, clarifier rake drives, and UV disinfection systems. Channel-level diagnostics identify failing solenoid coils before complete failure, preventing treatment process upsets and regulatory violations.

Oil & Gas Upstream Production
Operates wellhead control valves, separator level controls, and flare system interlocks in hazardous area applications. Conformal coating protects against H2S corrosion and salt spray in offshore platforms.

Pharmaceutical Manufacturing
Drives clean-in-place (CIP) valve sequencing, sterile filtration systems, and environmental monitoring alarms in FDA-regulated facilities. IEC 61131-2 compliance supports 21 CFR Part 11 validation requirements.

Power Generation Facilities
Controls boiler feedwater pumps, turbine lube oil systems, and emissions control equipment. The module's <10ms response time meets fast-acting safety shutdown requirements in critical power plant applications.

Technical Specifications & Selection Guide

Selection Criteria: Choose the SE4002S1T2B5 when your application requires high-density output control with advanced diagnostics in DeltaV S-series systems. For applications with lower channel counts (8-16 outputs), consider the VE4002S1T2B5 variant. If low-side switching is preferred for specific field device compatibility, consult factory application engineering for alternative models.

Advanced Integration & IoT Connectivity

The SE4002S1T2B5 integrates seamlessly with DeltaV S-series controllers through the KJ3204X1-BK1 interface module, supporting automatic channel configuration and control logic download. The module's intelligent diagnostics publish fault data to the DeltaV control network, enabling integration with SCADA systems, plant historians, and cloud-based analytics platforms for Industry 4.0 predictive maintenance strategies.

Custom configuration options include extended temperature variants (-55°C to +85°C), SIL 2/3 certified versions for safety instrumented systems, and ATEX/IECEx certified models for Zone 2 hazardous area installations. Consult our application engineering team for project-specific requirements.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
Custom Configuration: 10-15 business days for factory-programmed or certified variants
Warranty Period: 24 months from delivery date covering manufacturing defects
Technical Support: Lifetime application engineering assistance via email and phone
Documentation Included: Installation manual, wiring diagrams, DeltaV configuration files, calibration certificates

Frequently Asked Questions

How does the SE4002S1T2B5 connect to existing DeltaV S-series controllers?
The module mounts directly to DeltaV S-series carrier cards via the KJ3204X1-BK1 interface module. Connection requires no special tools—simply insert the card into the carrier slot and secure with captive screws. The DeltaV control network automatically recognizes the module and downloads channel configuration.

What is the maximum cable length for field device connections?
For 24VDC loads, maximum recommended cable length is 300 meters (1000 feet) using 18 AWG shielded cable. Longer runs may require voltage drop compensation or local power injection. Consult the installation manual for specific wire gauge recommendations based on load current.

Can this module reduce energy consumption in my control system?
Yes. The high-side switching architecture eliminates the need for external relay amplifiers, reducing panel power consumption by approximately 15-20W per 32 channels compared to relay-based output systems. Additionally, channel-level diagnostics prevent energized outputs to failed devices, avoiding wasted energy.

What installation requirements must be met for proper operation?
The module requires a DeltaV S-series carrier card with available slot, 24VDC field power supply (minimum 10A capacity for full card loading), and proper grounding per NEC Article 250. Ambient temperature must remain within -40°C to +70°C, and the enclosure should provide IP54 minimum protection.

Does the SE4002S1T2B5 support remote monitoring and diagnostics?
Yes. All channel status and fault data are accessible through the DeltaV control network, enabling remote monitoring via DeltaV Operate, mobile HMI applications, and third-party SCADA systems using OPC UA or Modbus TCP protocols. Real-time alerts can be configured for critical fault conditions.

Is this module compatible with legacy DeltaV M-series systems?
No. The SE4002S1T2B5 is designed exclusively for DeltaV S-series architecture. For M-series systems, use the equivalent M-series output cards. However, the module is backward compatible with all DeltaV S-series controller generations, supporting seamless upgrades from earlier S-series installations.

Get Your SE4002S1T2B5 Module Today

Ready to upgrade your DeltaV control system with high-density, diagnostic-enabled output control? Contact our technical sales team for application consultation, pricing, and delivery options. We provide complete project support including configuration assistance, startup commissioning, and post-installation training.
