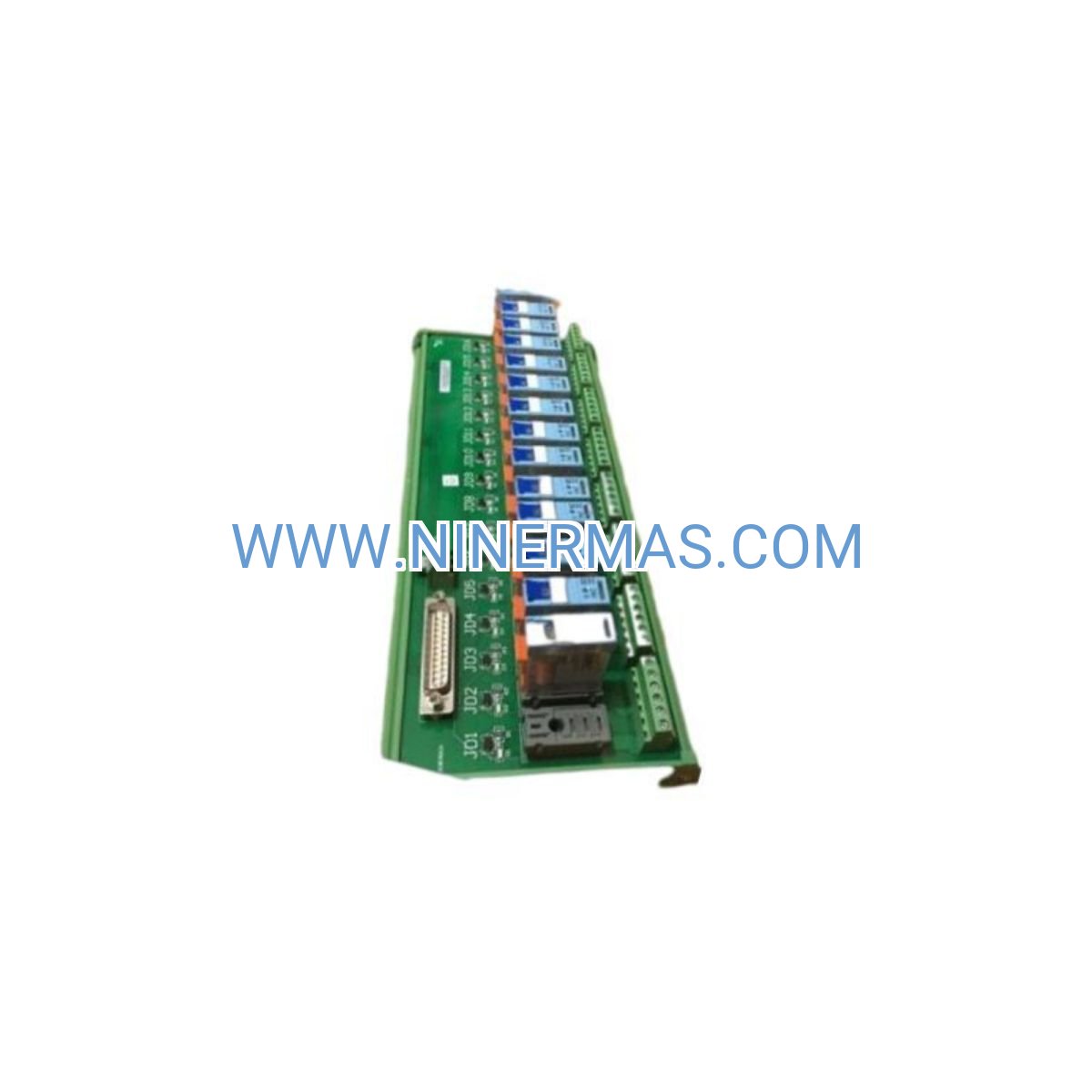

Industrial Relay Module R-S108V01 (16-Channel 24VDC Control Solution)

The R-S108V01-16-24VDC-C5-1 represents a professional-grade relay switching interface designed for Emerson Ovation distributed control architectures. This compact module transforms digital controller commands into isolated mechanical relay closures, bridging the gap between low-voltage logic circuits and high-power field devices across industrial facilities.

Built for mission-critical applications in process industries, power generation, and infrastructure control, this 16-output module delivers the electrical isolation, diagnostic intelligence, and mechanical reliability required for continuous operation in demanding environments. Each channel operates independently with visual status feedback and comprehensive fault reporting to your supervisory system.

Whether you're retrofitting legacy equipment, expanding existing Ovation installations, or designing new control panels, the R-S108V01 provides a proven, field-tested solution that reduces installation time while maximizing system uptime and operational safety.

Core Capabilities & Technical Advantages

→ 16 Independent Relay Channels: Each output features Form C (SPDT) contacts rated for 2A switching capacity, supporting both normally-open and normally-closed wiring configurations for maximum application flexibility

→ Robust Electrical Isolation: 1500VAC isolation between field circuits and controller logic protects sensitive DCS components from voltage transients, ground loops, and electrical noise common in industrial environments

→ 24VDC Control Architecture: Operates from standard industrial control voltage (16-30VDC range) with built-in reverse polarity protection and surge suppression for enhanced reliability

→ Hot-Swap Serviceability: Field-replaceable design allows module removal and installation during system operation without disrupting active control loops or requiring controller shutdown

→ Intelligent Diagnostics: Per-channel LED indicators combined with backplane health reporting enable rapid troubleshooting and predictive maintenance scheduling

→ Hazardous Area Certification: UL, CE, FM, and ATEX Zone 2 approvals qualify the module for installation in classified locations and global industrial markets

Industry-Specific Application Scenarios

Chemical & Petrochemical Processing:
Control pneumatic valve actuators, emergency isolation valves, and reactor cooling systems in batch and continuous processes. The module's fast response time (≤10ms operate) ensures precise timing for sequential operations while electrical isolation prevents process upsets from electrical faults.

Power Generation & Cogeneration:
Manage auxiliary equipment including lubrication pumps, cooling tower fans, fuel gas valves, and generator excitation systems. Form C contacts support both energize-to-run and de-energize-to-trip safety logic required in turbine protection schemes.

Water & Wastewater Treatment:
Operate chemical metering pumps, clarifier scrapers, UV disinfection systems, and blower motor starters. High channel density reduces panel space requirements in crowded pump stations and treatment facilities.

Food & Beverage Manufacturing:
Switch CIP (clean-in-place) valve manifolds, mixer motors, conveyor drives, and packaging line actuators. The module's sealed relay design withstands washdown environments and temperature cycling common in food processing plants.

Safety Instrumented Systems (SIS):
Implement SIL 2-rated emergency shutdown logic with hard-wired relay contacts that provide physical separation between process control and safety functions per IEC 61508 requirements.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the R-S108V01 when your application requires mechanical relay isolation rather than solid-state switching. Ideal for loads with high inrush current (motor starters, solenoid valves), applications requiring visible contact position verification, or systems where fail-safe operation depends on physical contact separation. For faster switching speeds (<1ms) or higher cycle rates (>10 operations/second), consider solid-state output modules.

Advanced Integration Features

✓ Plug-and-Play Configuration: Auto-discovery upon module insertion into Ovation I/O base—controller automatically recognizes hardware type and channel count without manual setup

✓ Removable Terminal Blocks: Pre-wired terminals disconnect from module body for bench testing and simplified field wiring during installation or replacement

✓ Backplane Communication: High-speed data exchange with Ovation controller via proprietary backplane protocol—no external communication wiring required

✓ Developer Studio Integration: Configure I/O tags, alarm limits, and diagnostic parameters directly within Emerson Ovation Developer Studio software environment

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier with tracking
Custom Configuration: 7-10 business days for factory-programmed modules or special terminal arrangements
Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship
Technical Support: Lifetime access to application engineers for integration assistance, troubleshooting, and configuration guidance
Documentation Package: Installation manual, wiring diagrams, CAD drawings, and sample control logic included with shipment

Frequently Asked Questions

Q: How do I connect this relay output module to my existing Ovation controller?
A: The R-S108V01 mounts directly onto an Ovation I/O base (part of the Ovation chassis system). Simply slide the module into an available slot—the backplane connector automatically establishes communication with your controller. Field wiring connects to the removable terminal block on the module front.

Q: What is the maximum load capacity per relay channel?
A: Each channel is rated for 2 amperes at either 30VDC or 125VAC resistive loads. For inductive loads (motors, solenoids), derate to 80% of rated current and use external suppression (flyback diodes for DC, RC snubbers for AC) to maximize contact life.

Q: Can this module reduce energy consumption in my control system?
A: While the module itself consumes minimal power (approximately 3W), its primary energy benefit comes from enabling precise on/off control of high-power equipment. By eliminating unnecessary runtime of pumps, fans, and heaters through automated sequencing, typical installations achieve 15-30% reduction in auxiliary equipment energy costs.

Q: What are the installation requirements for hazardous area applications?
A: For ATEX Zone 2 or FM Class I Division 2 installations, mount the module in an approved enclosure rated for the area classification. Ensure all field wiring uses appropriate cable glands and conduit seals. The module itself requires no special installation procedures beyond standard Ovation mounting practices.

Q: Does the module support remote monitoring and diagnostics?
A: Yes—all relay status, coil health, and fault conditions report to the Ovation controller in real-time. You can monitor these parameters through Ovation operator stations, trend historical data, and configure alarms for predictive maintenance. Integration with plant-wide SCADA or MES systems is possible via OPC connectivity.

Q: How quickly can I replace a failed module during production?
A: The hot-swap design allows module replacement in under 2 minutes without system shutdown. Simply disconnect the terminal block, release the module retention clips, slide out the old module, insert the new one, and reconnect the terminal block. The controller automatically recognizes the replacement and resumes normal operation.

Take the Next Step

Ready to enhance your Ovation DCS reliability with proven relay output technology? Contact our application specialists for system integration support, volume pricing, or technical specifications tailored to your facility requirements. We provide same-day quotations and can arrange factory acceptance testing for critical applications.
