PCM-11 Programmable Motion Controller (Industrial-Grade FX Servo Enhancement)

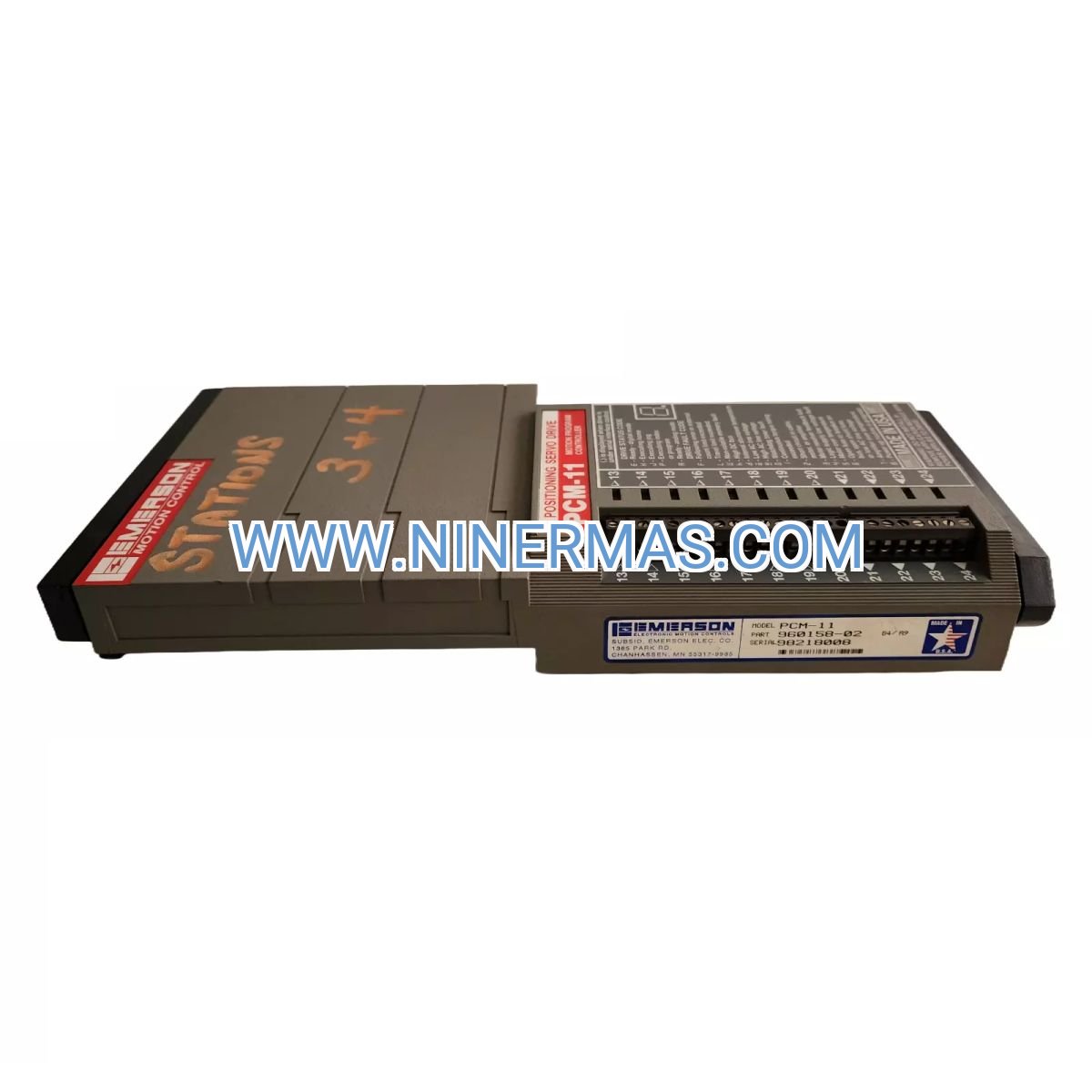

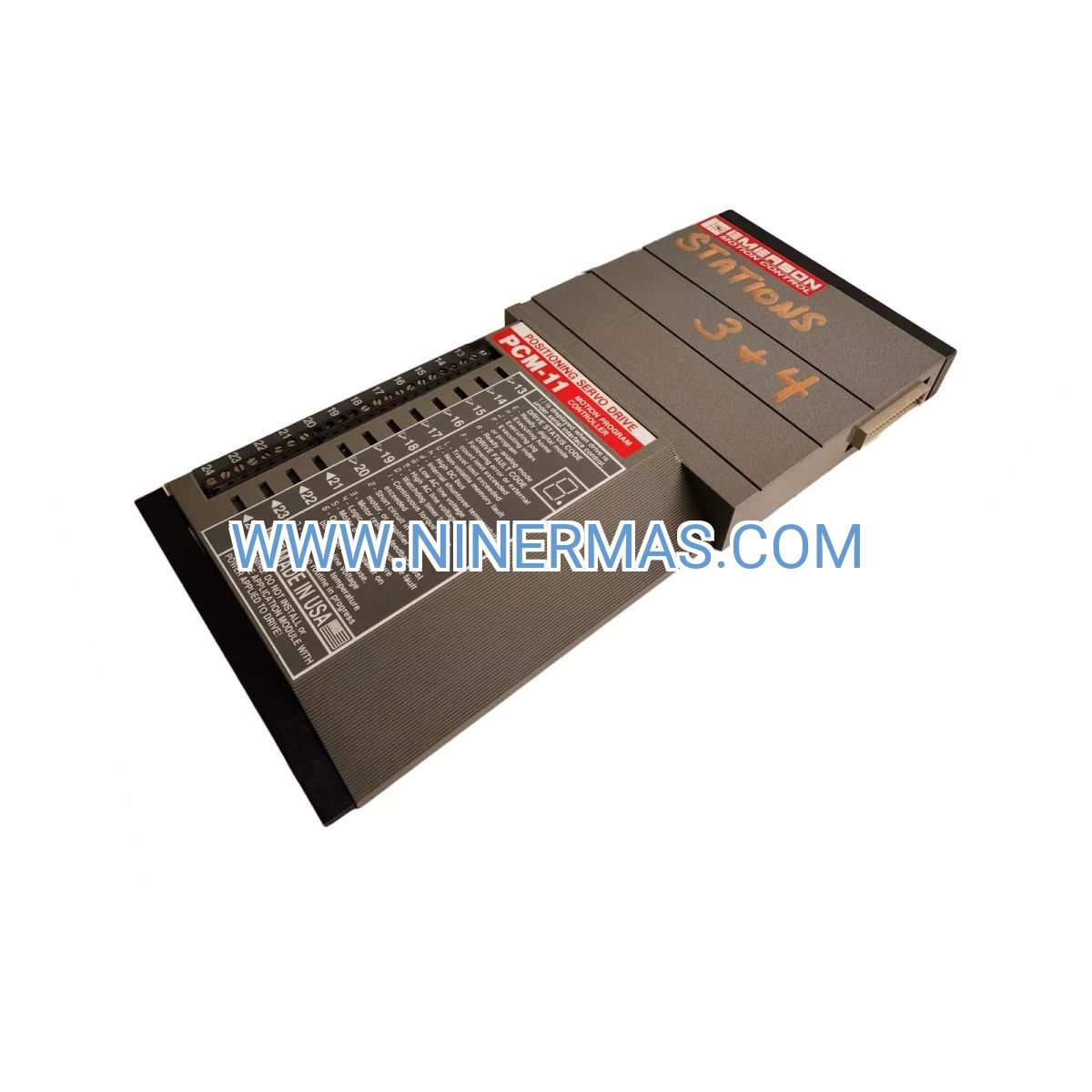

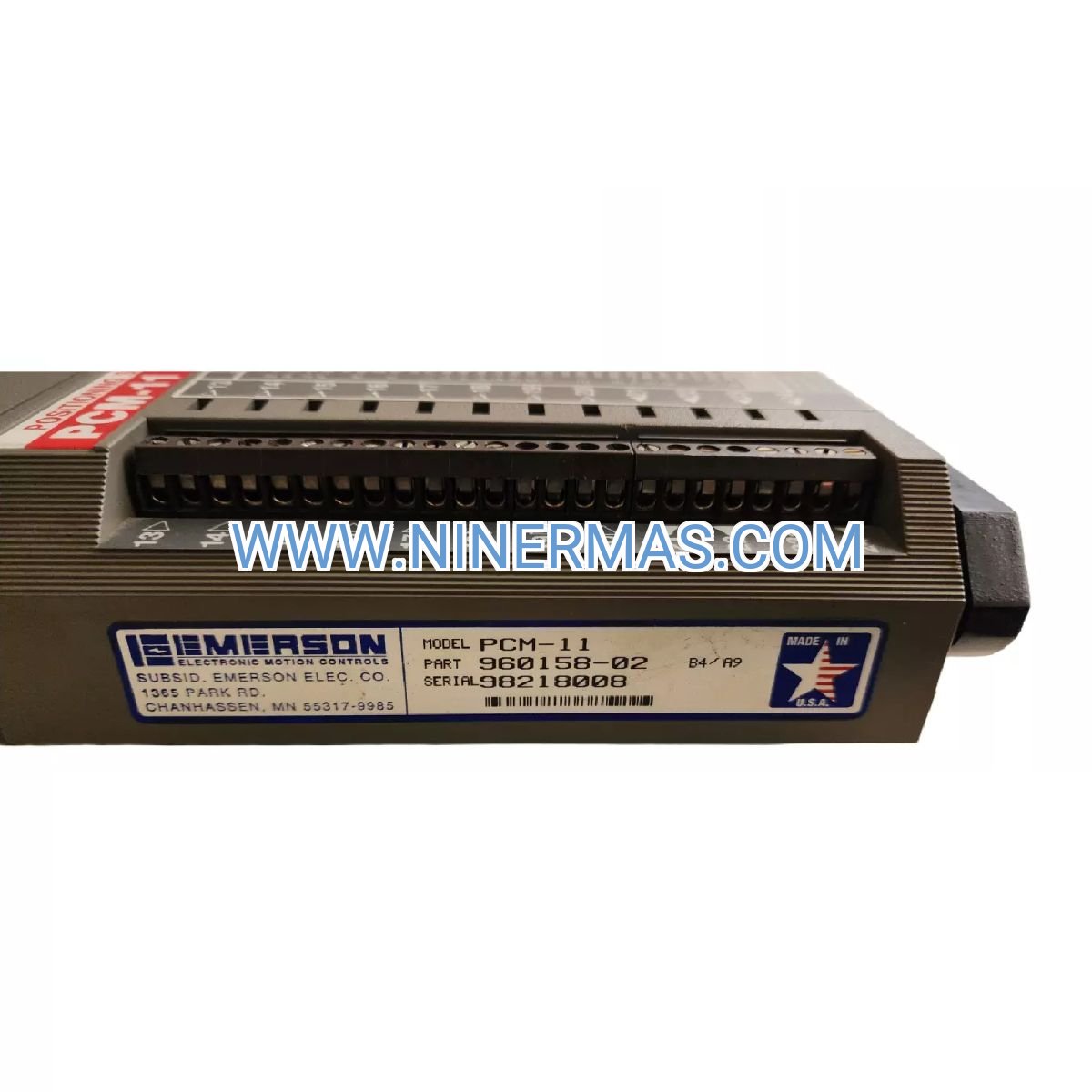

The Emerson PCM-11 (Part No. 960158-02) is a plug-in motion programming module that transforms FX Positioning Servo Drives into fully programmable motion systems. Designed for OEMs and system integrators, this controller delivers expanded I/O capacity, multi-index motion sequencing, and electronic gearing capabilities—eliminating the need for external PLCs in single-axis and coordinated multi-axis applications.

Built for demanding industrial environments, the PCM-11 addresses critical automation challenges: limited I/O on base servo drives, complex motion profile requirements, and the need for synchronized multi-machine operations. Target users include packaging machinery builders, material handling integrators, and assembly automation engineers who require precise, repeatable motion control with minimal programming overhead.

Key advantages include front-mounted installation with no additional panel space, optically isolated I/O for noise immunity, and non-volatile memory retention of motion programs. The module supports up to 256 programmable motion indexes with position-triggered outputs, making it ideal for applications ranging from simple pick-and-place to complex web handling and registration control.

Core Capabilities & Business Value

→ Expanded I/O Architecture: 8 optically isolated digital inputs and 4 digital outputs (10.5-30 VDC) double the standard FX drive I/O capacity, enabling direct connection of limit switches, sensors, and auxiliary equipment without external interface modules—reducing system cost and wiring complexity.

→ 256-Index Motion Programming: Store complex motion sequences with programmable position, velocity, acceleration, and dwell parameters for each index. Eliminates repetitive PLC programming and enables rapid product changeovers through software parameter adjustments rather than mechanical modifications.

→ Electronic Gearing & Ratio Control: Synchronize slave axes to master encoders with programmable gear ratios for flying shear, rotary knife, and registration correction applications. Dynamic ratio changes during operation support variable-speed production lines without mechanical gearbox adjustments.

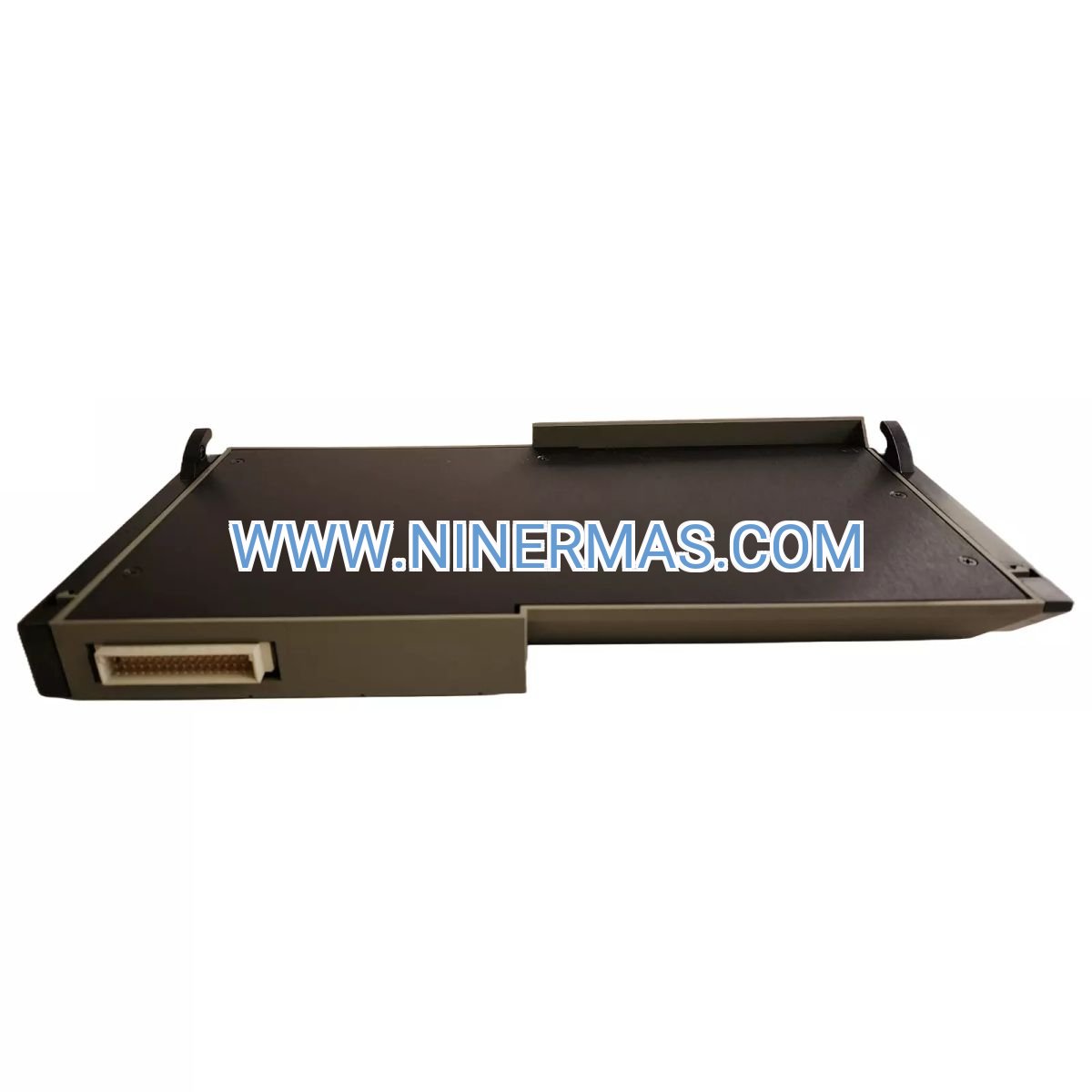

✓ Plug-and-Play Integration: 48-pin connector provides power, communication, and control signals directly from the FX drive. Two locking arms ensure vibration-resistant mounting without additional hardware, reducing installation time by 60% compared to external motion controllers.

✓ Suspend/Resume Functionality: Pause motion sequences for operator intervention, quality inspection, or material loading, then resume from exact position without re-homing. Critical for semi-automatic assembly processes and manual-load packaging machines.

✓ Position-Triggered I/O: Activate outputs at specific motion profile positions for coordinated machine sequences—pneumatic actuators, product ejectors, or registration mark sensors—without external timing logic or cam switches.

Industrial Application Scenarios

Packaging Machinery Automation: Form-fill-seal machines, cartoners, and blister pack equipment require precise product positioning and synchronized cutting operations. The PCM-11 executes registration mark tracking with programmable dwell times for sealing operations, while position-triggered outputs coordinate film advance, product insertion, and cutting blade activation. Result: ±0.5mm registration accuracy at speeds up to 120 cycles/minute with 40% faster changeover times compared to mechanical cam systems.

Material Handling & Conveyor Systems: Automated storage/retrieval systems and conveyor indexing applications demand coordinated motion with programmable acceleration profiles. The PCM-11 controls precise shuttle positioning, accumulation table indexing, and transfer station coordination through multi-index motion sequences. Solves the challenge of smooth product transfer across production lines while maintaining throughput rates. Delivers 99.8% positioning repeatability with soft-start/soft-stop profiles that reduce product damage by 35%.

Assembly Line Automation: Press-fit, screw-driving, and component insertion operations require force-controlled motion with position verification. The PCM-11 manages programmable insertion profiles with dwell-time monitoring for quality assurance, while digital inputs confirm part presence before cycle initiation. Addresses the pain point of inconsistent assembly quality in manual operations. Achieves 15% cycle time reduction with zero-defect insertion through programmable force profiles and position feedback.

Web Processing Equipment: Printing presses, laminators, and converting machinery need tension control and cut-to-length precision. The PCM-11 provides electronic line shaft functionality, synchronizing multiple servo axes to a master encoder for registration control across web spans up to 10 meters. Eliminates mechanical shaft complexity and enables on-the-fly registration correction. Maintains ±0.2mm cut accuracy at web speeds exceeding 200 meters/minute.

Technical Parameters & Selection Guide

Selection Criteria: Choose the PCM-11 when your application requires more than 4 digital I/O points, programmable motion sequences beyond simple point-to-point moves, or electronic gearing for multi-axis synchronization. For applications needing only basic positioning with limited I/O, the standard FX drive internal I/O may suffice. For systems requiring more than 256 motion indexes or complex conditional logic, consider upgrading to a dedicated motion controller with the FX drive operating in velocity or torque mode.

Extended Integration Features

IoT & Industry 4.0 Readiness: The PCM-11 supports RS-232/RS-485 serial communication for integration with SCADA systems, HMI panels, and data acquisition platforms. Motion program parameters, I/O status, and diagnostic data can be accessed remotely for predictive maintenance and production analytics. Compatible with Modbus RTU protocol for seamless integration into existing factory automation networks.

Advanced Motion Functions: Beyond basic indexing, the module supports electronic cam profiles for synchronized motion applications, registration input processing for web handling, and multi-speed jog modes for machine setup and troubleshooting. Homing routines offer multiple search strategies including limit switch, home sensor, and encoder index pulse methods.

Customization Options: Factory programming services available for OEM customers requiring pre-configured motion profiles, custom I/O mapping, or application-specific parameter sets. Bulk orders can include custom firmware for specialized motion control algorithms or industry-specific safety interlocks.

Delivery Timeline & Service Guarantee

Standard Delivery: In-stock units ship within 1-2 business days via DHL, FedEx, or UPS with tracking. Typical transit times: 3-5 days to North America/Europe, 5-7 days to Asia-Pacific, 7-10 days to other regions. Expedited shipping available for urgent project requirements.

Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes free replacement or repair, with advance replacement available to minimize downtime. Extended warranty programs available for critical production equipment.

Technical Support: Unlimited email and phone support from motion control specialists with FX drive expertise. Application engineering assistance includes motion profile optimization, I/O wiring diagrams, and troubleshooting guidance. Remote diagnostic support available for complex system integration issues.

Documentation Package: Each unit includes installation manual, programming guide, I/O wiring diagrams, and quick-start configuration examples. Downloadable resources include CAD models, sample motion programs, and application notes for common packaging and material handling scenarios.

Frequently Asked Questions

Q: How does the PCM-11 connect to the FX servo drive for programming and diagnostics?
A: The PCM-11 uses the FX drive's built-in RS-232/RS-485 serial port for configuration and monitoring. Connect a PC running Emerson's FX configuration software via a standard serial cable or USB-to-serial adapter. All motion program parameters, I/O settings, and diagnostic data are accessed through this interface. The 48-pin connector between the PCM-11 and FX drive handles real-time motion control signals automatically.

Q: What is the maximum motion program storage capacity and execution speed?
A: The PCM-11 stores up to 256 motion indexes in non-volatile memory, with each index containing position, velocity, acceleration, deceleration, and dwell time parameters. Program execution speed depends on the motion profile complexity, but typical index-to-index transition times are under 10 milliseconds. For high-speed packaging applications exceeding 200 cycles/minute, consult our application engineers for motion profile optimization.

Q: Can the PCM-11 reduce energy consumption in servo applications?
A: Yes, through optimized acceleration/deceleration profiles that minimize peak current draw and regenerative braking energy. Programmable dwell times allow the servo to enter low-power hold mode during non-motion portions of the cycle, reducing average power consumption by 15-25% compared to constant-velocity operation. Electronic gearing also eliminates mechanical transmission losses in multi-axis systems.

Q: What are the installation requirements and panel space considerations?
A: The PCM-11 mounts directly to the front of the FX servo drive using two locking arms—no additional panel space required. Ensure adequate clearance (minimum 50mm) above the module for I/O wiring access. The module draws power from the FX drive's internal supply; external 24 VDC is required only for I/O circuit operation (typical draw: 100mA plus output loads).

Q: Does the PCM-11 support remote monitoring for predictive maintenance?
A: Yes, via RS-232/RS-485 serial communication. The module reports I/O status, motion program execution state, fault codes, and operational statistics (cycle counts, runtime hours) to SCADA systems or HMI panels. Modbus RTU protocol support enables integration with Industry 4.0 platforms for predictive maintenance analytics based on motion profile deviations and I/O fault trends.

Q: What multi-axis coordination capabilities does the PCM-11 provide?
A: The PCM-11 supports master/slave configurations where multiple FX drives with PCM-11 modules synchronize to a common encoder input. Electronic gearing ratios are programmable from 1:10,000 to 10,000:1 with dynamic ratio changes during operation. Typical applications include flying shear systems, rotary knife cutters, and multi-web printing presses requiring precise registration across multiple axes.

Take the Next Step in Motion Control Automation

Ready to upgrade your FX servo system with programmable motion control? Contact our motion control specialists for application-specific configuration guidance, motion profile optimization, and system integration support. Request a detailed quotation including recommended accessories, programming cables, and technical documentation packages.

Order Now: Add to cart for immediate checkout, or contact our sales team for volume pricing on OEM quantities. Bulk discounts available for system integrators and machinery builders requiring multiple units.
