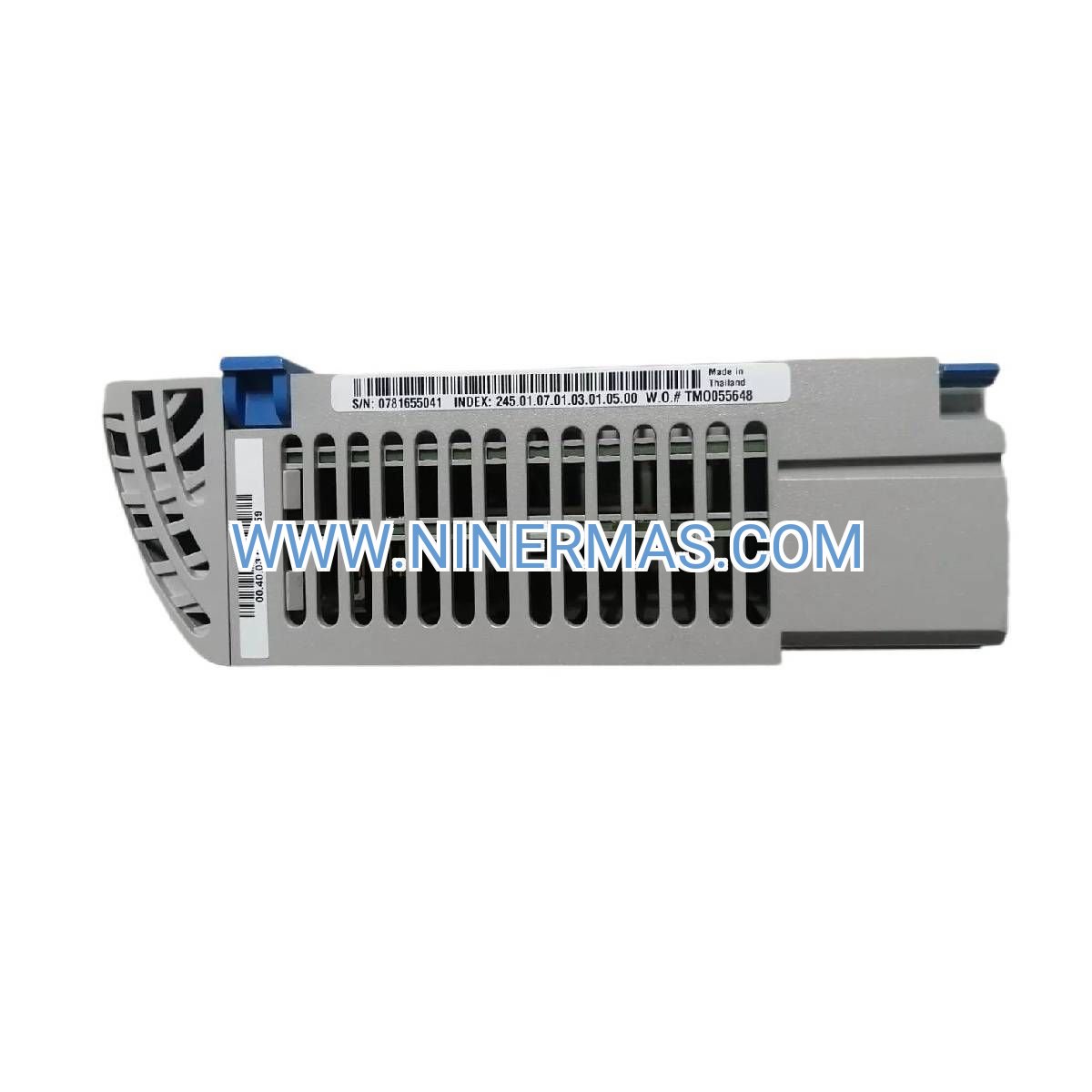

KJ3223X1-BK1 Analog Input Module (Industrial-Grade Multi-Channel Solution)

The Emerson KJ3223X1-BK1 represents a precision-engineered analog input solution designed for mission-critical process control environments. This 16-channel AI module combines advanced HART communication with robust signal processing, delivering reliable measurement data for complex industrial automation systems. Built to withstand harsh operating conditions while maintaining exceptional accuracy, the KJ3223X1-BK1 serves as the cornerstone for intelligent process monitoring across oil & gas, chemical processing, and power generation facilities.

Process engineers and automation specialists rely on this module to bridge field instrumentation with DeltaV distributed control systems, enabling real-time visibility into temperature, pressure, flow, and level measurements. The module's high-density architecture reduces installation footprint while its HART-enabled channels provide bidirectional communication for advanced diagnostics and predictive maintenance strategies.

Whether you're upgrading legacy systems or designing greenfield installations, the KJ3223X1-BK1 delivers the performance, reliability, and scalability demanded by modern industrial operations. Its hot-swappable design ensures continuous operation during maintenance, while comprehensive safety certifications guarantee compliance across global markets.

Core Features & Technical Advantages

→ 16 Differential Analog Inputs
High-density channel configuration reduces cabinet space requirements by up to 40% compared to 8-channel alternatives, lowering installation costs and simplifying wiring infrastructure.

→ HART Protocol Integration
Bidirectional digital communication overlaid on 4-20mA signals enables remote device configuration, calibration verification, and real-time diagnostics without process interruption—reducing maintenance windows by 30%.

→ 16-Bit A/D Conversion
Superior resolution delivers ±0.1% accuracy across the full signal range, ensuring tight process control tolerances for critical applications like reactor temperature management and distillation column optimization.

✓ Channel-to-Channel Isolation
Electrical isolation prevents ground loop interference and cross-talk between measurement circuits, maintaining signal integrity in electrically noisy industrial environments.

✓ Hot-Swappable Architecture
Field-replaceable design allows module exchange during operation without system shutdown, maximizing uptime for continuous process industries.

✓ Extended Temperature Range
Operates reliably from -40°C to +70°C, suitable for outdoor installations, unheated enclosures, and extreme climate conditions without performance degradation.

Application Scenarios & Industry Solutions

Petrochemical Refining Operations
Monitor critical process variables across distillation towers, catalytic crackers, and hydroprocessing units. The module's HART capability enables predictive maintenance on transmitters measuring corrosive fluids, reducing unplanned shutdowns by identifying sensor drift before process upsets occur.

Pharmaceutical Manufacturing
Ensure batch consistency through precise temperature and pressure control in reactors, fermenters, and sterilization systems. The 16-bit resolution supports FDA 21 CFR Part 11 compliance by providing audit-trail-ready measurement data with documented accuracy.

Power Generation Facilities
Integrate with boiler control systems, turbine monitoring, and emissions management applications. Channel isolation protects against electrical transients from high-voltage equipment, while the extended temperature rating suits turbine hall installations.

Water & Wastewater Treatment
Track flow rates, pH levels, and chemical dosing across treatment stages. The module's low power consumption reduces operational costs in solar-powered remote sites, while HART diagnostics enable proactive sensor maintenance.

Food & Beverage Processing
Control pasteurization temperatures, fermentation conditions, and CIP (clean-in-place) cycles with hygienic sensor interfaces. The module's CE and UL certifications streamline compliance with food safety regulations.

Technical Parameters & Selection Guide

Selection Criteria: Choose the KJ3223X1-BK1 when your application requires high channel density, HART communication for smart transmitters, or when integrating with existing DeltaV S-Series infrastructure. For voltage input requirements (0-10V, ±10V), consider the KJ3222X1 variant. For thermocouple/RTD direct connection, evaluate the KJ3241X1 temperature input module.

Extended Capabilities & System Integration

AMS Device Manager Compatibility
Seamless integration with Emerson's Asset Management System enables centralized configuration, calibration tracking, and device health monitoring across distributed installations—reducing engineering time by 25% during commissioning.

Redundancy Support
Deploy in redundant I/O configurations for SIL 2/3 safety instrumented systems, with automatic failover ensuring continuous measurement availability during module faults.

Intrinsically Safe Barriers
Compatible with MTL, Pepperl+Fuchs, and Emerson barriers for Zone 0/Division 1 hazardous area installations, supporting direct connection to field devices in explosive atmospheres.

Custom Scaling & Linearization
Configure non-linear sensor curves (square root extraction for flow, custom polynomial functions) directly in the module, offloading controller processing and improving scan time performance.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS)
Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific channel settings
Warranty Period: 24 months from shipment date covering manufacturing defects
Technical Support: Lifetime access to application engineers for integration assistance, troubleshooting, and configuration guidance
Documentation Package: Installation manual, wiring diagrams, HART device descriptions (DD files), and compliance certificates included with every order

Frequently Asked Questions

Q: How do I connect HART devices to the KJ3223X1-BK1 module for bidirectional communication?
A: The module supports HART protocol natively on all 16 channels. Connect your 4-20mA HART transmitters using standard two-wire configuration. Access HART variables through DeltaV control strategies or AMS Device Manager for device configuration, diagnostics, and calibration data retrieval.

Q: What is the maximum cable length between field transmitters and the AI module?
A: For 4-20mA signals, maximum cable length is 1500 meters (4900 feet) using 18 AWG shielded twisted pair cable. HART communication remains functional up to 3000 meters with proper cable selection (low capacitance <200pF/m). Always follow NEC/IEC wiring practices for industrial installations.

Q: Can this module reduce energy consumption compared to older I/O systems?
A: Yes. The KJ3223X1-BK1 consumes only 4.5W typical power—60% less than legacy analog input cards. For a 500-point system, this translates to 1200 kWh annual savings, reducing operational costs by approximately $150/year per cabinet (based on $0.12/kWh industrial rates).

Q: What installation requirements are needed for mounting this module?
A: The module mounts on DeltaV S-Series carriers (8-slot or 18-slot) using tool-free latching mechanisms. Requires 24VDC power supply (redundant recommended), DIN rail or panel mounting hardware, and proper grounding per NEC Article 250. Minimum clearance: 50mm top/bottom for airflow.

Q: Does the KJ3223X1-BK1 support remote monitoring and cloud connectivity?
A: When integrated with DeltaV systems, the module's data is accessible through Emerson's Plantweb digital ecosystem, enabling secure cloud-based analytics, mobile dashboards, and remote expert support. HART diagnostic data can be routed to predictive maintenance platforms via OPC-UA or MQTT protocols.

Q: Is this module suitable for SIL-rated safety applications?
A: The KJ3223X1-BK1 is SIL 2 capable when deployed in approved configurations with redundant architecture and certified safety barriers. For SIL 3 applications, consult Emerson's safety manual (document SE-33K2623) for specific installation requirements and proof test intervals.

Get Your KJ3223X1-BK1 Module Today

Ready to enhance your process control accuracy and reduce maintenance costs? Contact our technical sales team for application-specific recommendations, volume pricing, or custom configuration services. We provide same-day quotations and can expedite delivery for urgent project requirements.
