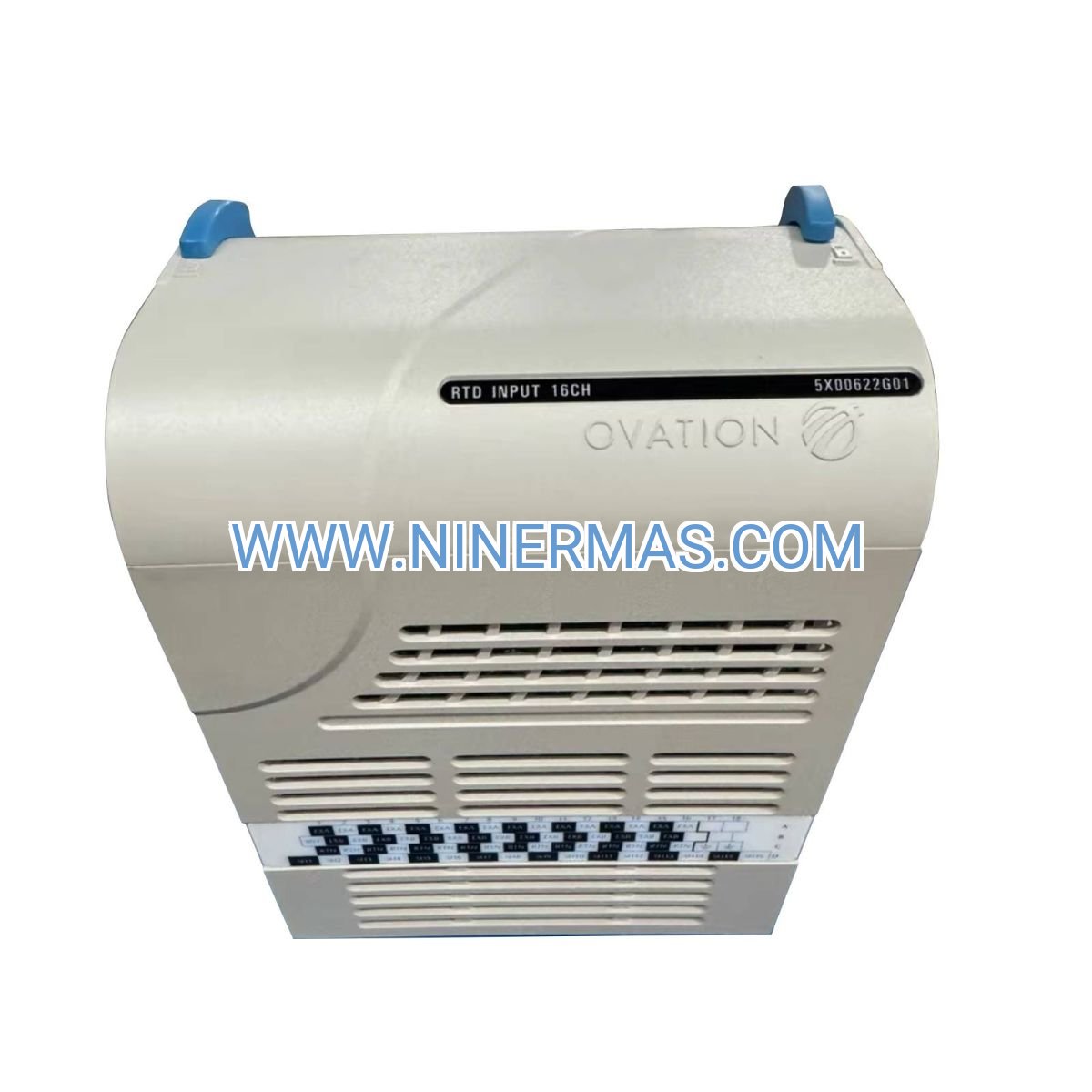

5X00622G01 Analog Input Card (Enterprise-Grade Signal Acquisition)

Precision signal acquisition forms the foundation of reliable process control, and the Emerson 5X00622G01 delivers exactly that—16 channels of high-fidelity analog input processing engineered for the Ovation DCS platform. This module converts field sensor signals into accurate digital data that drives critical control decisions across power generation, refining, chemical production, and manufacturing operations.

Automation engineers face mounting pressure to extract maximum value from existing infrastructure while maintaining measurement integrity. The 5X00622G01 addresses both imperatives through dense channel packing that reduces cabinet footprint by up to 40% compared to legacy I/O systems, while galvanic isolation technology ensures each input remains immune to ground loops and electrical noise that compromise data quality.

From temperature transmitters monitoring reactor conditions to pressure sensors tracking pipeline operations, this analog input card transforms raw milliamp and voltage signals into the precise process variables your control strategies depend on. Hot-swap capability, comprehensive diagnostics, and proven compatibility across Ovation generations make the 5X00622G01 the pragmatic choice for both greenfield installations and phased modernization projects.

Technical Performance & Operational Benefits

1. High-Density Channel Architecture
Sixteen differential analog inputs occupy a single module slot, delivering exceptional space efficiency for cabinet-constrained installations. This density advantage translates directly to reduced hardware costs, simplified wiring infrastructure, and faster commissioning timelines—field reports indicate 30-35% reduction in installation labor versus distributed I/O approaches.

2. Measurement Precision Engineering
16-bit analog-to-digital conversion captures signal nuances that 12-bit systems miss, providing 16 times greater resolution for detecting subtle process variations. Combined with ±0.1% full-scale accuracy, the 5X00622G01 enables tighter control band operation that improves product quality and reduces raw material waste in batch and continuous processes.

3. Multi-Range Input Flexibility
Software-configurable input ranges (4-20mA, 0-10V, ±10V) eliminate the need for multiple card types in your spare parts inventory. Each channel accepts independent configuration, allowing mixed sensor types within a single module—pressure transmitters alongside temperature RTDs and flow meters without hardware changes.

4. Galvanic Isolation Protection
Channel-to-channel and channel-to-backplane isolation barriers prevent ground potential differences from corrupting measurements. This protection proves critical in electrically noisy environments where VFDs, welding equipment, and high-voltage switchgear create interference that degrades signal quality in non-isolated systems.

5. Continuous Operation Serviceability
Hot-swap design permits module replacement during active process operation without controller shutdown or I/O scan interruption. Automatic configuration restoration from controller memory eliminates manual re-programming, reducing mean-time-to-repair from hours to minutes during critical component failures.

6. Diagnostic Intelligence
Multi-color LED indicators provide instant visual confirmation of module health, channel status, and communication integrity. Embedded diagnostics detect open circuits, short circuits, and out-of-range conditions, generating alarms that enable predictive maintenance before sensor failures impact production.

Industry Application Profiles

✓ Chemical Process Industries
Monitor reactor temperatures, distillation column pressures, and feed flow rates with the precision required for recipe compliance and safety interlock systems. The 5X00622G01's isolation capabilities prove essential in multi-unit facilities where electrical ground references vary across process areas, preventing measurement errors that trigger false alarms or missed trip conditions.

✓ Power Generation Facilities
Acquire turbine bearing temperatures, steam drum levels, and combustion air flows across coal, gas, and combined-cycle plants. High channel density reduces control room cabinet requirements, while the module's 0-60°C operating range accommodates installation in non-climate-controlled equipment rooms common in older generating stations.

✓ Oil & Gas Production
Interface with wellhead pressure transmitters, separator level gauges, and pipeline flow computers in upstream, midstream, and downstream operations. Conformal coating protects circuitry from corrosive atmospheres in offshore platforms and coastal refineries where salt spray and humidity accelerate electronic component degradation.

✓ Water & Wastewater Treatment
Connect pH analyzers, turbidity sensors, and chlorine residual transmitters for municipal and industrial treatment systems. The card's ±0.1% accuracy supports regulatory compliance reporting requirements, while diagnostic features reduce emergency callouts by identifying sensor drift before effluent quality violations occur.

✓ Food & Beverage Manufacturing
Track pasteurization temperatures, fermentation pressures, and CIP system flow rates with the measurement integrity demanded by HACCP and FDA validation protocols. Multi-range input capability accommodates the diverse sensor types found in modern food processing lines without requiring multiple spare card variants.

Specifications & Configuration Guidelines

Configuration Best Practices: Match input range to sensor output specifications—use 4-20mA for long cable runs (>100m) to minimize voltage drop effects. Configure update rates based on process dynamics: 100ms for fast loops (flow, pressure), 500ms-1s for slow processes (temperature, level). Enable channel diagnostics for critical measurements to detect sensor failures proactively. Consult Ovation I/O capacity planning tools to verify controller scan time budgets when populating racks with multiple high-density modules.

Advanced Integration Capabilities

HART Protocol Transparency: When paired with HART-compatible field transmitters, the 5X00622G01 passes digital communication signals without interference, enabling asset management systems to access device diagnostics, configuration parameters, and calibration data while the analog measurement path remains active.

Redundancy Architectures: Deploy dual 5X00622G01 modules in redundant configurations for critical measurements where single-point failures cannot be tolerated. Ovation's automatic failover logic ensures seamless transition between primary and backup inputs without process disturbance or operator intervention.

Third-Party System Integration: Export analog input data to plant historians, MES platforms, and cloud analytics services via Ovation's OPC UA, Modbus TCP, or proprietary gateway modules. Real-time data streaming enables advanced analytics, machine learning models, and remote monitoring dashboards.

Calibration Management: Software-based zero and span adjustments eliminate the need for physical potentiometer access, enabling remote calibration via engineering workstations. Calibration history logs support audit trail requirements for regulated industries including pharmaceuticals and nuclear power.

Delivery & Service Framework

Standard Fulfillment: In-stock 5X00622G01 modules ship within 24 hours of order confirmation. Express courier delivery reaches major industrial centers in 3-5 business days (Asia-Pacific region), 5-7 days (Americas/Europe/Middle East). Tracking information provided at shipment.

Custom Testing Services: Factory acceptance testing (FAT) available for bulk orders—modules undergo simulated signal injection, accuracy verification, and burn-in cycles per customer-specified protocols. Test reports with calibration certificates traceable to national standards included.

Warranty Protection: 18-month comprehensive warranty covers manufacturing defects, component failures, and performance degradation. Warranty period begins at shipment date. Advanced replacement program available for critical applications requiring <4-hour turnaround.

Technical Support Resources: Lifetime access to application engineering team via phone (+0086 187 5021 5667), email (sale@ninermas.com), and remote diagnostics platforms. Typical response times: <2 hours for production-down emergencies, <24 hours for routine technical questions. Support includes configuration assistance, troubleshooting guidance, and compatibility verification.

Documentation Suite: Each module ships with installation manual, wiring diagrams, configuration software, and compliance certificates. Digital resources include CAD drawings, 3D STEP models, and integration guides for common sensor types and control strategies.

Common Technical Questions

What wiring practices ensure optimal signal quality with the 5X00622G01?
Use shielded twisted-pair cable for all analog inputs, grounding shields at the module end only to prevent ground loops. Maintain physical separation (minimum 300mm) between analog signal cables and high-voltage power conductors. For 4-20mA inputs, verify loop power supply compliance with transmitter requirements—the module does not provide loop power. Terminate unused channels with shorting jumpers to prevent floating inputs that trigger false alarms.

How does the 16-bit resolution translate to practical measurement improvement?
For a 4-20mA input representing 0-100°C, 16-bit resolution provides 0.0015°C discrimination versus 0.024°C for 12-bit systems—a 16× improvement. This enhanced granularity enables detection of subtle process trends that predict equipment degradation, supports tighter PID control tuning, and reduces measurement noise in calculated variables like heat balances and efficiency metrics.

Can this analog input card reduce overall system energy consumption?
Indirectly, yes. The 5X00622G01's superior accuracy enables tighter process control, which typically reduces energy waste by 3-8% in thermal processes through better setpoint tracking and reduced overshoot. Diagnostic capabilities identify malfunctioning sensors that cause control systems to operate inefficiently—for example, a drifting temperature sensor might cause a heater to run continuously, wasting energy.

What installation environment requirements must be satisfied?
Mount in NEMA 12 (IP54) or better enclosures to protect from dust and moisture. Ensure ambient temperature remains within 0-60°C operational range—install cooling fans or air conditioning if cabinet temperatures exceed limits. Provide adequate ventilation (minimum 100mm clearance above/below module) for convective heat dissipation. Verify backplane power supply capacity before adding modules to existing racks.

Does the module support remote diagnostics and monitoring?
Yes—when integrated with Ovation's engineering workstation or third-party SCADA systems, the 5X00622G01 exposes comprehensive diagnostic data including per-channel signal levels, out-of-range conditions, open/short circuit detection, and module temperature. Remote firmware updates possible via secure network connections following Emerson's cybersecurity best practices.

How do I verify compatibility with my existing Ovation controller?
The 5X00622G01 maintains backward compatibility with all Ovation controller generations from initial platform release through current models. Verify your controller firmware revision supports the module's feature set by consulting Emerson's compatibility matrix (available in product documentation) or contact our technical team with your controller model and serial number for confirmation.

Secure Your Process Measurement Infrastructure

Invest in proven analog input technology that delivers measurement integrity, operational flexibility, and long-term supportability. Our team provides expert guidance for module selection, system design, and lifecycle support.

Request Technical Consultation: Email sale@ninermas.com with your I/O requirements
Immediate Assistance: Call +0086 187 5021 5667 (English/Mandarin support available)
Volume Pricing: Quantity discounts for orders of 10+ modules—contact for quotation
