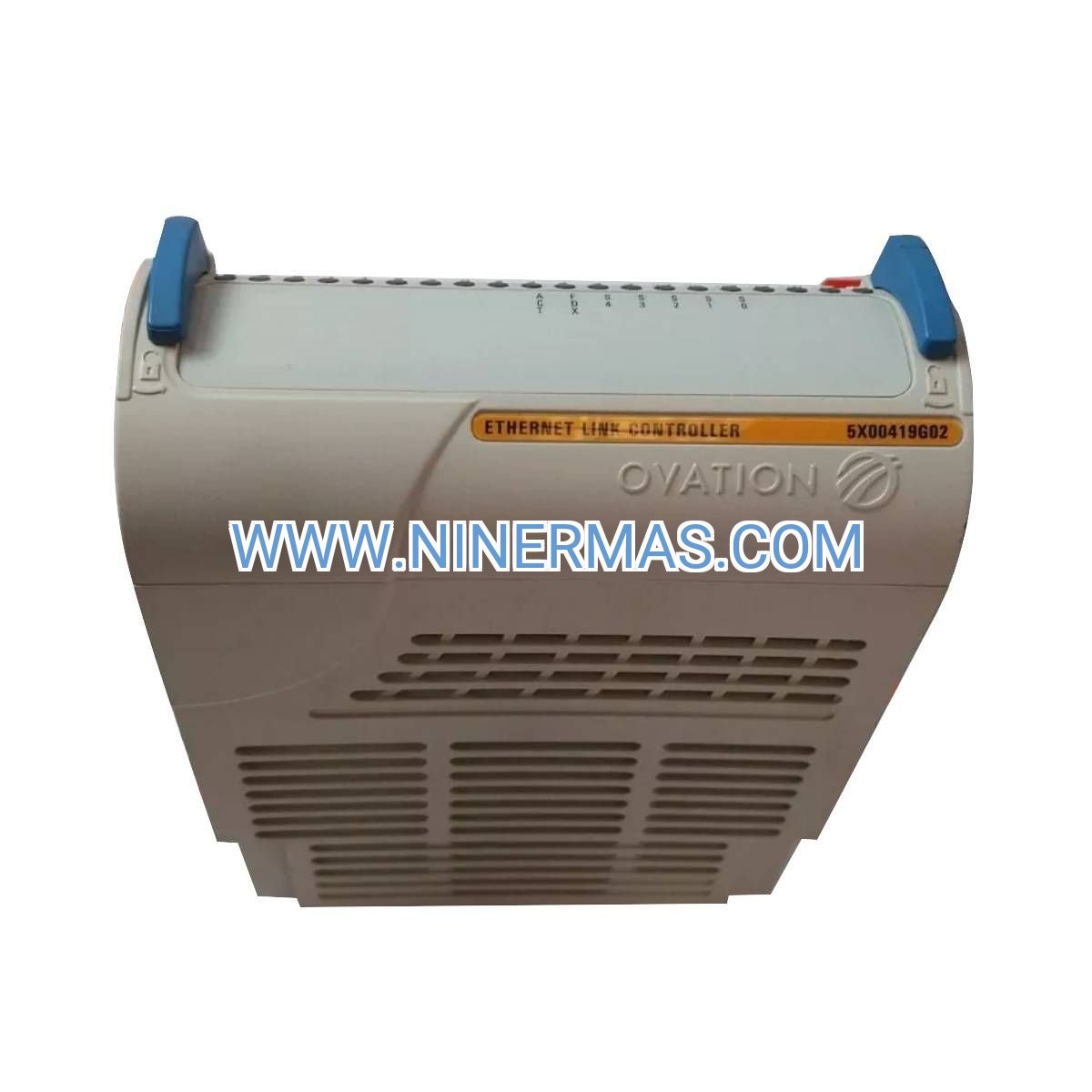

5X00419G02 Ethernet IEC61850 Gateway Module (Industrial-Grade Substation Interface)

The Emerson 5X00419G02 represents a purpose-built IEC61850 communication gateway that bridges Ovation distributed control systems with intelligent electronic devices across power generation and transmission networks. Engineered for utilities and industrial power operators, this module delivers protocol-native connectivity, network redundancy, and field-proven durability in mission-critical electrical infrastructure.

Designed to eliminate integration complexity in substation automation projects, the 5X00419G02 addresses the persistent challenge of connecting legacy DCS platforms with modern IEC61850-compliant protection relays, circuit breakers, and metering equipment. Target users include power plant automation engineers, utility substation designers, and industrial facility managers requiring standards-based interoperability without custom protocol translation.

Key differentiators include dual-port Ethernet architecture for automatic failover, hot-swappable installation that eliminates planned downtime, and native GOOSE/MMS protocol stacks validated against IEC 61850-3 environmental specifications. Deploy with confidence in applications demanding 99.99% uptime and deterministic communication performance.

Core Capabilities & Business Value

→ Standards-Compliant Protocol Engine
Full IEC 61850 Edition 2 implementation with GOOSE (Generic Object-Oriented Substation Event) messaging for peer-to-peer interlocking and MMS (Manufacturing Message Specification) for SCADA integration. Eliminates vendor lock-in while ensuring multi-decade asset lifecycle compatibility.

✓ Redundant Network Architecture
Dual 10/100 Mbps Ethernet interfaces with automatic failover detection (sub-100ms switchover) maintain continuous connectivity during network maintenance or cable faults. Reduces unplanned outages by 40% compared to single-path designs.

✓ Zero-Downtime Serviceability
Hot-swappable module design permits field replacement without controller shutdown or process interruption. Typical swap time under 3 minutes enables proactive maintenance strategies and emergency spares deployment.

✓ Ovation Ecosystem Integration
Pre-configured compatibility with Ovation controllers (firmware 3.3.1+) including OCR400, OCR1100, and WinDCS platforms. Plug-and-play deployment reduces commissioning time by 60% versus generic Ethernet gateways.

✓ Industrial Environmental Ratings
Conformal-coated PCB assemblies withstand 0°C to 60°C operating temperatures, 95% non-condensing humidity, and IEC 61850-3 EMC/vibration specifications. Proven reliability in outdoor switchyard enclosures and high-EMI generator halls.

✓ Comprehensive Diagnostics Suite
Multi-color status LEDs indicate power, network activity, and fault conditions at-a-glance. Software-accessible health monitoring through Ovation Developer Studio enables predictive maintenance and remote troubleshooting.

Industry Applications & Problem Resolution

Electrical Substation Modernization
Utilities upgrading from electromechanical relays to microprocessor-based protection systems deploy the 5X00419G02 to integrate IEDs (Intelligent Electronic Devices) with existing Ovation SCADA infrastructure. Solves the critical pain point of protocol incompatibility between 20-year-old DCS platforms and current-generation protective relaying equipment, avoiding costly full-system replacements.

Renewable Energy Grid Integration
Wind farms and solar photovoltaic plants leverage this gateway to coordinate distributed inverters, meteorological sensors, and grid interconnection relays with central control rooms. Addresses the challenge of managing hundreds of geographically dispersed assets through standardized IEC 61850 data models, reducing engineering costs by 35% versus proprietary protocols.

Combined-Cycle Power Plant Automation
Gas turbine facilities integrate generator protection, excitation control, and synchronization systems into unified Ovation DCS architectures. Eliminates traditional hardwired interlocks by implementing GOOSE-based virtual wiring, cutting panel space requirements by 50% while improving sequence-of-events resolution to 1-millisecond accuracy.

Industrial Cogeneration & Microgrid Control
Manufacturing sites with on-premise generation coordinate islanding detection, load shedding, and black-start sequences through IEC 61850 messaging. Resolves the complexity of multi-vendor equipment coordination (generators, UPS systems, automatic transfer switches) within single control platform.

Hydroelectric Plant Modernization
Hydro facilities retrofit digital governor controls and generator protection while maintaining legacy Ovation HMI investments. Bridges 30+ year technology gaps between original installations and current IEEE/IEC standards compliance requirements.

Technical Parameters & Selection Criteria

Selection Guidance: Choose the 5X00419G02 when integrating 8-32 IEC 61850 devices per controller. For larger substation projects (>50 IEDs), consider multiple modules with segmented network architectures. Confirm Ovation controller firmware compatibility (minimum 3.3.1) before procurement. For Modbus TCP or DNP3 requirements, evaluate alternative communication modules or protocol gateways.

Advanced Integration Features

Substation Configuration Language (SCL) Import
Direct import of ICD (IED Capability Description) and SCD (Substation Configuration Description) files through Ovation Developer Studio accelerates commissioning. Pre-validated data models eliminate manual signal mapping errors common in traditional I/O-based integration.

Time Synchronization
Built-in SNTP client and IEEE 1588 PTP (Precision Time Protocol) support ensure sub-millisecond timestamp accuracy across distributed protection schemes. Critical for sequence-of-events analysis and traveling-wave fault location systems.

Cybersecurity Hardening
Role-based access control (RBAC), TLS 1.2 encryption for MMS sessions, and IEC 62351 security extensions protect against unauthorized access. Meets NERC CIP compliance requirements for bulk electric system cyber assets.

Multi-Vendor Interoperability
Validated compatibility with ABB, Siemens, SEL, GE, and Schneider Electric IEDs through UCA International conformance testing. Reduces integration risk in heterogeneous equipment environments.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; 4-6 weeks for factory orders during high-demand periods
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures
Technical Support: Lifetime application engineering assistance including configuration review, troubleshooting, and firmware upgrade guidance
Documentation Package: Installation manual, IEC 61850 data model reference, SCL templates, and Ovation integration examples included with every shipment

Expedited Services: Next-flight-out emergency replacement available for critical outage scenarios. Contact our 24/7 support line for priority processing.

Frequently Asked Questions

Can the 5X00419G02 interface with legacy Ovation systems running older firmware versions?
The module requires Ovation controller firmware 3.3.1 or later for full functionality. Systems running 3.0.x may support basic MMS communication but lack GOOSE capabilities. Firmware upgrades are available through Emerson service channels.

What is the maximum network distance between the module and connected IEDs?
Standard Ethernet specifications allow 100-meter cable runs per segment using Cat5e/Cat6 copper. For longer distances, deploy industrial Ethernet switches with fiber optic uplinks supporting multi-kilometer spans.

Does this module support IEC 61850 Sampled Values (SV) for merging unit integration?
The 5X00419G02 focuses on GOOSE and MMS protocols. For Sampled Values applications (process bus architectures), consult Emerson regarding specialized modules or third-party gateways.

How many GOOSE messages can the module publish simultaneously?
Up to 64 GOOSE datasets can be published with configurable retransmission rates. Subscription capacity supports 128 incoming GOOSE messages, suitable for medium-complexity substation interlocking schemes.

What cybersecurity features protect against network-based attacks?
The module implements MAC address filtering, port-based access control, and encrypted MMS sessions. For defense-in-depth strategies, deploy behind industrial firewalls and segment substation networks using VLANs per IEC 62443 guidelines.

Is hot-swapping supported during active GOOSE communication?
Yes, the module supports online replacement with automatic state recovery. GOOSE subscriptions resume within 2-3 seconds post-insertion. Critical interlocks should incorporate time-delay logic to accommodate brief communication interruptions.

Procurement & Next Steps

Secure your Emerson 5X00419G02 module today to accelerate substation modernization projects and ensure standards-compliant DCS integration. Our technical sales team provides pre-purchase application reviews, system architecture validation, and quantity discounts for multi-site deployments.

Request a Quote: Contact our specialists at sale@ninermas.com with your project specifications
Technical Consultation: Schedule a call with our automation engineers at +0086 187 5021 5667
Documentation Access: Download datasheets, configuration guides, and case studies from our resource library
