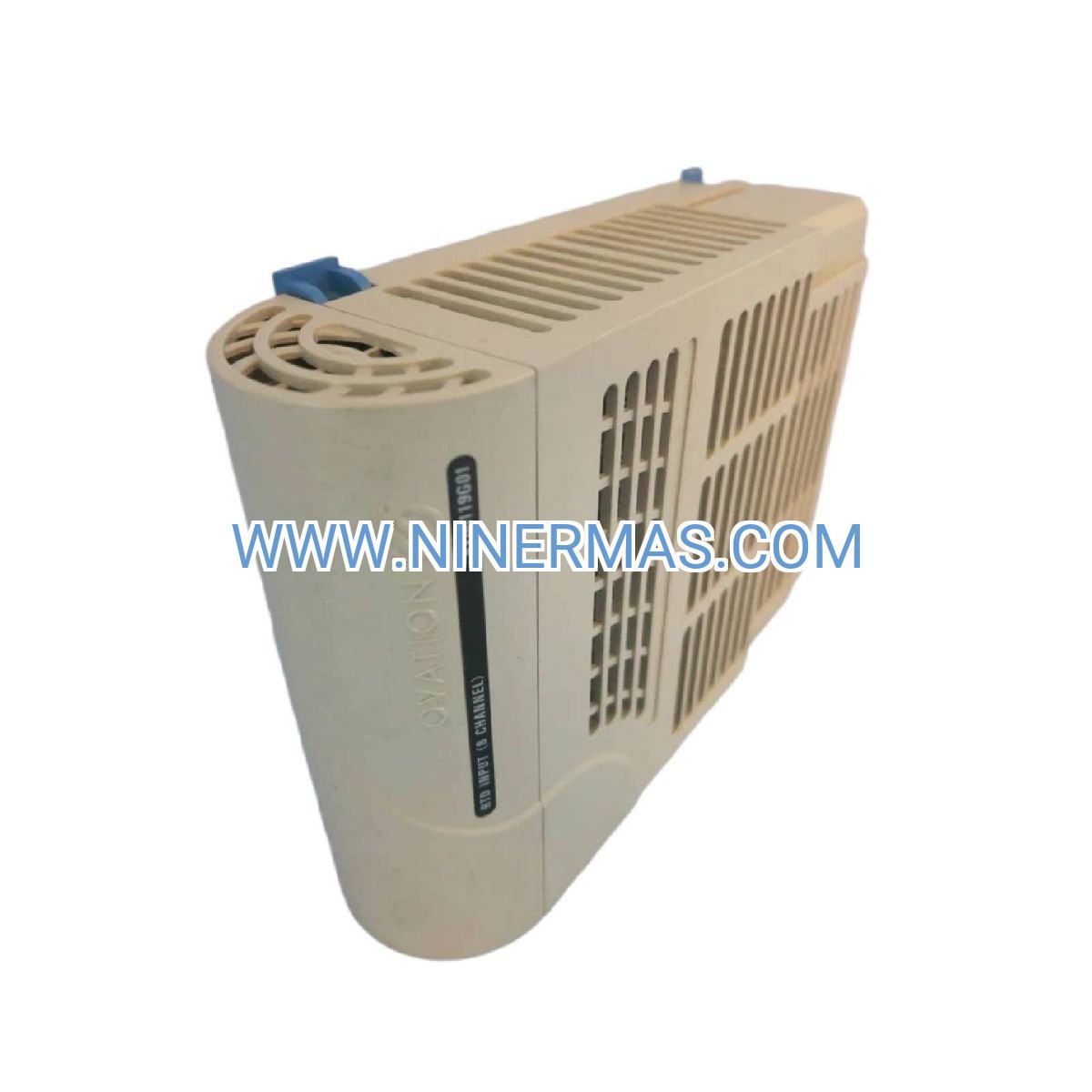

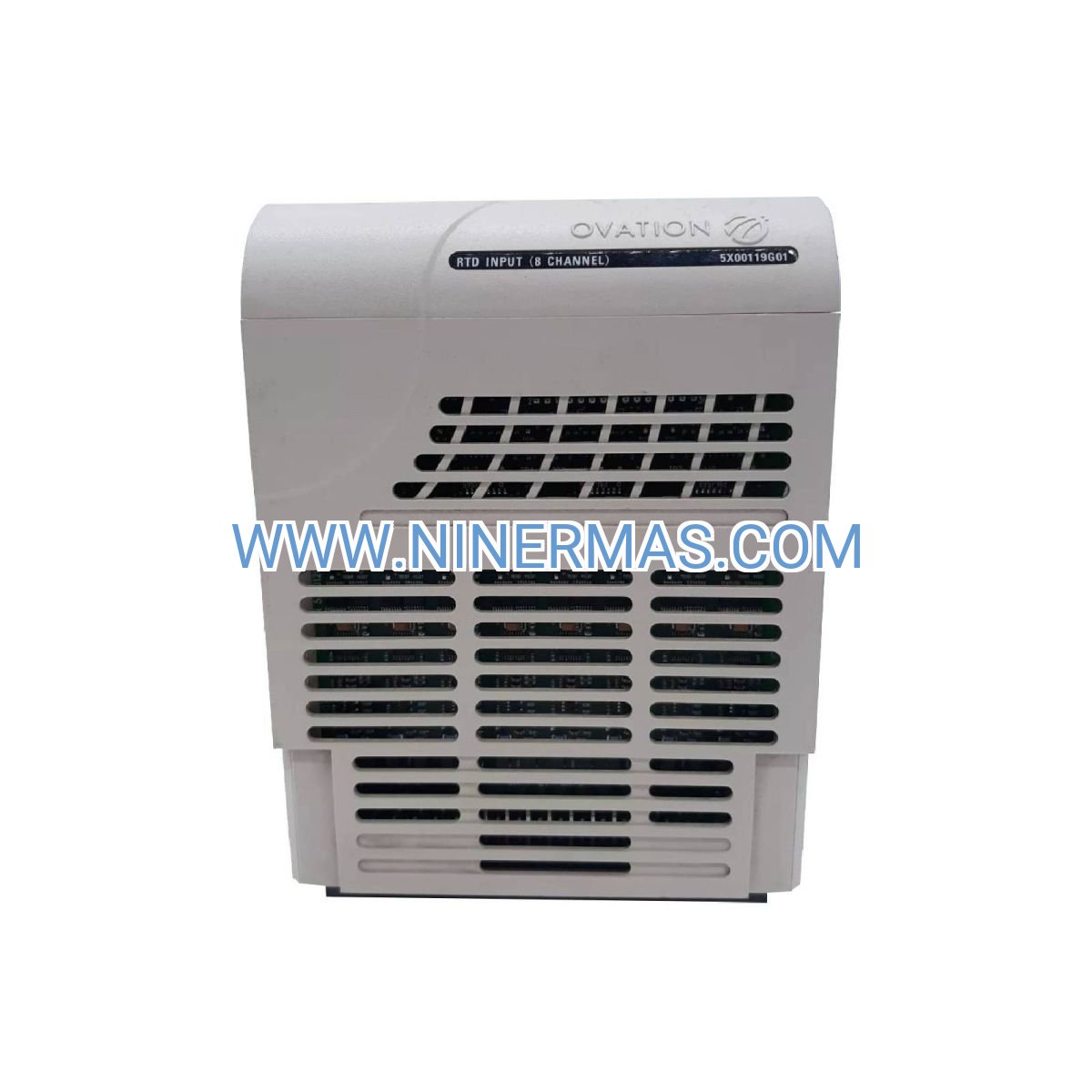

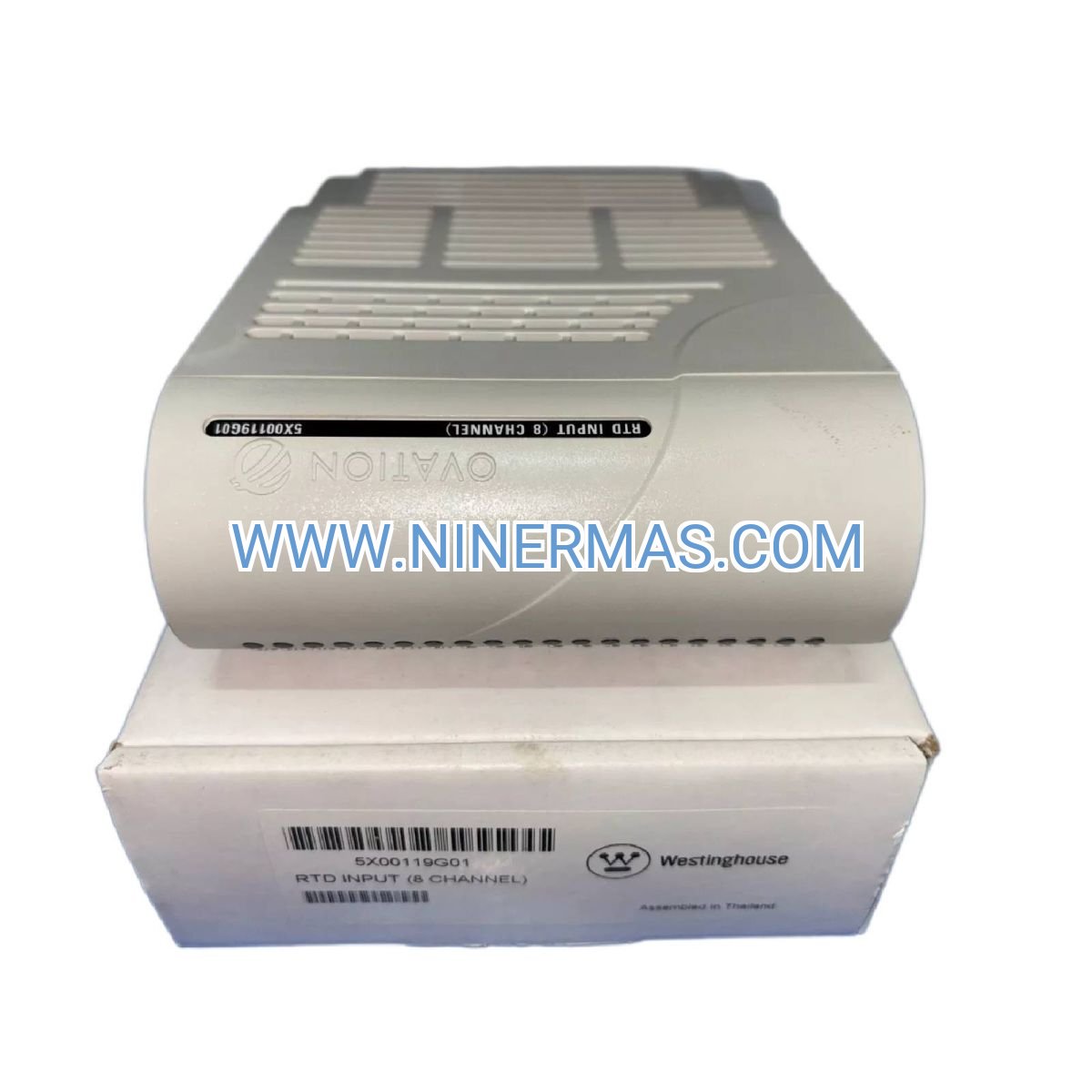

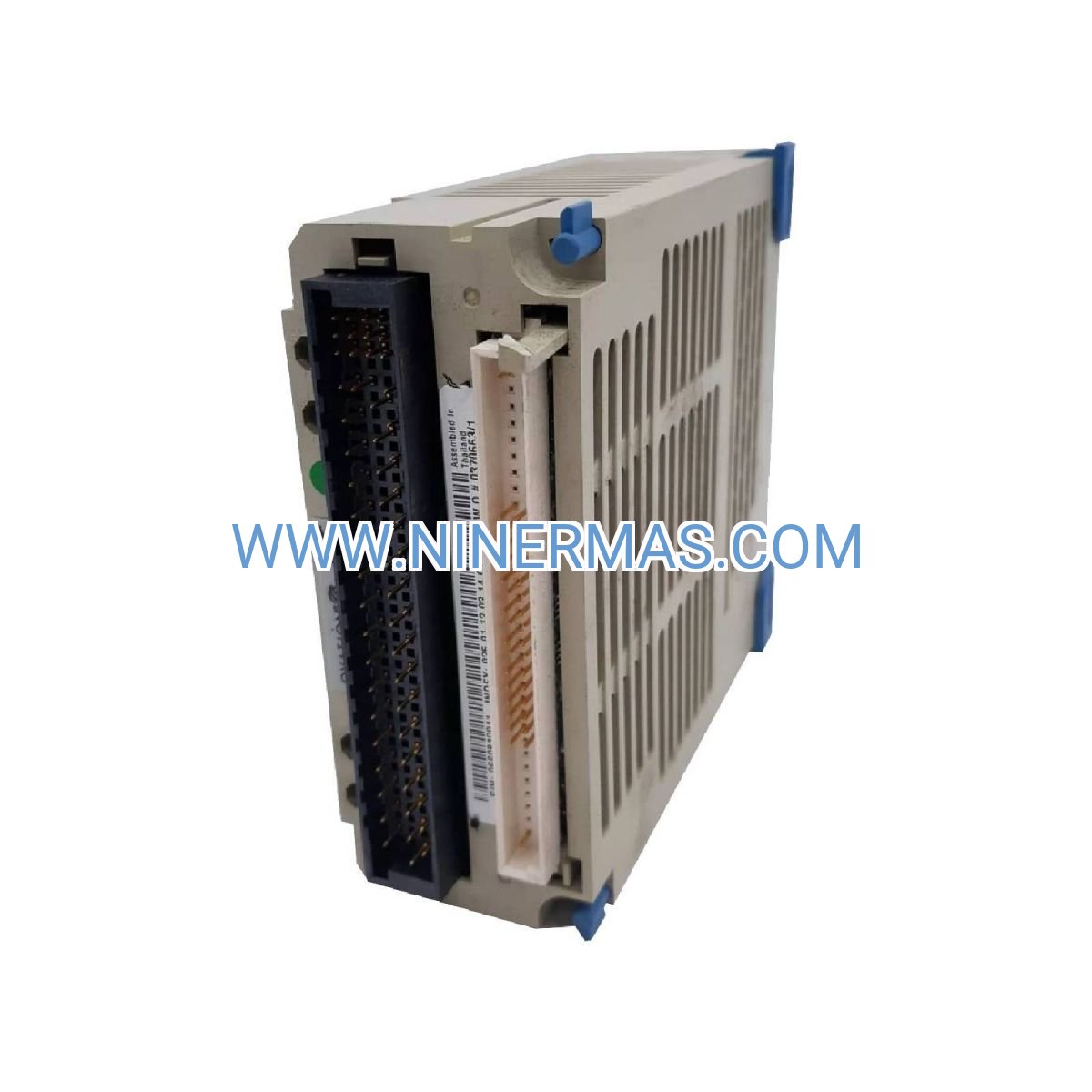

5X00119G01 RTD Input Module (Industrial-Grade Multi-Channel Temperature Interface)

The 5X00119G01 represents a field-proven solution for acquiring RTD temperature signals in demanding industrial environments. Engineered for Emerson Ovation distributed control architectures, this 8-channel input module transforms resistance-based sensor data into calibrated process variables with exceptional linearity and noise rejection. Designed for power plants, refineries, and pharmaceutical facilities where temperature measurement integrity directly impacts safety, quality, and operational efficiency.

Process engineers rely on the 5X00119G01 to eliminate measurement drift, reduce wiring complexity, and maintain continuous monitoring across critical thermal zones. Whether you're retrofitting legacy systems or expanding existing Ovation networks, this module integrates seamlessly with your control infrastructure while delivering the accuracy demanded by modern process optimization strategies.

With built-in diagnostics, field-replaceable architecture, and multi-wire RTD support, the 5X00119G01 minimizes commissioning time and maximizes uptime—critical factors in industries where every degree matters and every minute of downtime carries significant cost.

Core Features & Business Value

→ 8 Independent RTD Channels
Monitor multiple temperature points from a single module slot, reducing hardware footprint by up to 60% compared to single-channel solutions while lowering installation and maintenance costs.

→ Universal RTD Compatibility
Supports Pt100, Pt1000, Ni120, and Cu10 sensors in 2-wire, 3-wire, or 4-wire configurations—eliminating the need for multiple module types and simplifying spare parts inventory management.

→ ±0.1°C Measurement Accuracy
Achieve pharmaceutical-grade precision for GMP validation, energy optimization in power generation, and quality control in chemical synthesis where tight temperature tolerances prevent batch rejection.

→ Hot-Swap Capability
Replace failed modules during live operation without process interruption, reducing mean time to repair (MTTR) from hours to minutes and protecting production schedules in 24/7 facilities.

→ Comprehensive Fault Detection
Automatic sensor break detection, lead resistance compensation, and out-of-range alarms provide early warning of calibration drift or wiring faults before they impact product quality or safety systems.

→ Industrial-Hardened Construction
Conformal coating and extended temperature rating (-40°C to +70°C storage) ensure reliable operation in high-humidity, chemically aggressive, and thermally challenging control room environments.

Application Scenarios

Thermal Power Generation
In combined-cycle plants, the 5X00119G01 monitors steam turbine bearing temperatures, feedwater economizer performance, and condenser hotwell levels. Operators gain real-time visibility into thermal efficiency, enabling predictive maintenance that prevents catastrophic bearing failures and optimizes heat rate performance. One 600 MW facility reduced unplanned turbine trips by 40% after upgrading to Ovation RTD modules with advanced diagnostics.

Petrochemical Refining
Distillation column temperature profiling requires precise multi-point measurement to maintain product separation efficiency. The 5X00119G01's 8-channel design allows engineers to monitor tray temperatures across critical zones, detecting flooding or weeping conditions early. Refineries report 2-3% yield improvements when upgrading from legacy 4-20mA systems to direct RTD acquisition with 16-bit resolution.

Pharmaceutical Batch Processing
Sterilization autoclaves, lyophilization chambers, and fermentation bioreactors demand validated temperature measurement for FDA 21 CFR Part 11 compliance. The 5X00119G01's self-diagnostic capabilities and audit-trail integration with Ovation historian systems streamline validation protocols, reducing qualification time by 30% while ensuring data integrity for regulatory inspections.

Food & Beverage Production
Pasteurization tunnels, cooking kettles, and cold storage monitoring benefit from the module's wide temperature range (-200°C to +850°C). Processors achieve HACCP compliance with continuous recording of critical control points, while the hot-swap feature allows maintenance during production changeovers without compromising food safety documentation.

Metals & Mining
Smelting furnaces, heat treatment ovens, and grinding mill bearing monitoring expose instrumentation to extreme thermal cycling and vibration. The 5X00119G01's robust design and channel-to-channel isolation prevent ground loop interference common in heavy industrial electrical environments, maintaining measurement accuracy even in 480VAC motor control centers.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5X00119G01 when your application requires high-density RTD acquisition (8+ points per rack slot), when sensor types vary across zones, or when existing Ovation infrastructure needs expansion. For applications mixing RTD and thermocouple inputs, consider pairing with 5X00121G01 TC modules on the same I/O base. Consult wiring distance tables in the installation manual when cable runs exceed 300 meters—4-wire configurations recommended for runs >500m to eliminate lead resistance errors.

Extended Functionality

Ovation Network Integration: The module communicates via Ovation's deterministic control network, providing synchronized data acquisition across distributed I/O racks. Time-stamping resolution of 1 millisecond enables precise event sequencing for sequence-of-events (SOE) analysis during process upsets.

Advanced Linearization: Ovation Developer Studio software includes Callendar-Van Dusen polynomial tables for all standard RTD curves, plus custom linearization for specialty sensors. Engineers can apply offset corrections and span adjustments without field recalibration, reducing commissioning time by 50%.

Redundancy Support: Deploy in redundant I/O configurations for SIL 2 safety instrumented systems. Automatic failover occurs within 100ms, maintaining continuous temperature monitoring for emergency shutdown (ESD) logic and burner management systems (BMS).

Remote Diagnostics: Module health data (A/D converter status, excitation current levels, internal temperature) streams to Ovation's asset management platform, enabling predictive maintenance scheduling and remote troubleshooting by OEM support teams via secure VPN connections.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via express courier. Custom-configured modules (special calibration ranges, extended temperature ratings) require 3-4 weeks factory lead time. Expedited processing available for emergency outage support.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs available for critical spares inventory. Advance replacement service ensures <24-hour module delivery for qualified maintenance contracts.

Technical Support: Access to Emerson's global support network includes 24/7 hotline assistance, on-site commissioning support, and application engineering consultation. Regional service centers stock calibrated test equipment for field verification and troubleshooting.

Documentation Package: Each module includes installation quick-start guide, detailed user manual (PDF), AutoCAD terminal block drawings, and sample Ovation Developer Studio configuration files. Calibration certificates traceable to NIST standards provided upon request for regulated industries.

Frequently Asked Questions

Q: Can this module interface with third-party SCADA systems outside the Ovation platform?
A: The 5X00119G01 is designed exclusively for Emerson Ovation DCS architectures. For integration with Modbus, OPC, or other protocols, temperature data must be accessed through Ovation's controller layer, which supports standard industrial communication gateways.

Q: What is the maximum cable distance between RTD sensors and the module?
A: With 3-wire Pt100 sensors and 18 AWG shielded cable, distances up to 600 meters are achievable while maintaining ±0.2°C accuracy. For longer runs or higher accuracy requirements, switch to 4-wire configuration or use in-head transmitters to convert RTD signals to 4-20mA near the sensor.

Q: How does the module perform in high-EMI environments near VFDs or welding equipment?
A: Channel-to-channel isolation (500 VDC) and differential input architecture provide excellent common-mode rejection (>100 dB at 60 Hz). Install modules in grounded metal enclosures and use twisted-pair shielded cable with 360° shield termination at the module end for optimal noise immunity in electrically harsh areas.

Q: Is the 5X00119G01 suitable for SIL-rated safety applications?
A: Yes, when deployed in redundant configurations and integrated with certified Ovation safety controllers, the module supports SIL 2 safety instrumented functions per IEC 61508. Consult Emerson's safety manual (document M2000950) for detailed failure rate data and architectural constraints.

Q: Can I mix different RTD types on the same module?
A: Absolutely. Each of the 8 channels is independently configurable via software—channel 1 might monitor a Pt100 bearing RTD while channel 2 reads a Pt1000 ambient sensor. Configuration is stored in non-volatile memory and survives power cycles or module replacement.

Q: What preventive maintenance does the module require?
A: The 5X00119G01 is solid-state with no moving parts or consumables. Recommended maintenance includes annual terminal block inspection for corrosion or loose connections, verification of shield grounding integrity, and comparison of module readings against portable calibrators every 2-3 years in critical measurement loops.

Ready to Upgrade Your Temperature Monitoring?

Contact our application engineers to discuss your specific RTD channel count, sensor types, and integration requirements. We'll provide detailed wiring diagrams, I/O rack layout recommendations, and budget quotations within 24 hours. For existing Ovation users, we offer configuration file templates and migration support to accelerate your expansion projects.
