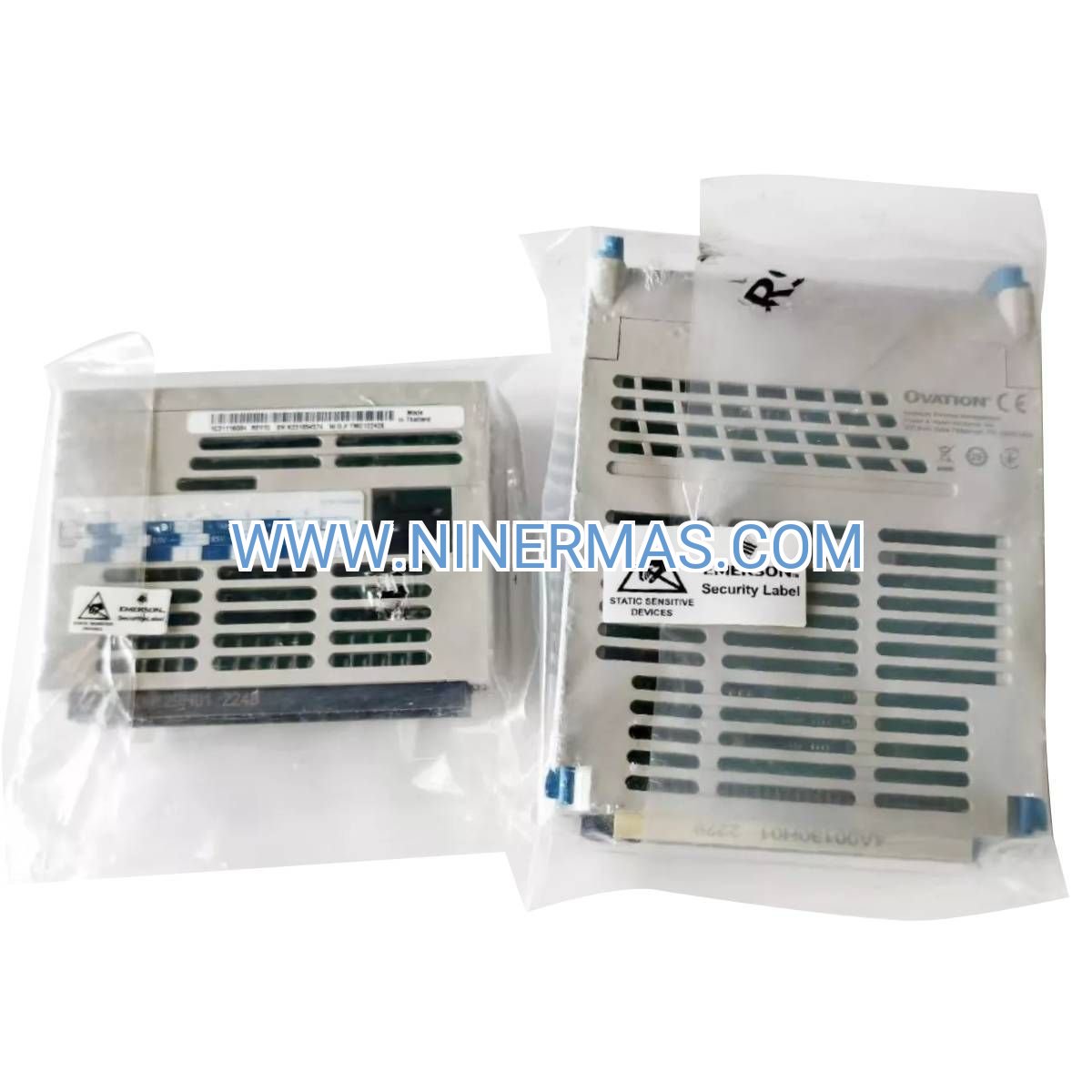

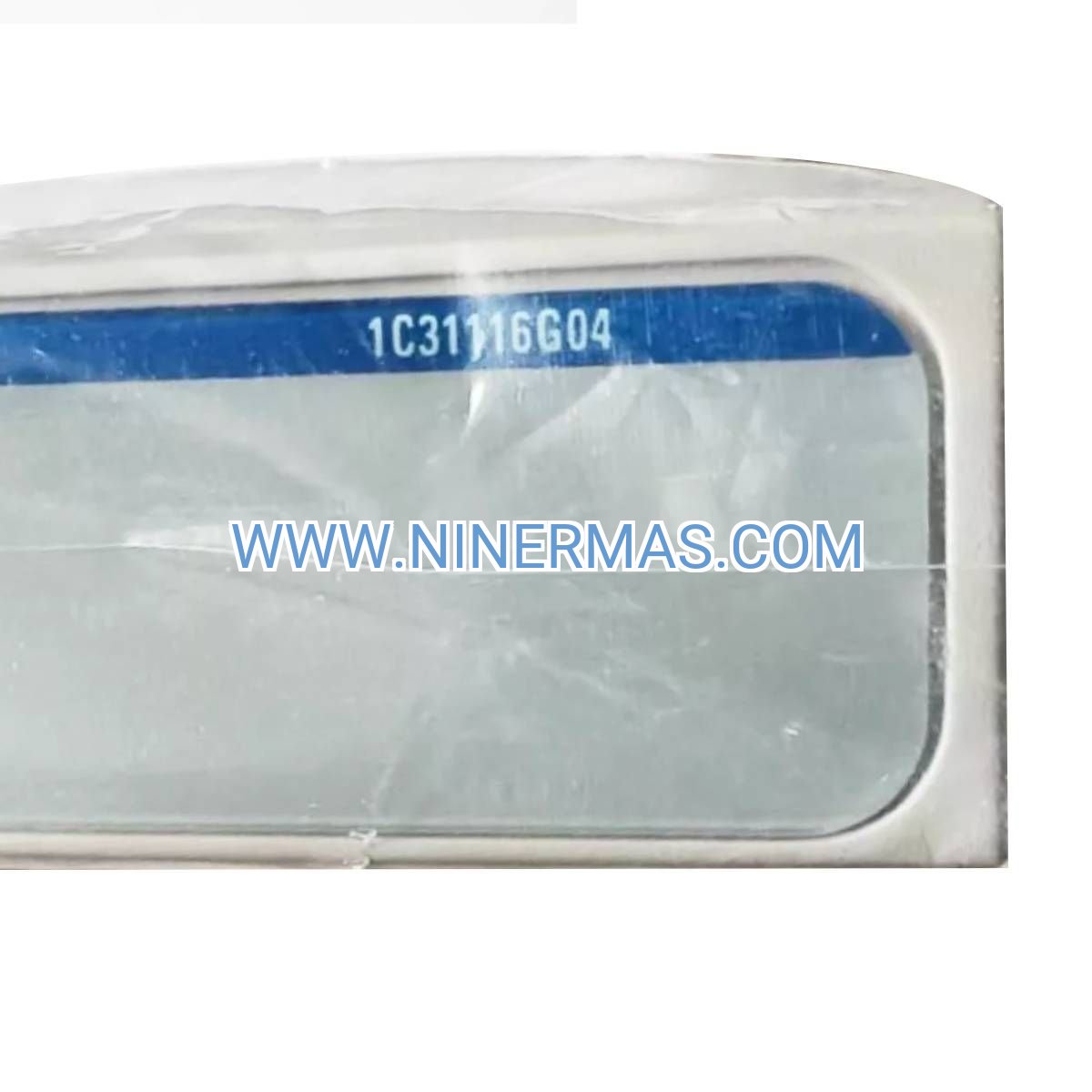

5X00070G04 + 1C31116G04 Analog Input Module (Industrial-Grade HART Interface)

The Emerson 5X00070G04 paired with 1C31116G04 personality module represents a field-proven analog input solution for distributed control architectures. Engineered to bridge legacy 4-20 mA instrumentation with modern HART digital communication, this module delivers simultaneous analog measurement and device diagnostics across 8 isolated channels.

Designed for process industries demanding continuous uptime, the module addresses critical challenges in signal integrity, device health monitoring, and system scalability. Target users include instrumentation engineers, DCS integrators, and plant maintenance teams managing Ovation-based control infrastructure in oil & gas, chemical processing, power generation, and water treatment facilities.

Key advantages include hot-swappable architecture for zero-downtime maintenance, channel-to-channel isolation eliminating ground loop interference, and factory-configured HART personality reducing commissioning time by up to 70% compared to field-programmed alternatives.

Core Features & Benefits

→ Dual-Protocol Signal Acquisition
Captures 4-20 mA process variables while simultaneously accessing HART digital data (device tags, calibration dates, diagnostic codes) over the same two-wire connection. Eliminates need for separate HART multiplexers, reducing cabinet space and wiring costs by 40%.

→ 16-Bit Resolution with 0.003% Accuracy
High-precision A/D conversion ensures measurement fidelity for critical control loops. Supports advanced process optimization strategies requiring tight tolerance monitoring (±0.05% of span typical).

→ Galvanic Isolation Architecture
Each input channel features 1500V isolation from backplane and adjacent channels. Protects against electrical noise in high-EMI environments (VFD installations, arc furnaces) and prevents fault propagation across I/O networks.

✓ Hot-Swap Capability
Replace modules during live operation without system shutdown or process interruption. Automatic configuration download from controller reduces mean-time-to-repair (MTTR) to under 5 minutes.

✓ Pre-Configured Personality Module
Factory-installed 1C31116G04 arrives with HART firmware pre-loaded. Plug-and-play deployment eliminates field programming errors and accelerates project timelines by 3-5 days per cabinet.

✓ Extended Temperature Range
Operates reliably in 0°C to 60°C ambient conditions without derating. Suitable for non-climate-controlled equipment rooms and outdoor enclosures in moderate climates.

Typical Application Scenarios

Refinery Process Control
Monitor distillation column pressure transmitters, reactor temperature sensors, and flow control valves across 8 loops per module. HART diagnostics enable predictive maintenance by tracking sensor drift and valve travel deviations before failures occur.

Chemical Batch Manufacturing
Acquire analog signals from pH probes, conductivity meters, and mass flow controllers during recipe execution. Digital HART data logs calibration certificates and sensor serial numbers for FDA 21 CFR Part 11 compliance.

Power Plant Auxiliary Systems
Interface with boiler feedwater level transmitters, condenser vacuum sensors, and cooling tower instrumentation. Isolation protects control system from ground potential differences between turbine hall and auxiliary buildings.

Water Treatment SCADA Integration
Connect chlorine residual analyzers, turbidity meters, and flow totalizers to Ovation DCS. HART communication retrieves sensor health status for remote monitoring via SCADA HMI.

Legacy System Modernization
Drop-in replacement for obsolete Ovation I/O cards (1C31110G03, 1C31125G02) during phased upgrades. Maintains backward compatibility with existing field wiring while adding HART capability for future-proofing.

Technical Parameters & Selection Guide

Selection Criteria: Choose this module when your application requires (1) HART-enabled field devices, (2) Ovation DCS platform compatibility, (3) 4-20 mA signal ranges, and (4) isolated input architecture. For non-HART applications, consider standard 5X00070G01 variant. For voltage inputs (0-10V, ±10V), specify 5X00063G01 module instead.

Extended Functions

AMS Device Manager Integration: Module supports Emerson AMS Suite for centralized HART device configuration, calibration tracking, and asset health monitoring. Export diagnostic trends to predictive maintenance databases.

Redundancy Options: Deploy in redundant I/O configurations using dual Ovation controllers and redundant backplanes. Automatic failover ensures <0.1 second switchover during controller faults.

Custom Scaling & Linearization: Configure non-linear sensor curves (square root extraction for DP flow, thermocouple polynomials) via Ovation Developer Studio. Store up to 20-point linearization tables per channel.

Delivery & Service Assurance

Lead Time: Standard stock items ship within 3-5 business days. Custom-configured modules (special firmware, extended temperature ratings) require 2-3 weeks for factory programming and testing.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Includes free firmware updates and technical support during warranty period.

Technical Support: Access to Emerson-certified application engineers for integration assistance, troubleshooting, and configuration optimization. Email/phone support available 8 AM - 6 PM CST, Monday-Friday.

Documentation Package: Includes installation manual, wiring diagrams, HART command reference, Ovation configuration templates (.ovd files), and dimensional drawings (DXF/PDF formats).

Frequently Asked Questions

Q: How do I connect HART communicators to this analog input module?
A: Connect your HART handheld (Emerson 475, Fluke 709H) across the 250Ω input resistor terminals. The module's HART modem automatically detects FSK signals without disrupting the 4-20 mA loop current. Alternatively, use AMS Device Manager via Ovation network for remote HART access.

Q: What is the maximum cable length for 4-20 mA field devices?
A: Up to 1500 meters (4900 feet) using 18 AWG shielded twisted pair cable. For HART communication reliability, limit cable capacitance to 0.65 µF total (approximately 1200m with standard instrumentation cable). Longer runs may require HART repeaters.

Q: Can this module reduce energy consumption compared to older I/O cards?
A: Yes. The 5X00070G04 consumes 5W versus 8-12W for legacy Ovation analog input modules. In a 200-module system, this translates to 600-1400W savings (approximately $800/year energy cost reduction at $0.12/kWh industrial rates).

Q: What are the installation requirements for cabinet mounting?
A: Requires one slot in Ovation I/O backplane (1C31189G01 or compatible). Ensure 50mm clearance above module for terminal block access and heat dissipation. Ambient temperature must not exceed 60°C; add forced ventilation if cabinet internal temperature approaches this limit.

Q: Does the module support remote monitoring and diagnostics?
A: Full remote capability via Ovation DCS network. Monitor channel health, loop current values, HART device status, and module diagnostics from any Ovation operator station. Configure email/SMS alarms for out-of-range conditions or communication failures.

Q: How does the 16-bit resolution improve process control performance?
A: 16-bit conversion provides 65,536 discrete measurement steps versus 4,096 steps in 12-bit systems. For a 0-100 PSI transmitter, this yields 0.0015 PSI resolution compared to 0.024 PSI, enabling tighter PID loop tuning and reduced process variability (up to 40% improvement in control stability for critical loops).

Get Your HART-Enabled Analog Input Solution

Upgrade your Ovation DCS with proven I/O technology trusted by 10,000+ installations worldwide. Contact our technical sales team for application-specific configuration guidance, volume pricing, or integration support.

Request a quote: Email your system architecture details and channel count requirements to our engineering team. Receive customized proposals within 24 hours including module selection, wiring diagrams, and project timeline estimates.
