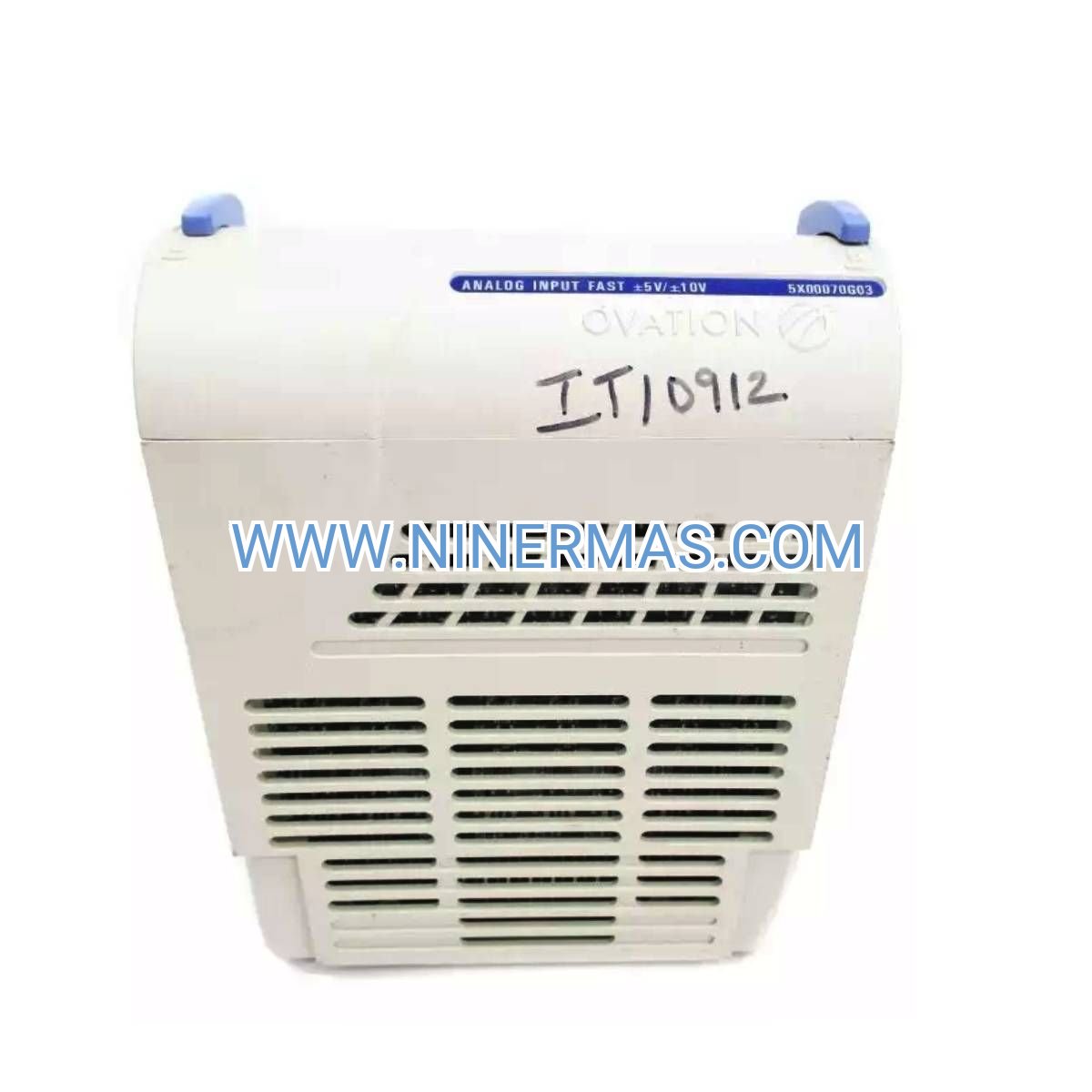

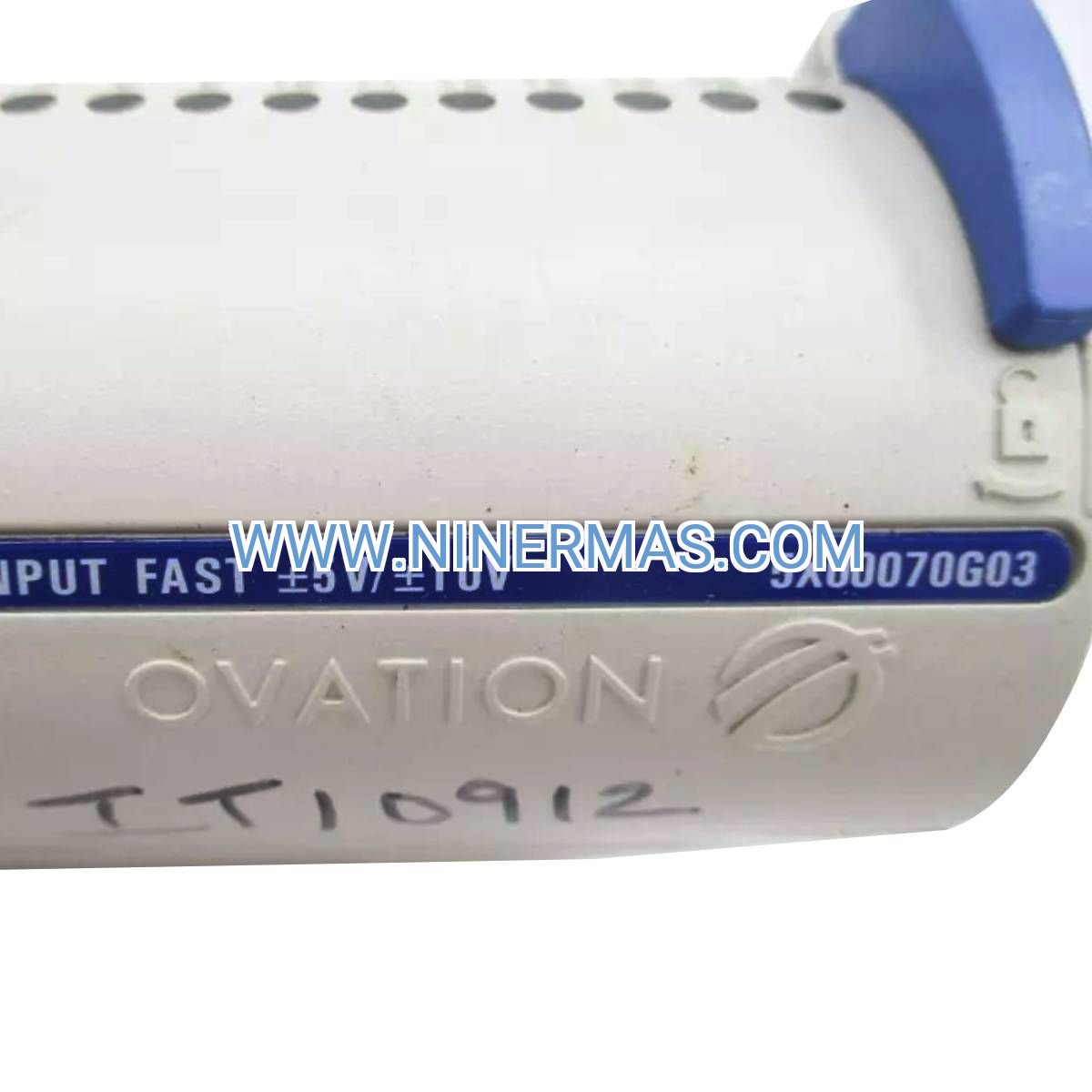

5X00070G03 Analog Input Card (Industrial-Grade Signal Processor)

The 5X00070G03 represents Emerson's field-proven solution for high-fidelity analog signal acquisition within Ovation distributed control architectures. Engineered for continuous-duty industrial environments, this eight-channel input module converts process transmitter signals—temperature, pressure, flow, and level—into digitized data streams that drive real-time control decisions across power generation, petrochemical, and manufacturing facilities.

Designed for system integrators and plant engineers managing legacy Ovation installations or greenfield projects, the 5X00070G03 eliminates signal degradation through channel-to-channel isolation and delivers 16-bit resolution for precise process variable tracking. Whether you're retrofitting aging I/O infrastructure or scaling capacity for new process units, this module integrates seamlessly into existing Ovation controller chassis with zero downtime through hot-swap functionality.

From boiler feedwater control loops to distillation column monitoring, the 5X00070G03 provides the signal integrity and diagnostic transparency required for mission-critical operations. Backed by Emerson's global support network and proven in thousands of installations since 2003, this analog input card transforms raw field signals into the actionable intelligence your control strategy demands.

Core Capabilities & Performance Advantages

→ Eight Independent Differential Inputs
Simultaneous acquisition of multiple process variables eliminates the need for signal multiplexing, reducing scan latency and improving control loop response times by up to 40% compared to shared-channel architectures.

→ Multi-Range Signal Compatibility
Field-configurable support for 4-20mA current loops, 1-5VDC, and 0-10VDC voltage signals allows a single spare part to serve diverse transmitter types—cutting inventory costs and simplifying maintenance logistics.

→ 16-Bit A/D Conversion Precision
With 0.0015% full-scale accuracy, the module resolves minute process fluctuations that 12-bit systems miss, enabling tighter setpoint control and reducing product quality variance in batch operations.

✓ Galvanic Isolation Architecture
Channel-to-channel and channel-to-backplane isolation eliminates ground loop interference and protects against voltage transients, ensuring clean signal acquisition even in electrically noisy industrial environments.

✓ Hot-Swap Serviceability
Replace failed modules during operation without shutting down the control system—critical for 24/7 facilities where unplanned downtime costs $50,000+ per hour in lost production.

✓ Built-In Diagnostic Intelligence
Continuous self-test routines and per-channel health monitoring flag open circuits, out-of-range signals, and calibration drift before they impact process control, reducing mean time to repair by 60%.

Industry-Specific Deployment Scenarios

Power Generation & Cogeneration Plants
Acquire critical boiler parameters—drum level transmitters, superheater outlet temperatures, deaerator pressures—with the reliability required for NERC compliance and turbine protection. The 5X00070G03's isolation prevents ground faults from cascading across control loops during lightning strikes or switchgear faults.

Upstream Oil & Gas Production
Monitor wellhead pressures, separator levels, and pipeline flow rates across remote facilities where signal integrity directly impacts safety shutdown system performance. Proven in Class I Division 2 installations with -40°C to +70°C ambient temperature swings.

Chemical & Pharmaceutical Manufacturing
Track reactor jacket temperatures, distillation reflux ratios, and feed stock flow meters with the precision required for FDA 21 CFR Part 11 batch record compliance. The module's 100ms scan rate supports cascade control strategies in fast-reacting exothermic processes.

Pulp & Paper Mills
Integrate digester pressure transmitters, white liquor flow signals, and dryer section temperature arrays into coordinated control schemes that optimize fiber yield while minimizing steam consumption.

Water & Wastewater Treatment
Acquire pH, dissolved oxygen, turbidity, and chlorine residual measurements from analytical transmitters, providing the data foundation for automated chemical dosing and regulatory reporting under SCADA supervision.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the 5X00070G03 when your application requires isolated analog inputs for Ovation controller platforms. For applications needing HART communication overlay, consider the 5X00070G04 variant. If your transmitters output RTD or thermocouple signals directly, specify the 5X00121G01 temperature input module instead. Consult Ovation I/O Planning Worksheet (Document SE-36005) for chassis slot allocation and power budget calculations.

Advanced Integration & Customization Options

Ovation Developer Studio Configuration
Program custom scaling algorithms, alarm limits, and signal conditioning filters through graphical function blocks—no ladder logic required. The module's firmware supports square root extraction for differential pressure flow calculations and lead-lag compensation for slow-responding transmitters.

OPC UA & Modbus TCP Connectivity
Expose acquired process variables to third-party historians, MES systems, and cloud analytics platforms through Ovation's native protocol gateways, enabling predictive maintenance and energy optimization initiatives.

Redundant Controller Pairing
Deploy in fault-tolerant Ovation configurations where dual controllers share I/O modules through redundant backplanes—ensuring bumpless transfer during controller failover events with <50ms switchover time.

Custom Calibration Services
Factory-certified calibration to customer-specified ranges (e.g., 3.8-20.5mA for legacy transmitter compatibility) available with NIST-traceable certificates for regulated industries.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units; expedited same-day shipping available for critical outages (additional fees apply)

Custom Configuration: 7-10 business days for pre-programmed modules with customer-specific I/O mapping and scaling parameters

Warranty Coverage: 24-month manufacturer defect warranty from ship date; extended 60-month coverage available through Emerson Guardian support contracts

Technical Support: Lifetime access to Emerson's 24/7 global support hotline, online knowledge base, and firmware update portal; on-site commissioning assistance available in North America, Europe, and Asia-Pacific regions

Documentation Package: Includes installation manual (SE-36010), wiring diagrams, configuration software license, and RoHS/REACH compliance certificates

Frequently Asked Questions

How does the 5X00070G03 interface with existing Ovation controller hardware?
The module installs into any available I/O slot within Ovation 1C, 1B, or 3B series controller chassis. It communicates via the chassis backplane using Emerson's proprietary high-speed serial protocol, automatically recognized by the controller CPU upon insertion. No jumper settings or DIP switch configurations required—addressing is software-assigned through Developer Studio.

What input signal ranges can each channel accept simultaneously?
Each of the eight channels is independently configurable, allowing mixed signal types within a single module. For example, channels 1-4 could monitor 4-20mA transmitters while channels 5-8 handle 0-10VDC signals. Configuration changes take effect immediately without power cycling.

Can this analog input module reduce energy costs in process control applications?
Yes—the 16-bit resolution enables tighter process control bands (±0.5% vs. ±2% with 12-bit systems), reducing energy waste from overshooting setpoints. In steam generation applications, customers report 3-7% fuel savings through improved combustion air/fuel ratio control enabled by high-resolution oxygen analyzer inputs.

What are the physical installation requirements for the 5X00070G03?
The module requires one standard Ovation I/O slot with backplane power availability (5W budget). Ambient temperature must remain within 0-60°C operational range; forced-air cooling recommended for enclosed cabinets in high-temperature environments. Field wiring terminates on removable screw-terminal blocks supporting 12-22 AWG wire.

Does the 5X00070G03 support remote monitoring and diagnostics?
Full diagnostic data—including per-channel signal quality, A/D converter health, and isolation barrier integrity—is accessible through Ovation Operator stations, web-based HMI interfaces, and mobile apps. SNMP traps and email alerts can be configured for out-of-range conditions or module faults.

Is the 5X00070G03 compatible with legacy Ovation systems installed before 2010?
Yes, the module maintains backward compatibility with Ovation systems running firmware version 3.0 and later. However, advanced diagnostic features require Ovation 3.5+ software. Consult Emerson's compatibility matrix (Document SE-40012) or contact our technical team for system-specific verification.

Secure Your Process Signal Integrity Today

Don't let aging analog I/O compromise your control system reliability. The 5X00070G03 delivers the precision, isolation, and diagnostic intelligence required for modern industrial operations—backed by Emerson's 50+ year legacy in process automation.

Ready to upgrade your Ovation system or need technical specifications for your project? Contact our industrial automation specialists for application engineering support, volume pricing, or expedited delivery options.
