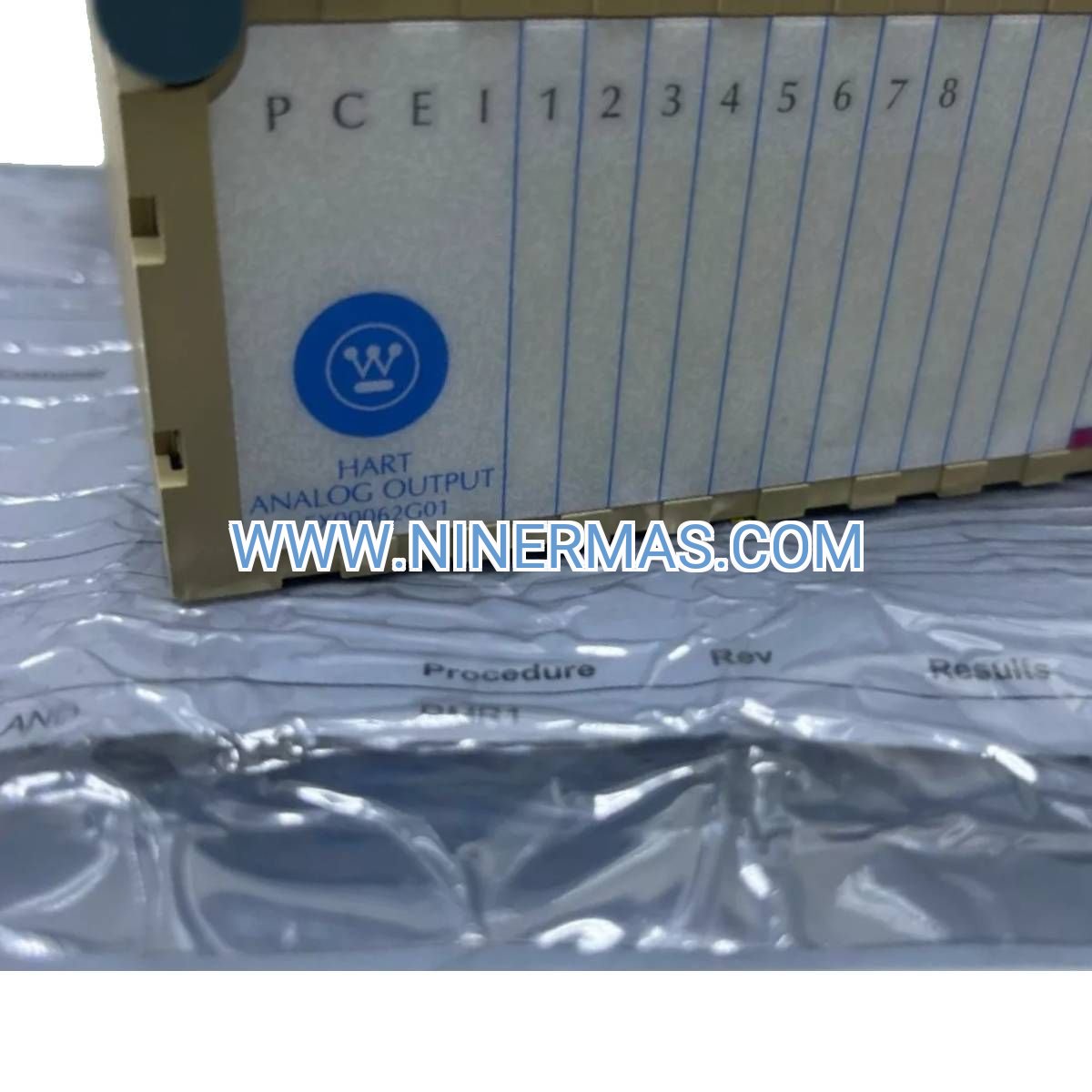

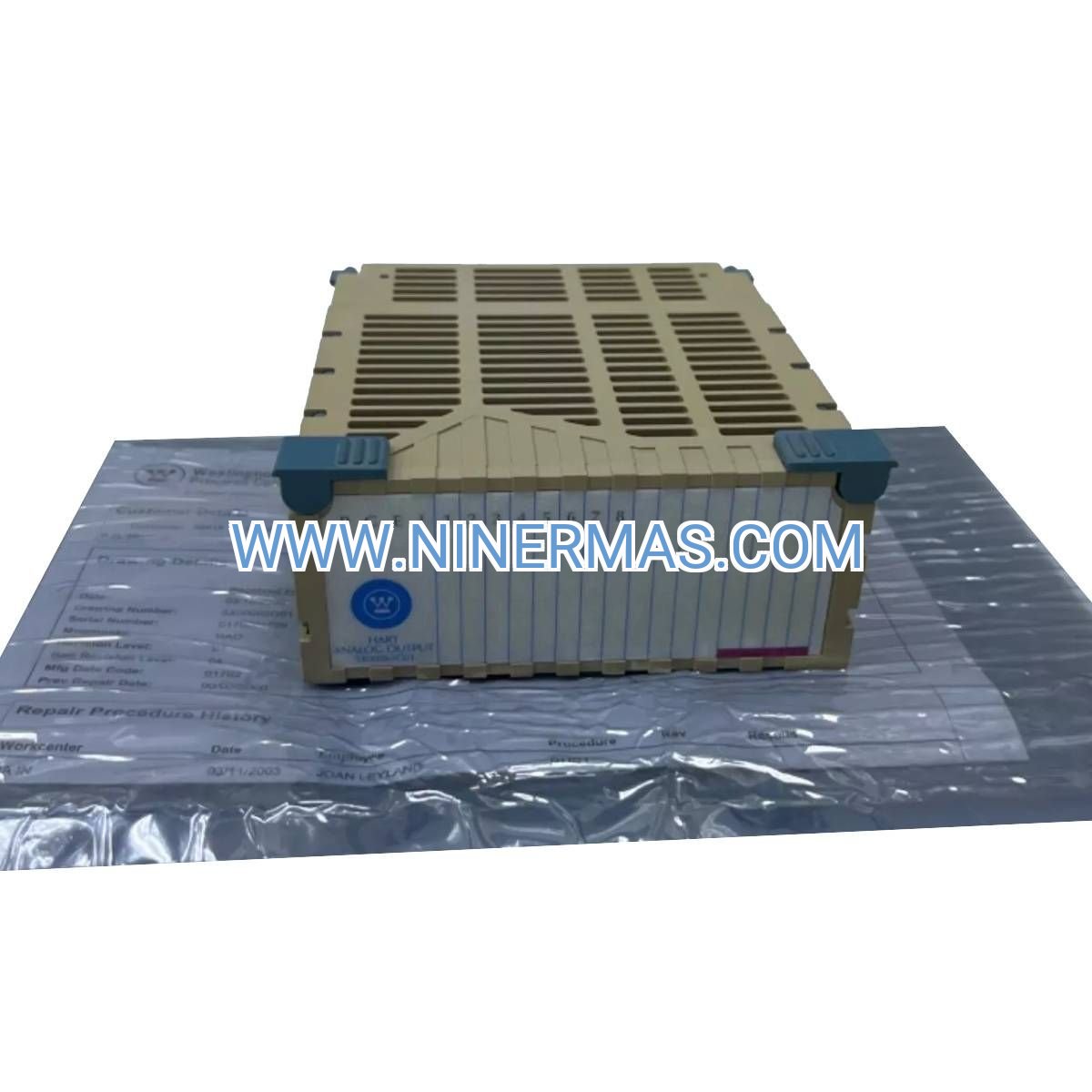

5X00062G01 Analog Output Module (Industrial-Grade HART Communication)

The 5X00062G01 is an 8-channel analog output module engineered for Emerson Ovation distributed control systems, delivering precision 4-20 mA current loop control with embedded HART protocol. This module enables simultaneous process variable transmission and intelligent device diagnostics, making it essential for industries requiring real-time control accuracy and predictive maintenance capabilities.

Designed for oil & gas refineries, chemical plants, power generation facilities, and water treatment operations, the 5X00062G01 addresses the challenge of managing multiple analog control loops while maintaining diagnostic visibility. Plant engineers and automation specialists rely on this module to reduce downtime, optimize asset performance, and ensure regulatory compliance in safety-critical environments.

With hot-swappable architecture, channel-to-channel isolation, and backward compatibility across Ovation platform generations, the 5X00062G01 provides a future-proof solution for both greenfield installations and brownfield retrofits. Its dual-communication capability eliminates the need for separate diagnostic wiring, reducing installation costs by up to 30% compared to traditional analog-only systems.

Core Features & Benefits

→ Dual-Protocol Architecture: Combines 4-20 mA analog control with HART digital communication on the same pair of wires, enabling real-time device configuration, calibration verification, and fault diagnostics without interrupting process control signals. This reduces troubleshooting time by 40-60% compared to analog-only systems.

→ High-Density I/O Design: Eight independent output channels per module maximize rack space utilization, reducing cabinet footprint and wiring complexity. Each channel features galvanic isolation (1500V AC) to prevent ground loops and cross-channel interference in electrically noisy industrial environments.

→ Hot-Swap Serviceability: Field-replaceable design allows module removal and installation during live operation without system shutdown. Automatic configuration download from the controller ensures zero-touch commissioning, minimizing mean time to repair (MTTR) to under 5 minutes.

✓ 12-Bit Resolution: Delivers 0.024% accuracy across the 4-20 mA range, meeting ISA-50.00.01 Class A performance standards for critical control loops such as flow, pressure, and temperature regulation.

✓ Extended Temperature Range: Operates reliably from 0°C to 60°C (32°F to 140°F) with conformal coating protection against humidity, dust, and corrosive gases—certified for IEC 61131-2 industrial environments.

✓ Lifecycle Compatibility: Supports Ovation 1.0 through 3.x controller platforms, protecting capital investments and enabling phased migration strategies without forklift upgrades.

Typical Application Scenarios

Refinery Process Control: In crude distillation units, the 5X00062G01 drives pneumatic control valves regulating reflux ratios, reboiler steam flow, and product draw rates. HART diagnostics provide early warning of valve stem friction, positioner drift, and I/P transducer failures—preventing off-spec product and unplanned shutdowns.

Chemical Batch Manufacturing: Pharmaceutical and specialty chemical plants use the module to control dosing pumps, reactor agitators, and temperature control valves. The HART layer enables recipe verification, ensuring each batch meets FDA 21 CFR Part 11 traceability requirements through automated device audit trails.

Power Plant Auxiliary Systems: Boiler feedwater control, condensate polishing, and flue gas treatment systems leverage the module's fast 100 ms update rate for tight PID loop performance. Integrated diagnostics monitor loop current integrity, detecting wiring faults before they cause turbine trips or emissions excursions.

Water & Wastewater Treatment: Municipal treatment facilities deploy the 5X00062G01 to control chemical feed pumps (chlorine, coagulants, pH adjustment) and variable frequency drives for blowers and mixers. HART data integration with SCADA systems enables remote calibration and compliance reporting.

Pulp & Paper Production: Stock preparation, bleaching, and coating operations require precise flow and consistency control. The module's isolated outputs prevent electrical noise from high-power motor drives from corrupting control signals, maintaining ±0.1% setpoint accuracy.

Technical Parameters & Selection Guide

Selection Criteria: Choose the 5X00062G01 when your application requires (1) simultaneous analog control and digital diagnostics, (2) high channel density in limited rack space, (3) compatibility with existing Ovation infrastructure, or (4) compliance with safety instrumented system (SIS) standards requiring diagnostic coverage >90%. For applications needing only basic 4-20 mA output without HART, consider the 5X00063G01 analog-only variant to reduce costs.

Extended Functions

Asset Management Integration: The module's HART interface connects to AMS Device Manager, PACTware, or FieldCare software for centralized device configuration, calibration records, and predictive maintenance alerts. Automatic device identification (DD files) eliminates manual parameter entry during commissioning.

Redundancy Options: Pair with Ovation redundant controllers and I/O networks for fault-tolerant architectures meeting IEC 61508 SIL 2 requirements. Automatic failover occurs within 50 ms, ensuring continuous control during module or network failures.

Custom Scaling & Linearization: Configure square-root extraction for differential pressure flow measurement, or apply custom polynomial curves for non-linear valve characteristics—all through software without external signal conditioners.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-3 business days via DHL/FedEx. Custom-configured modules (special firmware, extended temperature ratings) require 4-6 weeks. Expedited processing available for emergency shutdowns.

Warranty: 24-month manufacturer defect coverage from shipment date. Includes advance replacement service—receive a swap unit within 48 hours, return the defective module using prepaid label.

Technical Support: Access to Emerson-certified application engineers for loop tuning assistance, HART troubleshooting, and system integration guidance. Phone/email support available 8 AM - 8 PM CST, Monday-Friday.

Documentation Package: Each module includes installation manual, HART DD files, AutoCAD terminal block drawings, and sample ladder logic for common PLC integration scenarios. Online access to firmware updates and technical bulletins.

Frequently Asked Questions

Q: How do I connect HART communicators to the 5X00062G01 output channels?
A: Connect your HART handheld or modem across the field device terminals (positive and negative) while the loop is powered. The module's internal circuitry allows simultaneous 4-20 mA control and HART FSK communication without additional resistors. Ensure loop resistance is between 250-750 Ω for reliable HART signal integrity.

Q: What is the maximum cable length for maintaining HART communication?
A: HART protocol supports up to 3000 meters (10,000 feet) using standard twisted-pair instrumentation cable (18-22 AWG). For distances exceeding 1500 meters, verify total loop capacitance remains below 65 nF to prevent signal attenuation. Use shielded cable in high-EMI environments.

Q: Can this module drive both current-to-pressure transducers and smart positioners?
A: Yes. The 5X00062G01 provides standard 4-20 mA output compatible with analog I/P converters, while HART-enabled smart positioners (Fisher DVC6200, Masoneilan SVI, etc.) receive both control signal and diagnostic data. Configure the positioner's HART address (1-15) to avoid conflicts if multiple devices share the same loop.

Q: Does the module support HART multidrop mode for multiple devices per channel?
A: No. The 5X00062G01 operates in HART point-to-point mode only, where each output channel controls one field device. For multidrop applications requiring multiple sensors on a single pair, use the 5X00070G01 HART input module instead.

Q: How does the module handle output channel failures or short circuits?
A: Each channel features independent short-circuit protection and diagnostics. If a fault occurs (open wire, shorted output, overload), the module flags the specific channel in the controller's I/O health status while maintaining normal operation on the remaining seven channels. The faulty channel enters a safe state (typically 0 mA or last valid value, configurable).

Q: Is the 5X00062G01 suitable for hazardous area installations?
A: The module itself is rated for Zone 2/Division 2 non-incendive installations when mounted in an Ovation controller cabinet. For Zone 1/Division 1 applications, use approved intrinsic safety barriers (MTL, Pepperl+Fuchs) between the module and field devices. Consult the installation manual for entity parameters and wiring diagrams.
