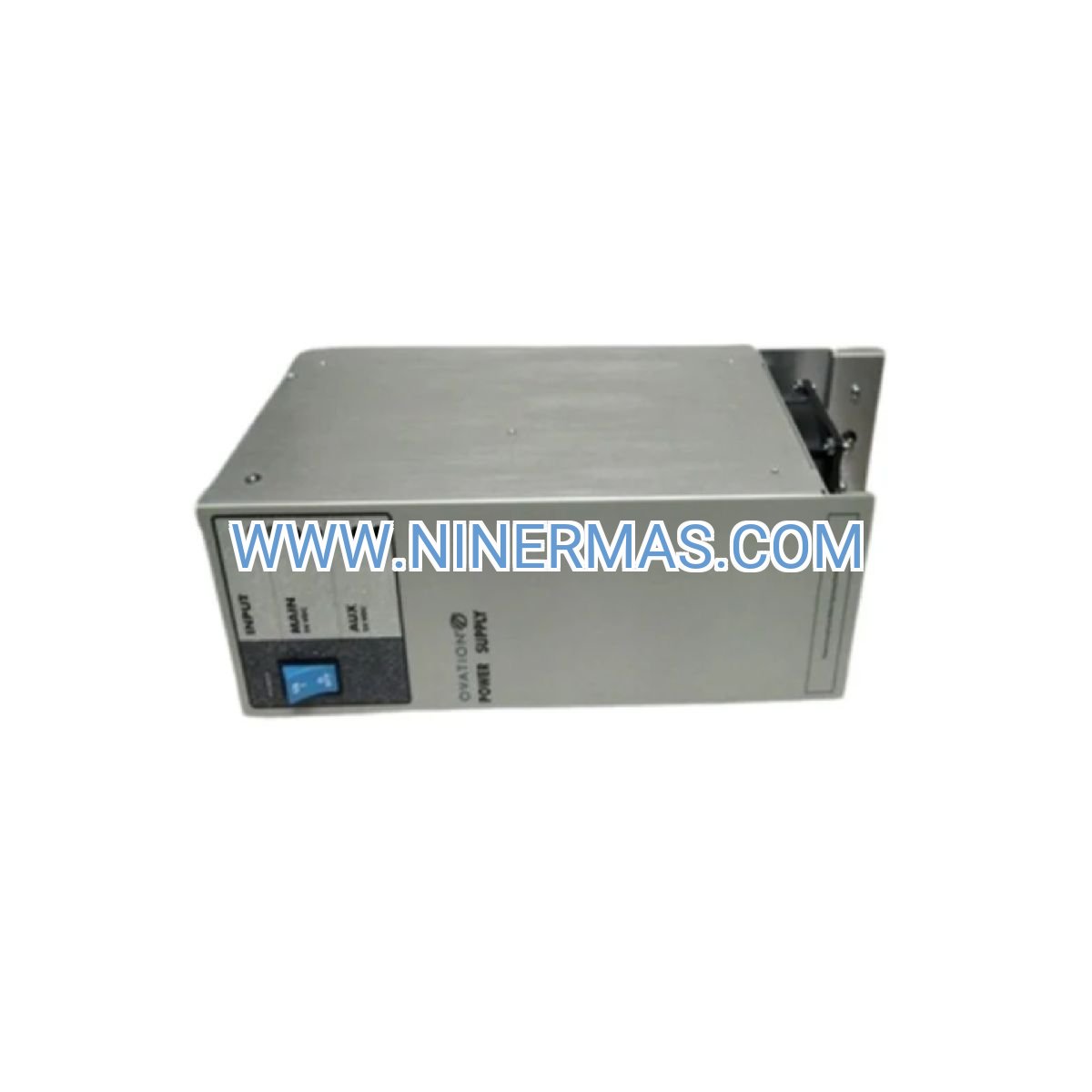

1X00691H01 Power Supply Module (Industrial-Grade 24VDC Converter)

The 1X00691H01 represents a mission-critical power conversion solution designed specifically for Emerson Ovation distributed control environments. Engineered to transform universal AC mains into precision-regulated 24VDC output, this industrial power supply module serves as the electrical backbone for controllers, I/O racks, and communication infrastructure across process automation installations worldwide.

Built to withstand the demanding conditions of refineries, chemical plants, and power generation facilities, the 1X00691H01 combines switch-mode efficiency with industrial-grade component selection. Its universal input architecture eliminates voltage-specific inventory requirements while comprehensive protection circuits safeguard downstream equipment investments worth millions of dollars.

Whether you're maintaining legacy Ovation systems or designing new control architectures, the 1X00691H01 delivers the reliability and performance that process industries demand. With >200,000-hour MTBF and hot-swappable capability, this power supply minimizes unplanned downtime while simplifying maintenance operations.

Core Capabilities & Technical Advantages

→ Universal AC Input Architecture
Accepts 100-240 VAC at 50/60 Hz without manual configuration, enabling standardized deployments across global facilities. Eliminates the need for voltage-specific spare parts inventory and simplifies international project specifications.

→ High-Efficiency Switch-Mode Design
Achieves >85% conversion efficiency at full load, reducing heat generation by 40% compared to linear regulators. Lower thermal stress extends component lifespan while reducing cooling infrastructure requirements and energy costs.

→ Multi-Layer Protection System
Integrated overvoltage, overcurrent, short-circuit, and thermal shutdown circuits protect expensive DCS components from power anomalies. Automatic recovery after fault clearance minimizes operator intervention during transient grid disturbances.

✓ Precision Voltage Regulation
Maintains ±1% output stability across line voltage variations and load changes from 0-100%. Clean 24VDC power ensures accurate operation of analog I/O modules measuring critical process variables.

✓ Low-Noise Output Performance
Ripple and noise specification <100 mV peak-to-peak prevents interference with sensitive measurement circuits. Internal EMI filtering meets industrial electromagnetic compatibility standards without external components.

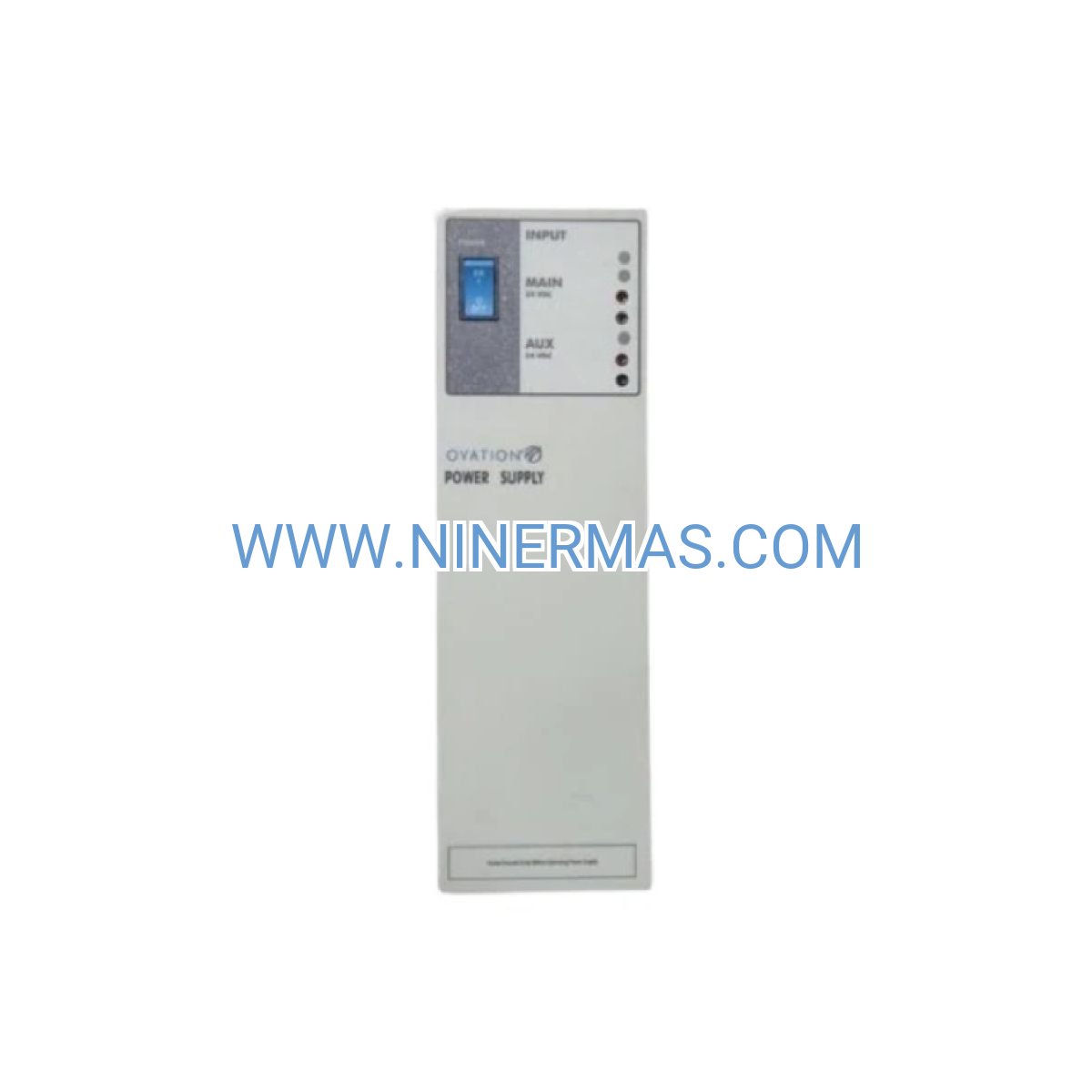

✓ Diagnostic LED Array
Front-panel indicators provide instant visual confirmation of AC input status, DC output health, and fault conditions. Enables rapid troubleshooting without test equipment during commissioning and maintenance activities.

Industrial Application Environments

Oil & Gas Production Facilities
Powers Ovation controllers managing offshore platforms, pipeline compressor stations, and gas processing plants. The wide -40°C to +60°C operating range accommodates outdoor equipment shelters in Arctic and desert climates. Redundant PSU configurations ensure continuous operation during the 3-5 year intervals between platform maintenance shutdowns.

Chemical & Petrochemical Manufacturing
Energizes safety instrumented systems (SIS) and basic process control systems (BPCS) in hazardous area classifications. The module's robust EMI filtering prevents interference from VFD motor drives operating nearby reactors and distillation columns. Low-ripple output maintains measurement accuracy for pH, conductivity, and analytical instruments requiring stable reference voltages.

Electric Utility Generation & Distribution
Supplies control power for turbine governors, boiler automation, and substation SCADA systems. High MTBF rating reduces maintenance requirements in continuously operating baseload power plants. Universal input voltage accommodates utility grid variations during load-following operations and grid disturbances.

Pulp & Paper Production Lines
Provides reliable DC power for web tension control, moisture measurement, and quality monitoring systems. The forced-air cooling design handles high-temperature environments near dryers and calenders. Hot-swappable capability enables replacement during brief production pauses without full line shutdown.

Water Treatment Infrastructure
Energizes municipal SCADA networks controlling pumping stations, filtration processes, and chemical feed systems. Overvoltage protection prevents damage during lightning strikes common at remote well sites and elevated storage tanks. Compact rack-mount form factor fits existing control panel layouts during system upgrades.

Technical Parameters & Selection Criteria

Sizing Guidelines: Sum the current draw of all controllers, I/O modules, and network interfaces in the rack. Apply 20% derating factor for long-term reliability and future expansion capacity. For redundant configurations, each PSU should handle 100% of the total load independently.

Advanced Integration Features

Redundant Power Architecture Support
Deploy dual 1X00691H01 modules with automatic load sharing and seamless failover capability. Diode-OR circuits prevent reverse current flow while enabling N+1 redundancy for fault-tolerant applications. Each unit operates at 50% capacity during normal conditions, providing full backup if one module fails.

Remote Monitoring Integration
Fault status signals interface with Ovation operator workstations for centralized alarm management. Diagnostic messages identify specific failure modes including overvoltage, overcurrent, and thermal shutdown conditions. Enables predictive maintenance scheduling based on operating hours and thermal cycling history.

Flexible Installation Options
Standard rack-mount design integrates with existing Ovation controller chassis without modifications. Front-accessible terminals simplify field wiring and reduce installation time. Removable terminal blocks enable pre-wiring and rapid module replacement during emergency repairs.

Delivery Timeline & Support Services

Standard Lead Time: 3-5 business days for in-stock units with expedited shipping available to critical facilities
Custom Configuration: 2-3 weeks for special voltage ratings or extended temperature range variants
Warranty Coverage: 12-month manufacturer warranty covering defects in materials and workmanship
Technical Assistance: Pre-sales application engineering support for power system design and load calculations
Documentation Package: Installation manual, wiring diagrams, dimensional drawings, and certification documents included

Frequently Asked Questions

Q: Can the 1X00691H01 power supply operate with European 230VAC single-phase power?
A: Yes, the universal input design accepts 100-240 VAC at 50 or 60 Hz without any configuration changes. The auto-ranging input circuit automatically adapts to the connected voltage, making it suitable for global deployments including European 230VAC, North American 120VAC, and Asian 220VAC systems.

Q: What is the maximum rack configuration this power supply module can support?
A: The 1X00691H01 provides sufficient capacity for typical Ovation racks including OCR400 controllers, multiple I/O modules, and communication interfaces. Calculate your specific load by summing the current draw specifications from each module's datasheet. For large racks or future expansion, consider redundant PSU configuration or higher-capacity models.

Q: How does the thermal shutdown protection improve system reliability?
A: Internal temperature sensors continuously monitor critical components. If ambient temperature exceeds safe operating limits or cooling airflow becomes restricted, the module automatically shuts down before damage occurs. After cooling and fault clearance, the PSU automatically restarts, preventing permanent failure and protecting your equipment investment.

Q: Is hot-swapping possible during system operation for maintenance purposes?
A: In redundant configurations with dual power supplies, you can replace one 1X00691H01 module while the system remains energized. The surviving PSU automatically assumes full load while you service the removed unit. This capability eliminates costly production shutdowns for routine maintenance in continuous process industries.

Q: What preventive maintenance schedule do you recommend for optimal lifespan?
A: Perform quarterly visual inspections of LED indicators and verify proper fan operation. Clean air intake filters semi-annually to maintain cooling efficiency. Annually measure output voltage accuracy and inspect terminal connections for tightness. Plan electrolytic capacitor replacement after 10-15 years of continuous operation in high-temperature environments.

Q: Does this power supply meet safety requirements for hazardous area installations?
A: The 1X00691H01 carries UL, CE, and CSA certifications for general industrial use. For installation in Division 1 or Zone 1 hazardous areas, mount the PSU in a properly rated control panel or purged enclosure per local electrical codes. The module itself is designed for control room or non-hazardous area equipment shelters.
