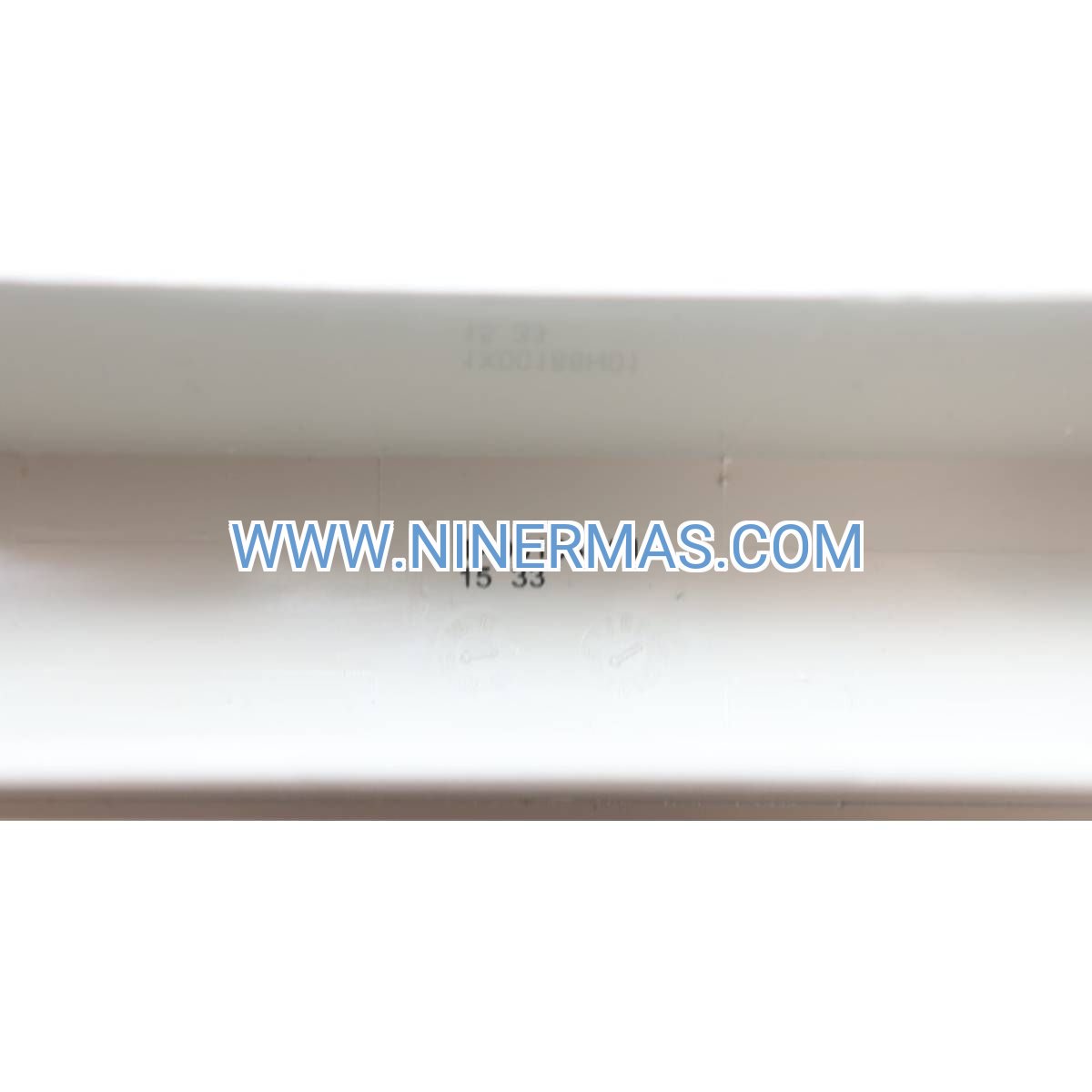

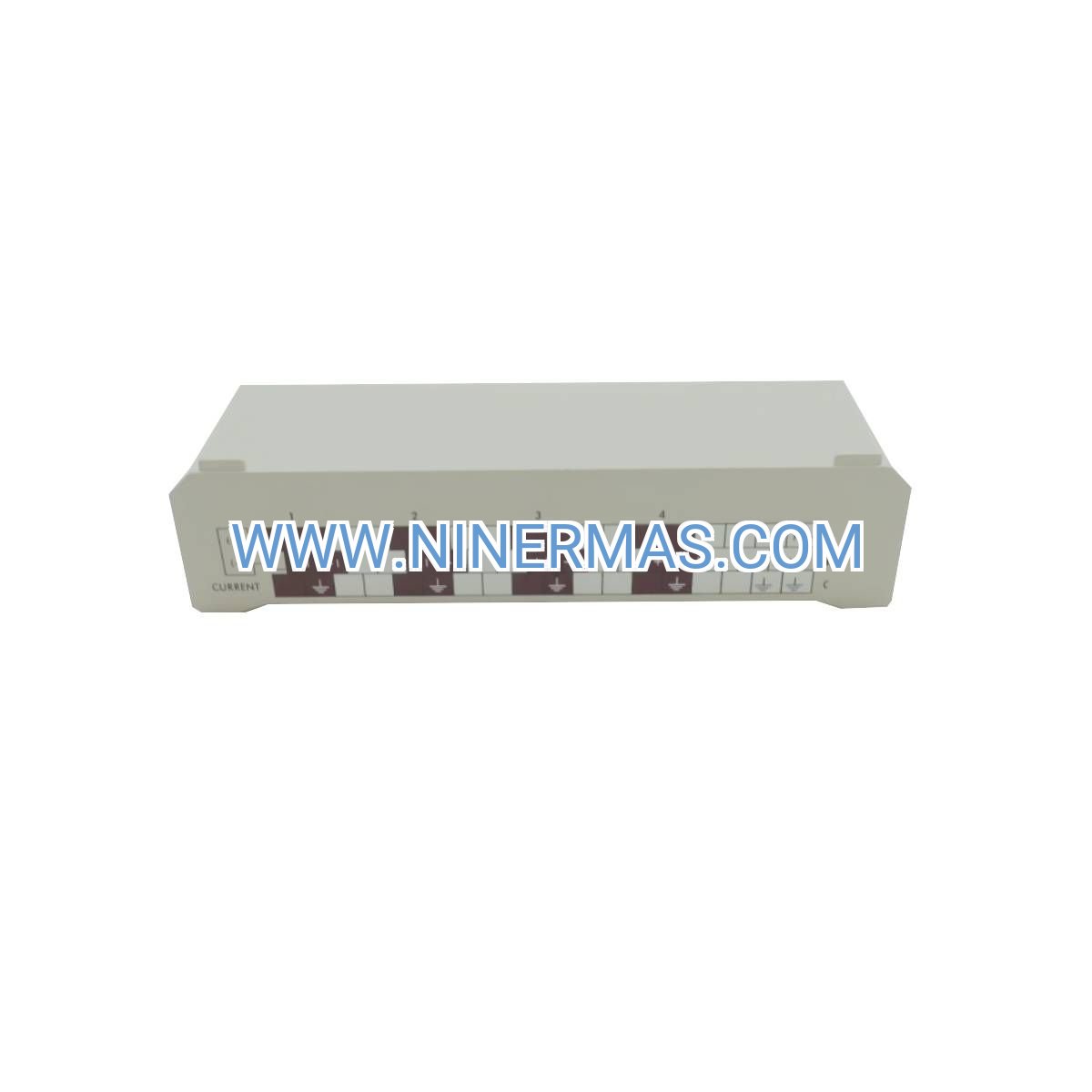

1X00188H01 HART Analog Output Personality Module (Industrial-Grade DCS Component)

The 1X00188H01 represents a critical interface between digital control logic and analog field instrumentation within Emerson Ovation distributed control architectures. This personality module insert converts controller commands into industry-standard 4-20mA current loops enhanced with Highway Addressable Remote Transducer (HART) protocol overlay, enabling simultaneous process variable transmission and intelligent device management across a single two-wire connection.

Designed for continuous-duty industrial environments, this module addresses the fundamental challenge of maintaining precise analog control while accessing advanced diagnostic data from smart field devices. Process engineers and automation specialists deploy the 1X00188H01 when applications demand both legacy analog compatibility and modern digital communication capabilities without additional wiring infrastructure.

Key differentiators include field-replaceable architecture that supports online module swapping without controller shutdown, channel-level electrical isolation that prevents fault propagation, and native integration with Ovation Developer Studio configuration tools that eliminate custom programming for standard control loops.

Core Functionality & Performance Advantages

→ Dual-Layer Communication Architecture: Transmits 4-20mA process control signals while simultaneously exchanging HART digital data at 1200 baud FSK modulation. Access device configuration, calibration parameters, and diagnostic alerts without interrupting the primary control loop—reducing commissioning time by 40% compared to analog-only systems.

✓ 12-Bit Digital-to-Analog Precision: Delivers 0.024% resolution across the full 4-20mA span, ensuring valve positioners and variable speed drives receive control signals accurate to ±0.004mA. Critical for applications where 1% output variation translates to measurable product quality or energy consumption differences.

✓ Hot-Swap Serviceability: Replace failed modules during operation without de-energizing the I/O base or adjacent channels. Maintenance windows shrink from hours to minutes, with automatic configuration download from the controller upon insertion—no manual parameter re-entry required.

✓ Comprehensive Fault Detection: Monitors loop current, wire break conditions, and HART communication health. Generates controller alarms for open circuits, short circuits, and device non-response within 100ms—enabling predictive maintenance before process upsets occur.

✓ Configurable Update Rates: Scan cycles adjustable from 10ms to 1000ms match control loop dynamics to process time constants. Fast-acting pressure control benefits from 50ms updates, while temperature loops optimize at 500ms to filter sensor noise.

✓ 1500V Channel Isolation: Galvanic separation between field wiring and controller backplane protects against ground loop currents and electrical transients. Prevents single-point failures from cascading across multiple I/O channels during lightning strikes or motor starter switching events.

Industrial Application Scenarios

Chemical Batch Processing: Control pneumatic control valves regulating reactant feed rates in pharmaceutical synthesis reactors. HART diagnostics reveal valve stem friction increases before mechanical failure, while 12-bit resolution maintains ±0.5% flow accuracy required for FDA batch record compliance.

Steam Turbine Control Systems: Drive electro-hydraulic actuators governing steam admission valves in combined-cycle power plants. Sub-second response times prevent overspeed trips during load rejection events, while HART data logs actuator stroke counts for predictive maintenance scheduling.

Refinery Distillation Columns: Regulate reflux ratio control valves in crude oil fractionation towers. Precise analog output maintains product cut points within 2°C specifications, while HART communication accesses valve position feedback for closed-loop verification without additional wiring.

Municipal Water Treatment: Operate chemical metering pumps dosing coagulants and disinfectants in clarification processes. HART protocol enables remote pump calibration adjustments from the control room, eliminating field technician dispatches for seasonal water chemistry changes.

Mining Ore Processing: Control variable frequency drives regulating conveyor speeds and crusher feed rates. Module withstands 0-60°C ambient temperature swings in unheated mill buildings while maintaining ±0.1% output accuracy across the operating range.

Technical Parameters & Selection Criteria

Selection Guidelines: Specify the 1X00188H01 when interfacing Ovation controllers with HART-enabled field devices requiring analog control signals. For applications needing multiple outputs, populate adjacent I/O base slots with additional modules—each operates independently with dedicated diagnostics. Non-HART devices function normally using only the 4-20mA layer; HART capability remains dormant until activated via configuration.

Extended Integration Capabilities

Asset Management Connectivity: HART variables integrate with AMS Device Manager and other FDT/DTM-based asset management platforms. Centralize device documentation, calibration records, and performance trending across distributed field instrumentation without proprietary gateways.

Redundancy Support: Deploy in redundant Ovation controller configurations where dual modules drive the same field device through selector logic. Automatic switchover maintains control during controller failover events with bumpless transfer—output deviation <0.5% during transition.

Custom Scaling Options: Configure non-linear output curves via Ovation function blocks for applications requiring square-root extraction (flow), characterized valve curves, or split-range control. Eliminates external signal conditioners and reduces panel space requirements.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock modules shipped from regional distribution centers. Expedited same-day shipping available for critical outage support.

Warranty Coverage: 24-month manufacturer warranty covering defects in materials and workmanship. Advance replacement program provides cross-shipped modules within 24 hours to minimize downtime.

Technical Support: Access to Emerson-certified application engineers for configuration assistance, troubleshooting guidance, and system integration planning. Phone and email support included; on-site commissioning services available separately.

Documentation Package: Includes installation manual with terminal wiring diagrams, Ovation Developer Studio configuration examples, HART DD (Device Description) files, and dimensional drawings for panel layout planning.

Frequently Asked Questions

Q: How does the 1X00188H01 HART module interface with existing Ovation I/O bases?
A: The module inserts directly into any Ovation I/O base slot configured for analog output personality modules. No hardware modifications required—simply configure the slot type in Developer Studio, insert the module, and download the configuration. The base provides power and backplane communication automatically.

Q: What maximum loop resistance can the module drive while maintaining HART communication?
A: The module supports up to 750Ω total loop resistance (including field device and wiring) for reliable 4-20mA operation. HART communication requires minimum 250Ω load resistance; add a 250Ω resistor if the field device presents lower impedance. Voltage drop calculations: 24VDC supply - (0.020A × 750Ω) = 9V minimum at device terminals.

Q: Can this module reduce energy consumption compared to older analog output designs?
A: Yes—the 1X00188H01 consumes 1.2W per channel versus 2.5W for legacy modules, reducing I/O base heat dissipation by 52%. In systems with 100+ analog outputs, this translates to measurable HVAC cost savings and improved cabinet reliability through lower ambient temperatures.

Q: What installation requirements must be met for proper module operation?
A: Mount the I/O base in a NEMA-rated enclosure maintaining 0-60°C ambient temperature. Provide 50mm clearance above modules for heat dissipation and cable routing. Use shielded twisted-pair cable for field wiring with shield grounded at one end only. Torque terminal screws to 0.5-0.6 Nm to prevent connection loosening from thermal cycling.

Q: Does the module support remote calibration and diagnostics without field visits?
A: Absolutely—HART protocol enables remote zero/span adjustments, loop current verification, and diagnostic data retrieval from the Ovation operator station. Technicians can troubleshoot wiring faults, verify device health, and adjust calibration parameters without leaving the control room, reducing maintenance costs by 30-40% annually.

Q: How does this module integrate with third-party HART devices from different manufacturers?
A: The 1X00188H01 complies with HART 7 universal command set, ensuring compatibility with any HART-registered device regardless of manufacturer. Import device-specific DD files into Ovation for access to proprietary parameters, or use universal commands for basic configuration—no vendor lock-in for field instrumentation selection.

Secure Your Ovation DCS Upgrade

Modernize your analog I/O infrastructure with intelligent HART communication while preserving existing field wiring investments. The 1X00188H01 delivers the diagnostic visibility and configuration flexibility that Industry 4.0 initiatives demand—without the cost and disruption of complete system replacement.

Request a technical consultation to evaluate compatibility with your specific Ovation controller revision and I/O base configuration. Our application engineers provide wiring diagrams, configuration file templates, and migration planning support at no charge.
