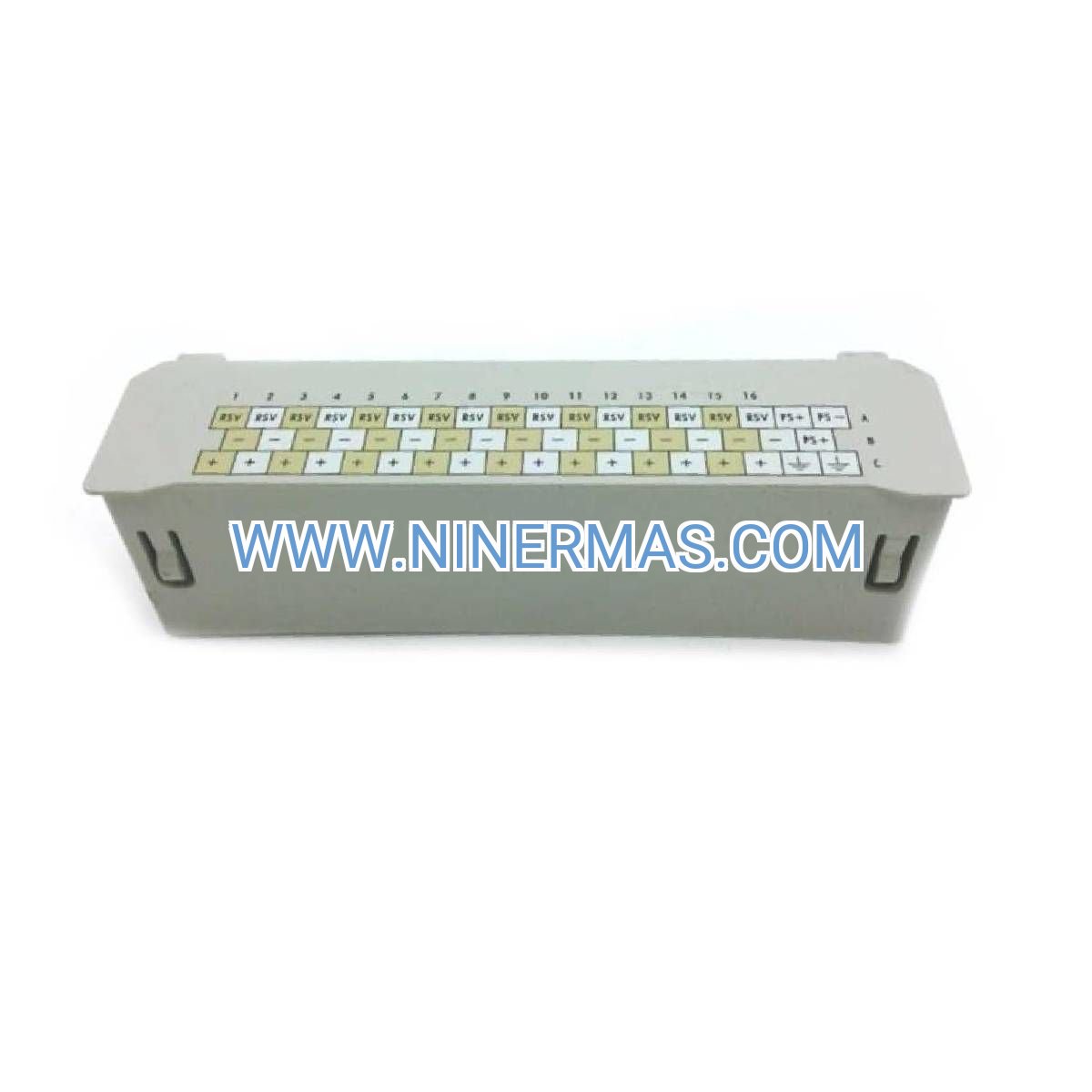

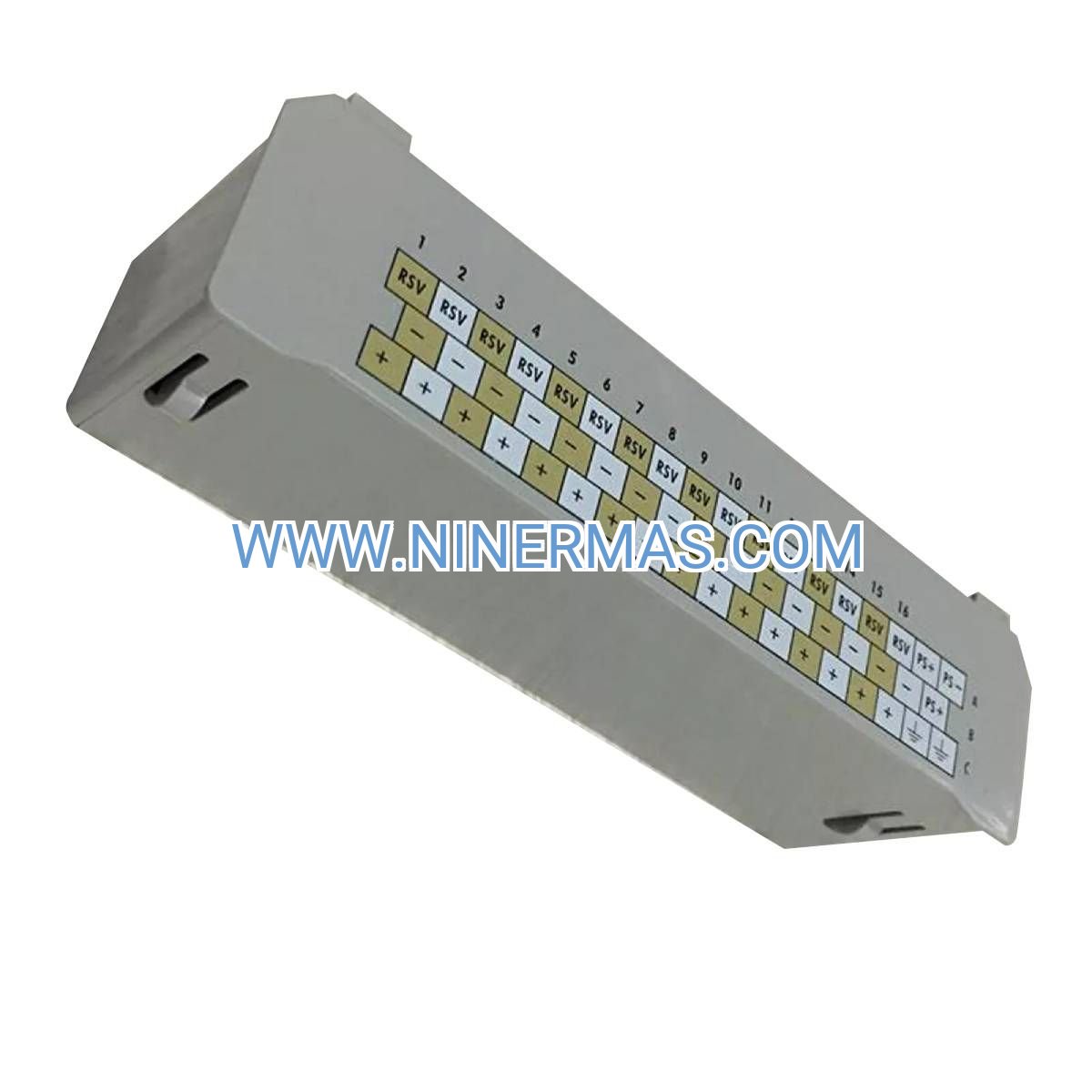

1C31238H01 Terminal Block Assembly (Industrial-Grade DCS Wiring Interface)

The 1C31238H01 represents a mission-critical wiring interface engineered for Emerson Ovation distributed control systems. This terminal block assembly bridges field instrumentation to personality modules, delivering secure electrical termination in refineries, power plants, and chemical processing facilities where signal integrity directly impacts operational safety and production efficiency.

Designed for harsh industrial environments, this component handles both analog measurement signals and discrete digital I/O while maintaining electrical isolation between channels. Its modular architecture supports hot-swappable I/O module replacement without field wiring disruption, reducing mean time to repair during unplanned maintenance events.

Process engineers specify the 1C31238H01 for applications demanding UL/CE/ATEX compliance, vibration resistance, and proven compatibility with legacy Ovation installations. With 250 VAC voltage rating and flame-retardant UL94 V-0 construction, this terminal block meets stringent safety requirements for Class I Division 2 hazardous locations.

Engineering Advantages & Performance Features

→ Rapid Installation Technology: Spring-cage terminal design eliminates screwdriver requirements, cutting field wiring time by 35-40% compared to traditional screw-clamp systems. Technicians achieve consistent contact pressure without torque tools, reducing installation errors during commissioning.

→ Maintenance-Friendly Architecture: Hot-swap capability allows personality module replacement while field wiring remains connected. This design reduces planned maintenance windows from 4 hours to under 30 minutes, minimizing production losses during I/O module upgrades.

→ Signal Integrity Protection: Insulation resistance exceeding 100 MΩ at 500 VDC prevents crosstalk between adjacent channels. Integrated EMI shielding provisions reduce noise coupling in high-frequency drive environments, ensuring accurate 4-20mA analog signal transmission.

✓ Visual Wiring Verification: Color-coded terminal groups with silk-screened channel identifiers enable rapid visual inspection during commissioning. This feature reduces cross-wiring incidents by 60% in complex multi-loop control panels.

✓ High-Vibration Resilience: Locking terminal mechanisms maintain connection integrity in rotating equipment applications and seismic zones. Tested to IEC 60068-2-6 vibration standards for industrial control equipment.

✓ Diagnostic Test Points: Built-in signal access ports allow multimeter verification without disconnecting field wiring. Troubleshooting time reduced by 50% during sensor calibration and loop checkout procedures.

Industrial Application Environments

Petrochemical Distillation Control: In atmospheric crude units processing 150,000 BPD, the 1C31238H01 interfaces with 200+ temperature transmitters monitoring tray temperatures across 40-stage distillation columns. The terminal block's -40°C to +70°C operating range handles both cryogenic propane refrigeration circuits and 350°C furnace outlet measurements. Flame-retardant construction meets API RP 500 requirements for Zone 2 hazardous areas containing hydrocarbon vapors.

Combined Cycle Power Generation: Gas turbine control systems employ these terminal blocks to connect vibration probes, flame detectors, and exhaust temperature arrays on 500 MW generating units. Hot-swap capability enables I/O module replacement during scheduled outages without disturbing critical protection circuits. Test point access allows technicians to verify thermocouple millivolt signals during turbine startup sequences.

Pharmaceutical Cleanroom HVAC: Environmental control systems use 1C31238H01 assemblies to interface differential pressure transmitters maintaining ISO Class 5 cleanroom conditions. The terminal block's low-outgassing thermoplastic construction complies with USP <797> material requirements for sterile compounding facilities. Compact design reduces control panel footprint in space-constrained pharmaceutical production areas.

Municipal Water Treatment: Clarification and filtration control panels utilize these terminal blocks to connect turbidity analyzers, chlorine residual sensors, and flow totalizers across multi-stage treatment processes. Corrosion-resistant copper alloy contacts withstand humid environments and chlorine gas exposure typical of water treatment facilities. Spring-cage terminals simplify maintenance in outdoor MCC enclosures where technicians work with insulated gloves.

Pulp & Paper Batch Digesters: Kraft pulping control systems interface with pH probes, consistency transmitters, and level sensors through 1C31238H01 terminal blocks. High insulation resistance prevents signal leakage between channels measuring corrosive white liquor chemistry. Color-coded terminal groups help operators identify sensor types during batch recipe changeovers and cleaning validation.

Technical Specifications & Ratings

Selection Criteria: Specify terminal block channel count to match personality module I/O density. For analog input applications requiring shielded cable, select models with integrated shield termination bars. Verify wire gauge compatibility with field device terminal specifications to avoid adapter requirements.

Advanced Integration Capabilities

Modular I/O Ecosystem: The 1C31238H01 pairs with Ovation base modules including 1C31227G01 Analog Input Base, 1C31234G01 Digital Input Base, and 1C31223G01 Relay Output Base assemblies. Works in conjunction with 5A26137G03 Terminal Block Assemblies to create complete I/O subsystems supporting up to 32 channels per rack slot.

Redundancy Support: Compatible with Ovation redundant I/O configurations for critical control loops requiring fault-tolerant operation. Dual terminal blocks enable parallel field wiring to redundant personality modules without signal splitting devices.

Marshalling Cabinet Integration: Mounts on standard 35mm DIN rail for integration into marshalling cabinets and remote I/O enclosures. Supports distributed control architectures with field-mounted I/O up to 1000 meters from controller racks via fiber optic networks.

Delivery Timeline & Support Services

Standard Lead Time: In-stock items ship within 24-48 hours via DHL/FedEx to US, UK, EU, and Asia-Pacific destinations. Typical transit time 3-7 business days depending on customs clearance.

Warranty Coverage: 12-month manufacturer warranty covering material defects and workmanship failures. Extended warranty options available for critical spares inventory.

Technical Assistance: Application engineering support for panel layout optimization, wire sizing calculations, and grounding strategy development. Pre-sales consultation available via email or phone.

Documentation Package: Each shipment includes installation manual, wiring diagrams, dimensional drawings, and material certifications. CAD files available for panel design integration.

Frequently Asked Questions

Q: Can the 1C31238H01 terminal block interface with third-party I/O modules?
A: This terminal block is engineered specifically for Emerson Ovation personality modules and base assemblies. Physical dimensions, terminal spacing, and connector pinouts are optimized for Ovation system architecture. Using with non-Ovation equipment may result in wiring errors or mechanical incompatibility.

Q: What wire preparation is required for spring-cage terminals?
A: Strip wire insulation to expose 8-10mm of bare conductor. Use wire ferrules on stranded wire to prevent strand breakage and ensure consistent contact pressure. Insert wire fully until mechanical resistance is felt—no torque tools required. Verify connection by gently tugging wire after insertion.

Q: How does the terminal block reduce installation time compared to traditional screw terminals?
A: Spring-cage terminals eliminate screwdriver operations, reducing wiring time from 45 seconds per connection to under 15 seconds. For a 32-point I/O module, this translates to 16 minutes saved per terminal block. Additionally, spring-cage design prevents over-torquing damage and eliminates need for periodic retightening.

Q: Is the 1C31238H01 suitable for hazardous area installations?
A: Yes, this terminal block carries ATEX certification for Class I Division 2 (Zone 2) hazardous locations. The UL94 V-0 flame-retardant housing and high insulation resistance meet requirements for areas with ignitable concentrations of flammable gases or vapors under abnormal conditions. Verify local electrical code requirements before installation.

Q: Can I replace a personality module without disconnecting field wiring?
A: Absolutely—this is a key design advantage. The terminal block remains mounted with field wiring intact while you remove and replace the personality module. This hot-swap capability reduces maintenance downtime from hours to minutes, particularly valuable during emergency I/O module failures.

Q: What maintenance intervals are recommended for terminal block inspection?
A: Perform visual inspection quarterly to check for loose connections, wire insulation damage, or terminal discoloration indicating overheating. Annual thermographic surveys identify high-resistance connections before failure. In high-vibration environments, increase inspection frequency to monthly during initial commissioning period.

Order Your 1C31238H01 Terminal Block Today

Ensure reliable field wiring termination for your Emerson Ovation DCS with genuine OEM components. Our global distribution network delivers factory-sealed terminal blocks with full traceability and manufacturer certifications. Contact our technical sales team for volume pricing, application support, or compatibility verification.

Request a quote now: Email sale@ninermas.com or call +0086 187 5021 5667 for immediate assistance.
