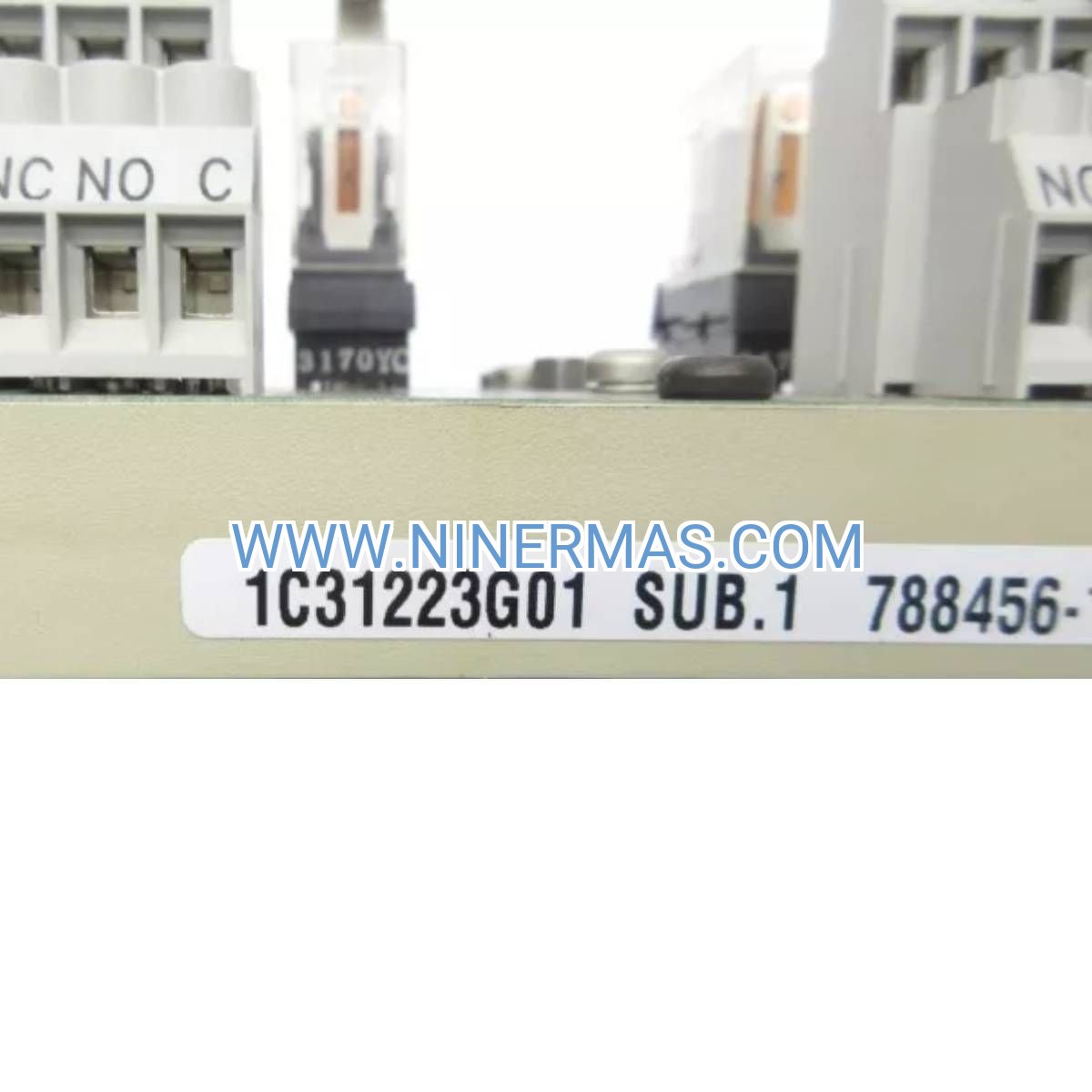

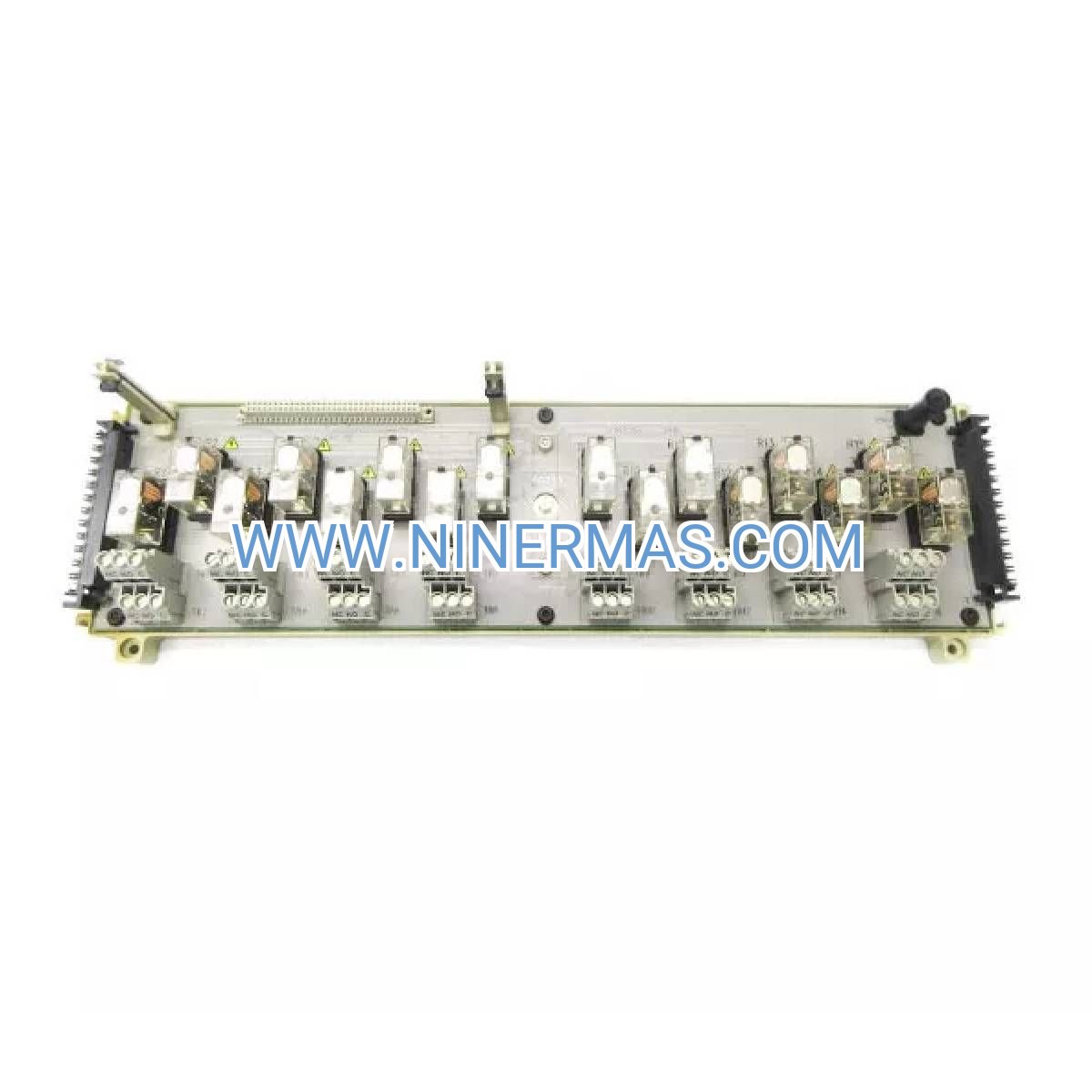

1C31223G01 Relay Output Base Module (Industrial-Grade DCS Interface)

The 1C31223G01 represents a field-proven relay output base engineered for Emerson Ovation distributed control architectures. This module translates digital controller commands into isolated mechanical relay closures, enabling direct control of solenoid valves, motor contactors, annunciator panels, and emergency shutdown devices across process industries.

Designed for environments where electrical isolation and fail-safe operation are non-negotiable—chemical plants, refineries, power stations, and water treatment facilities rely on this base module to maintain process integrity during normal operations and emergency scenarios. The Form C contact configuration provides both normally-open and normally-closed circuits for maximum application flexibility.

Key differentiators include hot-swappable architecture for zero-downtime maintenance, per-channel diagnostic LEDs for rapid fault isolation, and conformal coating that withstands corrosive atmospheres. Fully compatible with Ovation 3.5+ controller platforms and WinTools configuration software, ensuring seamless integration into existing DCS infrastructures.

Core Features & Benefits

→ Optical Isolation Technology
Galvanic separation between controller logic and field circuits prevents ground loops and protects sensitive electronics from voltage transients—critical for maintaining system uptime in electrically noisy industrial environments.

→ Dual-Voltage Compatibility
Handles both AC (24-250V) and DC field devices with a single module type, reducing spare parts inventory and simplifying procurement. Eliminates the need for separate relay panels or interposing relays.

→ 2-Ampere Contact Rating
Sufficient capacity to directly drive pilot solenoids, indicator lamps, and small motor starters without external amplification. Reduces wiring complexity and panel space requirements by 30-40% compared to traditional relay racks.

✓ Hot-Swap Capability
Replace failed modules during live operation without halting the process or entering bypass mode. Maintenance windows shrink from hours to minutes, directly improving plant availability metrics.

✓ Visual Diagnostics
Individual LED indicators per output channel display real-time contact status and fault conditions. Technicians identify wiring errors or stuck relays in seconds rather than tracing circuits with multimeters.

✓ Harsh-Environment Protection
Factory-applied conformal coating resists moisture ingress, chemical vapors, and particulate contamination. Proven reliability in Class I Division 2 hazardous locations and marine offshore platforms.

Typical Application Scenarios

Batch Process Control
Pharmaceutical and specialty chemical manufacturers use the 1C31223G01 to sequence ingredient addition valves, agitator motors, and heating elements. The module's deterministic switching eliminates recipe deviations caused by timing uncertainties in solid-state outputs.

Emergency Shutdown Systems (ESD)
Oil & gas facilities implement SIL-rated safety logic by routing critical trips through hardwired relay contacts. Independent of software execution, these contacts provide the final element in preventing runaway reactions or overpressure events—meeting API and IEC 61511 requirements.

Boiler Management Systems
Power generation plants control burner igniters, fuel valves, and draft dampers through relay outputs that interface with flame safeguard systems. The module's voltage flexibility accommodates both 120VAC pilot devices and 24VDC actuators within a single I/O rack.

Water Treatment Automation
Municipal utilities command chemical dosing pumps, clarifier rakes, and filter backwash valves. The conformal coating withstands high-humidity environments and chlorine exposure common in treatment facilities.

Legacy System Modernization
Facilities upgrading from pneumatic or analog control retain existing field devices by using relay outputs as translation layers. This phased migration approach preserves capital investment while gaining Ovation's advanced diagnostics and historian integration.

Technical Parameters & Selection Guide

Selection Criteria: Choose relay outputs when controlling inductive loads (solenoids, contactors), interfacing with safety-rated devices requiring physical contact separation, or bridging to legacy 120VAC control circuits. For high-speed switching (>10 Hz) or solid-state device control, consider transistor output modules from the 1C31xxx family.

Extended Functions

Redundant Controller Integration: Supports dual-controller configurations where backup systems automatically assume control during primary failures. Relay outputs maintain last commanded state during controller switchover, preventing process upsets.

Alarm Annunciation: Drive external horn/light panels or SCADA system inputs to alert operators of abnormal conditions. Latching relay logic can be configured in WinTools for acknowledge-required alarms.

Custom Terminal Blocks: Optional screw-terminal or spring-clamp assemblies accommodate different wire gauges (14-22 AWG) and installation preferences. Removable blocks enable pre-wiring and rapid module replacement.

Ovation Ecosystem Synergy: Pairs with 1C31xxx analog I/O, communication gateways, and controller modules for complete DCS solutions. Unified configuration database simplifies engineering and reduces commissioning time by 25-35%.

Delivery & Service Assurance

Lead Time: Stock items ship within 2-5 business days. Custom configurations or bulk orders (10+ units) typically require 3-4 weeks—contact our team for expedited options during turnarounds or emergency outages.

Warranty Coverage: 12-month manufacturer defect warranty from shipment date. Extended service agreements available for critical spares programs and on-site commissioning support.

Technical Support: Access to Emerson-certified engineers for configuration assistance, troubleshooting, and firmware compatibility verification. Remote diagnostics via secure VPN for rapid issue resolution.

Documentation Package: Includes installation manual, wiring diagrams, dimensional drawings, and compliance certificates. WinTools configuration examples and ladder logic templates provided upon request.

Frequently Asked Questions

Q: How does the 1C31223G01 relay output base integrate with existing Ovation controllers?
A: The module mounts on standard DIN rail within Ovation I/O racks and connects via backplane communication. WinTools software auto-discovers the module during system scan—simply assign tag names and configure contact logic (energize-to-open vs. energize-to-close). No custom programming required for basic on/off control.

Q: What relay output capacity should I specify for solenoid valve applications?
A: Most pilot solenoids draw 0.3-0.8A inrush current, well within the 2A rating. For larger process valves with 1.5A+ coils, consider using the relay output to trigger an interposing contactor rated for the full load. Always verify inductive kick suppression (varistor or diode) on valve coils to prevent contact welding.

Q: Can this module achieve energy savings compared to continuously-powered relay panels?
A: Yes—relay coils only consume power during state transitions (milliseconds), then hold mechanically. Compared to solid-state outputs that dissipate heat continuously, relay modules reduce panel cooling requirements by 15-20W per rack, lowering HVAC loads in control rooms.

Q: What installation requirements apply for hazardous area deployments?
A: For Class I Division 2 (Zone 2) installations, mount the module in purged/pressurized enclosures or general-purpose panels located outside hazardous zones. Field wiring must use intrinsically-safe barriers or sealed conduit per NEC Article 501. Consult the module's ATEX certificate for specific temperature class (T-code) limitations.

Q: Does the 1C31223G01 support remote monitoring and predictive maintenance?
A: Ovation controllers log relay cycle counts, contact resistance trends, and fault events to the system historian. Maintenance teams set threshold alarms (e.g., >100,000 cycles) to schedule proactive replacements before failures occur. Integration with AMS Device Manager enables enterprise-wide asset health dashboards.

Q: How do I verify compatibility with my current Ovation firmware version?
A: The 1C31223G01 supports Ovation 3.5 and later releases. Check your controller's firmware revision in WinTools (Help > About) and cross-reference with Emerson's I/O compatibility matrix (document KJ-080). Our team provides pre-sale verification to confirm seamless integration.

Take the Next Step

Enhance your Ovation DCS reliability with the 1C31223G01 relay output base—engineered for the toughest industrial environments. Request a technical datasheet, discuss your specific application requirements, or place an order by contacting our automation specialists today. Volume discounts available for plant-wide upgrades and multi-site deployments.
